Overview
Fluid-path heating in diagnostic equipment is an assembly-level thermal and materials problem. this guide organizes fluid residence, channel geometry, heat transfer, sensor placement, controls, wetted-material ownership, cleaning, bubbles, faults, and validation while making no medical-device, sterility, biocompatibility, or diagnostic-performance claim. Before applying an IVD, medical-device, biocompatibility, or reprocessing source, the equipment developer must first establish the intended use, jurisdiction, body-contact boundary, and reusable or single-use path.
Failure controls
These are review prompts, not evidence that every risk applies or that every test is available.
- A
A sensor on the heater or housing can report a different thermal state from the fluid at the decision point.
- B
Bubbles, stagnant pockets, flow pulsation, or partial filling can create local overheating while average outlet temperature appears acceptable.
- C
Changing adhesive thickness, mounting pressure, channel wall, or interface contact can alter both warm-up time and hot-spot location.
- D
A thermally suitable construction does not establish biocompatibility, sterility, chemical compatibility, diagnostic accuracy, or medical-device compliance.
- E
Cleaning chemistry and temperature can affect seals, coatings, adhesives, conductors, protection layers, and carryover differently from the process fluid.
- F
Control tuning that works at one volume or ambient condition can overshoot or respond too slowly at another boundary condition.
Engineering review matrix
Each row links a design variable to evidence that can support a drawing or release decision.
| Variable | Control question | Verification route |
|---|---|---|
| Fluid and assay boundary | Which fluid, reagent, sample surrogate, concentration, viscosity, heat capacity, sensitivity, and permitted contact materials define the thermal task? | The equipment developer or qualified assay-validation owner should use an approved representative fluid and compare relevant physical or functional attributes before and after the specified thermal exposure. |
| Volume, flow, and residence time | What minimum and maximum volume or flow, dwell, pulsation, refill, stagnation, and startup states occur in the channel? | Measure flow or delivered volume and temperature history together so thermal results retain the actual residence condition. |
| Channel and heater geometry | How do channel section, path length, heater footprint, spacing, wall thickness, interfaces, mounting, and tolerances distribute heat? | Map local temperatures and pressure or flow behavior on representative assemblies, including geometry and interface extremes selected by risk. |
| Wetted-material boundary | Which channel materials, seals, coatings, adhesives, metals, and protection layers contact the fluid directly or through a barrier? | The equipment developer or its qualified materials and biocompatibility owner should retain material identity and evaluate the assembled wetted path under the approved compatibility, leakage, cleaning, and contamination plan. |
| Temperature sensing | Where is temperature measured relative to the fluid, heater, channel, and hot spot, and what accuracy, lag, attachment, and failure mode apply? | Compare control-sensor output with independent measurements at fluid and risk locations during steady and transient operation. |
| Control algorithm and power | What supply, resistance or power range, control period, ramp, overshoot, standby, flow compensation, shutdown, and restart behavior are required? | Record command, voltage, current, sensor values, independent temperatures, and response timing across nominal and boundary cases. |
| Cleaning and carryover | Which cleaning agents, temperatures, flush volumes, soak times, residues, adsorption, and cross-contamination criteria affect the heated path? | For a reusable-device path, the equipment developer or qualified reprocessing owner should run the defined reprocessing sequence and assess leakage, residues, carryover, surface condition, and thermal response using approved methods. For a single-use path, do not imply reusable-device reprocessing validation. |
| Fault response | How are no fluid, low flow, blockage, bubbles, sensor detachment, overtemperature, power fault, leakage, and control fault detected and contained? | The equipment developer or qualified equipment-safety validation owner should introduce each agreed fault in a representative assembly and record observability, protective response, residual temperature, recovery, and post-test disposition. |
Fluid-path thermal control definition
The order makes assumptions and ownership visible before a result is promoted to a requirement.
- 01
Define the fluid thermal task
State fluid identity, volume or flow, inlet condition, required temperature-time history, allowable spatial and temporal variation, residence time, duty cycle, and where the requirement is measured. Also record the intended-use classification, jurisdiction, direct or indirect body-contact boundary, and reusable or single-use path before selecting regulatory references.
- 02

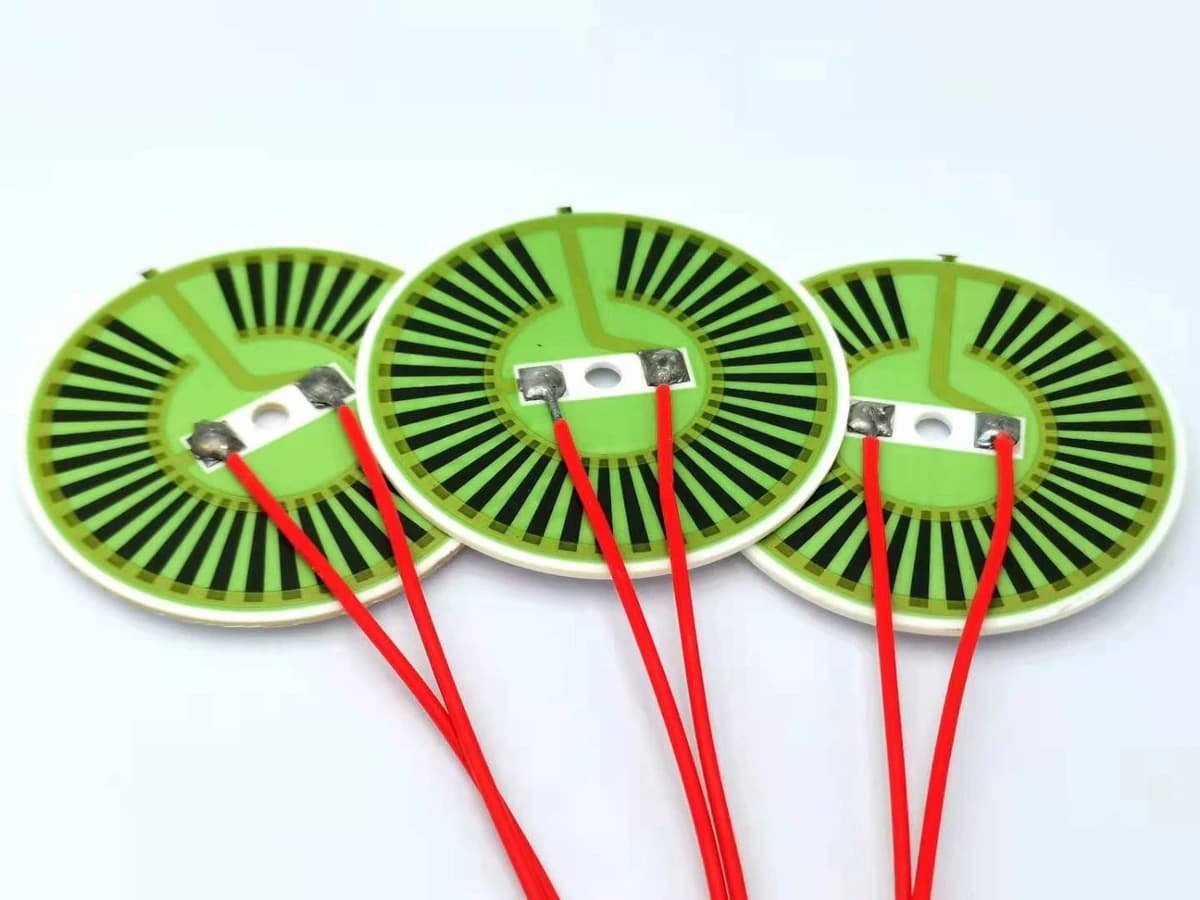

Map the complete heat path
Connect heater geometry and substrate to adhesives, spreaders, channel walls, fluid, ambient losses, mounting pressure, interfaces, and manufacturing tolerances that determine actual heat transfer.
- 03
Separate wetted and non-wetted boundaries
Identify every material and seal in direct or indirect fluid contact, plus cleaning, carryover, adsorption, corrosion, extractables, bubbles, and leakage questions owned by the equipment developer.
- 04
Coordinate sensing and control
Place temperature or other sensors according to fluid and hot-spot dynamics, then define control response, overshoot limits, startup, standby, flow loss, empty-channel, sensor fault, and shutdown behavior.
- 05
Validate representative fluid runs
Instrument the assembled path and compare fluid inlet, outlet, local channel, heater, and housing temperatures across flow, volume, ambient, startup, bubble, blockage, cleaning, and selected fault conditions.
Reference boundary
Public method sources
These sources support the engineering method and terminology used in this technical guide. They do not establish a ThickFilmPCB material list, capability limit, customer result, certification, or finished-product specification.
- 01NIST — Temperature Measurement and Control in Microfluidic Systems
Reports a 2001 fluorescence-based temperature-measurement method for electrokinetically pumped microfluidic circuits. It supports the need to resolve local fluid-temperature distributions in that research context, not a universal validation method or company diagnostic-heating capability.
- 02IEC 61010-2-101:2018 — Safety for IVD Medical Equipment
Applies, together with IEC 61010-1, to in-vitro diagnostic medical equipment. It is relevant only after the equipment is classified on that path and does not qualify a heater component or a non-IVD diagnostic system by itself.
- 03FDA — Basics of Biocompatibility Assessment
Applies when a medical device has direct or indirect body contact and evaluates the final finished device, including materials, processing, and interactions. It is not a required basis for equipment with no such contact and cannot make one heater component biocompatible.
- 04FDA — Reprocessing Information for Reusable Medical Devices
Applies to reusable medical devices and supports device-specific cleaning, disinfection, or sterilization validation with protocols and complete test reports. It does not apply as evidence for a single-use path or establish company reprocessing capability.
Inputs for a practical review
Unknown values may be labelled unknown. The review should convert uncertainty into an explicit decision or validation task.
Send Drawings- 01
Fluid-path assembly drawing with channel geometry, wetted materials, seals, interfaces, heater location, sensors, mounting, and insulation
- 02
Fluid or OEM-approved surrogate properties, volume and flow range, inlet condition, residence time, duty, and temperature-time requirement
- 03
Supply, resistance or power target, control method, sensor specification, placement, accuracy, response, and independent protection
- 04
Allowed temperatures and gradients for fluid, heater, channel, seals, housing, electronics, and nearby materials
- 05
Startup, standby, refill, stagnation, bubble, low-flow, no-flow, blockage, empty-path, leakage, and sensor-fault definitions
- 06
Cleaning agents, temperature, soak, flush, carryover, contamination, material-compatibility, and service requirements
- 07
Assembly-level thermal, fluidic, electrical, fault, and functional validation plan with approval ownership and records
