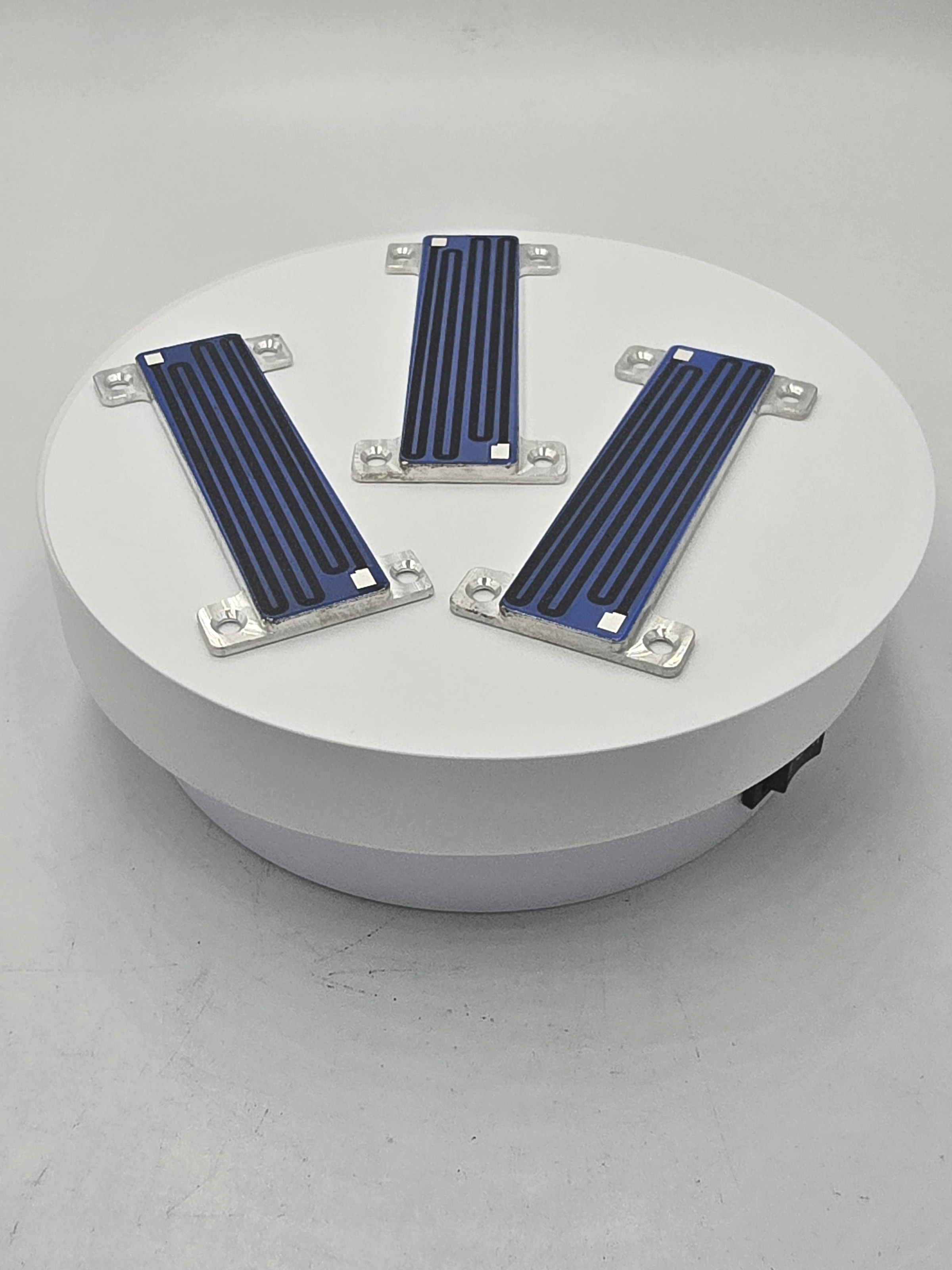

Fluid Heater Feedforward: Use Flow and Inlet Temperature Before the Outlet Error Grows

System boundary

A single-phase fluid heater with known fluid properties, flow/inlet measurements, outlet feedback and a defined power actuator. The model supplies a performance command, not dry-run permission, fluid safety or an approved heater rating.

Integration interfaces

Integration risks

Identify the disturbance available before the outlet measurement changes

A measured increase in mass flow changes the sensible heat needed to deliver the same outlet temperature. A colder inlet creates another predictable load change. Outlet feedback eventually responds to both, but its measurement includes fluid transport, sensor response and mixing. Feedforward uses the earlier load information instead of waiting for the entire downstream error to appear.

Check where the measurements occur relative to the heated region. A sensor upstream may provide useful warning only if its timestamp and travel time are understood. A pump command is not necessarily measured flow, and a supply-tank temperature may not represent fluid entering the heater after a warm section of tubing. Use signals that describe the actual thermal input boundary.

Use the energy balance as a changing command, not just a sizing calculation

For single-phase sensible heating near a characterized operating condition, calculate the useful fluid heat rate from mass flow, heat capacity and the desired outlet-minus-inlet temperature. Add a separately identified steady loss estimate at the same energy boundary. Here the sum is a requested heater-terminal power. Do not add a second blanket efficiency correction unless its definition avoids counting those losses twice.

The calculation is quasi-steady: it does not automatically include wall energy during startup or changing stored heat during a rapid transition. Treat it as the leading load estimate and let a suitably designed feedback path correct residual error. Phase change, reaction heat or strongly temperature-dependent properties need an appropriate enthalpy model rather than this constant-heat-capacity expression.

Calculate the command change before adding feedback correction

Take a hypothetical fluid heat capacity of 4,000 joules per kilogram-kelvin, mass flow of 0.010 kilogram per second, a target of 40 degrees Celsius, inlet of 25 degrees Celsius and a 50-watt loss estimate. The feedforward request is 650 watts. If flow rises to 0.015 kilogram per second with other inputs unchanged, the estimate becomes 950 watts, a 300-watt increase.

If the inlet subsequently rises to 30 degrees Celsius at that higher flow, the request returns to 650 watts. A flow-only ratio would miss this inlet-temperature effect. These numbers illustrate the command arithmetic and are not a heater rating, tested fluid system or company capability. The actual system must supply its own properties, loss model and permitted operating range.

Let feedback correct what the load estimate does not know

The outlet-feedback controller should correct the residual difference between desired and measured delivery temperature. If its current contribution is minus 20 watts, adding it to the example's 950-watt feedforward term gives 930 watts before limiting. Preserve the meaning of that contribution during enable, disable or model updates. Otherwise adding a full feedforward bias to an already established feedback bias can momentarily double-count the steady heat requirement.

A residual that remains consistently large is useful diagnostic information. It may indicate a poor loss estimate, incorrect flow scaling, a mismatched inlet measurement or changed thermal contact. Do not automatically tune the feedback loop harder to hide that discrepancy. Compare the measured energy boundary and the model before deciding whether the issue is control dynamics or an incorrect load estimate.

Convert requested watts into the actuator's actual command

A controller percentage can represent voltage, current, duty, firing angle or a power-regulated demand. Those mappings are different. Establish the relationship between command and heater-terminal power under the installed source and resistance conditions. Feedforward calculated in watts cannot simply be treated as the same numerical percentage without a defined conversion.

Apply the reviewed power limits after combining the intended contributions, and make the limiting state available to the feedback implementation. If the example's combined 930-watt request is limited to 800 watts, the applied request is 130 watts below it. That unavailable heat is an authority limitation, not evidence that the feedforward arithmetic or heater resistance is wrong.

Align the feedforward change with the fluid reaching the heater

The fastest possible command is not always the correctly timed command. If an upstream inlet-temperature sensor detects a colder parcel well before it reaches the heated region, an immediate full correction can warm the preceding parcel unnecessarily. If flow measurement or communications arrive late, the feedforward advantage may already be reduced. Record the physical and digital timing instead of assuming all inputs describe the same fluid at the same instant.

Use controlled flow and inlet changes to compare sensor timestamps, power response and outlet response. Include filtering and actuator delay. If a dynamic compensation is introduced, keep its model and validity range with the configuration. A fixed delay selected at one flow may not remain correct when transport time changes with flow, so repeat the comparison across the intended range.

Define invalid, stopped-flow and startup behavior explicitly

A sensible-heat equation returning zero when measured flow is zero does not prove that dry energization is prevented. A stuck flow value, trapped gas or an unwetted local region can invalidate its physical premise. The permission to heat must come from the reviewed system architecture, not from the numerical sign of a feedforward output.

Specify how feedforward is handled when its sensor becomes invalid or stale and how a valid value is reintroduced. The selected fallback may be inhibition or a controlled transition to another permitted mode, depending on the application. Keep feedback state and independent limits consistent with that transition. Also separate startup wall heating from normal flowing operation rather than forcing a steady formula to describe every phase.

Compare the same load change with the feedforward path enabled and disabled

Use matched initial conditions and the same limits to compare the outlet excursion, recovery and applied power during a controlled disturbance. Retain the raw flow, inlet, outlet, wall and command records. A reduced outlet error that requires an unacceptable wall excursion is not a successful control improvement. Evaluate the relevant process result and local limits together.

The handoff should include the online equation, input scaling and validity, loss estimate, power conversion, timing treatment and enable/disable state behavior. This makes the benefit reproducible after software or hardware changes. The resulting page of calculations is useful because it connects early load information to an actual actuator command while retaining feedback and protection in their separate, necessary roles.
