Harsh-Media Wiper Contact Validation

A sliding electrical contact exposed to fuel, oil, process fluid, condensate, cleaning chemistry, or contaminated vapor must be validated as a coupled tribological, electrical, chemical, and mechanical interface.

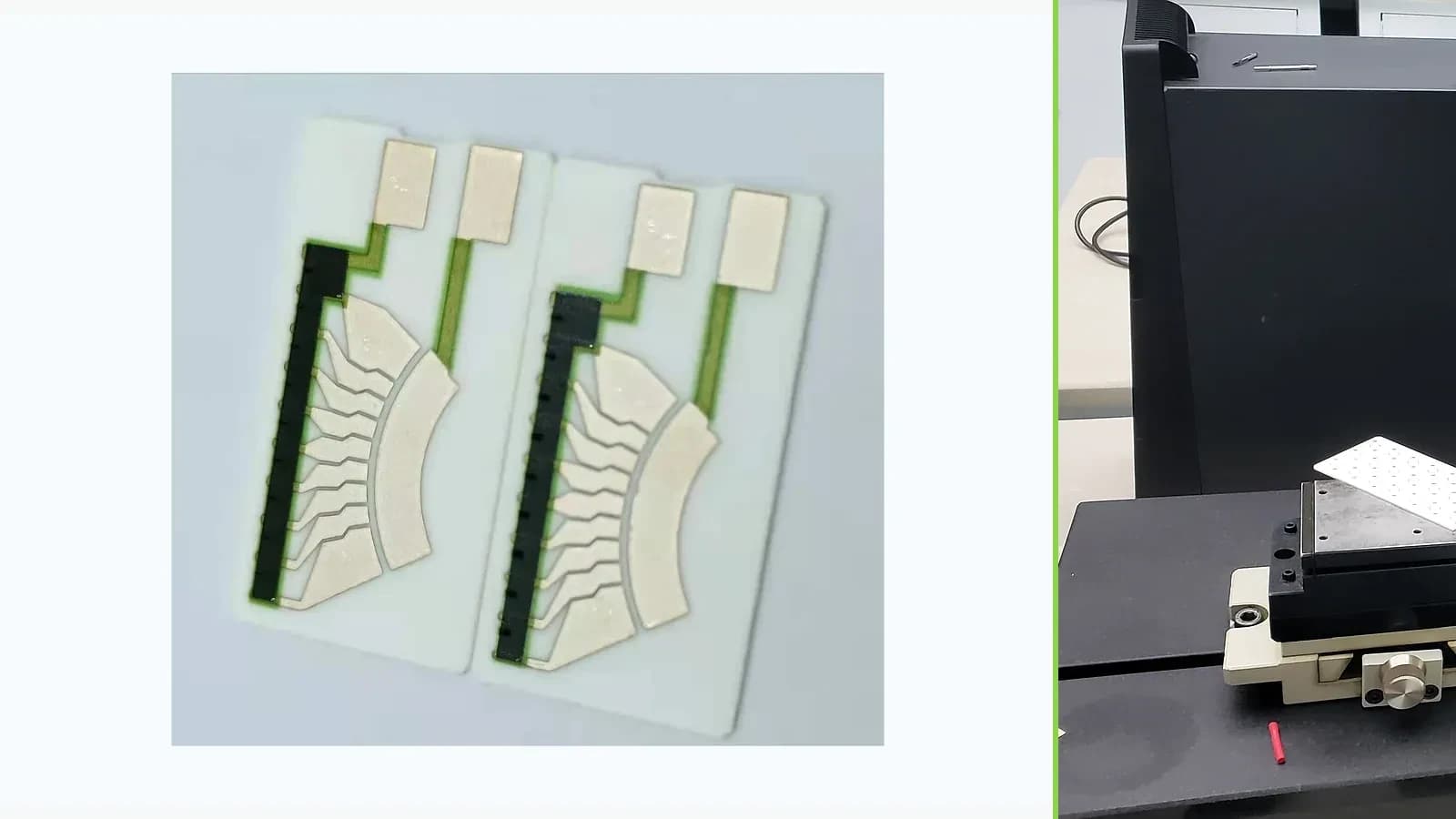

Real ceramic sensor resistor cards paired with a separate company measurement-laboratory photograph
Representative engineering image for Harsh-Media Wiper Contact Validation. It provides visual context and does not establish a customer result or project-specific capability.
Central review question

Which controlled media, contact mechanics, electrical measurement bandwidth, combined environmental sequence, and post-test evidence are needed to judge a wiper-track interface for the actual service?

Overview

A sliding electrical contact exposed to fuel, oil, process fluid, condensate, cleaning chemistry, or contaminated vapor must be validated as a coupled tribological, electrical, chemical, and mechanical interface. Media composition, additives, temperature, oxygen, water, pressure, immersion, wetting, deposits, particles, wiper material and load, track chemistry, surface condition, current, travel, reversal, vibration, housing exchange, and electrical filtering can interact. This guide defines a validation framework for a compatible contact-based resistive sensor route. It does not state that every visible card is suitable for immersion or that one reference fluid represents global service. It also does not prescribe a universal contact-resistance, dropout, wear, cycle, corrosion, sealing, or lifetime limit. The system and materials owners must select representative media, combined sequences, measurements, acceptance criteria, safety controls, and post-exposure analysis.

Failure controls

These are review prompts, not evidence that every risk applies or that every test is available.

  • A

    A standardized surrogate improves repeatability but may omit commercial additives, aging products, local blends, contaminants, or combined field exposure.

  • B

    Measuring only before and after immersion can miss intermittent dropout that occurs during motion, vibration, wetting, evaporation, or deposit movement.

  • C

    Fluid-compatible bulk materials do not guarantee a stable sliding interface after wear exposes new surfaces or redistributes debris.

  • D

    A higher wiper force may reduce some contact events while accelerating wear, changing friction, stressing the mechanism, or moving deposits.

  • E

    A housing seal can alter vapor exchange, pressure, condensation, lubricant, and contaminant retention; the loose card is not the complete specimen.

  • F

    Passing a component exposure sequence cannot establish system diagnostics, safe state, emissions performance, service life, or field suitability.

Harsh-media contact validation sequence

The order makes assumptions and ownership visible before a result is promoted to a requirement.

  1. 01

    Identify actual media and uncertainty

    List commercial fluids, regulated fuels, blends, additives, cleaners, contaminants, water, salt, particles, gases, and deposits with concentration, temperature, pressure, oxygen, renewal, and geographic or seasonal variation. Select standardized surrogates only for a stated purpose and document what additives or field conditions they omit.

  2. 02

    Define the contact system

    Record track and conductor materials, protective layers, surface finish, wiper alloy or composite, geometry, number of fingers, load, alignment, travel, speed, reversal, dwell, current, voltage, electronics loading, housing, seal, vent, connector, lubricant, and debris path. The fluid cannot be assessed independently of contact stress and electrical use.

  3. 03

    Choose observable electrical metrics

    Specify static resistance, dynamic contact resistance variation, voltage dropout, noise spectrum, intermittency duration, hysteresis, output curve, insulation, leakage, and detection bandwidth. State excitation and filtering because a low-bandwidth meter can miss brief events that the controller sees, while controller filtering can hide degradation.

  4. 04

    Sequence combined exposures

    Create a mission-based order for soak, temperature cycling, pressure, vibration, mechanical travel, powered operation, drying, cleaning, dwell, and replenishment. Include controls and intermediate measurements. Sequential single-factor tests may screen mechanisms but cannot automatically replace combined service where wear opens fresh surfaces during exposure.

  5. 05

    Inspect mechanisms, not only pass or fail

    Retain pre- and post-test photographs, curve traces, noise data, mass or dimensional observations where relevant, deposits, discoloration, swelling, cracking, delamination, corrosion, wear scars, debris, wiper condition, seal condition, and fluid changes. Link anomalies to specimen identity, location, time, and exposure history.

  6. 06

    Release a bounded evidence package

    Connect accepted results to exact material lots, track process, wiper, assembly, housing, fluid definitions, fixtures, instruments, bandwidth, software, cycles, deviations, failures, and acceptance authority. Field suitability remains with the OEM or system owner, especially when the signal contributes to a safety-related or emissions-related function.

Engineering review matrix

Each row links a design variable to evidence that can support a drawing or release decision.

Harsh-Media Wiper Contact Validation: variables, controls, and verification boundaries
VariableControl questionVerification route
Media definitionWhich base fluid, blend, additive, contaminant, water content, temperature, pressure, oxygen, renewal, and aging state represent use?Control composition and exposure records, retain lot or preparation data, and document the gap between surrogate and marketplace fluid.
Wiper mechanicsWhat material, geometry, finger count, normal force, alignment, travel, velocity, reversal, dwell, vibration, and wear profile apply?Measure relevant mechanical inputs and correlate them with electrical events and post-test contact-surface observations.
Track surfaceWhat paste or polymer system, conductor, overcoat boundary, cure or firing history, roughness, cleanliness, and initial defect state exist?Use released process records and inspect representative surfaces before, during, and after conditioning without inferring chemistry from color.
Electrical excitationWhat current, voltage, polarity, input loading, bias, sampling, bandwidth, filters, pull circuits, and fault diagnostics are used?Measure with the intended electronics or a documented equivalent and retain raw high-bandwidth data during motion and vibration.
Exposure sequenceHow are immersion, splash, vapor, drying, cleaning, cycling, travel, vibration, pressure, and powered operation combined and ordered?Execute a controlled sequence tied to the mission profile, including controls, intermediate checks, and documented deviations.
Acceptance criteriaWhich curve shift, noise, dropout, intermittency, wear, corrosion, insulation, leakage, seal, and visual changes are acceptable?Apply predeclared criteria at the relevant bandwidth and environmental state; do not create thresholds after reviewing results.
Safety ownershipDoes the signal influence fuel management, motion, emissions, shutdown, warning, or another safety- or regulatory-related function?The OEM or system safety owner evaluates faults and complete-system behavior; component exposure does not close that validation.

Reference boundary

Public method sources

These sources support the engineering method and terminology used in this technical guide. They do not establish a ThickFilmPCB material list, capability limit, customer result, certification, or finished-product specification.

  1. 01
    SAE J1681_202305 — Fuel Surrogates for Materials Testing

    Defines standardized surrogate-fluid concepts and states limitations, including that listed fluids are recommended for materials evaluation rather than automatically for design or process validation. Project-specific media remain required.

  2. 02
    IEC 60512-2-1:2002 — Contact Resistance, Millivolt Method

    Defines a millivolt-level method for measuring resistance across mated contacts or a contact with a measuring gauge. It informs measurement terminology but does not simulate a moving wiper, harsh media, or system duty by itself.

  3. 03
    IEC 60068-2-6:2007 — Sinusoidal Vibration

    Provides a standardized sinusoidal-vibration test method and reporting framework. The system owner must select severities, mounting, combined exposures, electrical monitoring, and acceptance criteria for the actual sensor.

Inputs for a practical review

Unknown values may be labelled unknown. The review should convert uncertainty into an explicit decision or validation task.

Send Drawings
  1. 01

    Complete fluid and contaminant list with compositions, references, additives, concentrations, temperature, pressure, oxygen, water, renewal, and uncertainty

  2. 02

    Track and conductor materials, protective layers, process history, dimensions, surface requirements, terminals, and initial inspection criteria

  3. 03

    Wiper material, finish, geometry, fingers, force, alignment, travel, rate, reversal, dwell, cycles, vibration, lubricant, and debris management

  4. 04

    Housing, seal, vent, connector, harness, orientation, immersion or splash boundary, pressure, condensation, cleaning, and service access

  5. 05

    Excitation, loading, sampling, bandwidth, filters, controller thresholds, diagnostics, fault response, and raw-data format

  6. 06

    Combined exposure sequence, controls, specimen count, intermediate measurements, post-test analysis, failures, and acceptance criteria

  7. 07

    System function, regulatory or safety role, field-validation owner, prototypes, material-lot traceability, and evidence-release authority
