Heater Still Warm with the SSR Off? Separate Leakage from Continued Switching

System boundary

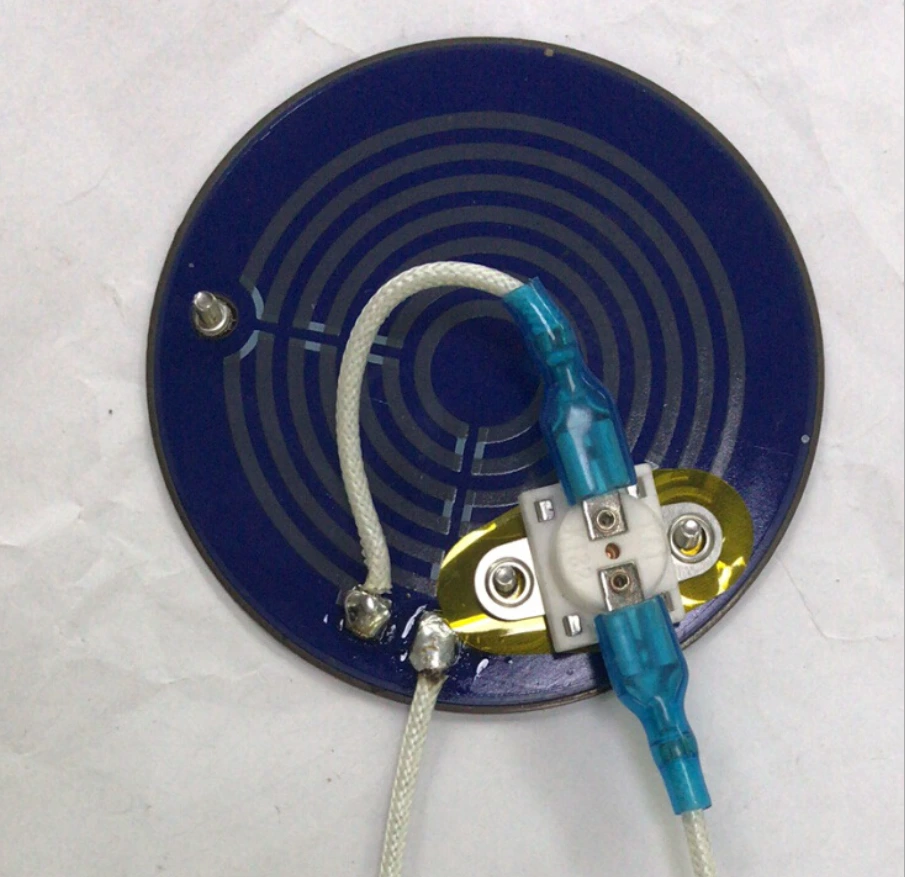

The heater power source, SSR input driver, SSR output network, thick-film heater and thermal load. Electrical service, isolation and protective-device selection remain with qualified equipment personnel.

Integration interfaces

Integration risks

Observe four states instead of one indicator light

Capture the controller's requested output, the actual SSR input, the heater current and the heater temperature over the same interval. The controller display describes one software state. It cannot prove that the input driver has released, the output device has stopped conducting or the heater has cooled. Preserve the sequence around the OFF event as well as the later steady condition.

A hot element that is cooling with negligible new input presents a different question from an element held warm by residual power. Temperature may briefly rise after current stops because stored heat reaches the sensor later. Start with electrical input and a time trace, not touch or one thermal image. Avoid contact with a hot or potentially live assembly while diagnosing it.

Identify the relay's real off-state path

Check the selected SSR output technology and its specified conditions. Some devices include networks across the switching element that pass AC current while the main switch is off. External suppression components can add another path. The actual load voltage, frequency, temperature and component arrangement determine whether a catalog maximum is applicable.

Keep output leakage distinct from input-driver leakage. Leakage on the control side can prevent the SSR input from reaching its release state and produce repeated normal conduction, which is not the same as a small output leakage current. Follow the actual input and output specifications; do not transfer a reset voltage or snubber value from an unrelated relay example.

Calculate the heat available from a measured residual current

For an approximately resistive heater whose resistance remains stable over the measured interval, average dissipation is the square of true RMS load current multiplied by resistance. Use load current, not current measured in another branch. If resistance changes materially during the interval, calculate from synchronized voltage and current or a suitably time-resolved model.

As an explicitly assumed example, a 600-ohm heater carrying 2 milliamperes RMS dissipates 0.0024 watt. At 20 milliamperes RMS it dissipates 0.24 watt, one hundred times as much. Neither number is a claim about a particular SSR or heater. They show why the current magnitude matters and why a visibly warm large assembly cannot automatically be explained by quoting the existence of leakage.

Do not infer heating power from an unloaded voltage reading

A high-impedance instrument can display a substantial voltage through a very small leakage path. That reading does not establish the power available to a connected low-resistance heater. Conversely, a low average displayed voltage can hide short bursts of considerable power if the instrument does not represent the waveform correctly. Know the measurement topology and bandwidth.

Do not improvise a test resistor across hazardous terminals merely to make the reading disappear. Load substitution, meter connection and current measurements require a protected setup and qualified personnel. The engineering request should identify the measurement needed; the electrical test owner selects an appropriate safe method and instrument rating for the actual installation.

Compare residual power with the observed temperature history

After establishing residual power, compare it with a thermal model or measured cooling response for the installed load. Under a limited linear steady approximation, residual temperature rise equals residual power times thermal resistance to the stated environment. This relation is not a universal heater temperature rating and does not predict a local hot spot from a plate average.

If an illustrative assembly had 50 kelvins per watt of thermal resistance, 0.24 watt would correspond to a twelve-kelvin steady rise in that simplified model. The 0.0024-watt case would correspond to only 0.12 kelvin. A mismatch between that scale and the observation directs attention to continued switching, another heat source, an incorrect resistance or an invalid thermal boundary rather than a convenient explanation.

Separate small leakage from a switch that has not released

Keep the heater disconnected from service operation while an unexplained OFF-state heating condition is investigated under the equipment's protective procedure. Use synchronized traces and the selected relay data to classify the electrical behavior before deciding whether the component or control architecture must change.

Select a correction from the demonstrated mechanism

Possible responses include a suitable lower-leakage switching architecture, corrected input drive or a separately designed interruption function. Each changes a different part of the system. A bleeder can redirect current in some circuits, but it adds heat and electrical stress and is not a substitute for galvanic isolation. Its suitability must be checked against the actual voltage, fault conditions and component requirements.

Do not change a thick-film heater to a lower resistance merely to absorb a leakage symptom. That can change its full-power current, control resolution and protective requirements. Preserve the original useful-heating requirement, calculate both normal and OFF states and compare complete power-stage alternatives. Any suppression component change must also retain the required switching-transient behavior.

Define OFF-state acceptance independently of restart behavior

Specify the allowed residual electrical input and temperature behavior for the application's OFF state, together with how that state is verified. Service isolation, process standby and a protective shutdown may have different requirements. The equipment authority defines those requirements; a small measured current is not automatically acceptable simply because it is typical of an electronic switch.

Retain source conditions, SSR identity, external components, heater resistance, load waveform and temperature trace with the disposition. Recheck after a driver, relay, suppression network or load change. Keep this result separate from the restart-state review: a controller can restart correctly yet have an unsuitable residual-power path, or pass an OFF leakage test while restoring power at the wrong time.
