Floating Amplifier Inputs: Give Bias Current a Defined Return

System boundary

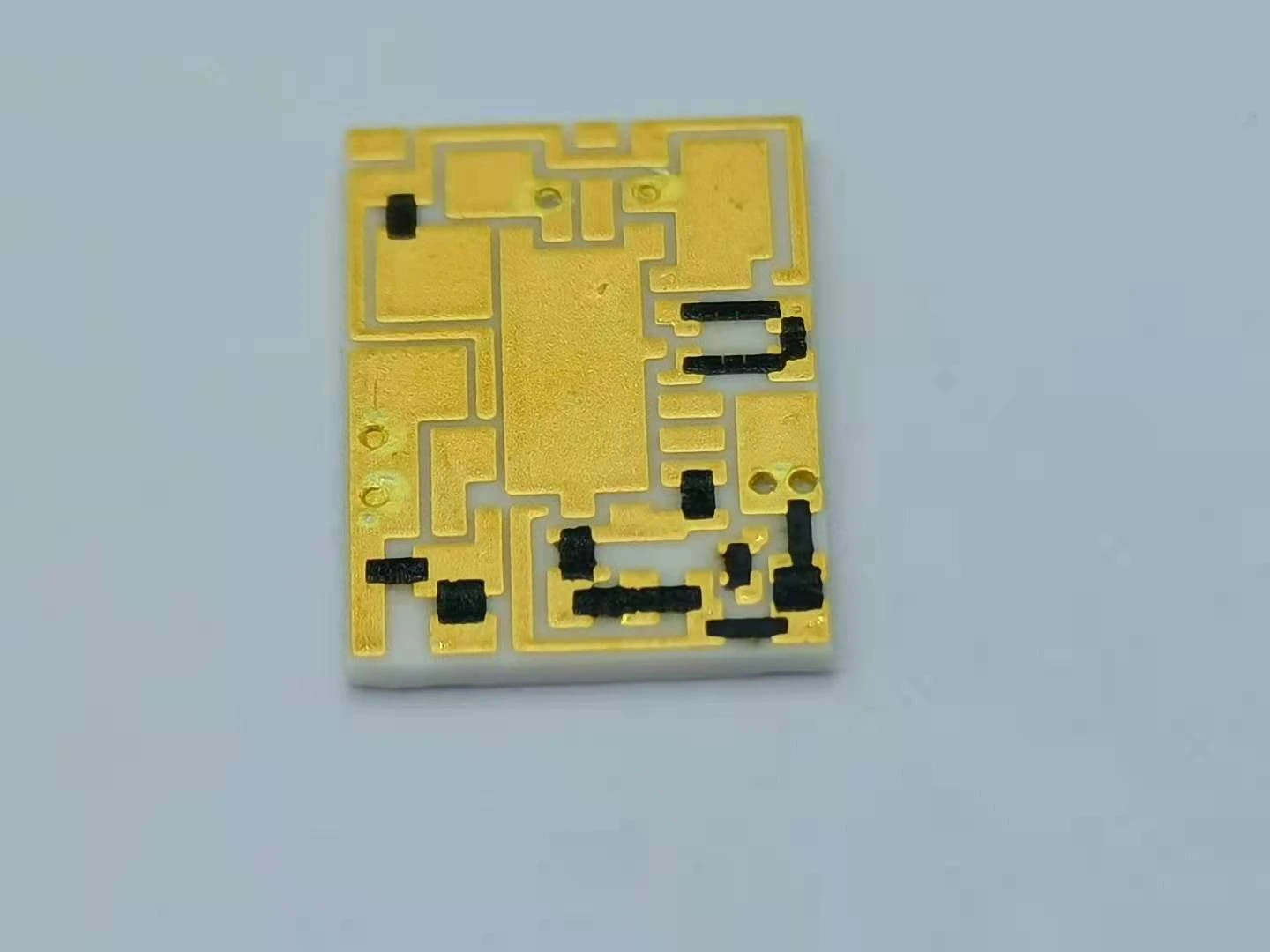

An external sensor coupled through a capacitor to a high-impedance amplifier input on a ceramic hybrid. The page addresses missing-return charging and return selection, not complete amplifier accuracy or a safety isolation barrier.

Integration interfaces

Integration risks

Open every capacitor in the DC connection drawing

Trace a path from each amplifier input to an appropriate bias reference with coupling capacitors treated as open circuits. A transformer secondary may connect the two inputs to each other without defining their common-mode potential. Likewise, a resistor placed only across a differential input pair does not necessarily provide a return for their combined bias current. Examine common-mode and differential paths separately.

Repeat the trace for sensor connected, sensor unplugged and each multiplexer selection. A return hidden on a removable sensor board disappears during disconnection. If the input needs a defined state when the cable is absent, the required path must remain on the receiving side or be established by another reviewed circuit. Mark the intentional return rather than relying on unknown leakage through a clamp or contaminated surface.

Estimate how quickly a floating node reaches its limit

For an idealized isolated input node, a roughly constant net bias current charges the effective node capacitance. The voltage changes at current divided by capacitance until some device limit or leakage mechanism changes the model. That slope can be slow enough to escape a brief bench test. Its direction depends on the signed net current, not on whether the sensor's wanted signal is positive or negative.

Assume an effective 100 nanofarad capacitance, a 5 nanoampere net charging current and 0.50 V of available input movement before an operating constraint is reached. The predicted slope is 0.05 V per second and the corresponding time is ten seconds. These are hypothetical conditions. A two-second successful observation would not exercise the predicted failure, and an AC-coupled oscilloscope trace could conceal the changing DC baseline.

Convert the allowed DC shift into an upper resistance bound

With a return resistor to a stiff reference, the constant current produces a finite steady input shift instead of indefinite charging. Its magnitude is the current magnitude multiplied by return resistance. Use the applicable input-current bound over temperature and operating state, including other currents entering the node. A typical room-temperature bias-current value is not a guaranteed worst-case input for this calculation.

If the illustrative 5 nanoampere bound is allocated no more than 20 millivolts of steady input movement, return resistance must be no greater than 4 megohms. This is a DC-shift allocation, not a resistor recommendation. Other amplifier offset terms remain separate. A low-impedance reference is also an assumption: a weak reference shared by several channels can move when their return currents combine and must be modeled accordingly.

Check whether the source can tolerate the chosen return

In the signal band where the coupling capacitor's impedance is negligible, the return resistor loads the sensor's source resistance. For a simple resistive source Rs feeding Rb, amplitude transfer is Rb divided by Rs plus Rb. Limiting this loading loss to a fraction e requires Rb to be at least Rs times one minus e divided by e. A reactive or active source requires its actual impedance model instead.

For a 20 kilohm source and a one-percent loading allowance, the lower bound is 1.98 megohms. Combined with the earlier 4 megohm DC-shift upper bound, a nominal feasible interval exists. A 2.2 megohm example gives about 0.901 percent loading loss and an 11 millivolt bias-current shift. Include resistor tolerance, temperature movement and the other allocated errors before treating a nominal point as an accepted design.

Calculate recovery toward the new equilibrium, not toward zero

Restoring a return after a node has charged does not instantly restore a valid reading. For an ideal low-impedance source through a coupling capacitor and a return resistor, the relevant first-order time constant follows the resistance seen by that capacitor. With finite source resistance, it is the sum of source and return resistance multiplied by capacitance. State the circuit used instead of assuming every recovery is simply the printed resistance times a label capacitance.

Using 20 kilohms, 2.2 megohms and 100 nanofarads gives a time constant of 0.222 second. Reducing the remaining deviation from the new equilibrium to one percent takes approximately 1.02 seconds in that linear model. Saturated amplifier recovery, protection conduction and reference startup can add other behavior. Verify the actual trajectory and distinguish the final bias-current offset from the transient that decays toward it.

Make every connection state answer a specific question

Do not combine all input failures into one instruction to use a larger resistor. The useful change depends on whether the path is absent, too weak, too heavily loading the source or attached to an unsuitable reference. The observations below separate these conditions. Measure the input baseline or a suitable buffered representation while accounting for the measuring instrument's own return resistance.

A ten-megohm probe connected to an otherwise floating node can materially change a high-impedance experiment. If the failure disappears only while the probe is attached, include that extra branch in the circuit and repeat with an appropriate nonintrusive method. An unexplained improvement is not proof that the original channel has repaired itself or that its printed resistor is stable.

Choose a valid bias reference and preserve capacitor conditions

Ground is not automatically the correct reference for a single-supply input. The chosen bias level must allow the actual positive and negative signal excursion while satisfying the amplifier's input and output limits. A midpoint derived from the supply also carries its noise and startup behavior unless the reference circuit controls them. Keep this selection separate from the numerical return-resistance calculation.

Check the coupling capacitor's voltage rating, effective capacitance and polarity requirements against both normal operation and connection transients. The capacitor may retain a previous sensor voltage while the receiver reference changes. Do not infer its initial charge from the present schematic alone. Document discharge or sequencing provisions through the electronics design, especially where reconnecting a charged source can drive input protection beyond its permitted conditions.

Deliver a return-path and validity specification

The design record should show the DC connection graph in every accepted state, the signed current bound, the allowed input movement and the source-loading requirement. Include the resulting upper and lower resistance bounds, tolerance treatment and capacitor model. This lets the printed resistor supplier evaluate the actual element requirement without being asked to guarantee the behavior of an unspecified floating sensor channel.

Test startup, sensor removal and reconnection for long enough to expose the predicted charging and recovery intervals. Keep the raw baseline and signal response, not only a final pass indication. A stable input after this review enables the separate gain, noise and offset budgets to become meaningful; those budgets cannot compensate for a node that lacks a defined operating potential in the first place.
