Laser-module thermal-platform interface requirements

System boundary

Laser electrical and optical operation through module package, mounting interface, thermal platform, sensors, heater or cooler, heat sink and controller

Translate laser duty into thermal load

List standby, warm-up, continuous emission, modulation, pulse, calibration and shutdown with electrical input and optical output where available. Heat dissipation is not identical in every mode.

Provide timing, repetition and permitted transitions. A short optical burst can create a junction transient that a slow platform sensor cannot observe, while long idle changes the starting temperature for the next measurement.

Define the package-to-sink thermal network

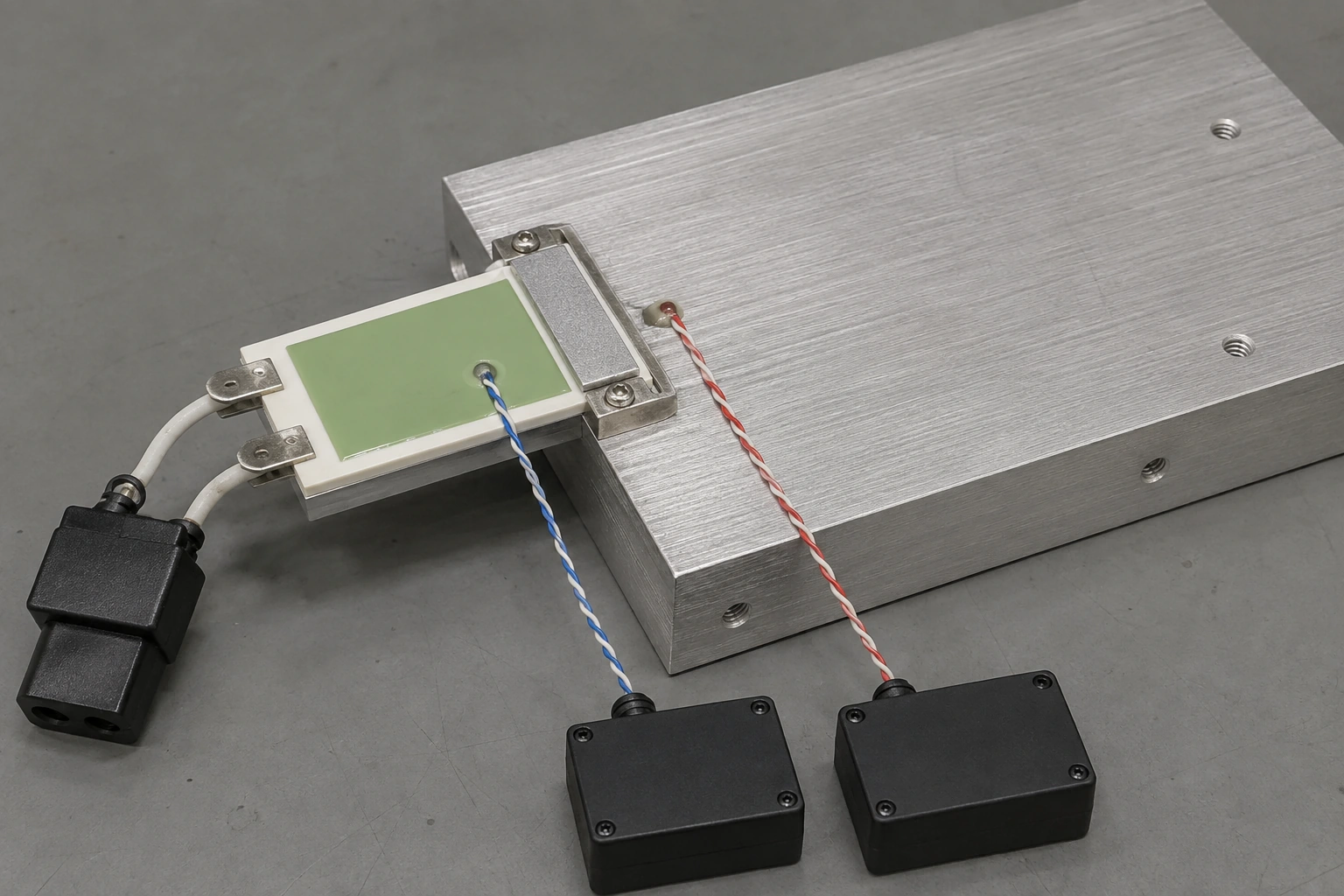

Show die, package, base, interface material, platform, heater or cooler, heat spreader and ambient sink. Name the temperature reference at each boundary and identify which resistances are modeled or measured.

For a first check, deltaT=P_loss R_th. With 18 watts crossing a modeled 0.35 kelvin-per-watt path, the calculated rise is 6.3 kelvin. The example is not a platform capability; actual transients and multiple paths require configuration-specific evidence.

Specify mounting pressure and geometry

Provide base flatness, surface finish, contact area, fastener pattern, torque sequence and allowable package stress. Identify interface material, thickness, compression and reuse policy.

A platform can be uniform without making good contact to the module. Uneven clamp or cable force can tilt the base and create a local gradient. Mechanical limits come from the module owner and must not be invented.

Record actual fastener preload or the controlled torque procedure, including tightening order and rework. Locate optical datums that can move with package distortion. If the interface material pumps out during cycling or cannot be reused, define inspection and replacement. A thermal retest after remounting distinguishes platform repeatability from one favorable assembly.

Relate sensors to optical behavior

Name sensor type, location, attachment, calibration and acquisition rate. State the distance and thermal path from sensor to the package region that influences optical output.

If wavelength, power or alignment is used as an independent thermal indicator during validation, define its measurement uncertainty and delay. A controller must not use optical output as a safety proxy unless the system analysis supports that function.

Allocate loop response and disturbance rejection

Document heater or cooler range, drive limits, sample rate, filtering, control period and saturation recovery. Include sink-temperature and airflow changes, laser duty steps and neighboring heat loads.

Separate stability, settling and uniformity. A quiet sensor trace can coexist with a slow drift at the module when interface resistance or sink state changes. Preserve raw temperatures and commands during tuning.

Specify the observation window for stability and the permitted rate of change after a mode transition. Distinguish noise from monotonic drift and periodic oscillation. When the controller reaches a drive limit, record the unmet thermal demand rather than continuing to report a nominal setpoint as achieved.

Distinguish platform, contact and laser effects

Capture laser electrical loss, platform power, multiple temperatures, sink state and optical observations on one time base. Change one boundary after recording the original assembly.

Use spatial and temporal signatures to locate the first disagreement.

Control condensation and low-temperature states

For sub-ambient operation, calculate dew-point margin at exposed module, connector and platform surfaces. Define purge, enclosure, insulation and startup sequencing.

Condensation can create leakage, corrosion or optical contamination even if temperature control remains accurate. The integrator owns laser safety, moisture response and return-to-service criteria.

Validate optical-duty and sink corners

Exercise operating modes, duty steps, sink temperatures, airflow, mounting tolerances and power limits. Use production-intent module, interface, fasteners, sensors and controller.

Measure settling, drift, gradients and control saturation with predefined uncertainty and retest rules. Reserve confirmation hardware after tuning. Evidence applies only to the tested configuration and does not establish optical or lifetime claims.

Repeat a remount and a cold start to reveal assembly sensitivity and initial thermal bias. Correlate optical observations only after the optical instrument has stabilized and its own environmental dependence is recorded. Store raw power, temperature and timing data so later controller revisions can be evaluated against the same disturbance sequence.

Correlate platform temperature with optical output without merging ownership

Record laser drive state, package reference temperature, multiple platform coordinates, coolant or sink condition and selected optical observables on a synchronized clock. Step duty only within the laser owner’s approved envelope and allow sufficient observation of both fast package response and slower platform movement. A wavelength or power shift can originate inside the laser, at the mounting interface or in the platform control chain, so use independent thermal measurements before assigning cause. Repeat removal and remounting when that is a service action. The optical owner sets allowable output change; ChipSimple review remains limited to drawing-defined heater features and cannot establish laser performance or condensation safety.

Link optical, mechanical and thermal revisions

Tie laser package, base, interface material, platform, sink, sensors, power stage and control coefficients by revision. Revalidate after changes that alter heat load, contact or loop dynamics.

Treat overtemperature, plausible sensor bias, condensation and slow optical drift separately. Assign detection and response to the laser-system owner; unknown optical-duty conditions remain open inputs.

Record the thermal state required before optical alignment, calibration or service adjustment. A later controller or mounting revision should be compared from that same starting condition, with sink and enclosure conditions preserved.

RFQ inputs for laser thermal platforms

Submit module drawing, dissipation by mode, optical duty, temperature targets, mounting, interface material, sink and enclosure. Include sensor locations and heater or cooler supply.

Provide stability, gradient, settling, disturbance, condensation, validation, quantities and owners. Identify laser-safety and optical requirements as system responsibilities.

State allowable remount variation, service orientation, warm-up sequence and the optical reference used during thermal confirmation.
