Multi-Zone Heater Wiring: Calculate Shared-Path RMS Heating

System boundary

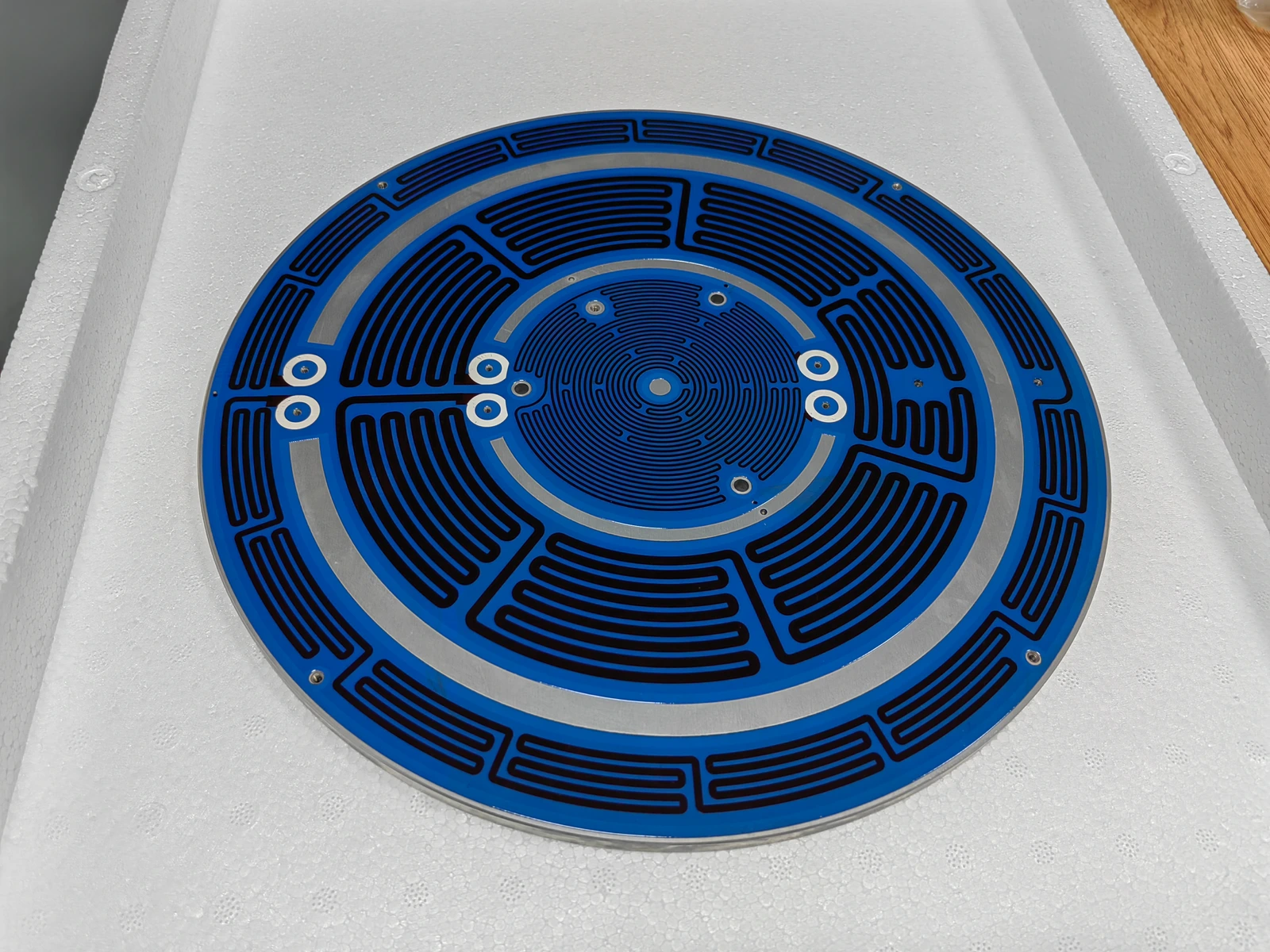

Shared feeds and returns supplying independently switched, resistive thick-film heater zones. The worked example is low-voltage DC with constant on-state currents. Source-power allocation, phase scheduling, wire sizing, fault protection and installation compliance require their own reviews.

Integration interfaces

Integration risks

Start with the accepted load pattern, not another allocation rule

The shared-power allocation guide covers whether demands fit the available source and when switching coordination can avoid an overload. Use that established decision as an input here. The different question is how much resistive heat an accepted current pattern creates in a particular feed, return or connector segment. A pattern can meet its peak-current ceiling and still need a separate thermal assessment.

Name the segment's two endpoints and list every current crossing it. A common return before the branches split carries their sum; an individual heater lead does not. Auxiliary electronics can add another current component. If positive and return conductors are both included in a resistance value, state that loop boundary explicitly so the loss is not counted again elsewhere.

Keep the cross term when two branches share a conductor

For two ideal on/off DC loads, describe each branch by its on-state current and duty fraction. Also record the fraction of the observation interval for which both are on. The mean-square common current contains the individual square terms plus a cross term proportional to this overlap. Knowing both duty fractions is not sufficient to determine that last term.

This is an accounting equation for an observed or already-approved pattern, not a scheduling algorithm. Derive it by expanding the square of the simultaneous current sum; a binary switch state squared equals itself. For more branches, add a cross term for every pair sharing that physical segment. Alternatively, integrate the directly measured common waveform, which also captures departures from ideal rectangular pulses.

Compare equal heater energy with different shared-path heating

Consider hypothetical 24-volt heater terminals. Branch A draws four amperes when on and branch B draws two amperes; both have 50 percent duty over one second. Their individual average electrical inputs are 48 and 24 watts. Compare two recorded patterns: one has no overlap, while the other has both branches on during the same half-second. These are arithmetic cases, not recommended switching commands.

Both patterns have three amperes average common current and the same 72 watts of ideal average heater input. In the nonoverlapping record, the common current is four amperes for half the interval and two amperes for the other half: mean square is ten amperes squared. With complete overlap it is six amperes for half and zero for half: mean square is eighteen amperes squared. The different loss follows from waveform shape, even though average heater input is unchanged.

Do not transfer the common-segment result to every wire

In that comparison each individual branch retains its own waveform amplitude and duty, so its own RMS current and constant-resistance lead loss remain unchanged. Only a segment carrying the combined current sees the overlap cross term. A wiring drawing should therefore carry separate rows for the common feed, each branch, the actual return arrangement and any connector contacts included.

Adding branch RMS currents would give 4.2426 amperes in both cases, incorrectly treating their peaks as fully coincident. Taking only the root-sum-square of branch RMS currents gives 3.1623 amperes in both cases and misses the positive cross term when overlap exists. Neither shortcut is generally valid. Even a statistically independent switching assumption requires justification; it is not established merely because channels have separate controllers. Use joint records when controllers or clocks can correlate their outputs.

Include the DC component in a heating measurement

A unipolar heater current has a DC component as well as ripple. An AC-only instrument can remove the average before calculating RMS. That is useful when the question is ripple, but it does not give the total current responsible for resistive heating. For the complete waveform, total RMS squared equals average current squared plus the mean square of the zero-mean ripple.

The example's average is three amperes. The ripple RMS is therefore one ampere for the no-overlap record and three amperes for complete overlap. Squaring only those AC readings would predict 0.050 and 0.450 watts in the assumed common segment, both missing 0.450 watt from the DC contribution. Document whether the instrument reports AC, DC, or combined AC-plus-DC; a true-RMS label alone does not establish the selected mode.

Calculate from time-weighted data without erasing narrow peaks

With equally spaced samples, average their squared current values and take the square root. For a state table with unequal interval durations, weight each squared level by its duration; an unweighted average of event values over-represents short intervals. Use a complete repeating pattern when one exists. For changing commands, retain the stated time window and assess startup separately instead of joining unrelated steady records.

Choose a current sensor and acquisition chain that retain the relevant pulse width, DC level and peak amplitude. Check bandwidth, clipping, probe offset and whether the selected record length actually includes rare overlaps. A peak beyond instrument range cannot be recovered by calculating RMS from the clipped trace. Preserve raw simultaneous branch records when using the cross-term method, rather than combining separate captures that have lost their relative timing.

Translate RMS current into local average loss, not a temperature rating

For a segment whose resistance is effectively constant during the observation, average dissipation is its RMS current squared times resistance. Use the resistance at the appropriate operating condition. If resistance changes substantially during the record, evaluate instantaneous current squared times the time-dependent resistance before averaging; one cold reading may not represent the energized loss.

External copper wiring, fired conductors and attachment contacts need not share a temperature coefficient or heat-removal path. Allocate their losses separately when their temperatures differ. The constant-resistance model also excludes significant frequency-dependent resistance, nonlinear contacts and switching loss; these require a model appropriate to the actual waveform. These equations produce watts, not an allowable wire size, connector rating or ceramic temperature. Bundling, enclosure ventilation, adjacent heaters and local contact constrictions require installation-specific evaluation. Keep normal loading separate from fault protection and never infer a safe fault duration from this steady loss calculation.

Recheck the current boundary when the circuit contains local energy storage

A capacitor near the heater switches can supply part of an on-pulse and recharge at a different time. The branch sum then describes the downstream connection, not necessarily the upstream feeder. The source and capacitor currents must satisfy the actual node-current balance. Applying the load RMS directly to both segments can misallocate where resistive heat is generated.

Measure the upstream feeder and downstream common link separately when this distinction matters. Preserve the actual supply voltage with the current record, because source droop can also alter heater energy and on-state current. This page does not size a capacitor or claim that adding one reduces every loss: its own ripple current, equivalent series resistance, recharge behavior and protection need separate design treatment.

Deliver a segment loading table with evidence the assembly team can use

The useful handoff contains a topology drawing and, for each relevant segment, the contributing branches, observation interval, average current, RMS current, peak current, resistance state and resulting average loss. Include the overlap fractions only where the ideal state model is being used. Record whether current is measured directly or reconstructed, and keep the raw waveform beside the calculation.

Compare the resulting loss distribution with measured temperatures under the reviewed installation and process states. If a warm connector's estimated loss is inconsistent with the observation, investigate its contact resistance and cooling rather than changing every heater duty to conceal the symptom. Recalculate after wiring, return topology, local capacitance or switching behavior changes. The deliverable is a traceable electrical loading assessment for the common path, while the existing power-allocation and thermal-validation owners retain their separate decisions.
