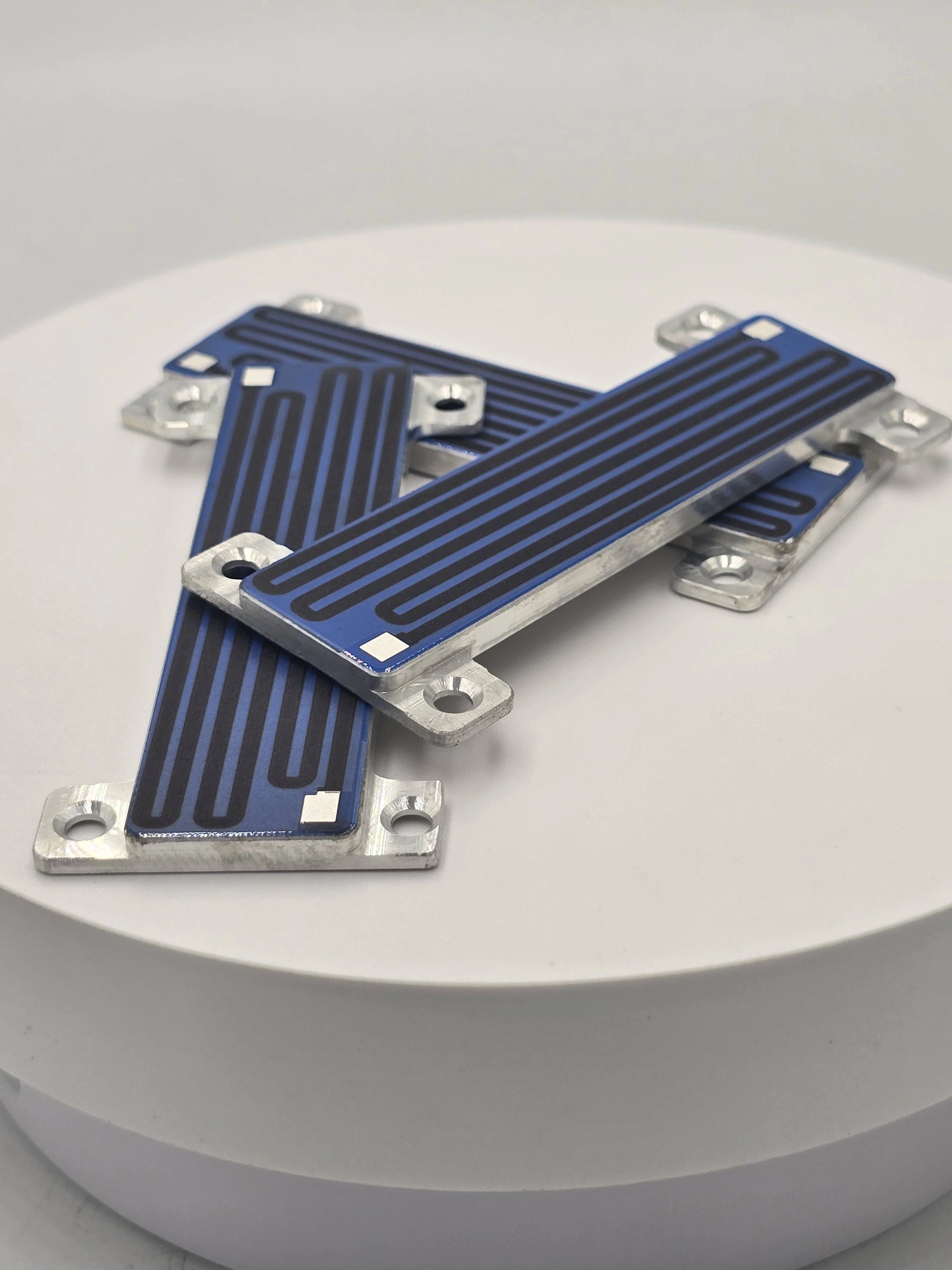

Phase-Angle Heater Control: Convert Firing Angle into Real Load Power

System boundary

An ideal single-phase sinusoidal source feeding a constant resistive heater through symmetrical phase-angle switching. The calculation does not approve a power stage, prescribe gate circuitry or cover inductive, transformer-coupled or three-phase loads.

Integration interfaces

Integration risks

Distinguish firing angle from conduction angle

Let alpha be the delay angle measured from the start of each voltage half-cycle. In the ideal resistive model, conduction begins at alpha and continues to the end of that half-cycle. The next half-cycle repeats the same delay with opposite polarity. Alpha equal to zero gives the complete sinusoid; alpha equal to pi gives no conduction.

Some interfaces describe the remaining conduction angle instead of the firing delay. Those values sum to 180 degrees for one half-cycle in this model. Confirm which quantity the controller accepts before interpreting a percentage or a timing trace. A label of 50 percent can mean requested power, RMS voltage, angle span or another internally mapped value; it is not self-defining.

Integrate the portion of the sine wave that actually reaches the resistor

For a source with RMS voltage Vs, the instantaneous sinusoidal voltage is square root of two times Vs times sine theta. During conduction, instantaneous resistive power is voltage squared divided by R. Integrating over both identical half-cycles and dividing by the complete cycle gives the expression below. Its full-conduction reference is Vs squared divided by R.

The sine-squared integral contains both the remaining angle interval and a sine of twice the firing angle. That second term is why the power fraction is not normally one minus alpha divided by pi. The calculation assumes resistance is effectively constant during the evaluated cycle. If it changes significantly or the waveform is distorted, integrate the measured terminal voltage-current product instead.

Use more than the ninety-degree case to check the mapping

At a 90-degree firing delay, half the cycle's sine-squared energy remains, so F equals 0.5. This familiar case can hide an incorrect implementation because both the linear time fraction and the correct power fraction happen to be one half. Test other angles where the two calculations differ substantially.

At 60 degrees, the conducted time fraction is two thirds, but the power fraction is approximately 0.804499. At 120 degrees, the conducted time fraction is one third, while the power fraction is approximately 0.195501. A linear-angle mapping would underpredict the first and overpredict the second. The difference follows from whether the retained waveform includes the high-voltage center of the half-cycle.

Half power does not mean half RMS voltage

Take a hypothetical 24-volt RMS sine source and a 12-ohm resistor. Full-conduction power is 48 watts. At a 90-degree firing angle, power is 24 watts and load RMS voltage is approximately 16.971 volts, not 12 volts. The RMS voltage is reduced by the square root of one half because resistive power depends on voltage squared.

The signed average voltage over a complete symmetric cycle is zero even though the resistor absorbs power. An average-responding meter and a true-RMS instrument can therefore report different quantities for a chopped waveform. Use an instrument with appropriate waveform, bandwidth and crest-factor capability, and state whether the reported voltage belongs to the source or the controlled load terminals.

Convert firing delay to time using the actual source frequency

The time from the zero crossing to firing is alpha divided by two pi f, where f is the source frequency in hertz. A 90-degree delay is five milliseconds at 50 hertz and approximately 4.166667 milliseconds at 60 hertz. Reusing a fixed five-millisecond delay at 60 hertz gives a different firing angle and therefore a different power fraction.

Zero-crossing detection and actual conduction should be compared in the waveform record. Detection delay, asymmetry or missed firing changes the real pattern. This page does not prescribe gate-pulse width or triggering hardware: those depend on the selected switch, driver and load. A mathematically correct timing target is only one input to the qualified power-stage design.

Map requested power to angle rather than assuming a linear scale

For the ideal model, F decreases monotonically from one to zero as alpha increases from zero to pi. A bounded numerical inversion or a verified lookup table can therefore translate requested power fraction into angle. Check both endpoints, intermediate values and the interpolation convention. Preserve the chosen mapping with the controller version instead of relying on an undocumented display scale.

The derivative of F with respect to alpha is minus two sine squared alpha divided by pi. Sensitivity is greatest near 90 degrees and approaches zero near the endpoints. At 90 degrees, a one-degree angle increment produces approximately a 0.011111 decrease in power fraction for a small change. This is a local sensitivity, not an exact large-angle linearization or a switching-resolution guarantee.

Keep nonideal loads and electrical compatibility outside the ideal formula

An inductive or transformer-coupled load can continue carrying current beyond a voltage crossing, so the assumed conduction interval may not apply. A real heater and harness can also have parasitic behavior at switching edges. If the load is not adequately resistive on the relevant timescale, use the appropriate circuit model and measured real power rather than extending this expression by analogy.

Phase chopping also changes the current waveform presented to the source. Power factor, harmonic current, electromagnetic compatibility and switch thermal behavior need their own equipment-level review. Do not claim that an otherwise resistive heater makes those issues disappear. Any mains-connected measurements require qualified procedures and correctly rated isolated instrumentation; the low-voltage arithmetic example is not an installation instruction.

Verify the complete command-to-power chain before judging thermal performance

Record requested power, commanded angle, source frequency, actual conduction intervals and simultaneous terminal voltage/current. Integrate complete cycles under steady conditions, and retain the pulse history during a changing command. Compare the measured power with the model using the actual resistance state. Do not shift measurement channels simply to force agreement; correct their acquisition timing independently.

The resulting handoff should identify where any discrepancy originates: command conversion, firing timing, source waveform, switch behavior, resistance or measurement. Then use the verified electrical input for the thermal review. This prevents a heater geometry change from being requested to correct a mistaken angle-to-power conversion, while keeping switching hardware, protection and complete equipment performance with their responsible owners.
