Time-Proportioned Heater Relays: Respect Minimum On and Off Times

System boundary

Time-proportioned control of a resistive heater through an identified relay, contactor or power interface. Timing feasibility is separate from contact electrical ratings, permitted thermal ripple, independent protection and a particular manufacturer's scheduling algorithm.

Integration interfaces

Integration risks

Identify the device that actually switches heater current

A controller relay may operate a separate contactor rather than switch the heater directly. The timing constraints of the complete chain include the controller output, coil driver, contactor and any supervisory logic. Record the applicable manufacturer requirements and the intended electrical load. Do not import the minimum interval from a solid-state switch into a mechanical relay specification.

Minimum on or off dwell is not a substitute for contact current, voltage, inrush or electrical-life review. It only answers whether the intended state can be maintained for the required interval. Distinguish a manufacturer's hard operating constraint from a longer project-selected dwell intended to reduce operation count. Both affect the scheduler, but their evidence and change authority are different.

Test both halves of the requested cycle

For a cycle period T and requested duty D, the intended on interval is DT and the off interval is one minus D times T. A mixed cycle containing both states is feasible only if each interval meets its own minimum. Checking the on interval alone misses high-demand cases where the off pulse is too short.

The resulting feasible duty band narrows as either minimum grows relative to the period. If the two minima sum to more than the period, no mixed cycle can satisfy both. Continuous off and continuous on are separate endpoint states; they do not contain a recurring opposite-state pulse. Their entry and exit still need the actual device and protective requirements.

A ten-second cycle may support the middle of the range but not its ends

Assume, solely for a timing example, a two-second minimum on interval and a three-second minimum off interval. With a ten-second cycle, the feasible mixed-cycle band is 20 to 70 percent. A 25 percent request gives 2.5 seconds on and 7.5 seconds off, so both timing conditions are satisfied. These numbers are not recommended settings for an unspecified relay.

A five percent request would produce only half a second on at the same period. Preserving that duty with a single on block requires a period of at least 40 seconds: two seconds on and 38 seconds off. At 90 percent demand, the three-second off requirement instead imposes at least a 30-second period, with 27 seconds on and three seconds off.

Define what the controller does with an infeasible request

There are several possible behaviors, and they do not have the same output. Extending the period can preserve average duty while satisfying both dwell requirements. Clipping duty to the feasible band changes the requested average. Omitting selected pulses can approximate a smaller average over a longer accounting window, but the spacing of those pulses becomes part of the thermal input.

Do not label all three behaviors minimum-pulse control and leave the distinction undocumented. In the example, forcing a two-second pulse into every ten-second cycle turns a five percent request into 20 percent delivered duty under the ideal timing model. If the controller instead emits one two-second pulse in each 40-second accounting window, it preserves five percent average but produces a different recurrence pattern.

Count operations as well as average energy

At steady mixed duty with one make and one break per cycle, a ten-second cycle gives 360 complete on/off cycles per hour, whereas a 40-second cycle gives 90. State whether an actuator specification counts complete cycles or individual transitions before comparing these numbers with its requirements. A fourfold reduction in count is not a fourfold lifetime guarantee.

Electrical stress at make and break, load characteristics, ambient conditions and the selected device still govern suitability. The scheduler also needs a rule for rapidly changing demand: repeatedly restarting its timing window can create more operations than a constant-demand calculation predicts. Review actual event timestamps during ramps and disturbances, not only a steady-state screenshot of the configured period.

Separate normal demand changes from protective interruption

If demand drops while the relay is in a scheduled on interval, document whether normal control completes the minimum dwell, shortens the pulse or uses another approved behavior. Each choice affects delivered energy and device operation. A rising demand during an enforced off interval similarly creates a known delay before the next allowed heating event.

A protective shutdown is a different event from ordinary temperature regulation. Do not intentionally maintain hazardous heating just to complete a normal-control dwell. The protective architecture must provide the required interruption behavior and use devices suitable for that duty. Verify the actual current response to protection separately from the scheduler's handling of small changes in requested percentage.

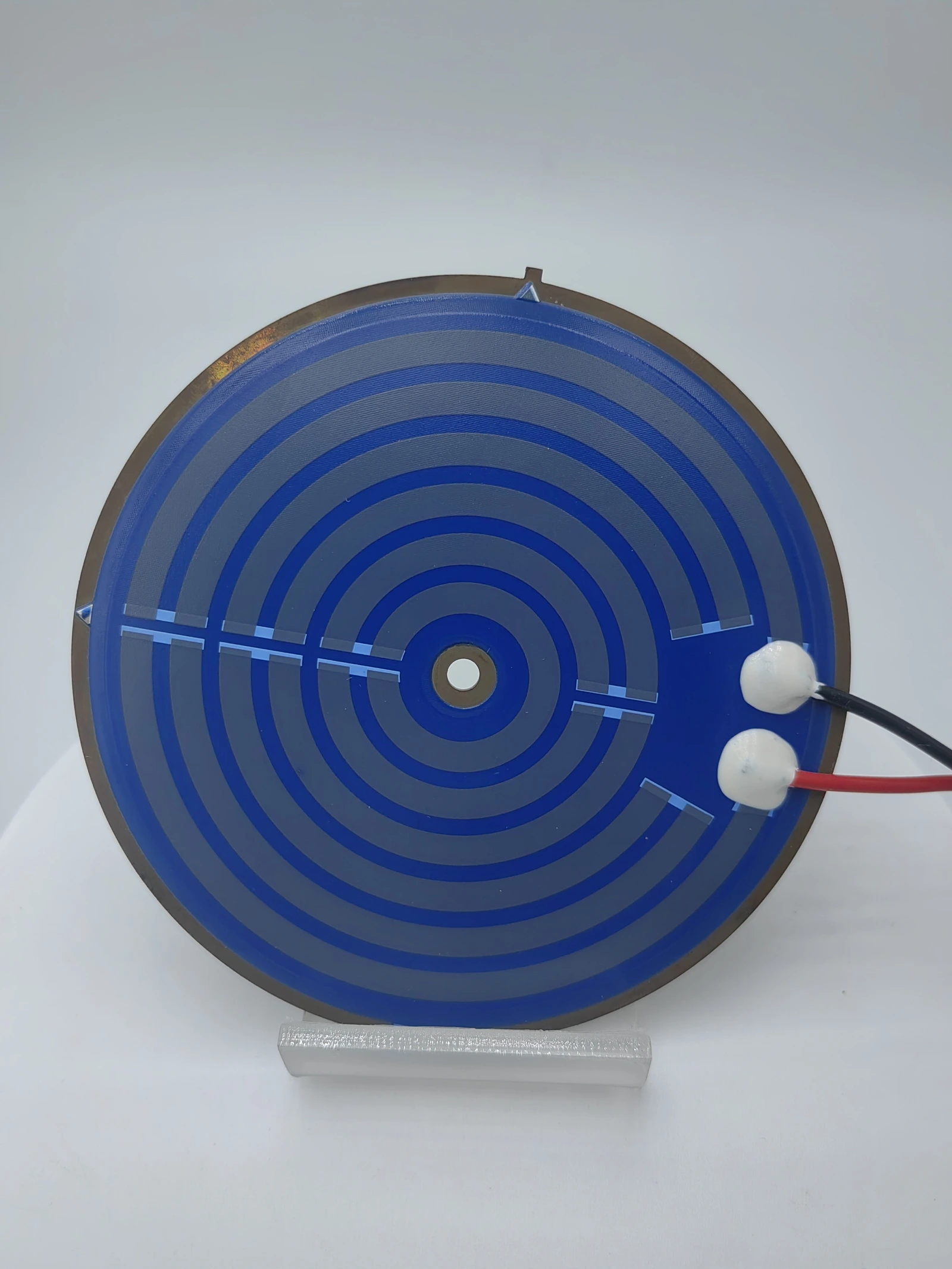

A feasible relay schedule still needs a compatible thermal load

Longer periods can satisfy actuator timing while increasing the interval over which the heater receives uninterrupted power. A low-mass local region may respond more quickly than the temperature sensor or the bulk load. Review the permitted pulse energy, local temperature behavior and sensing response in the installed assembly before accepting a period extension.

Use the separate periodic-heater model to evaluate the resulting temperature waveform where its assumptions apply. This page does not recalculate that thermal response; it supplies the actual feasible electrical schedule that the thermal review needs. If the actuator and temperature-ripple requirements have no common operating region, changing the switching architecture may be necessary rather than forcing an unsuitable timing compromise.

Verify delivered timing across low, middle and high demand

Record requested duty, selected period, scheduler state, actual switching events and simultaneous heater voltage/current. Include low and high demands outside the fixed-period feasible band, continuous endpoints and transitions between them. Calculate delivered energy over a stated window long enough to include the complete scheduling pattern. A short observation can misread intentional pulse omission as no output.

Provide the timing constraints with their device or project origin, the selected out-of-band policy and the accepted thermal result. Keep firmware or controller configuration with the record. The resulting handoff tells the heater and controls teams what waveform will actually reach the element, making it possible to distinguish an electrical scheduling limitation from resistance variation or a thermal-interface problem.
