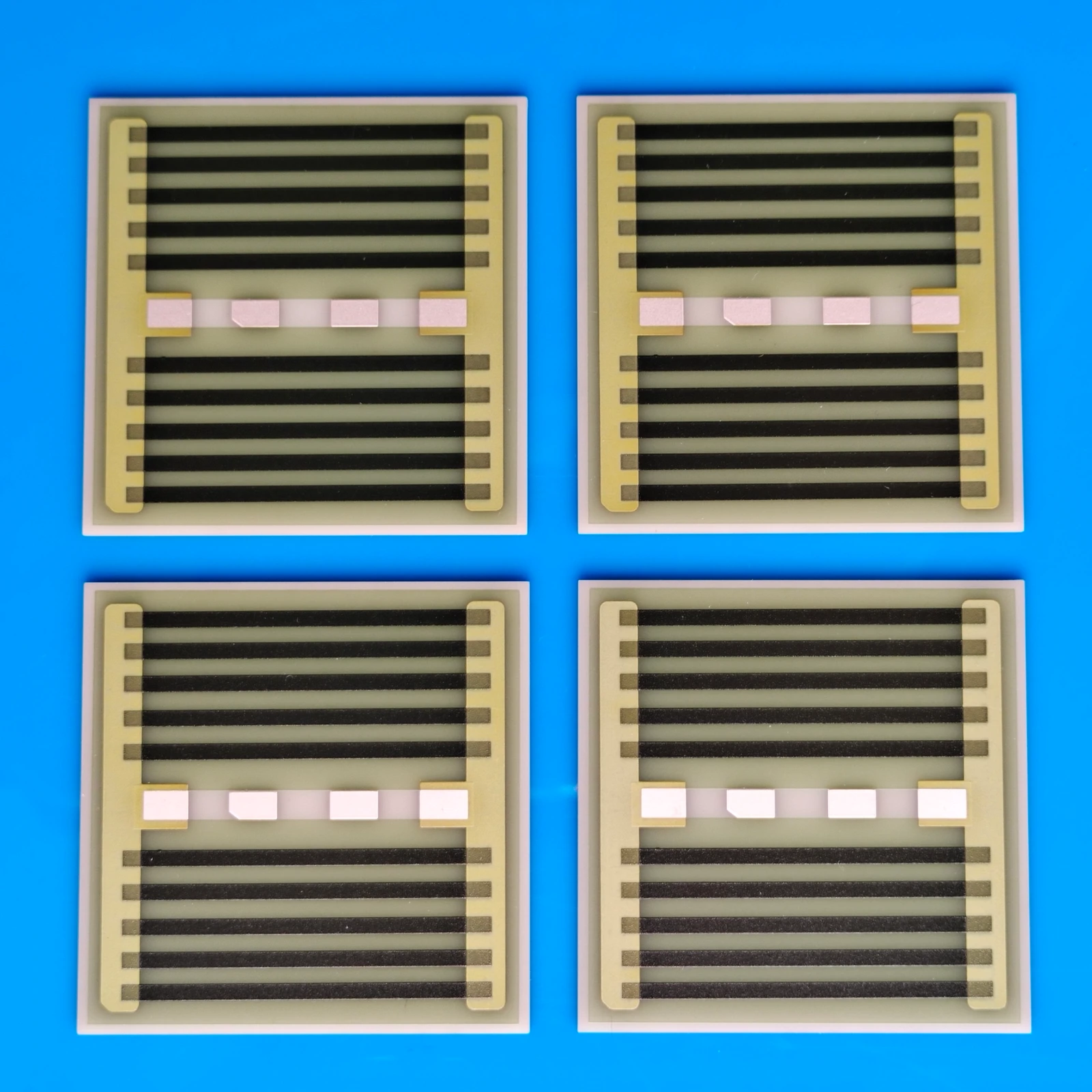

A chamber pressure rise when a ceramic heater warms is not enough to identify the heater as a leaking or unsuitable component. Heating can release previously adsorbed material, change connected seals or expose a restriction in the pumping path. Compare gas throughput and effective pumping speed at the same chamber boundary before changing the heater construction.
System boundary
A reviewed ceramic heater assembly inside a vacuum chamber, its supports and wiring, the connecting pumping path, pressure measurement and permitted heating sequence. Vacuum compatibility and allowable bakeout conditions require the actual materials and equipment limits.
Integration interfaces
| Interface | Required input | Thick film role | Validation owner |
|---|---|---|---|
| Heater assembly to vacuum volume | Exposed materials, surface history, cable insulation, adhesives and temperature histories. | The ceramic and printed circuit are only part of the gas-exposed assembly. | Vacuum process owner defines the represented material inventory. |
| Chamber to pumping system | Gas-specific pump speed, valve state and connection conductance in the applicable flow regime. | Heater-related gas must pass through the installed pumping path. | Vacuum engineer establishes effective chamber pumping speed. |
| Pressure and temperature records to acceptance | Gauge location, calibration basis, timing, heater power and background runs. | A temperature-dependent pressure trace is not a material outgassing certificate. | Application validation owner approves the comparison and limits. |
Integration risks
| Risk | Control or verification | Validation owner |
|---|---|---|
| Pump nameplate speed is used at a chamber behind restrictive plumbing. | Account for the connecting path and actual valve configuration. | Vacuum system designer. |
| A pressure increase is attributed to ceramic while cables or supports changed. | Inventory the complete installed material set and preserve a matched baseline. | Assembly integration engineer. |
| A generic bakeout temperature damages a seal, terminal or electrical insulation. | Use the lowest applicable reviewed component and equipment envelope. | Qualified equipment authority. |
System integration decisions
- Use pumping speed at the chamber rather than the pump nameplate.
- Compare complete heater assemblies against a controlled chamber baseline.
- Keep gas throughput, pressure and thermal performance as separate quantities.
Name the chamber pressure and the gas path
Mark where the pressure gauge connects relative to the heater, chamber, valve and pump inlet. Those locations need not have identical pressure while gas is flowing. A gauge near the pump can report a favourable value while a restricted passage leaves the process volume at a higher pressure. Keep the valve state and any traps or filters in the recorded configuration.
The heater review should identify the volume in which the customer's process must operate. It should also distinguish electrical power, local component temperature and chamber pressure. A satisfactory printed resistance does not establish gas cleanliness, and a low chamber pressure does not establish an acceptable thermal interface. Each quantity needs its own measurement boundary rather than one general vacuum performance label.
Express the added load as gas throughput
At a sufficiently steady, approximately isothermal chamber condition, pumping removes gas throughput proportional to pressure and effective pumping speed. Use Q=pS for the defined gas and boundary when the pump base-pressure contribution is negligible. A changing chamber inventory requires a transient balance; a steady equation should not be fitted to the steepest part of a heating ramp.
Throughput carries pressure multiplied by volume per time. It is not a volumetric flow quoted at an unspecified atmospheric reference. For a mixed gas, both gauge response and pump behaviour can depend on composition. Record the measurement basis and do not convert a pressure trace into a chemical identification. Surface release, permeation and a physical leak can contribute to the same total throughput.
Q = p Seff; V dp/dt = Qin − p Seff
- Q and Qin are gas throughputs in pascal cubic metres per second.
- p is chamber absolute pressure in pascals; Seff is effective pumping speed in cubic metres per second.
- V is chamber volume in cubic metres.
Constant volume and representative gas temperature, applicable speed at the chamber, negligible base-pressure term. The transient expression assumes the same pressure and temperature conventions for incoming and removed gas.
Include the restriction between chamber and pump
For a suitable steady flow model, reciprocal effective speed is the sum of reciprocal pump speed and reciprocal connection conductance. Conductance has the same volume-per-time units as pumping speed, but describes the connecting path rather than the pump. A valve, narrow tube or baffle can control the final result even when the installed pump is substantially larger.
Use conductance appropriate to the gas, geometry and pressure regime. Do not take a molecular-flow value and use it across an entire evacuation from atmosphere. Changing a hose length or valve opening changes the comparison boundary; a pressure improvement after that change cannot automatically be assigned to a cleaner heater. Record the plumbing revision alongside the heater assembly revision.
1/Seff = 1/Spump + 1/Cpath
- Spump is inlet pumping speed for the specified operating condition.
- Cpath is the combined conductance between that inlet and the chamber.
- All three quantities use matching volume-per-time units.
Applicable steady conductance representation for the selected gas and flow regime; additional branches and significant pump base pressure require an expanded model.
Check whether a larger pump addresses the observed pressure
Assume a pump speed of 100 litres per second and a connecting conductance of 25 litres per second. The effective chamber speed is 20 litres per second. At an assumed chamber pressure of 0.020 pascal, the corresponding steady throughput is 0.40 pascal-litre per second, or 0.00040 pascal cubic metre per second. These are calculation inputs, not a heater specification.
Doubling the pump to 200 litres per second while retaining the same path increases effective speed only to about 22.22 litres per second. At unchanged throughput, pressure becomes 0.018 pascal, a ten-percent reduction. Increasing path conductance to 100 litres per second with the original pump instead gives an effective speed of 50 litres per second and pressure of 0.008 pascal. Actual equipment selection also needs gas and pump operating limits.
Compare the complete assembly with an appropriate background
Establish a chamber background with the intended holders and instrumentation, then identify what changes when the heater assembly is introduced. Cable jackets, connector inserts, labels, adhesives and handling residues may be more consequential than the exposed ceramic area. Keep these items on the material inventory instead of classifying the assembly only by its substrate name.
A meaningful comparison preserves pump state, gauge location, thermal history and conditioning time. If the empty fixture is heated differently from the populated one, subtracting pressures does not isolate heater gas release cleanly. Use measured temperatures to identify that mismatch. An added pressure contribution can support a bounded assembly comparison without proving which individual material produced it.
| Configuration | Variables to preserve | Useful result |
|---|---|---|
| Chamber and holder baseline | Pumping path, gauge and approved conditioning | Background pressure history |
| Installed unpowered heater assembly | Same handling and elapsed exposure | Added assembly contribution before heating |
| Approved heated condition | Measured component temperatures and valve state | Pressure response linked to the thermal sequence |
| Cooled assembly after the run | Comparable temperature and pumping state | Reversible response versus changed background |
| One controlled material substitution | All other exposed components unchanged | Evidence concerning that specific substitution |
Keep a pressure transient separate from a steady endpoint
A brief pressure peak during heating and a persistent high pressure after cooling answer different questions. Preserve the full time history rather than reporting only the best final value. Align pressure with heater power, local temperatures and valve events so a pumping change is not mistaken for a material event. Use a gas-analysis method when composition is necessary to distinguish competing explanations.
Pressure-rise measurements made with a pump isolated require their own controlled boundary and safety procedure. They can include desorption as well as leakage, so a rising pressure is not by itself a physical leak measurement. Do not improvise isolation or temperature excursions on an operating chamber merely to obtain a cleaner-looking curve. The qualified vacuum team should choose the discriminating test.
Review bakeout against every installed material
Choose allowable temperatures from the actual heater stack, attachment, terminal, insulation, seal and instrument documentation. A ceramic substrate surviving a high processing temperature does not authorize that temperature for a completed assembly. Firing conditions and installed operation remain different requirements. Include temperature gradients and local hot regions that a chamber wall sensor can miss.
Reduced gas conduction can raise heater temperature at unchanged electrical power. Verify the intended thermal path under the operating pressure range separately from the gas-load calculation. If a support or insulation material is changed to improve vacuum behaviour, reassess mounting stress, electrical spacing and heat removal. Improving one boundary can make another limiting.
Release a pressure budget with its configuration
The useful handoff contains allowable process pressure, effective-speed basis, permitted gas load, material inventory and the observed temperature-pressure history. State what portion of the evidence belongs to the bare circuit and what belongs to the installed module. Preserve original records so a later cable or holder substitution can be reviewed without repeating unrelated characterization.
ChipSimple can review the drawing-defined circuit and its integration information for the proposed application. Vacuum equipment suitability, bakeout authorization and gas acceptance belong to the responsible system team. A bounded pressure budget helps that team distinguish a material investigation from a pumping-path improvement, while avoiding an unsupported vacuum rating for the ceramic heater itself.
Review a ceramic heater for a vacuum assembly
Provide the vacuum and thermal boundaries together with the heater drawing.
- Required chamber pressure, gas identity and gauge location.
- Effective pumping-speed basis and connection layout.
- Complete exposed material and attachment inventory.
- Permitted temperature histories and electrical operating conditions.
- Background and installed temperature-pressure records with configuration identities.
