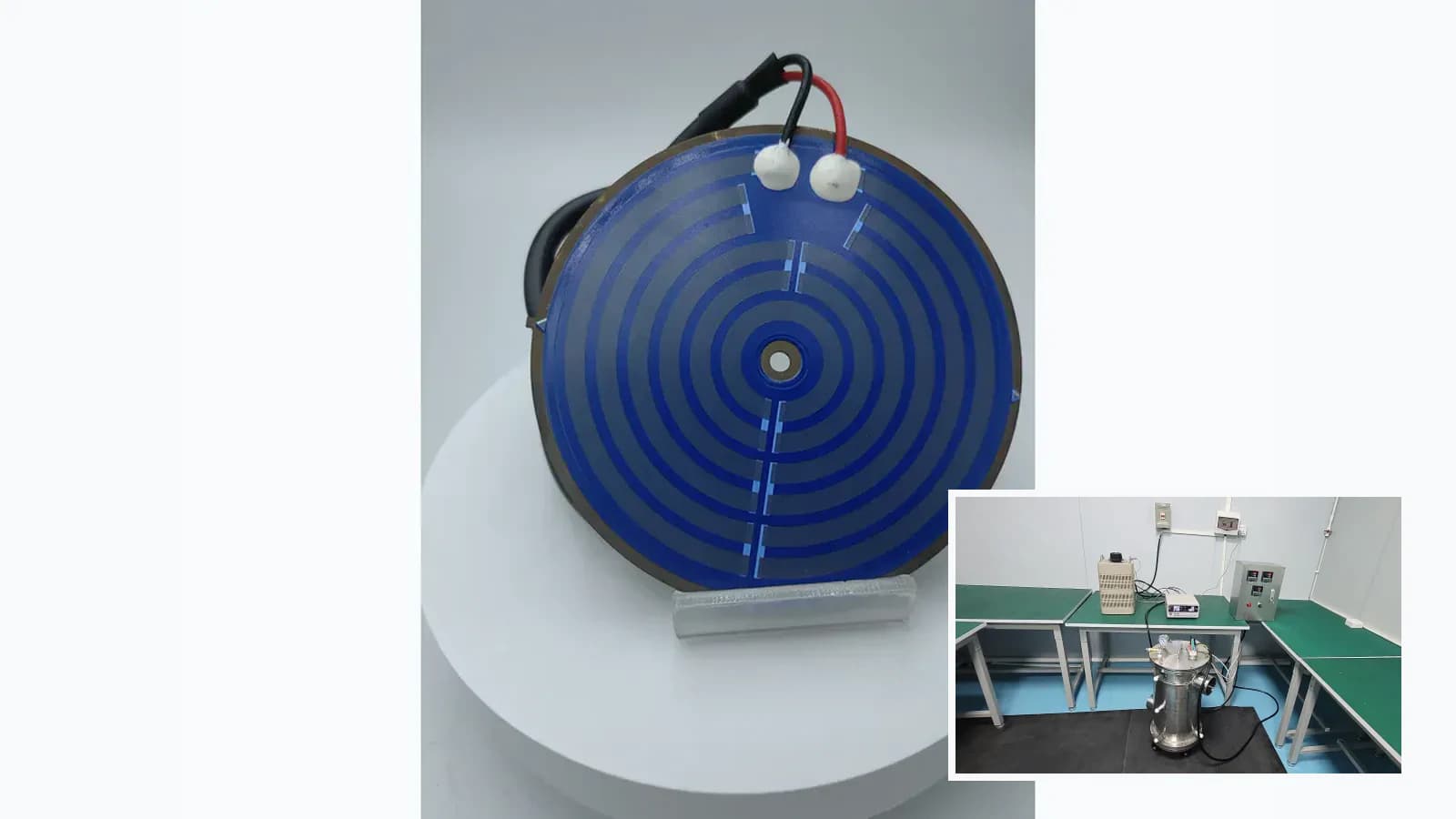

Overview
This engineering review example defines the evidence structure for Stainless Steel Heater Uniformity Engineering Review. No customer, result, performance improvement, yield, schedule, or volume is asserted because a traceable and publication-cleared project record has not been supplied.
Evidence release route
The order makes assumptions and ownership visible before a result is promoted to a requirement.
- 01
Confirm publication permission
For Stainless Steel Heater Uniformity Engineering Review, verify written publication permission, permitted evidence, redaction scope, and the named approver before external use.
- 02
Redact customer identity and drawings
For Stainless Steel Heater Uniformity Engineering Review, remove customer identity, confidential geometry, drawing data, lot codes, and other protected information while preserving technical traceability.
- 03
Verify input and process records
For Stainless Steel Heater Uniformity Engineering Review, agree the inspection method, sample plan, acceptance criteria, traceability, and report format before validation.
- 04
Verify measured outcome
For Stainless Steel Heater Uniformity Engineering Review, agree the inspection method, sample plan, acceptance criteria, traceability, and report format before validation.
- 05
Approve the bounded case narrative
For Stainless Steel Heater Uniformity Engineering Review, close remaining assumptions and link the quoted or released scope to the drawing revision, evidence set, owner, and change-control plan.
Engineering review matrix
Each row links a design variable to evidence that can support a drawing or release decision.
| Variable | Control question | Verification route |
|---|---|---|
| Electrical target | For Stainless Steel Heater Uniformity Engineering Review, define voltage, resistance, current, power, duty cycle, and tolerance at the assembly operating point. | Measure cold and operating resistance, current, power, and protective response under the agreed supply condition. |
| Heat path | Substrate, mounting, fluid or air flow, contact resistance, insulation, and ambient determine temperature—not nominal watts alone. | Map temperature at steady state and during transients at relevant boundary conditions. |
| Printed geometry | Trace width, thickness, turns, spacing, neck-downs, and terminal transitions control local current density and heat flux. | Inspect processed geometry and correlate critical regions with the thermal map. |
| Insulation and protection | Working voltage, dielectric stack, creepage, clearance, moisture, scale, and dry-run exposure must be reviewed together. | Use a construction-specific insulation, dielectric, leakage, and environmental plan. |
| Control interface | Sensors, cut-outs, bonding, terminals, control algorithm, and fault state belong to the heater system boundary. | Validate warm-up, overshoot, cycling, sensor response, and defined fault cases in the final assembly. |
Failure controls
These are review prompts, not evidence that every risk applies or that every test is available.
- A
Local hot spot at a turn, neck-down, terminal, void, or poor thermal interface
- B
Resistance drift or protection damage after thermal cycling
- C
Dielectric breakdown, leakage, or corrosion under moisture, scale, or contamination
- D
Runaway temperature when flow, contact, sensing, or control is lost
Inputs for a practical review
Unknown values may be labelled unknown. The review should convert uncertainty into an explicit decision or validation task.
Send Drawings- 01
Supply voltage and tolerance; target power or resistance
- 02
Thermal load, mounting stack, medium, flow, ambient, and duty cycle
- 03
Allowed temperature field, warm-up time, and fault limits
- 04
Outline, keep-outs, terminal and sensor interfaces
- 05
Electrical, thermal, cycling, and safety tests
