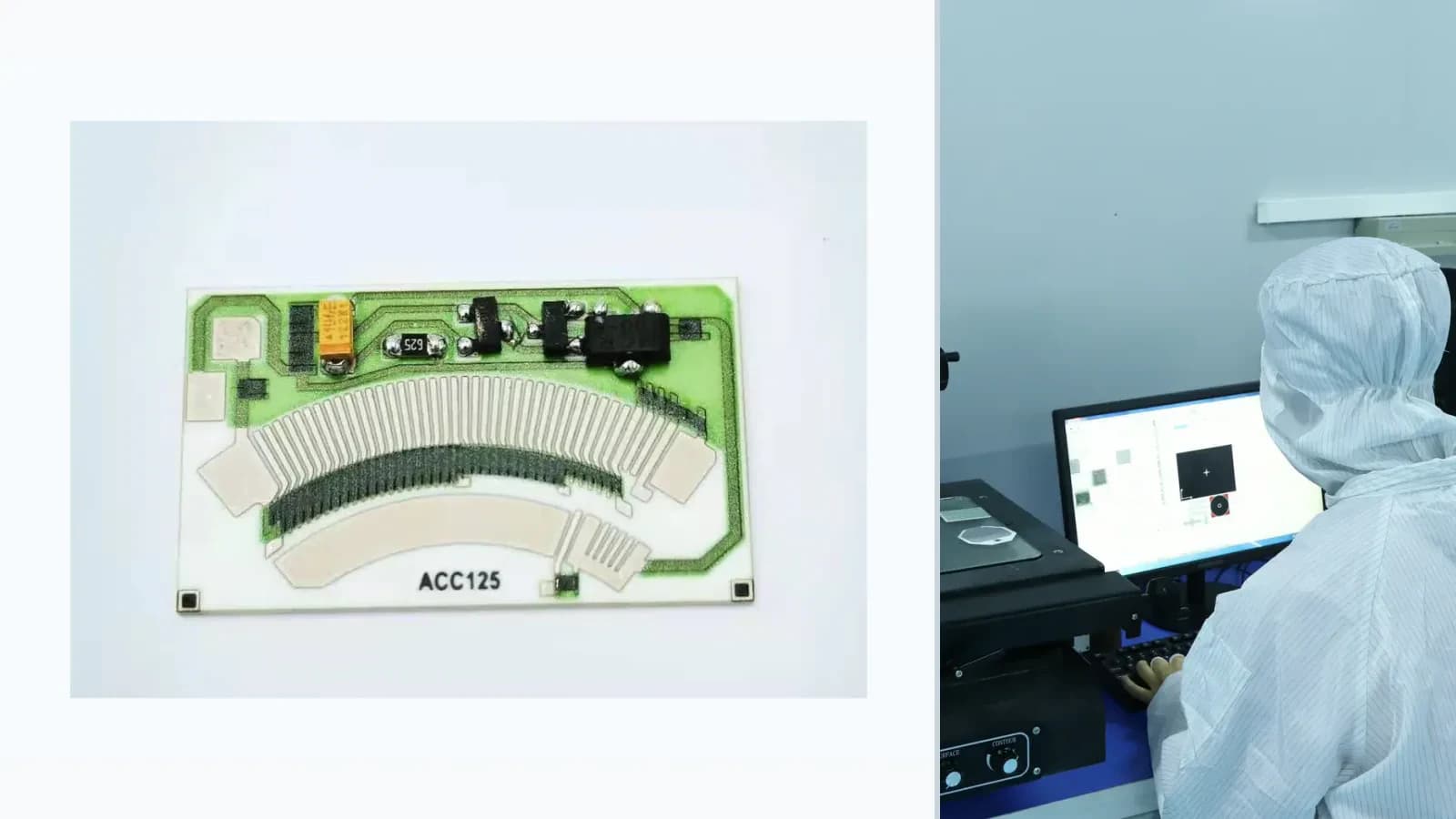

Overview
This engineering review example defines the evidence structure for Rotary Position Sensor Resistor Card Engineering Review. No customer, result, performance improvement, yield, schedule, or volume is asserted because a traceable and publication-cleared project record has not been supplied.
Evidence release route
The order makes assumptions and ownership visible before a result is promoted to a requirement.
- 01
Confirm publication permission
For Rotary Position Sensor Resistor Card Engineering Review, verify written publication permission, permitted evidence, redaction scope, and the named approver before external use.
- 02
Redact customer identity and drawings
For Rotary Position Sensor Resistor Card Engineering Review, remove customer identity, confidential geometry, drawing data, lot codes, and other protected information while preserving technical traceability.
- 03
Verify input and process records
For Rotary Position Sensor Resistor Card Engineering Review, agree the inspection method, sample plan, acceptance criteria, traceability, and report format before validation.
- 04
Verify measured outcome
For Rotary Position Sensor Resistor Card Engineering Review, agree the inspection method, sample plan, acceptance criteria, traceability, and report format before validation.
- 05
Approve the bounded case narrative
For Rotary Position Sensor Resistor Card Engineering Review, close remaining assumptions and link the quoted or released scope to the drawing revision, evidence set, owner, and change-control plan.
Engineering review matrix
Each row links a design variable to evidence that can support a drawing or release decision.
| Variable | Control question | Verification route |
|---|---|---|
| Transfer function | For Rotary Position Sensor Resistor Card Engineering Review, define travel or angle against resistance, ratio, voltage, curve points, endpoint behavior, and permitted error. | Measure complete forward and reverse transfer curves at controlled reference conditions. |
| Mechanical chain | Float, linkage, shaft, carrier, datum, stop, preload, and tolerance stack convert physical input into wiper position. | Correlate position with electrical output and record hysteresis and repeatability. |
| Contact interface | Wiper material, load, track finish, geometry, speed, vibration, and debris affect noise and wear. | Run contact variation, wear, interruption, and life tests with the mating contact defined. |
| Media and protection | Fuel, oil, water, additives, cleaning agents, humidity, and temperature can change track, conductor, protection, and terminals. | Expose representative assemblies under defined media, bias, temperature, time, and criteria. |
| Electronics and diagnostics | Excitation, input impedance, filtering, redundancy, plausibility, and failure detection shape usable output. | Validate channels and diagnostic states with the actual controller interface or controlled equivalent. |
Failure controls
These are review prompts, not evidence that every risk applies or that every test is available.
- A
Curve error from linkage geometry or incorrect breakpoint placement
- B
Output noise, opens, or drift from contact wear and contamination
- C
Channel mismatch or diagnostic failure in redundant tracks
- D
Media ingress, corrosion, swelling, or protection-layer damage
Inputs for a practical review
Unknown values may be labelled unknown. The review should convert uncertainty into an explicit decision or validation task.
Send Drawings- 01
Travel/angle geometry and datum scheme
- 02
Target curve table including endpoints and tolerances
- 03
Mating wiper material, load, speed, and life profile
- 04
Excitation, electronics input, diagnostics, and filtering
- 05
Media, temperature, vibration, wear, and calibration tests
