Substrate Cleaning and Surface Preparation Before Thick Film Printing

Ceramic may arrive visually white and still carry process residues or particles. Cleaning must remove the contamination actually present without leaving a new film, attacking the surface or introducing moisture that is not removed before printing. The route also needs protected handling after cleaning; otherwise the best washer simply produces a clean surface that is immediately recontaminated.

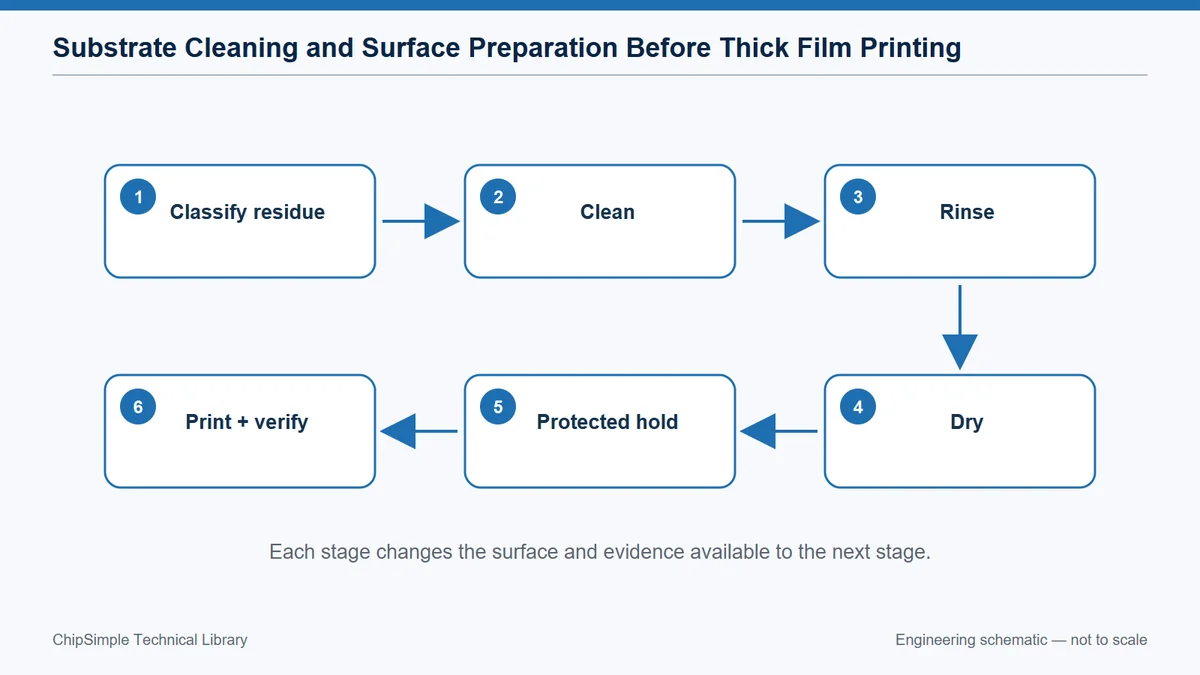

Controlled ceramic-substrate cleaning, rinsing, drying, storage and verification flow.
Engineering schematic. Controlled ceramic-substrate cleaning, rinsing, drying, storage and verification flow.

Identify the Contamination Source

In a stable manufacturing route, dust, machining residue, oil, fingerprints and packaging fibres require different controls. This means one universal cleaning step can move contamination rather than remove it. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.

The control plan should map substrate manufacture, cutting, storage and handling before selecting chemistry. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.

Evidence comes from inspection and residue checks on parts from each incoming condition. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.

Investigate recurring defects concentrated by supplier lot or handling station. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.

Use Compatible Cleaning Chemistry

A useful way to frame the decision is this: The cleaner must remove residue and then leave the ceramic without its own nonvolatile film. As a result, rinsing quality and water condition can matter as much as the active cleaning step. That cause-and-effect chain should remain visible when ceramic substrate cleaning thick film printing is reviewed with purchasing and quality teams.

The manufacturing boundary is protected when the team can qualify concentration, time, temperature, rinse and bath replacement. This approach separates the customer's functional need from the supplier's machine-specific compensation.

Confirm the decision with surface cleanliness indicators and fired adhesion or insulation coupons. Include both typical and boundary-condition specimens where the failure consequence justifies them.

The symptom uniform haze, poor wetting or ionic leakage introduced by cleaning deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.

Dry Completely and Control Time to Print

Geometry and material meet at this point: Retained moisture and airborne redeposition change the prepared surface. Therefore, long uncontrolled queues can erase the benefit of cleaning. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.

During release, define drying conditions, clean storage and maximum hold time. Make sure the acceptance method measures the same physical feature that the design calculation assumed.

Useful confirmation includes lot timestamps, protected containers and comparison coupons across hold intervals. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.

One failure signature is first parts printing well while later parts from the same cleaned batch do not. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.

Prevent Recontamination in Handling

Process capability follows from the mechanism: Contact tools, gloves, trays and air can reintroduce particles or organics. The direct implication is that edge handling practices affect usable area and print yield. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.

A practical release action is to use dedicated clean fixtures and approved glove-change rules. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.

Use routine station audits and defect-location mapping to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.

Pay attention to fingerprint-shaped adhesion loss or particles repeating at tray contact points. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.

Tie Cleaning to Functional Evidence

Visual cleanliness is necessary but not sufficient. The consequence is that trace ionic or organic residue can affect high-impedance, high-voltage or bonding performance without obvious colour. In a ceramic substrate cleaning thick film printing review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.

The practical control is to select evidence according to the most sensitive downstream function. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.

Verification should include adhesion, insulation, contact-angle, bond or analytical tests as appropriate. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.

A common warning sign is accepting bright ceramic that produces electrical or joining failures. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.

A Worked Engineering Review

If dielectric pinholes rise after a substrate supplier change, compare incoming surface condition and packaging rather than immediately changing dielectric paste. Run cleaned and uncleaned coupons from both sources through the same print and firing process. Record wetting, fired appearance and insulation. Inspect rinse quality and drying trays. If the defect follows the cleaning hold time rather than the supplier, the queue and storage control become the corrective action. This structured comparison avoids masking the problem with a heavier dielectric print.

Design Review Checklist

  • Classify incoming contamination.
  • Qualify cleaner, rinse and bath control.
  • Define drying and maximum hold time.
  • Protect cleaned surfaces with dedicated fixtures.
  • Verify the most sensitive downstream function.

Questions Engineers Commonly Ask

Can alumina be printed straight from the package?

Only if that packaged condition has been qualified. Packaging can contain particles or residues, and handling history varies.

Is ultrasonic cleaning always appropriate?

It can be effective, but chemistry, power, time and part geometry must be qualified. Cavitation can redistribute particles or damage fragile features.

How clean is clean enough?

The answer is functional. A conductor adhesion process, high-voltage dielectric and wire-bond surface may need different evidence.

Closing Note

A controlled cleaning route begins with known contamination and ends with protected, traceable time to print. Its success is demonstrated by fired and assembled performance, not by whiteness alone.
