High-Voltage Thick Film Resistor Networks: Geometry, Field Stress and Ratio Stability
A high resistance value can be distributed over a long serpentine film or series of elements. Voltage is not distributed perfectly when geometry, trimming and surface conditions vary. Sharp conductor edges, trim tips and close high-potential nodes concentrate field. Humidity and contamination create surface leakage that can bypass the intended resistor path.

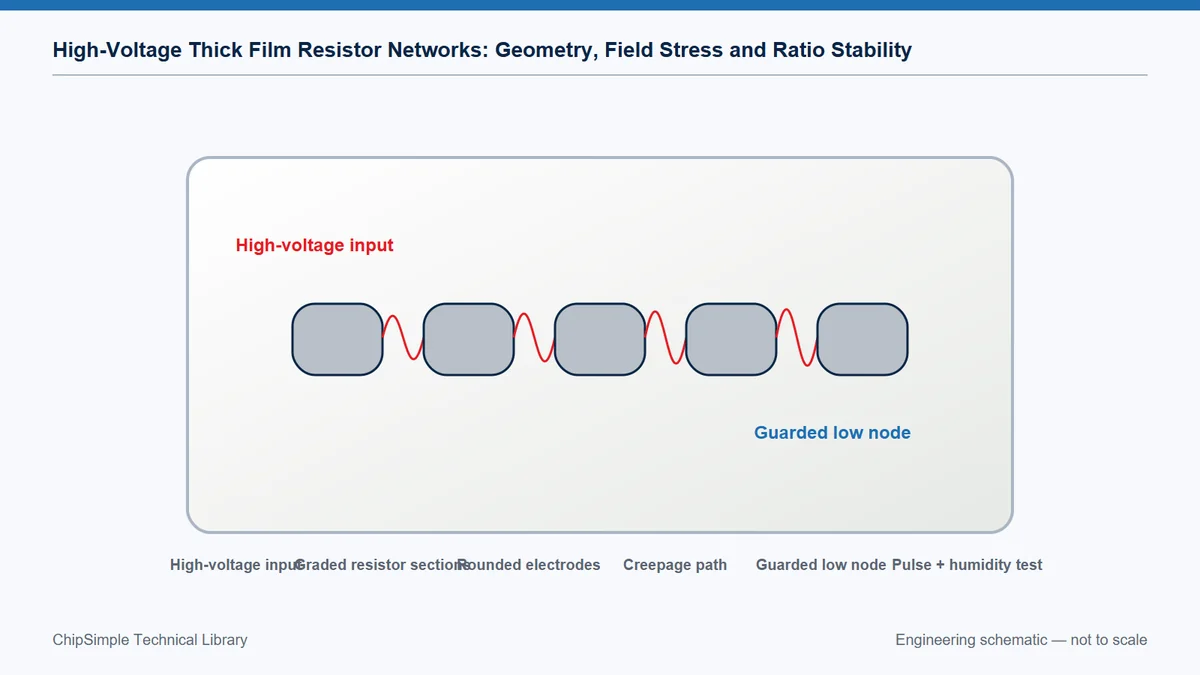

Allocate Voltage Along the Network
A useful way to frame the decision is this: Each segment and gap carries part of the total potential. As a result, unequal geometry or leakage can overload a local section. That cause-and-effect chain should remain visible when high voltage thick film resistor network is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can model segment voltage and provide graded spacing where needed. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with node-voltage or leakage measurements under working and test conditions. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom local flashover in a network whose total resistance is correct deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Shape the Electric Field
Geometry and material meet at this point: Sharp corners, narrow gaps and trim tips increase field concentration. Therefore, breakdown can start at geometry far below bulk dielectric strength. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, use smooth electrodes, guarded spacing and protected trim regions. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes field analysis and high-voltage inspection in darkness or controlled detection. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is corona, carbon tracking or repeated damage at one corner. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Control Surface Leakage
Process capability follows from the mechanism: Humidity, ionic residue and coating determine parallel surface resistance. The direct implication is that leakage can create value error, noise or thermal damage. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to specify creepage, cleaning, protection and environmental conditioning. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use insulation and resistance under biased humidity to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to accurate dry readings with large field drift. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
Design for Pulse and Continuous Power
Voltage rating and energy rating are separate. The consequence is that a short surge can create local thermal shock while continuous power sets steady temperature. In a high voltage thick film resistor network review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to state waveform, source impedance, repetition and allowable change. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include pulse and load-life tests on actual geometry. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is passing DC withstand but drifting after repetitive pulses. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
Preserve Ratio and Trim Stability
Network function may depend on ratio more than absolute resistance. The consequence is practical: temperature gradients and unequal trim severity disturb tracking. This is one reason high voltage thick film resistor network cannot be reduced to a single catalogue value.
During design review, co-locate matched elements, balance geometry and limit trim concentration. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.
A useful evidence package contains ratio over temperature, voltage and ageing. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.
Watch for each resistor passing tolerance while divider output fails. It often indicates that two individually acceptable variables have combined at the edge of their windows.
A Worked Engineering Review
A divider operates at several kilovolts and feeds a precision measurement node. Divide the high-side resistance into sections so no one element or spacing carries excessive voltage. Increase creepage near the high-potential end and round conductor features. Place the ratio-critical low-side element away from heat and use compatible TCR. Qualification includes DC withstand, working-voltage leakage, pulse exposure, humid bias and ratio measurement over temperature. A protective coating is evaluated only after cleanliness and field geometry are correct.
Design Review Checklist
- Map voltage by segment and gap.
- Round field-concentrating geometry.
- Specify creepage, cleanliness and humidity.
- Define pulse waveform and continuous power.
- Test ratio over temperature and voltage.
Questions Engineers Commonly Ask
Is resistor voltage rating proportional to length?
Length helps distribute field, but edges, trimming, substrate and environment also control rating. Qualification is geometry-specific.
Does coating solve insufficient creepage?
It can improve environmental protection, but should not replace sound spacing, cleanliness and field design.
Why test at working voltage as well as hipot?
Hipot screens insulation; working-voltage tests reveal leakage, heating and long-term electrical behaviour.
Related Engineering Resources
Closing Note
High-voltage networks succeed when electrical field, thermal load and environmental surface paths are designed together. Nominal resistance is only the first line of the specification.
