Selecting Printed Dielectrics for Insulation, Crossovers and Protection

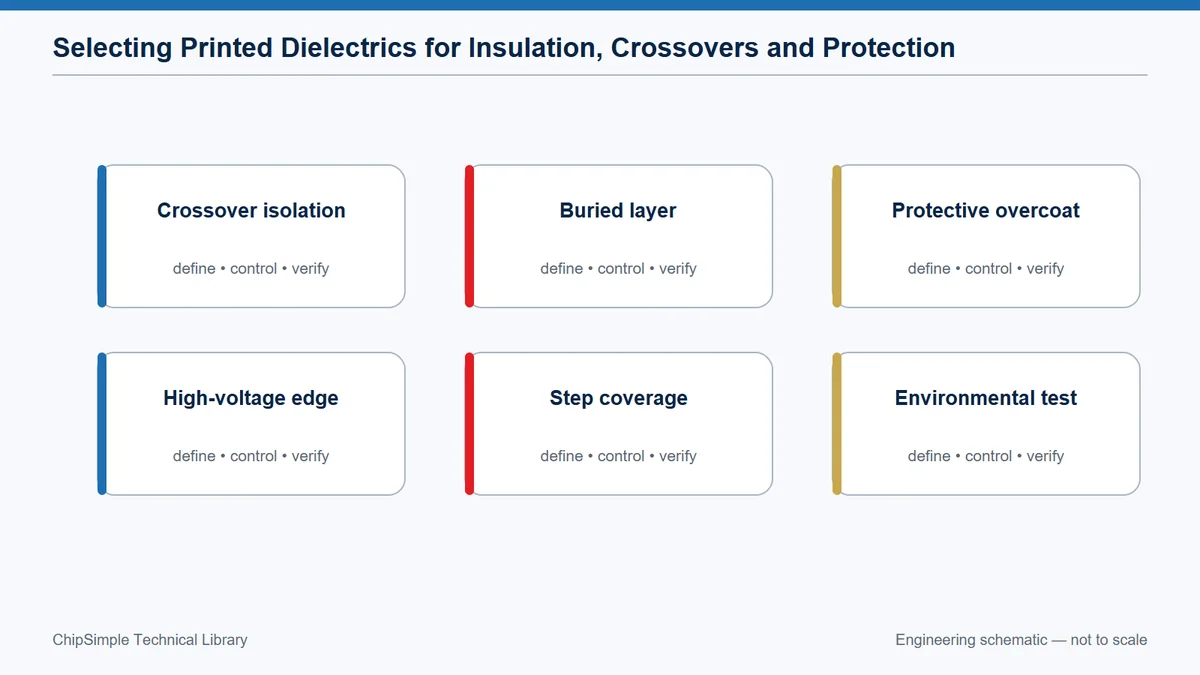

A dielectric paste contains ceramic or glass-forming phases and an organic vehicle that is removed during firing. The fired layer must cover topography without pinholes, adhere to the layers below and remain compatible with conductors printed above. The same material may not be optimal for a high-voltage barrier, a local crossover and a protective overcoat because their stress and inspection needs differ.
Define Function Before Selecting Material
The physical starting point is straightforward: Insulation, crossover support and environmental protection impose different requirements. From there, voltage withstand, dielectric constant, mechanical coverage and chemical resistance may not rank the same way. For thick film dielectric material, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, classify each dielectric region by electrical and environmental duty. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture function-specific coupons rather than one generic dielectric test. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees a material that passes a flat coupon but fails over conductor steps or exposed edges, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.
Design for Coverage over Printed Topography
In a stable manufacturing route, dielectric thins over conductor edges and screen features. This means the smallest local thickness may control leakage or breakdown. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should use overlap, edge shaping and print count qualified for the underlying height. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from cross-sections at steps plus electrical testing on minimum geometry. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate breakdown along a step while average thickness appears adequate. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
Control Burnout and Firing Compatibility
A useful way to frame the decision is this: Trapped organic material and mismatched softening can create pores, blisters or cracks. As a result, a heavy or rapidly dried print may need a different burnout response than a thin layer. That cause-and-effect chain should remain visible when thick film dielectric material is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can qualify drying, print count, furnace profile and underlying layer condition. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with visual and sectioned porosity assessment tied to profile records. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom blistering only after the next conductor or overcoat firing deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Account for Electric Field and Environment
Geometry and material meet at this point: Surface contamination and humidity can bypass otherwise strong bulk dielectric. Therefore, edge spacing, exposed interfaces and protective coverage influence high-voltage performance. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, define creepage, polarity, humidity and cleanliness with the dielectric construction. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes insulation and withstand tests under representative environmental conditioning. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is low dry leakage followed by field failures in humid biased operation. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Plan Inspection of Buried Dielectric
Process capability follows from the mechanism: The most useful inspection occurs before the next layer hides the surface. The direct implication is that pinholes, incomplete overlap and debris are difficult to diagnose after completion. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to create in-process inspection gates and witness coupons. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use recorded optical inspection, thickness data and final electrical tests to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to using final hipot failure as the first indication of an early print defect. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
A Worked Engineering Review
A two-conductor crossover is exposed to moderate working voltage but must survive a higher production test. The engineer defines the waveform and duration, then sets a minimum dielectric overlap beyond the lower conductor. A two-print dielectric build may be selected to reduce aligned pinhole risk, with inspection after each fired layer. Cross-sections confirm coverage over the conductor edge. Final insulation testing uses the smallest production geometry and representative humidity conditioning. The dielectric choice is accepted only after the upper conductor also shows adhesion and continuity.
Design Review Checklist
- State dielectric function and electrical stress.
- Design for local coverage over conductor steps.
- Qualify print count, drying and firing.
- Include humidity, cleanliness and creepage.
- Inspect before burying critical regions.
Questions Engineers Commonly Ask
Is dielectric strength quoted in kV/mm enough for design?
No. Printed thickness variation, defects, edge fields, environment and test method matter. Qualify the actual geometry.
Why use two dielectric prints?
Separate prints can improve coverage and reduce the chance that through-defects align, but they add process steps and thermal exposure.
Can dielectric be used as a general protective coating?
Only when its fired behaviour and coverage match the environmental need and it does not obstruct joining, trimming or repair.
Related Engineering Resources
Closing Note
Printed dielectric should be specified as a construction, not only a material. Geometry, print count, firing sequence and environmental testing define the usable insulation system.
