Thermal Shock Readouts: Preserve Failure Intervals and Withdrawn Specimens

Measurement purpose

Create a specimen-level event record that distinguishes confirmed exact events, interval-observed failures and surviving withdrawals under a defined thermal-shock diagnostic. The method preserves evidence for later analysis; it does not prescribe thermal exposure or convert laboratory cycles into service life.

Specimens and conditions

Individual exposure history

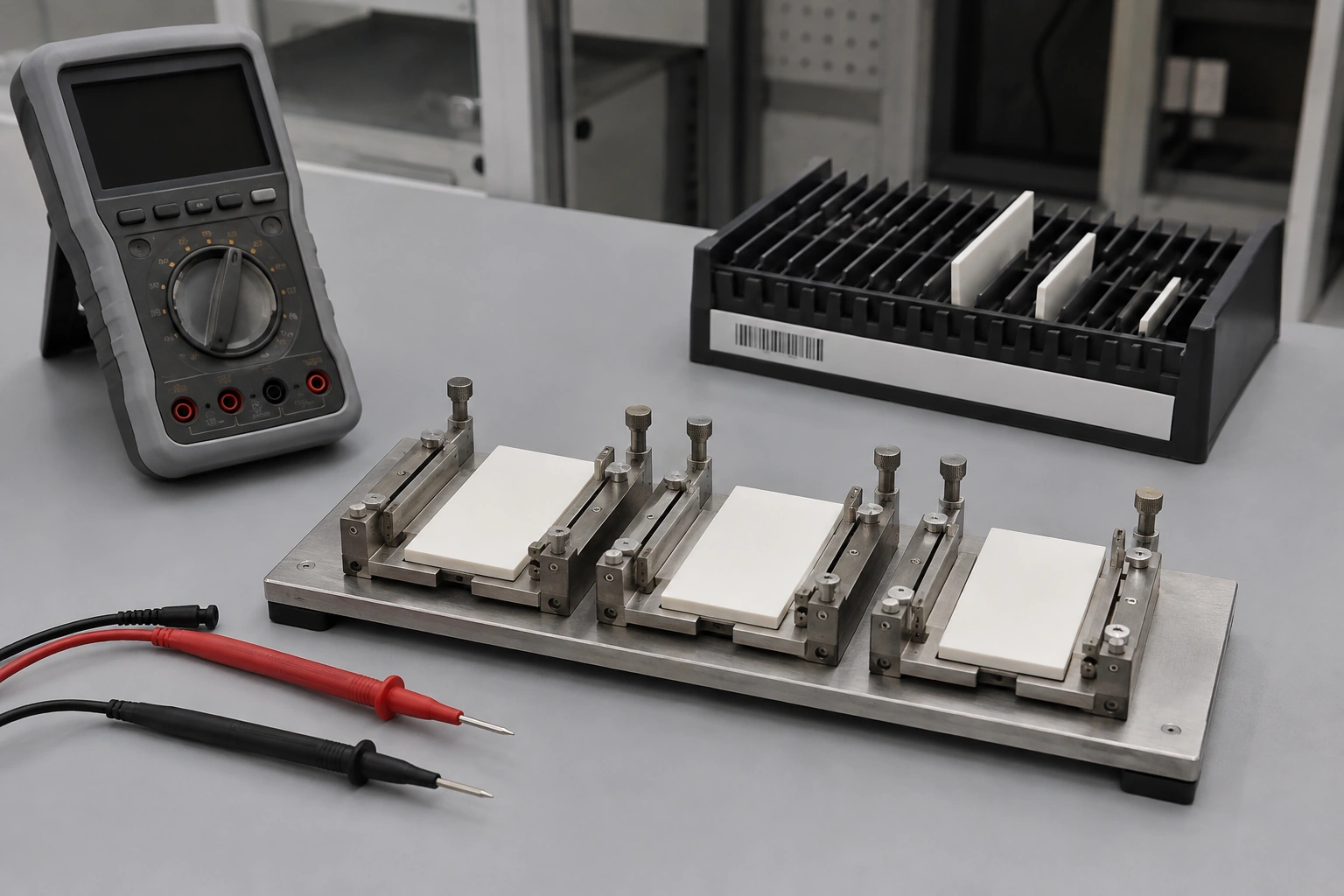

Identify every ceramic specimen, its fixture and completed exposure history. Use the specimen's actual cycles rather than a nominal chamber counter when loading, interruptions or removal differ.

Defined diagnostic state

Specify the electrical or physical failure criterion, readout temperature, recovery condition and confirmation rule. Distinguish an irreversible event from an intermittent symptom that can disappear between inspections.

Equipment and records required

• Exposure record: Obtain the controlled chamber and specimen-history records from the thermal-shock method owner. An ordinary oven photograph or a cycle schedule alone is not evidence of achieved thermal-shock exposure.
• Readout chain: Use a qualified diagnostic arrangement with identified contacts, instrument settings and uncertainty appropriate to the event definition. Preserve uncertain readings instead of automatically converting them into pass or fail.

Method sequence

1. Lock the event definition

   Specify what failure means and how it is confirmed before reviewing outcomes. Record whether the event is treated as absorbing once it has occurred.

   Record: Criterion revision, diagnostic condition and confirmation requirements.

2. Encode observations

   Record the last confirmed pass, first confirmed failure, actual completed cycles and removal reason for each specimen. Retain every intermediate readout.

   Record: Observation type and interval endpoints linked to raw measurements and exposure history.

3. Assess supported conclusions

   At a chosen cycle count, separate definite survivors, definite failures and unresolved units. Select any later statistical method according to the observation structure and withdrawal mechanism.

   Record: Endpoint accounting, analysis assumptions, unresolved information and review decision.

Decision and uncertainty

Do not replace an interval by its midpoint or upper endpoint merely to make it fit an exact-event analysis. Decide acceptance using the agreed test criterion and the evidence actually observed.

Readout spacing creates timing uncertainty distinct from diagnostic measurement uncertainty. Informative withdrawals and unobserved intermittent failures can prevent standard survival interpretations even when all spreadsheet fields are filled.

The reliability-method owner approves event encoding and analysis assumptions. The product acceptance authority owns the qualification decision; neither role may invent completed cycles for a removed specimen.

Traceable outputs

Define an event that the readout can actually observe

A resistance excursion measured while hot and a permanent resistance change after recovery are different diagnostic events. Their observation schedules and interpretations need not be interchangeable. Freeze the relevant temperature, stabilization condition and confirmation rule before comparing specimens. A contact failure during readout also needs to be distinguished from a confirmed component failure.

Define an event that the readout can actually observe — decision record

Interval reasoning assumes that a confirmed pass establishes survival through that point for the event being studied. That is plausible for an absorbing irreversible failure with adequate detection. It is not automatically true for a transient open circuit that recovers before every scheduled inspection. For an intermittent phenomenon, retain detected occurrences and observation coverage rather than claiming continuous survival from occasional normal readings.

Keep exposure and observation clocks separate

A chamber may continue cycling while a specimen is removed for an extended electrical examination. Its completed exposure then differs from the chamber total. Keep specimen entry, exit and return events so the readout interval can be expressed in the applicable exposure coordinate. Record partial cycles and interruptions according to the controlled exposure method rather than silently rounding them up.

Readout timestamps also matter. A long delay between removal and electrical measurement may change a reversible symptom or recovery state. Store both completed cycles and elapsed timing where needed. The exposure owner defines whether two histories are comparable; event-table processing cannot repair an unknown thermal history by renumbering rows.

Encode three different forms of event information

An exact event requires evidence that locates the defined failure at the reported resolution, such as suitable continuous monitoring. A failure first detected at a scheduled examination generally provides an interval from the last established pass to that examination. A unit removed while still passing provides survival information only through its last established passing observation.

Use explicit observation-type fields. For an interval written as open at the lower endpoint and closed at the upper endpoint, the unit passed at the lower readout and failed by the upper readout. A specimen with no established initial pass may require a different initial interval or exclusion from that analysis, with its reason retained. Do not automatically assign a zero-cycle pass that was never measured.

Do not manufacture exact failure times

Assigning every failure to its first-fail readout systematically places events later than they may have occurred. Assigning midpoints adds an unverified within-interval assumption. Either choice can change the apparent distribution when intervals are wide or readout schedules differ between groups.

An analysis that supports interval-censored observations can use the probability of an event lying between the actual endpoints. Under a chosen survival model this contribution is S(L) minus S(U), where S describes survival beyond a cycle count. A surviving withdrawal contributes S(C) under appropriate non-informative observation assumptions. These expressions describe information structure, not a recommendation to fit a particular lifetime distribution or an authorization to extrapolate accelerated cycles to field life.

Count what is certainly known at one endpoint

Consider five hypothetical units and ask how many survived through cycle one hundred twenty-five. Unit A failed between one hundred and one hundred fifty, so its endpoint status is unresolved. Unit B failed between fifty and one hundred and is certainly failed by the endpoint. Unit C passed through one hundred fifty and is certainly a survivor under the absorbing-event assumption.

Unit D was withdrawn passing at one hundred, so its status at one hundred twenty-five is unknown. Unit E passed at one hundred twenty-five and failed by one hundred seventy-five, so it is known to have survived the endpoint. Two of the five certainly survived and one certainly failed; the other two are unresolved. The observed-group survival fraction is therefore bounded between two fifths and four fifths. These are information bounds for those five units, not a confidence interval for a population.

A removal reason can change the statistical problem

A specimen removed because the scheduled study ended differs from one removed because its appearance was deteriorating. The latter removal may be related to future failure risk. Calling both simply censored and assuming their remaining lifetime resembles continued specimens can bias a population estimate.

Record the reason before seeing later outcomes and preserve symptom observations that triggered removal. Physical damage during handling is also information, but it may belong to a different event definition from thermal-shock degradation. Do not censor competing failure modes as if they were independent without a technical and statistical justification. The raw record should permit another reviewer to reconstruct alternative defensible analyses.

Compare schedules without pretending they have equal precision

Frequent readouts produce narrower event intervals than sparse readouts. A group examined every small increment can therefore appear to fail earlier when both groups are plotted at their first-fail readouts, even if their physical event distributions are identical. Compare the actual interval structure rather than interpolated event times.

Publish the retained event table with exposure and diagnostic scope in the required report format. Any fitted model should state its censoring assumptions, treatment of withdrawals and sensitivity to ambiguous outcomes. Qualification remains tied to the agreed laboratory endpoint. A graph containing cycles is not, by itself, a field-life model or evidence of a guaranteed number of operating years.
