A longer average can make the displayed voltage divider ratio look quieter while moving it farther from the ratio needed at the actual measurement time. Slow warm-up, changing air flow and reference drift do not disappear because the instrument collects more readings. An averaging-time study should examine how consecutive measurement intervals disagree. Allan deviation provides one useful diagnostic, provided that the raw ratio sequence, timing and operating state remain available for interpretation.
Measurement purpose
Select a supported averaging duration for a defined divider-ratio measurement.
Specimens and conditions
- Electrical operation
- Declared voltage, loading, terminal boundary and warm-up state.
- Acquisition timing
- Continuous equal-interval ratio observations with recorded integration aperture.
Equipment and records required
- Ratio acquisition: Synchronized or characterized channel timing, stable ranges and retained raw readings.
- Environmental observation: Time-aligned relevant temperatures and source-state records.
Method sequence
- Acquire
Collect continuous ratio and operating-state records.
Record: Timestamped observations and events.
- Compare
Calculate adjacent-block instability with block counts at multiple durations.
Record: Uncorrected time trace and stability table.
- Confirm
Test the selected interval in an independent record.
Record: Supported timing instruction and re-evaluation triggers.
Decision and uncertainty
Use an interval supported by repeat records and the required response time.
Stability does not include constant calibration bias or all uncertainty contributions.
Electrical metrology owner and circuit requirement owner.
Traceable outputs
| Record | Required contents |
|---|---|
| Stability study | Raw observations, valid intervals, block counts and calculations. |
| Measurement instruction | Selected averaging duration, initial state, timing and operating boundaries. |
Method review decisions
- Evaluate complete ratio measurements at known, equal intervals before combining them into longer blocks.
- Keep the uncorrected time trace beside the stability curve; a small statistic does not establish calibration accuracy.
- Choose an interval supported by repeated records and the customer's response-time requirement, not the lowest isolated point on one curve.
Define the ratio observation before choosing a statistic

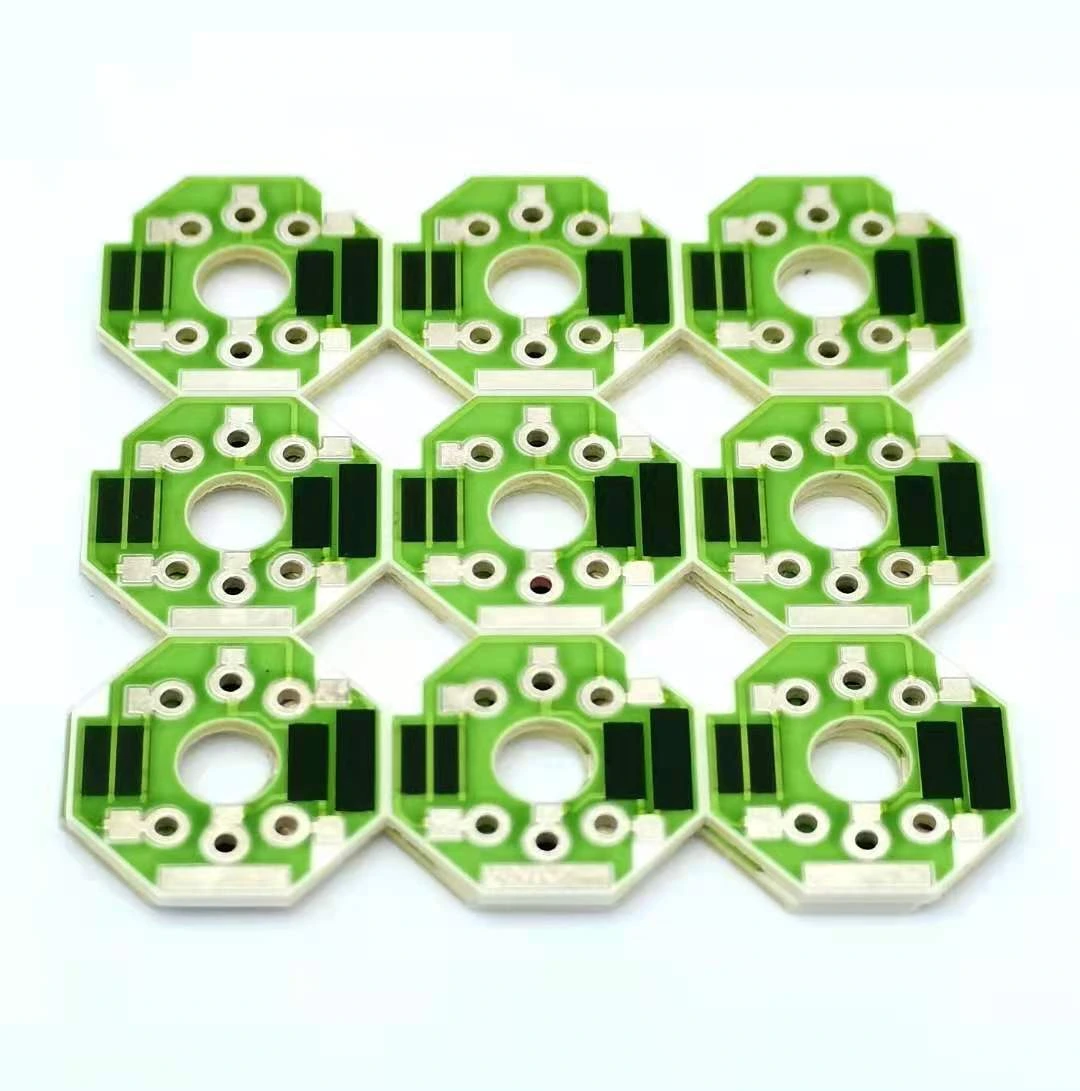

For a thick film voltage divider, define k as the output voltage divided by the input voltage at the stated terminals and loading condition. Specify whether the channels are simultaneous or sequential. If the source changes between two sequential readings, the computed ratio contains that timing error. Increasing the number of such ratios can characterize the acquisition procedure without isolating the resistor network itself.
Record source setting, connected load, input power, warm-up history and the relevant temperatures. A constant electrical input does not imply constant film temperature immediately after energization. Decide whether the requested result concerns startup behavior or a settled operating state. Both are useful customer questions, but combining them into one unexplained stability number conceals the condition under which the divider will be used.
Acquire an equally timed record without silently filling gaps
Choose a base interval that represents one complete, repeatable ratio measurement, including settling and channel switching. Retain time stamps, instrument range changes and overload indications. A logger that pauses for communication has not produced evenly spaced observations merely because its exported rows have consecutive numbers. Missing intervals should split the analysis into valid segments or require a justified gap-aware method.
Do not insert copies of the preceding value to repair an interrupted run. That creates artificial intervals with zero change. Likewise, averaging every available point in a nominal minute gives different temporal weighting when some minutes contain fewer samples. Use a stable acquisition method and preserve the true timing. If the hardware already integrates each observation over an aperture, record that aperture separately from the interval between observations.
Compare neighboring block averages at several durations
Divide a continuous record into M nonoverlapping blocks of equal duration tau. Calculate the mean ratio within each block and then the difference between each pair of neighboring block means. The square root of the sum of squared differences divided by twice M minus two is the nonoverlapping Allan deviation at that duration. Use the same construction at longer integer multiples of the base interval.
Here the statistic has units of ratio, or relative ratio if every observation is divided by a fixed nominal ratio first. It measures adjacent-interval disagreement rather than error from a certified reference. A constant calibration offset cancels from the differences. An instrument can therefore produce a very stable, consistently wrong ratio. Keep absolute calibration and the stability study as separate entries in the uncertainty and acceptance review.
sA(tau) = sqrt[sum((kbar[j+1] - kbar[j])²)/(2(M - 1))]
- kbar[j]: mean ratio in nonoverlapping block j of duration tau.
- M: number of complete contiguous blocks, at least two.
- sA: adjacent-block instability in the same ratio units as kbar.
Equal-duration contiguous blocks, known acquisition timing and one defined operating state. This expression does not by itself supply uncertainty of the overall mean or prove absolute accuracy.
Recognize a drift-driven increase with averaging time
Consider an illustrative ratio whose relative value rises linearly by 0.20 parts per million each second. There is no random noise in this deliberately simple example. Neighboring ten-second block means differ by 2.0 ppm, giving an Allan deviation of 2.0 divided by the square root of two, or 1.414 ppm. At one hundred seconds, neighboring means differ by 20 ppm and the deviation becomes 14.142 ppm.
The result grows even though each individual block contains more readings. The arithmetic follows from the spacing between the block centers, not from a claim about any actual divider. Conversely, for independent zero-mean observations with a constant finite variance and no drift, averaging m samples reduces their standard deviation by the square root of m. Real records can contain both behaviors; use the observations to identify the useful duration rather than assuming that one trend applies everywhere.
| Block duration | Change between block means | Calculated Allan deviation | Meaning |
|---|---|---|---|
| 1 s | 0.20 ppm | 0.1414 ppm | Small adjacent difference does not remove the drift |
| 10 s | 2.0 ppm | 1.414 ppm | Longer blocks differ more |
| 100 s | 20 ppm | 14.142 ppm | Long averaging is inappropriate for tracking this changing ratio |
Do not select the lowest point from an under-supported tail
At longer block durations, the same total record contains fewer complete blocks. A result based on two blocks contains only one adjacent difference and can vary substantially between runs. Plot or tabulate the block count beside every result. Overlapping estimators can use data more efficiently, but their overlapping differences are not independent observations and need the appropriate statistical treatment.
Repeat the study over independent operating periods and inspect whether the useful range remains similar. A flat bottom spanning several durations is more actionable than a single low point surrounded by unstable estimates. Do not fit an optimum to the last point simply because it is the smallest. Include the required measurement response time: an interval that is quiet in a laboratory record may be too slow for the actual production decision.
Use controlled changes to locate the instability contribution
Compare the time trace with temperature, source and instrument events. A range change at a particular time can explain a step that no stationary noise model should absorb. Repeat an appropriate reference or channel configuration to examine the measuring system independently. Such checks must preserve the relevant impedance and voltage conditions; a shorted input does not reproduce the loading of a high-resistance divider.
If a repeat after thermal settling removes a rising long-duration trend, retain both records and the settling condition. Do not subtract a polynomial merely to obtain a lower stability curve. A justified drift-corrected analysis can answer a different question, but its correction model, fit interval and uncorrected result must remain visible in the technical record. Otherwise the correction can erase the very operating effect that the customer needs to understand.
Translate the study into a bounded measurement instruction
Specify a supported averaging interval together with the required initial state, acquisition aperture, terminal connection and environmental restrictions. If the record never reaches a useful region, investigate the source of change or revise the measurement task. Selecting a convenient interval does not make the underlying drift acceptable. Use a new confirmation run rather than reusing only the record from which the interval was selected.
Keep the method responsive to manufacturing changes that alter thermal mass, loading or acquisition timing. The useful interval for one network, fixture and input power is not a universal value for ceramic voltage dividers. A production instruction should identify what triggers re-evaluation, such as a changed resistance range, instrument integration mode or mounting condition, rather than freezing an unexplained number indefinitely.
Deliver timing evidence alongside the reported ratio
The customer-facing result should identify the measured ratio, operating conditions and applicable uncertainty. The technical handoff adds the raw timed sequence, block definition, stability results and the reason for the chosen interval. State explicitly whether startup change was included or excluded and how the start of the accepted operating state was established.
For a ChipSimple drawing review, provide the ratio target, input voltage, connected load and response-time requirement. The practical output is a measurement method that matches the circuit's use, not an impressive stability number detached from its timing. Retain separate evidence for absolute ratio calibration, temperature response and voltage dependence; an averaging study cannot replace those evaluations.
Review the divider ratio measurement timing
Send the timed readings and operating conditions before specifying a longer average.
- Divider schematic, terminal boundary, input voltage and output load.
- Raw ratio readings with true time stamps, integration aperture and range history.
- Warm-up sequence, temperature record and source changes.
- Required response time, absolute ratio uncertainty and intended operating state.
