Metal-substrate printed heating plate

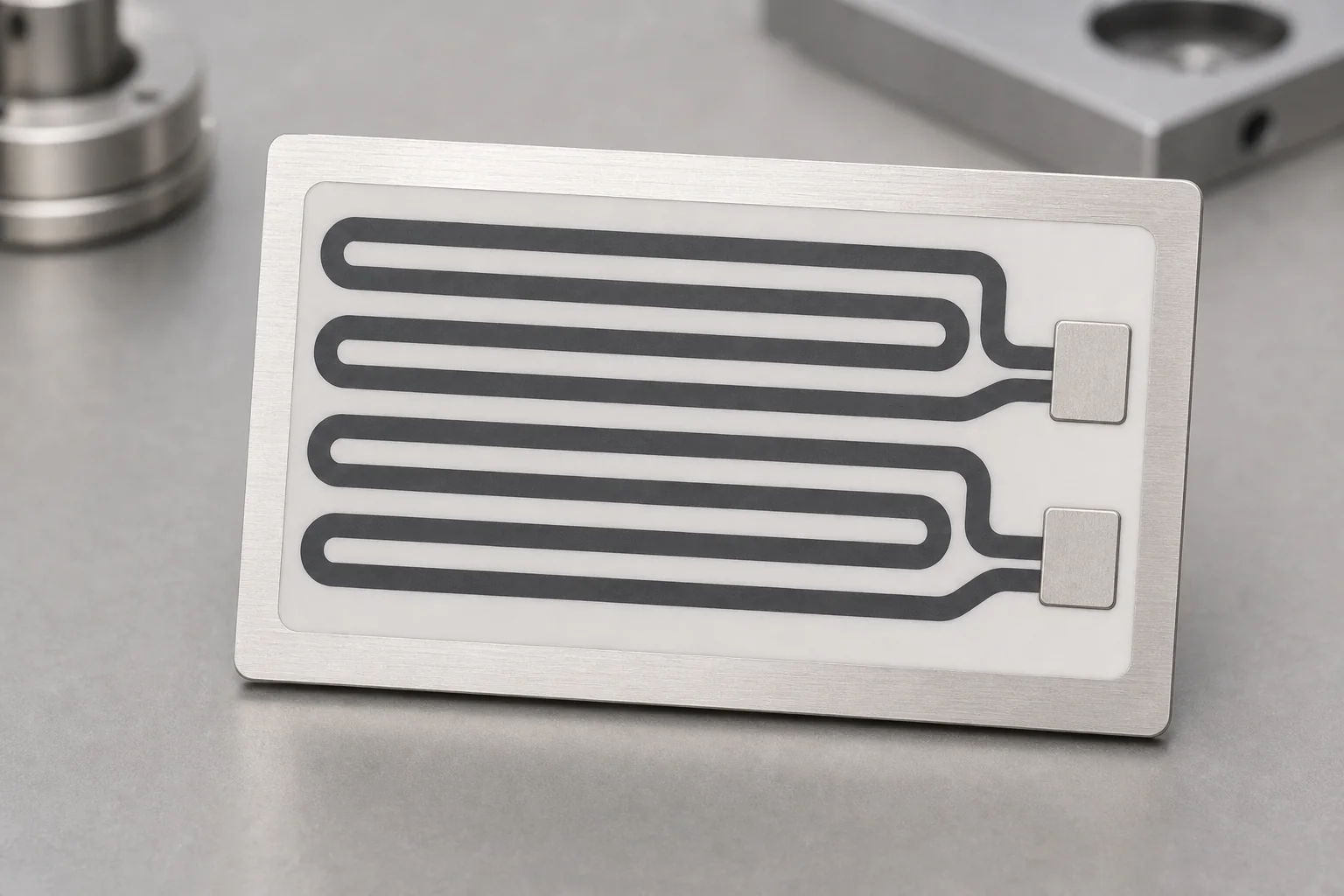

Stainless Steel Thick Film Heating Plate
Stainless steel thick film heating plates combine a robust metal heat spreader with dielectric insulation and a printed heater pattern for compact thermal assemblies. Chipsimple reviews alloy and plate geometry, insulation stack, resistance, voltage, power zones, terminals, grounding, mounting, target temperature, heat-up time, fluid or air conditions, and safety tests together.
- Metal plate and dielectric stack coordinated
- Custom power zones and no-heat areas
- Terminal, mounting, and grounding reviewed
- Thermal map and safety tests by assembly
- Stainless steel
- Metal substrate
- By safety review
- Dielectric build
- 5
- Verified product views
- By thermal test
- Final power release
Product Categories
From design choice to a quoted part
A custom steel heating plate with a compatible dielectric and printed heating circuit. Plate geometry, terminal arrangement and operating conditions are reviewed as one assembly.
Prepare the drawing review
Send plate drawing and steel grade, heating footprint, voltage and power, fluid or contact boundary, mounting, sensing and terminal layout, insulation criteria and quantities.
Send Drawings- Steel and dielectric pair
- Confirm steel grade, preparation, dielectric stack and thermal process together. The metal surviving a temperature does not prove insulation survival.
- Heat removal and distortion
- Specify flow or contact cooling, mounting restraint and flatness requirements through heating and cooling.
- Isolation and fault conditions
- Define working voltage, leakage and withstand criteria, protective earth where applicable, sensing and dry-run response at system level.
