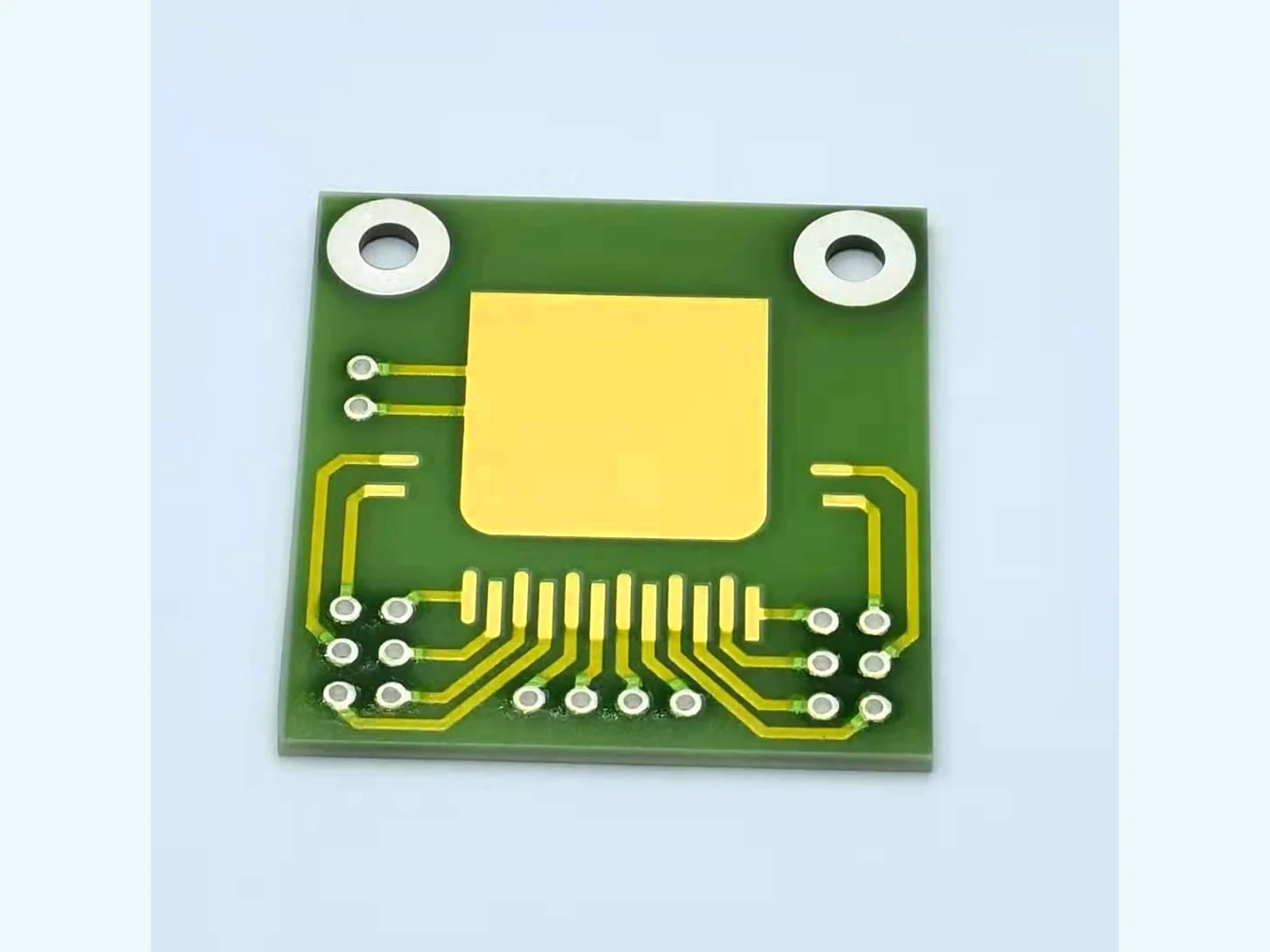

High thermal conductivity can help an aluminum nitride substrate move heat away from a printed trace, but it does not by itself make an assembled heater fast. Response depends on the mass being heated, the power available, the resistance of each thermal interface and the heat leaking into surrounding hardware. The correct question is how quickly the required load responds while the hottest heater region and every attached material remain within their specified limits.
Key design decisions
- Compare load response and heater surface response as separate signals.
- Calculate thermal mass and boundary conductance before attributing speed to substrate conductivity.
- Measure support and terminal heat losses when changing from alumina to aluminum nitride.
Define what must respond quickly
A heater can show a rapid surface-temperature rise while the attached load remains cold. Conversely, a conductive substrate tightly coupled to a large heat sink may have a modest surface rise while delivering useful heat efficiently. State which temperature must settle, where it is measured and what error band defines completion.
Separate initial rise time, time to enter the target band and time to remain inside that band. These are not interchangeable metrics. The last of them includes controller behavior and spatial equilibration as well as heater construction. A material comparison made with different sensors, different settling criteria or different mounting masses cannot isolate the effect of aluminum nitride.
Estimate the participating thermal mass
The starting energy balance includes the substrate, printed stack, adhesive, contact plate and the portion of the load that warms during the interval of interest. Total assembly mass is not always the participating mass: a long support may heat progressively, while a thin bonding layer can couple a large plate rapidly.
Construct a simple network with separate thermal nodes where measurements are likely to show meaningful temperature differences. Use one node only when the relevant body is sufficiently uniform for that approximation. Reducing substrate thickness may decrease its stored energy, but if the load dominates the total heat capacity, the expected improvement can be small. This is why thickness and material should be evaluated against the entire assembly.
Interpret a time constant with its boundary conditions
A single-node model describes a body with heat capacity C exchanging heat with an environment through conductance G. Under a fixed power step, its characteristic time is C divided by G. This model helps organize a test, but a smaller time constant can result from stronger unwanted cooling as well as genuinely useful heat delivery.
Always examine the final temperature rise alongside the time constant. Stronger heat leakage makes the body approach a lower equilibrium more quickly. Calling that response better would be misleading if the load never reaches the required temperature. A multi-layer assembly often needs several response terms because the substrate, contact plate and load do not move together.
C dT/dt = P − G(T − T_ambient); τ = C/G
- C: effective thermal capacity of the modeled node in joules per kelvin.
- G: combined thermal conductance to the modeled surroundings in watts per kelvin.
- τ: single-node time constant in seconds.
Power and conductance are treated as constant over a small operating interval. Internal gradients, radiation nonlinearity and controller feedback require additional modeling when significant.
Use conductivity to locate gradients, not to promise speed
Aluminum nitride is selected in thermal-management applications because its conductivity can reduce gradients within an appropriate geometry. The material grade and temperature range still matter. Conductivity is a property of the substrate material, whereas thermal resistance also depends on thickness, area and the actual direction of heat flow.
In a heater, lower internal resistance may transfer heat toward the desired load and simultaneously toward a cool mounting frame. Improving one path can therefore expose another previously minor loss. Keep the contact map and support geometry fixed during an initial material comparison, then deliberately investigate changes to the unwanted paths. Do not transfer a conductivity number into a guaranteed warm-up time.
Find the interface that dominates
A substrate upgrade cannot eliminate a gap below the heater. Adhesive thickness, uneven contact pressure, trapped air and a warped receiving surface can dominate heat transfer even when the substrate itself is highly conductive. Map the temperature difference across the interface and check whether the difference grows with applied power.
Compare constructions using the same active envelope, useful load and attachment procedure. If one specimen is bonded and another merely rests on a plate, the result primarily measures mounting rather than substrate selection. Document how interface thickness was controlled and whether the assembly was remounted between runs. Remounting variation is useful information about manufacturing robustness, not just measurement noise.
| Measured behavior | Likely question | Next controlled comparison |
|---|---|---|
| Heater heats rapidly but load lags | Is the interface limiting useful heat flow? | Repeat with verified contact while preserving electrical input. |
| Both respond slowly with little gradient | Does load thermal mass dominate? | Measure participating mass and startup energy before changing ceramic. |
| Fast rise followed by low final temperature | Is a support removing too much heat? | Monitor the support and compare its thermal connection. |
| Fast load response with severe overshoot | Is the sensor or controller response limiting? | Keep the heater unchanged and review sensing and power modulation. |
Measure the actual power transient
Log voltage and current at the heater, not only a programmed duty command. A power source can enter current limiting during startup, and resistance may change as the printed film warms. These effects alter input power just when thermal response is being compared.
Use synchronized records so changes in slope can be associated with electrical events. When comparing substrates, hold the intended electrical condition constant and report whether that means constant voltage, constant current or regulated power. Equal cold resistance is not necessarily equal hot power. The test should reveal these differences rather than normalizing them away without explanation. Include the initial thermal state so residual heat does not create an artificially fast second run.
Check the measurement before changing the heater
A bulky sensor or a thick adhesive attachment can lag behind a thin substrate. Heat conducted along a sensor wire can also pull the indicated temperature toward the surrounding fixture. These errors are particularly important when a design target involves fast transitions rather than steady temperature alone.
Place a second, independently characterized sensor at a useful comparison point and record its attachment. For infrared observations, control emissivity and reflections instead of assuming every exposed material reads alike. Agreement at equilibrium does not prove equal dynamic response. Compare the signals during the power step and cooling interval, and distinguish a delayed sensor from a genuine load-to-substrate temperature difference.
Choose the material from a paired thermal result
An effective AlN comparison reports useful load response, maximum local heater temperature, input energy and relevant support temperatures under one documented mounting condition. Add the mechanical and electrical constraints that the design must retain, such as insulation, terminal temperature and attachment durability.
If the improved substrate reduces a harmful gradient while meeting the power budget, that is a concrete advantage. If contact resistance or load mass still controls performance, focus on that part of the assembly next. Keep the selection tied to the measured bottleneck. This produces a defensible material choice without relying on a broad claim that one ceramic is always faster than another.
Provide the response requirement and thermal stack
A response-time review needs the full thermal path and a measurable definition of success.
- Load and substrate drawings, material grades, thicknesses and the intended contact-area map including supports and terminal regions.
- Initial temperatures, target temperature band, settling criterion and the maximum permitted heater and interconnect temperatures.
- Power-source mode, voltage and current limits, switching cycle and available synchronized electrical or thermal step-response records.
- Bondline or contact-layer specification, load mass, sensor type and attachment, enclosure conditions and the intended assembly-repeatability check.
