An end contact on a ceramic circuit must be designed from the mating connector inward. A generous-looking metallized rectangle can still lose contact when connector travel, housing location, ceramic edge variation, glaze encroachment and printed registration act in the same direction. This guide owns the usable contact-region selection for a defined connector. It does not repeat the separate wraparound-construction guide, which governs sidewall coverage, corner continuity and the three-dimensional metallization transition.
Key design decisions
- Define the connector's actual contact footprint and motion envelope at installed conditions.
- Separate the usable finished contact window from artwork metal hidden by glaze, edge loss or assembly shadow.
- Stack connector, housing, ceramic and print location in the direction that reduces overlap.
- Validate electrical stability and contact damage using the specified mating hardware and motion sequence.
1. Start with the mating action, not the printed pad
Identify whether the contact is a stationary spring, sliding finger, clamp, soldered lead or another controlled interface. Record its footprint at initial touch and at the final installed position, together with approach direction, overtravel, normal force, allowed lateral float and any wiping motion. Nominal connector dimensions are insufficient if the housing, fastener or insertion sequence determines where the contact actually lands. The interface drawing should show the ceramic and mating part in the same coordinate system.
Distinguish an electrical contact region from a mechanical entry region. A spring may first touch near the ceramic edge and then wipe inward; the entry path must avoid glaze steps, chips and unsupported corners even if the final footprint lies on good metal. A soldered tab may obscure the entire pad after assembly, requiring pre-attachment inspection. Define the relevant states explicitly so one oversized rectangle is not expected to satisfy incompatible contact, process and inspection purposes.
2. Define the usable finished window
The usable window is the portion of processed conductor that can be contacted over the full tolerance and motion envelope. Derive it after accounting for the fired metal edge, overglaze or dielectric opening, ceramic edge exclusion, local defects allowed by the drawing and any region covered by a component or adhesive. Screen artwork dimensions are inputs to manufacturing, not the final interface boundaries. Inspect the fired or otherwise completed state used by the connector.

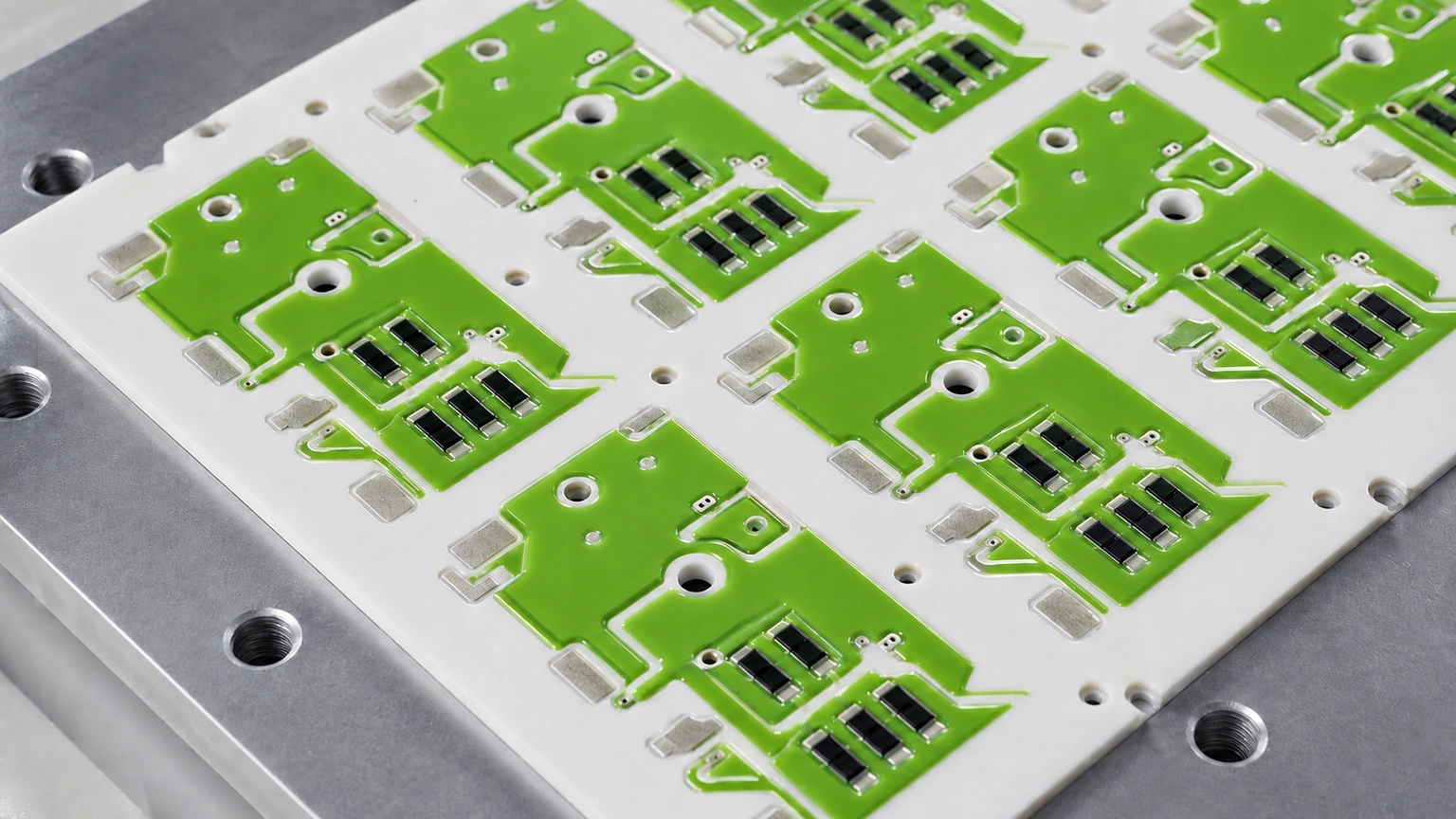

Specify which boundary controls when glass and metal do not coincide. A glaze opening can be smaller or displaced relative to the conductor and therefore become the limiting aperture. An exposed conductor beyond the intended contact window may still be unacceptable if it increases contamination or migration risk. State minimum usable width and length only from the assembly tolerance requirement, then let manufacturing review the artwork compensation needed to deliver that finished region.
3. Stack location error in the contact-loss direction
Choose axes based on the connector. A long contact may tolerate motion along its length while being sensitive across its width. Include housing-to-connector location, connector feature variation, ceramic locating-feature variation, fired contact registration and installed movement. Do not add a ceramic outline tolerance when the assembly actually locates from holes without first converting both to the same functional datum. Systematic offsets need correction; they do not average away in a statistical stack.
For a conservative one-direction check, let O_nom be nominal overlap between the contact footprint and usable window. Let e_h, e_c, e_p and e_m be bounded contributions from housing, ceramic datum transfer, printed-window location and motion. The remaining overlap is O_rem = O_nom − (e_h + e_c + e_p + e_m). If O_nom is 1.20 mm and the declared contributions are 0.15, 0.10, 0.12 and 0.18 mm, the illustrative remainder is 0.65 mm. Acceptance is drawing-specific.
Orem = Onom - (ehousing + eceramic + eprint + emotion)
- Onom is nominal directional overlap of the mating footprint and usable finished window.
- Each e term is a bounded positional contribution in the same axis and units.
- Orem is remaining overlap before any project-specific safety or wear allowance.
Worst-direction arithmetic for a defined assembly state; a statistical treatment requires justified distributions and correlation data.
4. Carry current from the footprint into the circuit
Trace current from the connector's real footprint through the printed contact, any narrowed neck, transition and downstream conductor. A large pad can feed a very narrow printed segment, so surface area alone does not establish voltage drop or heating. Keep the local end contact outside resistor trim regions and away from glass boundaries that can concentrate pressure. Where multiple contact fingers share current, assess plausible imbalance rather than dividing total current equally by assumption.
Measure voltage drop with sense points that bracket the intended interface when the application requires it. A two-wire continuity check includes leads, probe contacts and downstream routing and may conceal the local contribution. Record measurement current, temperature, connector state and dwell. The result belongs to the tested contact system; it cannot be converted into a general current rating for the printed material or the ceramic circuit.
5. Convert connector data into drawing controls
Build an interface table that distinguishes supplied connector dimensions, housing-controlled position, ceramic features and processed contact boundaries. Each row should name the source document and inspection state. If a connector drawing provides a tip radius but no footprint under load, request the missing relationship or measure it in a controlled fixture; do not estimate a rectangular footprint from the maximum outline.
Use section views for height and approach, plan views for overlap, and a motion envelope for insertion or wiping. Add keepouts for neighboring conductors, glaze steps, ceramic corners and fixture contacts. A drawing that is easy to manufacture but omits the mating motion is incomplete. A connector that can float should show the permitted float and the feature that recenters it, because uncontrolled float cannot be counted twice as tolerance relief.
| Input | Required definition | Drawing consequence |
|---|---|---|
| Contact footprint | Loaded size, shape and orientation | Minimum finished metal under all states |
| Approach and wipe | Entry point, direction and travel | Protected motion envelope and edge setback |
| Normal force | Range at installed deflection | Pressure and substrate-support review |
| Locating scheme | Housing and ceramic functional datums | Directional overlap tolerance stack |
| Access | Probe and visual state before/after mating | Inspection window and record stage |
6. Control pressure, support and wiping damage
Normal force becomes local pressure through the actual contact shape, which can change as the spring deflects. Review ceramic support beneath the contact region and avoid a condition in which insertion bends an unsupported edge. When a contact wipes, particles, surface films and asperities affect both friction and resistance. Define the number and direction of mating cycles that represent manufacturing, service and permitted rework rather than applying an arbitrary cycle count.
Inspect scratches and transferred material against a location datum. A visible mark within the intended wipe lane may be normal evidence of contact, whereas plowing through a conductor boundary or into glaze indicates a geometry or force problem. Compare contact resistance before and after controlled cycling, but retain photographs and force or displacement records. A stable electrical average can hide intermittent opening at one position of the connector travel.
7. Use the failure pattern to separate location from surface condition
An open circuit at one insertion extreme that recovers when the connector is moved points first to overlap or motion-envelope loss. High resistance at every position may instead involve surface condition, insufficient force, contamination or a narrow current path. Damage consistently at the ceramic entry edge suggests the approach path or support, while damage that follows one spring finger across several substrates suggests connector geometry or loading. These are diagnostic directions, not automatic cause assignments.
Repeat the installed-location measurement before changing the printed window. Verify part orientation, ceramic seating and connector identity, then map the actual witness mark against the finished metal and glaze opening. If the witness mark is centered but resistance remains unstable, examine the local electrical path and surface interface. If the mark moves with housing lot or assembly fixture, widening artwork may only hide the locating problem while consuming isolation spacing.
8. Validate and release the defined connector pair
Use production-representative ceramic features and processed contact windows with the specified connector, housing and support. Sample relevant tolerance positions deliberately instead of accepting whatever positions happen to occur. Record initial touch, final installed location, wipe lane, contact resistance under stated current, local voltage drop where required, cycling exposure and post-test surface condition. Environmental exposure must follow the end-product requirement and preserve an unexposed control.
Release the contact geometry only for the named connector revision, locating scheme, ceramic drawing, print and glaze definition, assembly procedure and validation envelope. A change in contact finish, spring force, housing datum, ceramic edge, glazing, support or mating sequence reopens the affected evidence. For quotation, provide both component drawings and the functional stack so the review can resolve the usable window rather than simply pricing a larger printed pad.
Send the ceramic end-contact interface
Provide the connector and assembly information needed to define a finished, measurable contact region.
- Connector drawing and revision with contact footprint, force, travel and approach direction
- Housing and ceramic functional datums with installed tolerance stack
- Ceramic outline, thickness, edge state and support beneath the contact
- Fired conductor and glaze-opening definitions with neighboring keepouts
- Voltage, current, duty, environment and mating-cycle requirement
- Inspection method, acceptance owner and representative hardware quantities
