A cross-section is a two-dimensional cut through a three-dimensional structure. It can reveal layer geometry and interfaces that surface inspection cannot reach, but its value depends on cutting through the right location and preserving the original material state. Sampling, mounting, grinding and polishing must be planned as part of the investigation, not treated as neutral steps before microscopy.
Key design decisions
- Choose the section plane from the electrical, thermal or visual evidence.
- Preserve specimen orientation and the sequence of preparation steps.
- Distinguish original defects from pull-out, smearing, edge rounding and cutting damage.
Define what the section must resolve
Start with a specific question: film thickness at a narrow track, continuity at a conductor overlap, glaze coverage near an edge, a terminal interface or a suspected crack. Identify the feature on the drawing and on a photograph of the actual specimen. The section plane should intersect the feature in a way that can answer that question.
For an intermittent or localized failure, use electrical and thermal observations to narrow the location before cutting. A section taken through a convenient central area may produce a clear image while missing the failure entirely. Keep intact comparison specimens where they can help distinguish normal construction from the changed region.
Plan position, direction and sampling extent
Mark the intended plane, viewing direction and specimen orientation. A cut perpendicular to a printed line answers a different question from a cut along it. An oblique section can make a layer appear thicker than its true normal thickness, so the orientation must be known before dimensional interpretation.
Consider how much material will be removed during cutting and subsequent grinding. A narrow defect can be lost before the final polished plane is reached. Approach the target in controlled increments when location is critical, documenting intermediate observations. If the feature varies along its length, plan more than one section rather than assuming one plane represents the whole structure.
Document the intact specimen before preparation
Photograph the original surface, terminals, fracture edges and mounting condition. Record any cleaning, heating, de-biasing or drying that occurs before sectioning. Deposits, loose fragments and interface materials can carry evidence that disappears during preparation. Preserve them when they are relevant to the failure hypothesis.
For an assembled heater, document how the load and fixture are separated. A force applied during disassembly can extend an existing crack or create a new one. If the interface itself is the subject, sectioning the assembly together may be more informative than separating it first, provided the chosen preparation method can support the complete material stack.

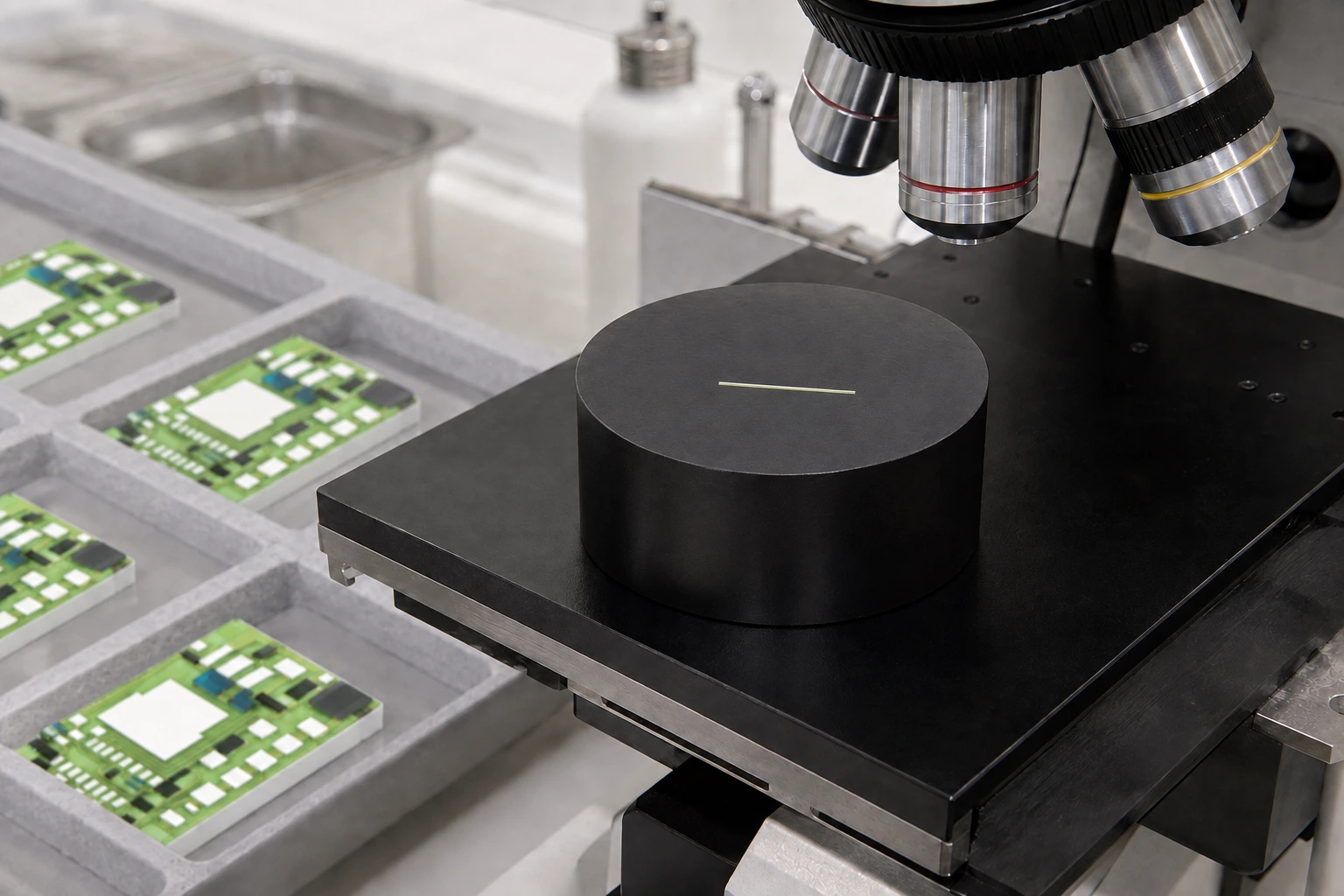

Support layers and edges without changing them
Select mounting conditions compatible with the specimen materials and the investigation. Temperature, pressure, resin penetration and curing behavior can affect fragile interfaces or soft layers. Edge retention is important when the feature of interest lies at the surface, because unsupported edges can round or break away during polishing.
Record the mounting material and procedure. Resin-filled voids can help support a structure, but their presence must be distinguished from original material. A gap observed at a resin interface may reflect preparation or shrinkage rather than an in-service separation. Use comparison specimens or an alternative preparation route when the conclusion depends on that distinction.
Control removal through the mixed-material stack
Ceramic, metal conductors, glass overglaze, resistive film and attachment materials respond differently to cutting and polishing. A procedure that removes the ceramic cleanly may smear a softer metal across an interface or pull a brittle feature from its support. Choose and adjust the sequence according to the actual materials and the required resolution.
Inspect between preparation stages. Deep scratches remaining from an earlier stage can be mistaken for cracks, while aggressive polishing can round an edge and hide a thin layer. Keep the direction and depth of material removal controlled as the target is approached. Cleaning between stages should remove preparation debris without erasing the evidence being sought.
| Observed feature | Preparation-related possibility | Discriminating observation |
|---|---|---|
| Apparent gap at a weak interface | Pull-out or separation during cutting | Compare an earlier stage or independently prepared section |
| Metal extending over an adjacent layer | Smearing during polishing | Inspect after a controlled alternative finish |
| Layer becomes thinner near the outside edge | Edge rounding | Check edge support and another section orientation |
| Long straight lines across multiple materials | Residual grinding scratches | Compare scratch direction and preparation stages |
| A void contains mounting material | Resin penetration into an existing or preparation-created opening | Correlate with intact-specimen evidence and mounting history |
Image the whole context before the smallest feature
Capture a low-magnification view that shows the layer stack, orientation and section location, then acquire detailed images of the feature. Include an appropriate calibrated scale and retain the original image data. A close-up without context can make an isolated feature difficult to place or compare with the drawing.
Choose imaging conditions that resolve the relevant contrast. Differences in brightness can arise from material, topography or illumination and should not automatically be treated as chemical identification. When composition matters to the conclusion, use a suitable analytical method and document its limits. Do not identify a conductor alloy or glass composition from optical color alone.
Measure thickness with orientation and variability in view
Measure normal to the intended layer interfaces and state how irregular boundaries are handled. A printed layer can vary across its width and through an overlap, so report the locations and distribution relevant to the question rather than a single convenient maximum. Distinguish the resistor, conductor and overglaze where their interfaces are actually resolved.
Account for an oblique cut and for edge rounding before using the image as a thickness measurement. Compare with surface profilometry or another method when accessible geometry can provide an independent check. Agreement should be judged using aligned definitions: a surface step, a local section thickness and an average layer thickness are not automatically the same quantity.
Separate observation, mechanism and action
State first what the section shows, then explain which mechanism is consistent with it and what additional evidence supports that mechanism. A crack visible after preparation is an observation; attributing it to power cycling requires the specimen history and checks against preparation damage. Keep uncertain alternatives visible in the engineering analysis without turning them into unsupported conclusions.
The final record should connect specimen identity, prior measurements, section plane, preparation sequence, images and dimensional method. Use the result to choose a focused action, such as changing an overlap, investigating a thermal step or improving terminal support. Preserve the mounted section and remaining specimen so later analysis can revisit the same physical evidence.
Plan a location-specific cross-section
Provide the suspected feature and intact-specimen evidence so the section plane and preparation can preserve the information needed for the investigation.
- Drawing, stack and photographs marking the exact feature or failure location.
- Electrical, thermal or visual observations before disassembly.
- Materials, processing stage, glaze coverage and terminal construction.
- Required dimensional or interface question and expected feature scale.
- Any existing section images with preparation sequence and orientation.
