A correct layer drawing does not by itself show when a crossover can be inspected, when a resistor can still be measured or which operation introduced a final resistance change. A useful layer-sequence review follows the same critical features through the process. It places checks before access is lost and compares additional heating with additional material where that distinction matters. The output is a verification matrix tied to named layers and specimen states, not another set of nominal overlap dimensions.
Key design decisions
- Identify the last observable state of every critical conductor, dielectric edge, test pad and trim region.
- Separate changes caused by another thermal exposure from changes associated with adding the next material.
- Verify the final stack after its complete sequence; an intermediate passing result does not transfer automatically.
Write a state ledger for the actual stack
Name each conductor, resistor, functional dielectric and protective overglaze. For every operation, record whether the layer is absent, freshly printed, dried or fired. A description such as three dielectric layers is incomplete if one route dries them together and another fires each separately. The earlier conductors and resistors experience different histories even when the final cross-section looks similar.
Keep the primary crossover insulation distinct from the final protective glass. Their positions, functions and compatible processing may differ. A green overglaze formulated for resistor protection is not automatically the interlayer dielectric needed beneath an upper conductor. Use the named material system to define the permitted sequence; color and similar firing terminology do not establish interchangeability.
Find the last point at which each failure can be localized
Before applying a dielectric patch, the lower conductor and its step can be inspected directly. After the upper conductor crosses that region, a failure may be observable electrically but harder to localize physically. Once an overglaze or component covers the area, some probe and image access disappears again. Mark those transitions explicitly in the process plan.
Do not add an inspection simply because a station is available. Define the fault it can reveal and whether the method changes the specimen. A probe that damages a future bond pad or an excessive electrical stress can create the very failure the sequence is meant to prevent. Use suitable witness features or separately allocated destructive specimens when a check cannot be performed safely on the product.
Connect each checkpoint to a later hidden relationship
The matrix should identify a feature and a specimen state, not merely say inspect after firing. The following structure can be adapted to the actual drawing and selected materials. Acceptance limits remain attached to the specific electrical and geometric function.
| State | Evidence to retain | Reason to inspect now |
|---|---|---|
| Lower conductor fired; dielectric absent | Critical edge, step and continuity observations | The dielectric will cover the conductor transition |
| Functional dielectric fired; upper conductor absent | Local coverage, step profile and defect map | The next conductor can obscure the vulnerable region |
| Upper conductor fired; protection absent | Crossing continuity, isolation and interface observations | The complete crossover is accessible before final covering |
| Resistor measured before protection exposure | Value, probe boundary, temperature and sample identity | Provides the paired electrical baseline |
| Protection fired; assembly absent | Usable openings and matched electrical measurements | Assembly tooling still has accessible landing regions |
| All intended refires complete | Final circuit and opening verification | Earlier checks do not include later thermal history |
Use a heat-only comparison when the cause of a shift matters
Suppose resistance changes after the overglaze operation. That observation combines the extra thermal cycle, the added material, handling and possibly a changed measurement contact. A comparison group that receives a matched thermal exposure without the added glass can help distinguish some of those contributions. Both groups need comparable starting geometry, material history and measurement conditions.
Measure each specimen before and after its assigned operation. Compare the paired changes, not only the two final averages. If both groups shift similarly, additional heating deserves attention; if their shifts differ, the added-layer route deserves further investigation. This is a discriminating experiment, not proof of one chemical mechanism, because coating can also change the specimen's thermal response or access to the measurement surface.
ΔRheat = Rafter,heat − Rbefore,heat; ΔRcoat = Rafter,coat − Rbefore,coat
- ΔRheat: paired change after the thermal-only comparison
- ΔRcoat: paired change after adding and processing the coating
- Rbefore and Rafter: matched measurements for each physical specimen
Comparable starting populations and measurement conditions. A difference between paired changes identifies a route-associated effect, not automatically a purely chemical coating effect.
Check that the comparison really shares a thermal history
Identical furnace setpoints do not establish identical specimen exposure if one group is mounted on a different carrier or loaded at another time. Keep the support, spacing and relevant temperature history documented. When a coating materially changes absorption or local thermal response, interpret the heat-only comparison with that limitation rather than treating its difference as a perfectly isolated interface effect.
Preserve the complete count and order of thermal passes. A coupon removed before the last conductor firing cannot represent a product that continues through another pass. If the selected system permits cofiring, the joint cycle must be evaluated as that specific combination; it cannot be reconstructed by simply adding together the favorable results of separately fired layers.
Resolve conflicts between protection, trimming and contact access
A trim region, solder pad, wire-bond landing and electrical test point may need access at different times. Write those requirements against the state ledger. An opening that supports inspection before assembly may no longer be reachable after a component is attached, and a protection step placed earlier may change how a later operation interacts with the surface.
Decide whether an electrical check should use the final functional contact or a dedicated temporary test feature. If the contact boundary changes between stages, document the difference and avoid interpreting the resulting value change as a material shift. Keep the same geometric opening checks used by the drawing owner; this review determines when and under which state those checks must be repeated, not a replacement opening-size rule.
Trace a final failure back to the first changed state

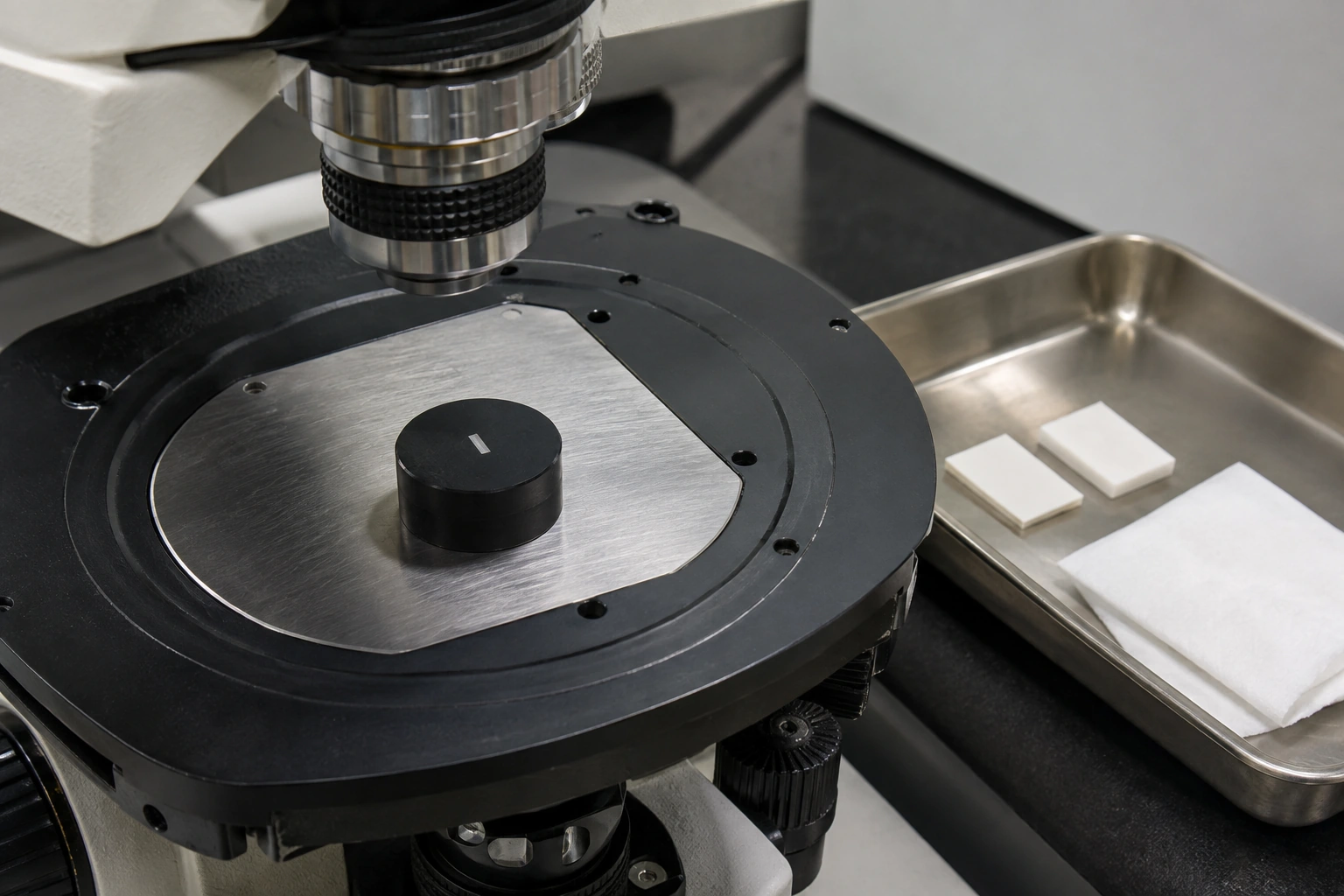

When a final crossover fails, compare its recorded intermediate state with equivalent features that survived. A defect visible before upper-conductor printing suggests a different investigation from one first observed after a later refire. Keep sample identities through any sectioning or destructive analysis so physical evidence belongs to the electrical feature that actually failed.
Use the matrix to identify missing evidence as well as available evidence. If no check exists between two critical operations, the investigation may only narrow the cause to that interval. Do not fill that gap with certainty based on the final photograph. A subsequent controlled run can add the needed checkpoint without declaring the suspected operation proven responsible in advance.
Transfer the checkpoint matrix with the manufacturing revision
The approved manufacturing package should connect the layer artwork, material identities, state ledger, thermal passes and checkpoint methods. State which records are required before a part proceeds to an operation that hides or alters the feature. A route revision that removes a firing step or moves trimming earlier must also revisit the evidence matrix, even if the final customer drawing is unchanged.
Retain final functional verification after all relevant operations. Intermediate data explain how a stack was built and support diagnosis, but they do not replace final electrical or assembly acceptance. The value of this review is a sequence that remains observable and testable, allowing a specific change to be evaluated without relying on broad claims that all dielectric and overglaze combinations are compatible.
Send the layer-state and verification package
Provide the point at which each feature is created, covered, reheated, measured and finally used.
- Named conductor, resistor, dielectric and overglaze layers with material codes and intended functions.
- Print, dry, fire, trim, clean and assembly order, including every repeated thermal exposure.
- Critical crossing, opening and measurement locations with the last accessible inspection state.
- Paired before/after electrical results, heat-only comparisons where available, and the final acceptance requirements.
