A fired protective layer needs a stated job: resisting a named exposure, protecting a resistor surface or supporting a defined downstream process. Its presence on top of a circuit does not establish the electrical insulation underneath it.
Key design decisions
- Describe the exposure or operation the overglaze must protect against.
- Keep the conductor-to-conductor insulation requirement attached to the functional dielectric.
- Evaluate the overglaze with its underlying resistor, conductor and complete firing and trimming sequence.
Specify what protection must accomplish
Begin the selection with the event that threatens the exposed film. Possible duties include contact with a defined plating solution, incidental handling or a subsequent resistor-processing operation. These descriptions lead to different checks. A layer chosen because it survives one chemical route has not thereby been assessed for another cleaner, prolonged wet service or repeated mechanical contact. Record the exposure chemistry, temperature, duration and order relative to firing and assembly. If those inputs are unknown, retain them as open application requirements instead of replacing them with the broad word protective.
Also identify what must remain accessible. A termination that must accept solder, a bond pad and a surface used for electrical probing may not share the desired coating boundary. This selection step establishes the required functions and exclusions; detailed window geometry follows later. A useful candidate description says what the fired layer must preserve through a named operation and which circuit features must remain available when that operation is complete.
Locate the functional insulation between electrodes
Trace the electrical path before assigning credit to an overglaze. If two conductors are separated by a buried dielectric, a protective film above the upper conductor is outside that direct through-thickness separation. It cannot be assumed to repair a void or bridge inside the buried layer. A top coating may influence surface leakage under particular conditions, but that contribution is a different question from the integrity of the dielectric between conductor levels. Show both functions separately in the stack drawing and acceptance plan.
The word glaze does not establish an insulation rating, and the word dielectric in a material category does not establish suitability for every barrier. Use the selected grade's intended role and supporting conditions. Where the design intends a protective film to carry an electrical requirement as well, define that requirement explicitly and obtain appropriate evidence on the actual geometry. Do not retire the original conductor-pair test simply because the circuit now has a visually continuous colored top layer.
Pair the glaze with the material it covers
Name the resistor and conductor compositions under the intended coating, together with their prior firing history. An overglaze that is described for a particular resistor family should be assessed as that pairing. Similar color or an apparently similar firing range is not evidence that another glass system will interact the same way. Include whether the resistor has already been trimmed, whether terminals have been processed and which later thermal steps remain. Each condition changes what the protected feature must preserve.
Compare the proposed overglaze route with the complete material sequence. A lower peak than an earlier firing does not make the extra heating irrelevant to resistance or interfaces. The selected composition also brings a new contact material to the resistor surface. Separate the possible effects of added heat, deposited material and later exposure when designing the trial. This prevents a final resistance change from being assigned immediately to the glaze chemistry when the extra thermal operation has not yet been evaluated with an appropriate control.
Compare coated parts with a matched thermal control

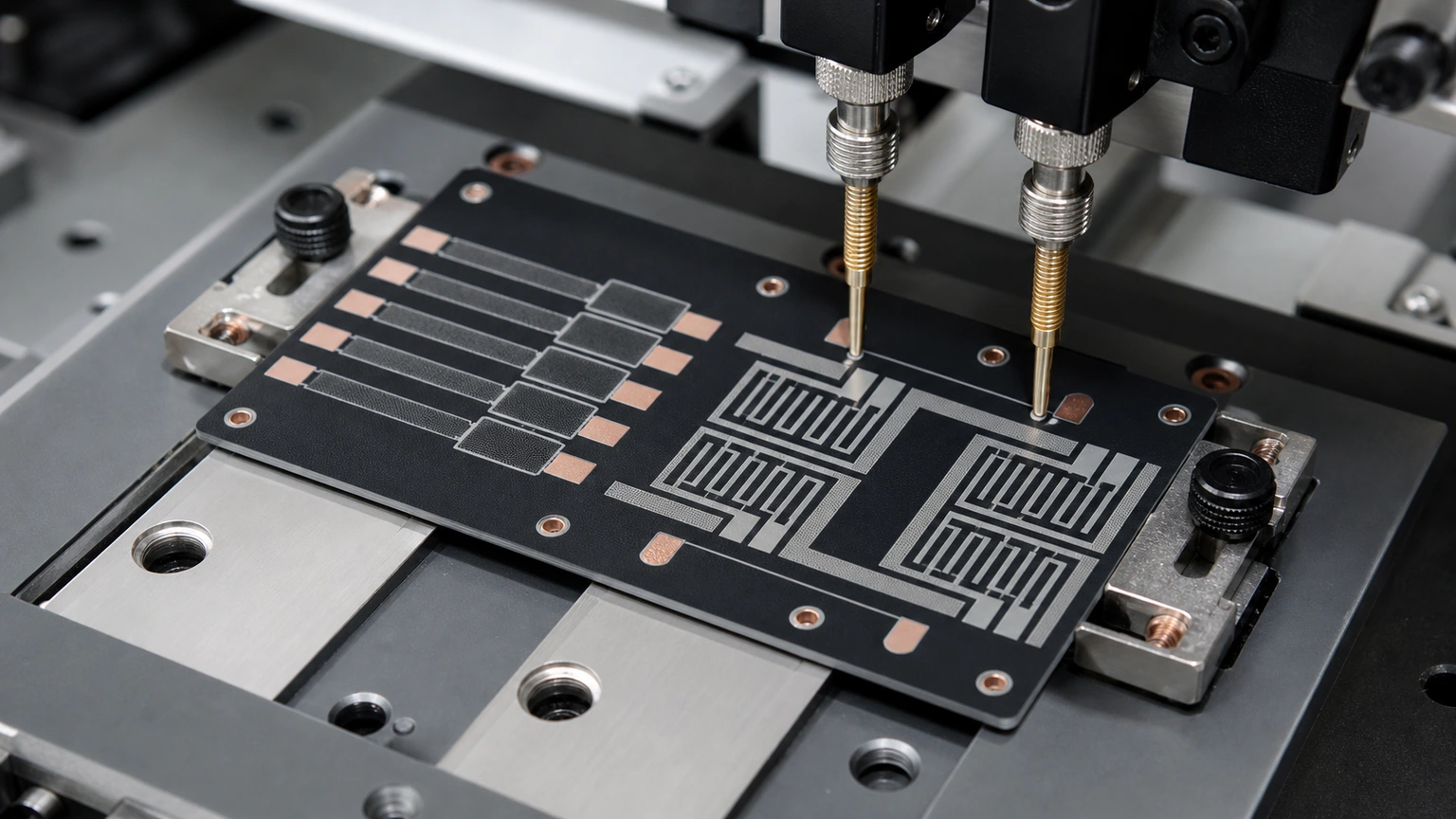

A useful screening experiment measures comparable resistors before and after the proposed overglaze firing. Coat one group and send a matched uncoated group through the same thermal cycle. Keep the original resistor lot, geometry and measurement conditions comparable, and include both conditions within each trial run where practical. The comparison does not make every nuisance variable disappear, but it gives the added thermal operation an observable control. Replication is needed to distinguish a repeatable difference from specimen variation.
For a hypothetical pair starting at one thousand ohms each, suppose the coated resistor finishes at one thousand twelve ohms and the uncoated thermal control at one thousand eight ohms. Their normalized changes are one point two percent and zero point eight percent. The difference is zero point four percentage points. That is a descriptive coating-associated contrast for this pair, not proof of a chemical mechanism or a permitted drift. Interpret it with measurement uncertainty, repeated pairs and inspection before attributing the difference or accepting the material.
D_coat = 100 × [(R_c,after / R_c,before − 1) − (R_u,after / R_u,before − 1)]
- D_coat: difference between normalized resistance changes, in percentage points
- R_c,before and R_c,after: coated specimen resistance before and after the added cycle
- R_u,before and R_u,after: matched uncoated control resistance before and after the same cycle
Comparable resistor population, matched thermal history and consistent resistance measurement conditions. The contrast includes all differences associated with the coating treatment and is not an isolated chemistry coefficient or causal proof from one pair.
Translate chemical resistance into a defined exposure test
A chemical-resistance claim is meaningful only within its stated conditions. Identify the liquid composition and concentration, temperature, contact time, rinsing and drying steps relevant to the product. A short downstream processing exposure and a service environment with repeated wetting are different duties. If residues can remain after drying, include that state in the electrical review. The absence of a visible surface change is useful but cannot alone establish that the protected resistor and nearby insulation retained their required behavior.
Use the candidate's documented application to choose a sensible starting trial, then test the actual exposure that governs the design. The table separates observations that would otherwise be collapsed into a single pass label. Each row needs an agreed requirement rather than a universal numerical limit. A fired glass appearance must not be interpreted automatically as a sealed package. Edges, openings and interfaces remain part of the exposure path, so the selected material and the eventual coverage design must be evaluated together before claiming environmental protection.
| Duty | Condition to preserve | Useful observation |
|---|---|---|
| Specified process solution | Resistor behavior after contact, rinse and dry | Resistance change plus surface and edge condition |
| Required electrical isolation | Response of the named conductor pair | Separate isolation or leakage result on the completed stack |
| Subsequent trimming | Usable adjustment and intact neighboring material | Trim result and inspection at the cut |
| Handling or assembly contact | Coating and underlying film integrity | Location and depth of damage after the defined operation |
Decide when resistance adjustment occurs
Selection must account for whether the resistor will be adjusted before coating, through the fired coating or after an area has been deliberately left open. These routes impose different demands on the protective material and on the completed resistor. A glaze described for laser trimming provides a reason to investigate that route with the specified resistor system; it does not establish a universal trim recipe. The actual equipment conditions and resulting cut still need to be qualified for the material combination.
For adjustment before coating, determine how the added deposition and firing affect the achieved value. For adjustment through a fired layer, inspect the cut and surrounding protection as well as the final resistance. For an exposed adjustment area, examine whether the required environmental duty can still be met. Keep these route choices visible during material selection so a late process change does not silently alter the protection concept. Numerical resistance acceptance and physical integrity should be evaluated together at the final state that the customer will receive.
Validate protection without hiding underlying failures
Plan observations before coating, after its firing and after the relevant downstream or service exposure. Retain specimen identities and inspect the same critical regions at each stage. This chronology can show whether a resistance shift appeared during the added firing or only after contact with the test medium. Keep coated and appropriate control specimens in the comparison, and avoid changing both the resistor family and glaze in a trial intended to evaluate only the protective layer.
Failure signatures include cracks crossing a protected resistor, local lifting near an edge, discoloration after chemical contact, resistance movement that survives drying and material encroachment onto an attachment area. These are investigation cues, not unique diagnoses. A crack may compromise the intended protection even when the immediate resistance is unchanged; a resistance change may occur without a visible crack. Risks also include damage hidden by the coating and electrical leakage unrelated to the protective film. Validation should therefore combine the required circuit measurements with local physical observations and a clearly assigned disposition for each unresolved anomaly.
Record the protective role and its limits
The approved material record should name the overglaze, underlying resistor and conductor systems, deposition and firing route, trimming sequence and qualified exposure. Identify the circuit features that must remain uncovered and the electrical requirements owned by other layers. This keeps a purchasing substitution from changing the meaning of protection. Where a second glaze is accepted, document the conditions for that alternative rather than treating all fired top coatings as interchangeable materials.
Attach acceptance evidence to the intended role. Chemical protection needs the relevant exposure result; compatibility needs the completed resistor and interface result; any assigned electrical function needs its own defined test. Review a change in cleaner, plating route, resistor family, coating sequence or trimming method against those records. The objective is a material choice that remains understandable when the process changes. It should be possible to identify which protection claim is supported, which conditions produced that evidence and which new requirement would require another engineering decision before the changed circuit is released.
Inputs for fired protection selection
Define the protective duty and surrounding process before selecting an overglaze composition.
- Underlying resistor, conductor and substrate identities, with the existing firing history.
- Exposure chemistry, concentration, temperature, duration, rinse and drying conditions that protection must address.
- Planned coating, firing and trimming sequence, plus pads and adjustment regions that must remain accessible.
- Resistance stability, physical integrity and separately assigned electrical insulation requirements, with acceptance responsibility.
