Refiring a thick film circuit adds another thermal exposure to layers that have already developed their electrical and mechanical state. Resistance can change even when the printed geometry appears unchanged, and later materials can introduce additional interactions. Evaluate refiring with paired measurements and a controlled sequence that separates heat-only effects from added-layer effects. The aim is to determine whether the proposed operation fits the circuit's final tolerance and material compatibility, not to assign a universal number of acceptable firings.
Key design decisions
- Compare each specimen with its own pre-refire value at the same temperature and measurement boundary.
- Separate an additional thermal cycle from the effect of a newly applied dielectric or overglaze.
- Track geometry, interface condition and electrical distribution rather than relying only on the average resistance shift.
Define the circuit state before the extra firing
Record the resistor and conductor materials, previous firing sequence, overglaze condition and whether trimming has already occurred. A refire applied to an untrimmed resistor is not equivalent to the same cycle applied after laser adjustment or after an additional protective layer.
Measure the initial value after the specimen reaches a defined temperature and stabilization condition. Keep the sample identity and panel position. If the starting resistance is still drifting, the later measurement includes both that drift and the effect of the extra firing. Establish a retained comparison condition to reveal the difference.
Capture the actual added thermal exposure

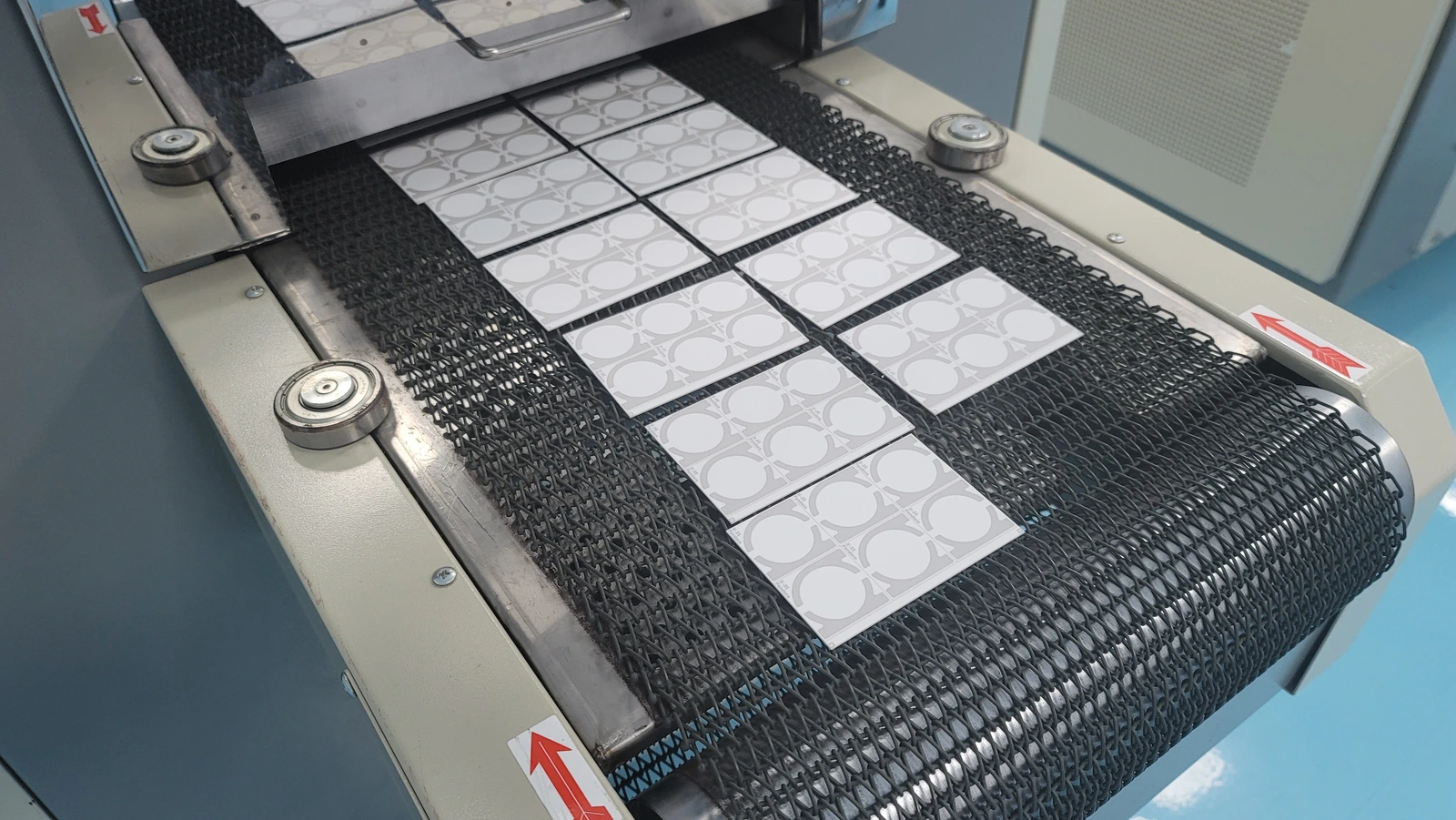

Record the full part-temperature history, including heating, dwell, cooling and atmosphere. A nominal peak alone cannot establish equivalence between two refire conditions. Loading and carrier arrangement can change the profile experienced by the circuit.
Keep the extra operation in the complete thermal ledger. A third exposure following two different earlier cycles cannot be described simply as three firings without losing important information. Material compatibility depends on the actual sequence and the layers present during each operation.
Calculate individual changes and inspect their distribution
Calculate the fractional shift of each resistor from its own initial value. Report the distribution and identify geometry or material groups that behave differently. A small mean shift can conceal an increased spread that consumes the final tolerance.
For a hypothetical resistor changing from 2,000 Ω to 2,010 Ω, the relative change is 0.5 percent. A second resistor shifting downward by the same fraction could make the group mean appear unchanged. The two individual movements still matter to a circuit with tight limits. The example illustrates why a final average is not a sufficient acceptance measure.
Separate absolute resistor change from ratio change when the circuit uses matched elements. Two resistors that move together can retain their ratio while both leave their individual limits; unequal movement can damage the ratio even when each absolute value remains acceptable. Plot paired before-and-after values and calculate the relevant circuit output from those measurements. Keep the same measurement range and contact arrangement across stages, and check a stable control resistor to identify instrument or setup changes. This prevents a measurement shift from being mistaken for a thermal-process effect and makes the refire decision specific to the circuit's actual function.
δR = (Rafter − Rbefore)/Rbefore
- Rbefore: resistance of the same specimen before the added firing
- Rafter: resistance after refiring at the matched measurement condition
- δR: individual fractional resistance change
Matched specimen temperature, electrical contacts and test current, with any baseline time drift evaluated separately.
Separate refiring from added-material interaction
Use comparison groups that answer the specific process question. Keep the specimen geometry, starting materials and measurement method equivalent across those groups.
| Condition | Question answered | Important control |
|---|---|---|
| Retained specimen without added heat | How much change occurs with time and measurement? | Same elapsed interval and storage |
| Heat-only refire | What does the extra thermal cycle do? | Representative part-temperature profile |
| New layer plus its firing | What does the complete added process do? | Same thermal cycle as the heat-only comparison |
| Trimmed versus untrimmed specimens | Does adjustment state change the response? | Comparable geometry and starting history |
| Different panel positions | Is the response spatially systematic? | Traceable location and load arrangement |
Inspect more than the resistor outline
The visible resistor boundary may remain similar while the processed material or termination interface changes. Inspect conductor-resistor overlap, local cracks and protective-layer boundaries where the electrical evidence points to a concern. A smooth top view does not prove unchanged internal or interfacial structure.
Use sections or other physical analysis only where they answer a defined question. Select specimens with known electrical behavior and retain their orientation. Comparing an arbitrary attractive section with a failed circuit can obscure the actual mechanism because the examined region may not carry the relevant current path.
Check the selected protective material's compatibility
An added overglaze contributes both another material and another thermal sequence. Evaluate the selected resistor-overglaze pair and its complete thermal processing history. An added glass layer must not be assumed to leave resistance unchanged.
Measure before and after the complete glass operation, and compare with heat-only exposure where useful. Record the coverage geometry and the state of any trim region. If a shift appears only when the glass is present, investigate the interaction and geometry rather than adjusting the furnace profile blindly.
Decide whether the sequence fits the final-value process
The measured refire contribution must fit within the remaining resistance and ratio budgets. Evaluate whether a systematic shift can be controlled and whether the spread remains acceptable under the actual material and process variation. A compensation factor is not robust if the effect changes unpredictably with geometry or history.
Consider the placement of trimming in the sequence, while respecting access and material compatibility. Moving adjustment later can avoid some added thermal drift but may create other process constraints. The best sequence should be chosen from the full circuit route rather than from one isolated resistance result.
Keep the accepted sequence tied to the evidence
Document the material grades, layer order, profile, adjustment state and paired electrical results that support the chosen sequence. Include any geometry-dependent exceptions and the measurements used to identify them. A future operator should be able to tell whether an extra firing is within the evaluated route.
Reopen the comparison when a material, profile, load, protective layer or rework sequence changes. Do not treat a successful refire trial as permission for unlimited thermal processing. The useful outcome is a controlled final-state circuit with a known tolerance contribution and a traceable reason for each thermal operation.
