Removing electrical power does not instantly stop a heater from getting hotter at every location. Detection takes time, the switching path has a response, and stored energy can continue moving from a hotter film or substrate into a cooler surface. A shutdown calculation must therefore track both energy delivered before isolation and redistribution after isolation, with particular attention to the part that loses its normal heat sink.
Key design decisions
- Separate fault onset, sensor response, decision time and actual power removal.
- Model the thermal mass participating in the first temperature rise, not automatically the whole assembly.
- Check post-switch-off redistribution as well as the temperature at the trip instant.
Draw the shutdown event as a timed sequence
Set time zero at the physical change that creates the hazard, such as loss of fluid contact or separation from a heat sink. Then identify when the sensor begins to respond, when its signal crosses the decision threshold, when the control or protective device commands shutdown and when heater current actually stops. These are distinct events even when they occur close together.
Use measured timing where available and a clearly stated bound where it is not. Include data acquisition and filtering only if they are actually in the protective path. A software display update can be slow without delaying an independent hardware limit, while a fast display does not prove that the final switching device interrupts power quickly.
Estimate energy supplied during the delay
Integrate the actual heater terminal power over the interval before isolation. Constant voltage does not always mean constant power because resistance changes as the heater heats. Current limiting, modulation and a failed switching device can also change the waveform. Use a conservative but physically credible power history for the event under analysis.
For an initial estimate, divide net accumulated energy by the effective heat capacity of the region that heats during that short interval. If heat loss becomes negligible, this gives an adiabatic approximation. It is often useful for screening, but the participating mass must be justified: a thick housing may not absorb much energy during the first rapid local rise.
ΔT_initial ≈ ∫(P_heater − Q_loss) dt / C_effective
- P_heater is electrical power dissipated in the heater during the delay.
- Q_loss is heat leaving the region being modeled.
- C_effective is the thermal capacity participating over that time interval.
A lumped estimate requires sufficiently small temperature variation within the selected region; use a distributed model when local gradients control the outcome.
Choose the effective mass by time scale
The printed film, dielectric, ceramic or metal substrate, contact layer and load exchange heat at finite rates. During a short event, the element region can rise before the full assembly follows. During a longer event, more of the substrate and fixture participate. Assigning the entire system mass to every delay can seriously understate an early local temperature rise.
Start with a small thermal network that separates the element region, substrate, load and surroundings. Use measured geometry and material properties for the selected construction. Check sensitivity to the uncertain contact path. Add spatial detail near a dry patch, narrow trace or terminal when a single temperature node cannot explain the local measurement.
Account for sensing and placement error
Sensor response depends on its installation and on how heat reaches it during the fault. A sensor immersed in remaining fluid may stay cool while an adjacent exposed heater region overheats. A sensor attached to a remote housing wall may respond slowly even if the sensing element itself is fast. The relevant delay is the installed response to this event.
Measure or model the difference between the critical local temperature and the sensing point during the transient. Filtering and threshold hysteresis should be included in the decision path. Do not lower a threshold solely to compensate for unexplained lag; first establish whether the sensor can observe the fault location and whether an independent protective input is required by the equipment assessment.
Follow heat after current reaches zero
After isolation, a cooler measured surface can continue to warm as energy flows from hotter internal or neighboring regions. A load may also keep receiving heat from the substrate even though the film begins cooling. The highest temperature at a particular location can therefore occur after the electrical shutdown event.
Continue the calculation and measurement until the relevant locations clearly pass their peaks and begin a sustained decline. Include any change in flow, fan state or mechanical contact caused by the shutdown itself. Turning off a fan at the same time as the heater, for example, changes the post-shutdown boundary and cannot be represented by simply setting electrical power to zero in an otherwise unchanged model.
Evaluate a small set of physically different events
Distinguish a complete loss of the load from a localized loss of contact. The former changes the average energy balance; the latter may produce a rapid hot spot that a distant sensor misses. Also distinguish a functioning control shutdown from a fault that requires another switching path. These cases can share a drawing but need different timing assumptions.
Use the equipment's applicable safety requirements to select the required protective architecture and acceptance conditions. The calculation supports that assessment; it does not certify a product or substitute for the specified abnormal-operation evaluation. Maintain functioning protective equipment during development tests and use appropriately controlled test conditions.
| Event | Critical model feature | Measurement priority |
|---|---|---|
| Complete loss of normal heat sink | Rapid change in overall heat loss | Element and substrate rise before power removal |
| Small dry or detached area | Local mass and lateral spreading | Temperature near the affected region |
| Slow sensing path | Installed thermal and signal delay | Fault onset to threshold crossing |
| Delayed electrical interruption | Continued terminal power after command | Current waveform and switch state |
| Cooling system also stops | Changed post-shutdown heat-loss path | Peak temperature after current reaches zero |
Validate timing and temperatures together

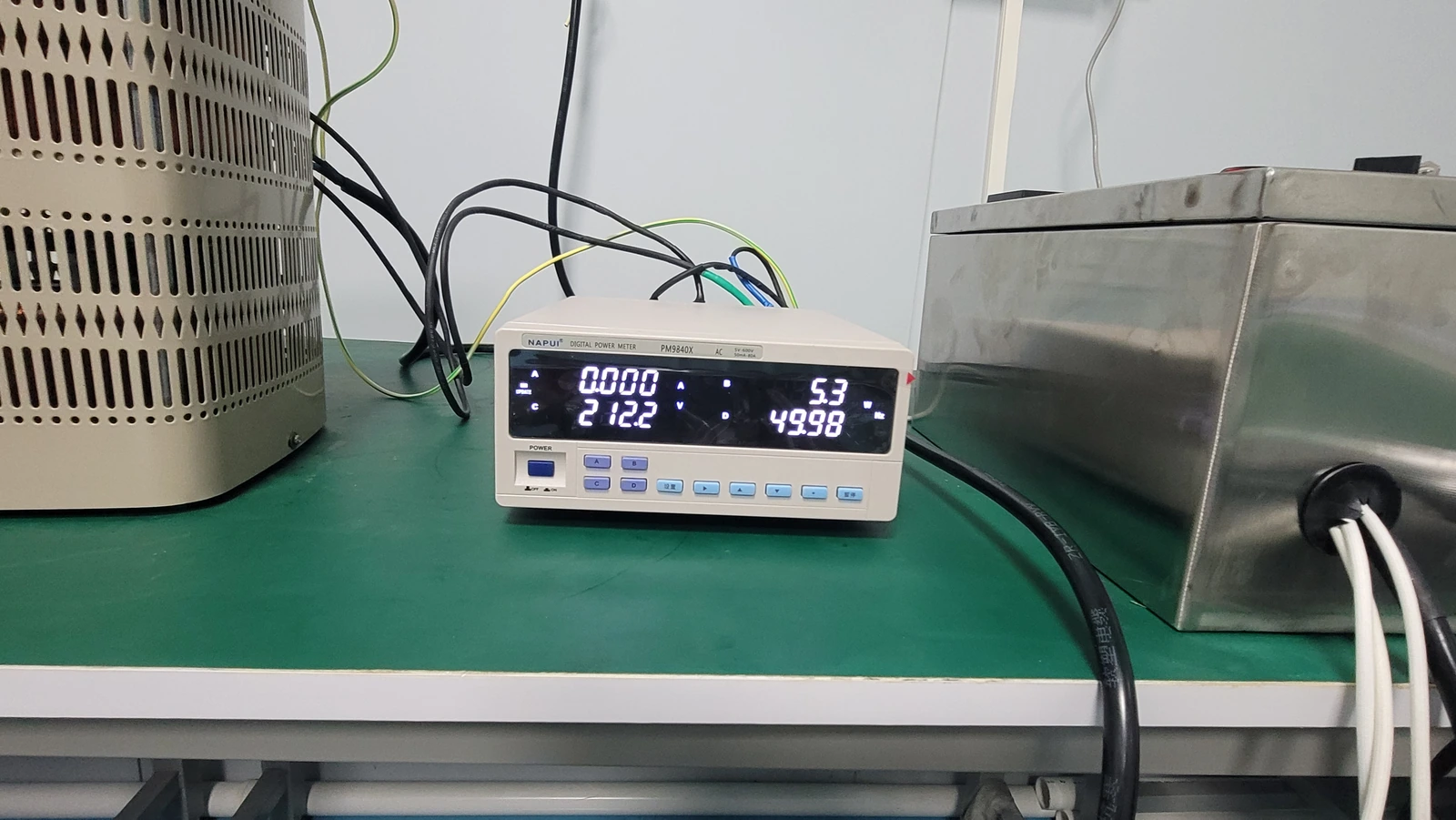

Synchronize electrical, temperature and event-marker channels. The event marker should represent the actual physical boundary change as closely as practical, not merely the command that initiates a test fixture. Record the heater voltage and current to confirm when power is removed. Sensor readings without electrical timing cannot separate late isolation from stored-heat effects.
Compare the measured rise before shutdown and the shape after shutdown with the model. If the pre-trip slope is wrong, revisit power, effective mass and heat loss. If the post-trip peak is wrong, revisit internal gradients and contact paths. Repeat the relevant event to determine variability from installation and operating state rather than accepting a single favorable trace.
Convert the estimate into a design action
Summarize the critical location, predicted or measured peak, delay contributors and uncertainty. This makes the next action specific: move a sensor, reduce filtering delay, improve a heat-spreading path, change the power envelope or modify the independent shutdown arrangement. An unexplained total delay allowance hides which part of the system needs improvement.
Keep the calculation tied to the actual assembly revision and operating boundary. Changes to substrate thickness, adhesive coverage, fluid geometry or sensor attachment can change both the temperature rise and the observable signature. Recheck those changes before using an earlier shutdown result to support the revised equipment.
Estimate the heater shutdown transient
Provide the fault scenario and complete sensing-to-switching path so delay energy and stored-heat redistribution can be assessed.
- Heater construction, active geometry and mounted thermal load.
- Normal operation and the physical event that removes cooling or contact.
- Sensor locations, attachment, filtering, thresholds and switching arrangement.
- Terminal power and synchronized temperature traces if available.
- Applicable temperature constraints and equipment protective requirements.
