A rising heater temperature or resistance during power cycling does not identify the failed component by itself. A damaged printed track, a deteriorating joint and a loosening thermal interface can produce overlapping symptoms. The investigation becomes much more effective when electrical sensing locations, thermal maps and the installed mechanical condition are preserved from the first sign of change.
Key design decisions
- Keep element resistance and assembled connection resistance distinguishable.
- Locate the first thermal or electrical change before disassembling the specimen.
- Treat the mount and thermal interface as possible failure sites, not merely test equipment.
Start with the first observable change
Review the time sequence around the earliest deviation from normal behavior. A local temperature rise may precede a resistance shift, or a fluctuating connection may change delivered power before a thermal symptom becomes visible. Synchronize voltage, current, temperatures and controller state so the order can be established. The final open circuit often destroys information about the earlier mechanism.
Compare the changed specimen with its own baseline and with unchanged specimens from the same sequence. Note where it was mounted, its terminal orientation and any fixture differences. Preserve the original raw data and photographs, including images that initially appeared unimportant. A repeated small corner hot spot can become meaningful after the physical failure location is known.
Separate the element from the connections
Measure the resistance of the intended element through defined sense points where the construction permits. Compare this with the resistance measured through the complete installed wiring. The difference can help locate a growing contribution in leads, contacts or joints, but only if temperature and sensing boundaries are controlled.
Intermittent behavior requires dynamic measurement. A loose or damaged joint can recover when cooled or moved, so a single room-temperature reading after disassembly may look normal. Record the circuit under the representative thermal and mechanical condition, while maintaining safe test controls. Avoid moving leads as an informal diagnostic before the original position has been documented.
Recognize evidence consistent with printed-film damage
A constriction, crack or damaged transition in the resistive pattern can increase local dissipation and produce a thermal peak near the affected geometry. The total resistance may change gradually or abruptly depending on the electrical path. Inspect the same location with suitable magnification and compare it with its processed baseline.
Where a glass overglaze covers the resistor, the surface appearance may not reveal the underlying condition. Do not assume that an intact-looking glaze proves an intact film. Select a physical-analysis method that can address the suspected location, and plan any cross-section before cutting. A section taken a short distance away from a narrow defect can miss the mechanism entirely.

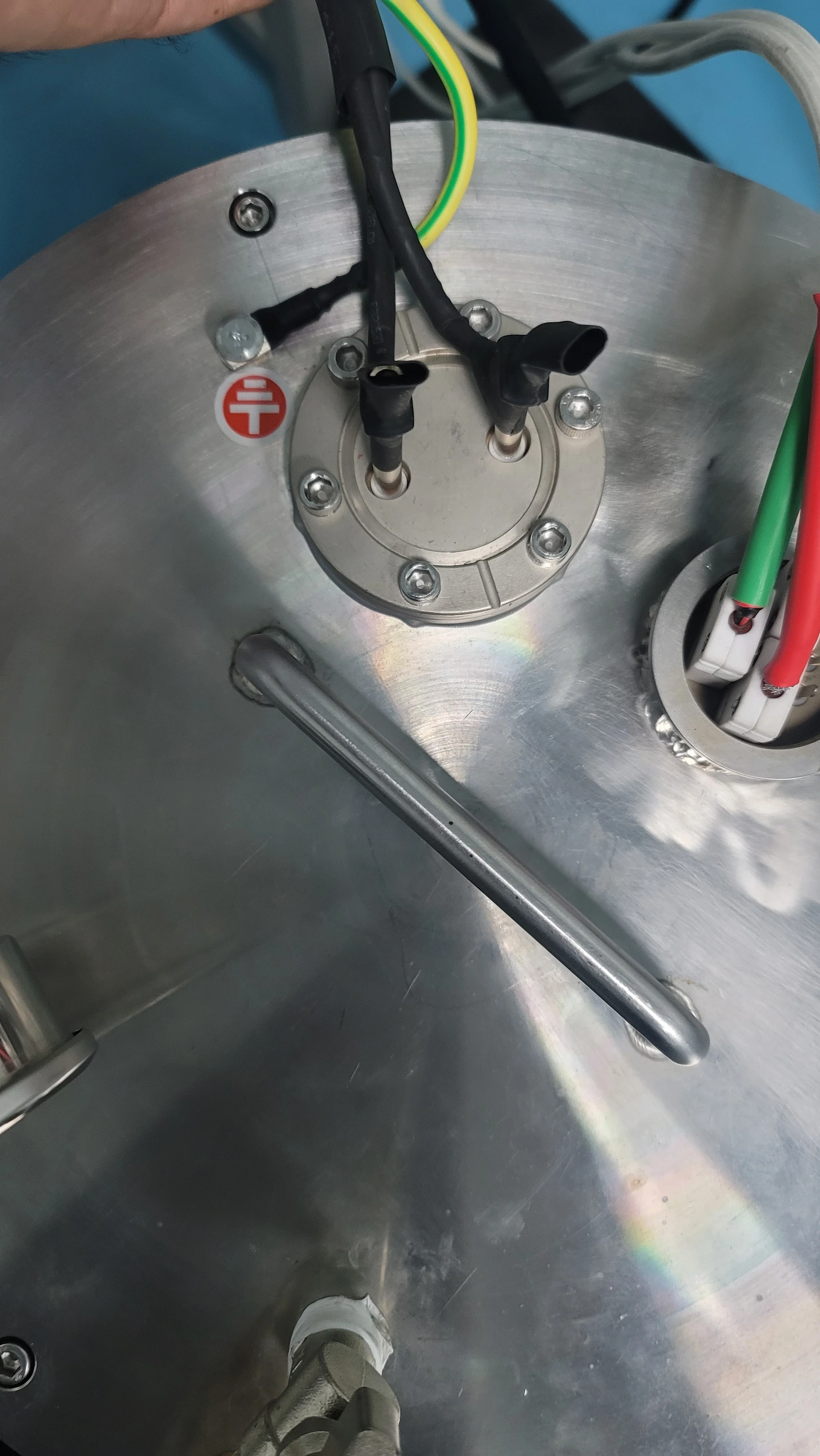

Recognize evidence consistent with joint damage
A changing terminal connection can add resistance and generate heat at a concentrated location outside the intended active pattern. Thermal cycling may also move a lead or alter strain relief, adding mechanical stress to the joint. Compare the joint temperature with current and with the nearby conductor, rather than interpreting it through a whole-heater average.
Document joint geometry, attachment method, lead routing and mechanical support. Look for displacement, cracking, corrosion, pad separation or localized discoloration, without treating any one visual symptom as definitive. If rework is necessary for further testing, retain the original joint or record the intervention explicitly; a repaired connection is a changed specimen.
Recognize loss of thermal contact
When contact with the load deteriorates, the heater can become hotter at the same terminal power even if its electrical structure remains initially unchanged. A detached area, redistributed interface material or reduced clamp force can create a new thermal boundary. The resulting temperature rise may then cause secondary damage to the film or joint.
Inspect mounting displacement, witness marks, adhesive coverage and interface condition before cleaning. Compare the temperature field with the support geometry and clamp locations. If electrical resistance returns to its baseline at the same cold temperature while the operating temperature remains elevated, investigate the heat path rather than assuming a permanent resistor change.
| Combined observation | Mechanism to investigate | Next evidence |
|---|---|---|
| Local track hot spot with a persistent element-resistance increase | Printed-film or conductor-transition damage | Location-matched microscopy and dimensional inspection |
| Terminal heating with increased assembled resistance only | Joint or lead connection degradation | Defined sense-point measurements and joint analysis |
| Higher heater temperature at unchanged terminal power and cold resistance | Loss of thermal contact | Mount displacement and interface coverage |
| Leakage changes without a large heating-resistance shift | Dielectric or surface insulation condition | Controlled insulation measurements and surface inspection |
| Symptoms disappear when the harness is moved | Intermittent mechanical connection | Position-controlled dynamic electrical record |
Keep insulation behavior on a separate diagnostic path
A heater can maintain its nominal heating resistance while its insulation deteriorates. Track the required insulation measurements separately from element continuity. Moisture, contamination, dielectric damage and terminal spacing can affect leakage through different paths, so document temperature, humidity, test voltage and surface condition when comparing results.
Do not perform an arbitrary high-voltage test as a general troubleshooting step. Use the approved test method and appropriate equipment controls, because a destructive test can obscure the original failure or create another one. If insulation testing changes the specimen, keep the sequence of tests in the record so subsequent physical observations can be interpreted correctly.
Preserve evidence during disassembly and sectioning
Photograph the assembled specimen from repeatable views, then disassemble in a recorded order. Mark orientation and the suspected location on the drawing. Retain interface materials, loose fragments and terminal pieces where they may explain the mechanism. Cleaning a surface before documentation can remove deposits or fracture debris that distinguishes an electrical problem from an environmental one.
For cross-section analysis, choose the plane from the electrical and thermal evidence. Support fragile layers and use preparation methods appropriate to the material stack. Grinding and polishing can introduce pull-out, smearing or edge rounding, so compare intermediate observations and more than one location when the conclusion depends on a small feature.
Connect the finding back to the cycling sequence
Review whether the observed mechanism matches the applied thermal excursion, dwell, cooling path and mechanical constraints. A failed joint after severe harness movement is not the same result as a film change under stationary thermal cycling. If the test combined several stresses, use a follow-up comparison to isolate the dominant contributor.
The corrective action should address that contributor: pattern geometry, material processing, connection support, interface coverage or assembly force may each be appropriate in different cases. Repeat the relevant sequence on the revised construction with the same diagnostic measurements. Improvement is demonstrated by a comparable record, not by an unmonitored increase in completed cycles.
Analyze a power-cycling failure
Share the earliest electrical and thermal changes together with the intact assembly record before cleaning or reworking the failed part.
- Cycle definition, specimen history and event-synchronized measurements.
- Element and assembled resistance methods with sensing locations.
- Baseline and changed thermal maps under the same terminal power.
- Mounting, interface, terminal and harness photographs before disassembly.
- Failure location and any microscopy or section-preparation records.
