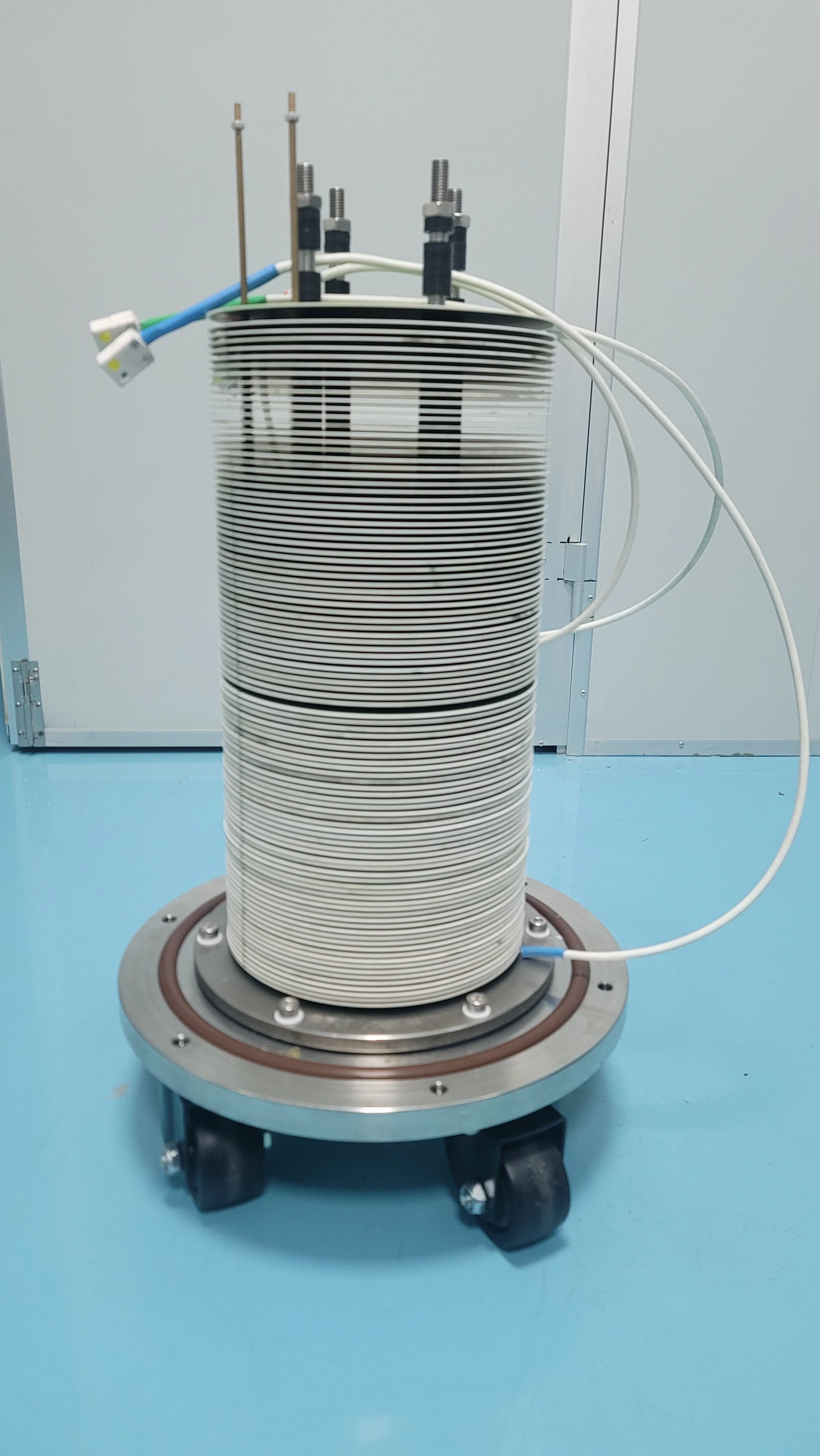

Deposits on a fluid-facing heater surface change the path between electrical heat generation and the fluid. The effect depends on deposit thickness, composition, coverage and the surrounding flow, so a visible coating cannot be translated into a universal temperature penalty or service interval. A useful review compares clean and deposited conditions at controlled electrical and fluid boundaries, then identifies whether the deposit causes a broad loss of heat transfer or a localized hot region.
Key design decisions
- Characterize where the deposit forms, not just its total amount.
- Separate increased wall temperature from a change in useful fluid-heating rate.
- Use measured deposit conditions rather than invented fouling rates or cleaning intervals.
Describe the deposit as a spatial layer
Record the location, coverage and visible morphology of the deposit. A continuous layer across the active surface behaves differently from isolated islands, a ring around an inlet or buildup in a low-flow corner. Preserve photographs tied to the heater geometry before cleaning or destructive sampling changes that distribution.
Where thickness or composition is important, obtain an appropriate measurement instead of inferring it from color. The same visible appearance can correspond to different thermal properties or adhesion. Note whether the deposit is wet during operation and whether it cracks, detaches or changes after drying. These conditions can alter both heat transfer and the interpretation of a laboratory specimen.
Use an added-resistance model carefully
A uniform deposit can be represented initially as an added thermal resistance between the heated wall and the fluid. Thickness divided by conductivity and area gives a first one-dimensional estimate. This is useful for sensitivity analysis, but it assumes a continuous, reasonably uniform layer and does not resolve local flow or partial contact.
Use the model to ask which missing inputs matter most. If deposit conductivity is uncertain by a large factor, a precise-looking wall-temperature prediction is unjustified. For patchy deposits, divide the surface into regions or use a spatial model. Local heat can spread toward cleaner regions, changing the temperature pattern without making the deposit harmless.
R_deposit ≈ t_deposit/(k_deposit A); ΔT_deposit ≈ Q R_deposit
- t_deposit: thickness of the modeled continuous deposit layer.
- k_deposit: effective conductivity at its actual composition and condition.
- Q: heat crossing the modeled region, which may differ from total electrical input.
This screening relation assumes one-dimensional heat flow through a uniform layer. Partial coverage, flow redistribution and boiling require additional treatment.
Expect different symptoms under different control modes
At fixed electrical power, additional resistance can raise the heater-side temperature while reducing useful transfer or changing fluid response. If a controller regulates fluid outlet temperature, it may increase power to compensate, raising the wall temperature further. If the controller instead regulates heater temperature, useful output may fall while the controlled reading remains satisfactory.
State the control variable and electrical mode before comparing traces. A constant outlet temperature does not prove that the heater is unaffected. Conversely, a lower outlet temperature at fixed heater temperature may reflect the altered heat path rather than a loss of electrical continuity. Measure the relevant temperatures and power together.
Separate fouling from a changed fluid boundary
Deposits may coincide with reduced flow, changed inlet temperature or a partially obstructed channel. Those conditions alter heat transfer independently of the deposit’s material resistance. Record fluid mass flow, inlet and outlet conditions and any useful pressure observations during the comparison.
A clean-versus-fouled test should either hold these boundaries comparable or explicitly quantify their differences. If cleaning restores flow as well as removing a surface layer, the overall improvement cannot be assigned entirely to deposit conductivity. Identify whether the design needs a surface-material change, better flow distribution, a maintenance strategy or several coordinated actions. Avoid claiming a universal scale-resistant construction from one recovered operating point.
Design a clean-versus-deposited comparison
Use identified specimens or a carefully documented before-and-after sequence. Record the electrical resistance and baseline thermal behavior before exposure where possible. Establish the same load, mounting, fluid state and electrical condition for the comparison. Keep sensor locations fixed and include the region expected to become hottest.
If the same part is cleaned, document the method and inspect for changes to coatings, joints or surface finish. Cleaning can alter more than the deposit and may make a before-and-after comparison difficult to interpret. Do not create deposits or operate a compromised heater outside an approved test plan; the test needs appropriate temperature and electrical interruption safeguards.
| Observed change | Possible contributor | Record needed to distinguish it |
|---|---|---|
| Wall temperature rises at matched useful fluid output | Added thermal resistance compensated by higher electrical power. | Wall and fluid temperatures with actual terminal voltage and current. |
| Useful output falls at controlled wall temperature | Reduced transfer through deposit or altered fluid contact. | Comparable mass flow, inlet condition and load energy balance. |
| A small region becomes much hotter than the rest | Patchy deposit, gas pocket or local flow loss. | Spatial deposit and temperature maps in the same coordinates. |
| Performance improves after cleaning | Deposit removal, restored flow or changed surface condition. | Cleaning method, postcleaning inspection and the restored fluid boundary. |
Review hot spots and sensing coverage
A local deposit can create a hot region that is not represented by an outlet sensor or a sensor placed on a clean part of the wall. Compare the fault map with the location and response of the control and protective sensors. Consider whether partial fouling can create a more difficult-to-detect condition than a uniform deposited layer.
This review should feed the equipment’s abnormal-condition assessment. A normal control loop may compensate useful output without limiting every local wall temperature. Protective sensing and interruption should be evaluated against the actual vulnerable region and the credible loss of heat removal. The appropriate limits and architecture depend on the equipment and its safety requirements.
Derive maintenance inputs from observed conditions
Deposit growth depends on fluid chemistry, temperature, flow, surface state and usage. Do not assign a cleaning interval from the heater’s material name alone. A practical maintenance study records the operating history and correlates it with deposit condition, temperature change, useful output or another measurable indicator.
Choose an indicator that can be observed in the intended equipment. A detailed laboratory deposit thickness may be useful for development but unavailable during service. A rising power requirement or changed heater-to-fluid temperature difference may be monitorable, yet it also needs checks against load variation and sensor drift. Define the trigger from evidence and retain a method for confirming the suspected condition.
Keep the conclusion tied to fluid and construction
The final report should state the heater stack, fluid, exposure history, deposit condition, control mode and measurements used. Separate a thermal-transfer finding from chemical compatibility, electrical insulation and cleaning durability. A deposit experiment may inform all of these, but it does not automatically prove them.
Re-evaluate the findings when fluid chemistry, channel geometry, power distribution or cleaning method changes. The useful output of the study is a traceable explanation of the controlling heat-transfer change and a focused design or maintenance action, not an unsupported promise that a heater will remain free of deposits for a specified lifetime.
Send the fluid history and deposit observations
A scale-related review needs both the deposit condition and the operating boundary that produced it.
- Heater and fluid-channel drawings, wetted materials, active-area layout and control or protection sensor locations.
- Fluid composition information, inlet condition, flow history, operating temperatures and electrical power or control mode.
- Photographs of deposit coverage before cleaning, measured thickness or composition when available and associated thermal maps.
- Clean and deposited performance records, cleaning procedure, postcleaning inspection and the intended maintenance-monitoring constraints.
