A heater uniformity specification should tell two laboratories how to obtain the same decision from the same assembly. That requires more than a target temperature and a plus-or-minus value. The useful region, temperature statistic, measurement positions, operating state and timing must all be defined. Mean temperature, peak temperature and spatial spread answer different questions, and a satisfactory steady map does not establish performance during startup or a changing load.
Key design decisions
- State the useful region and exclusions before collecting the map.
- Keep control accuracy, spatial uniformity and local maximum temperature as separate requirements.
- Specify whether the requirement applies during a transient, after settling or throughout a duty cycle.
Separate accuracy, uniformity and maximum temperature
Control accuracy describes how closely a chosen process temperature follows its target. Spatial uniformity describes differences across a defined region. Maximum temperature protects a local material or process constraint. A heater can satisfy one while failing another, such as a correct average with one excessive hot spot.
Write separate acceptance statements where all three matter. Identify which surface or material each statement concerns: the printed resistor, ceramic face, attached plate, fluid or processed object. A sensor mounted in the heater is not automatically measuring the load. This separation prevents the controller display from being used as the sole proof of a spatial thermal requirement.

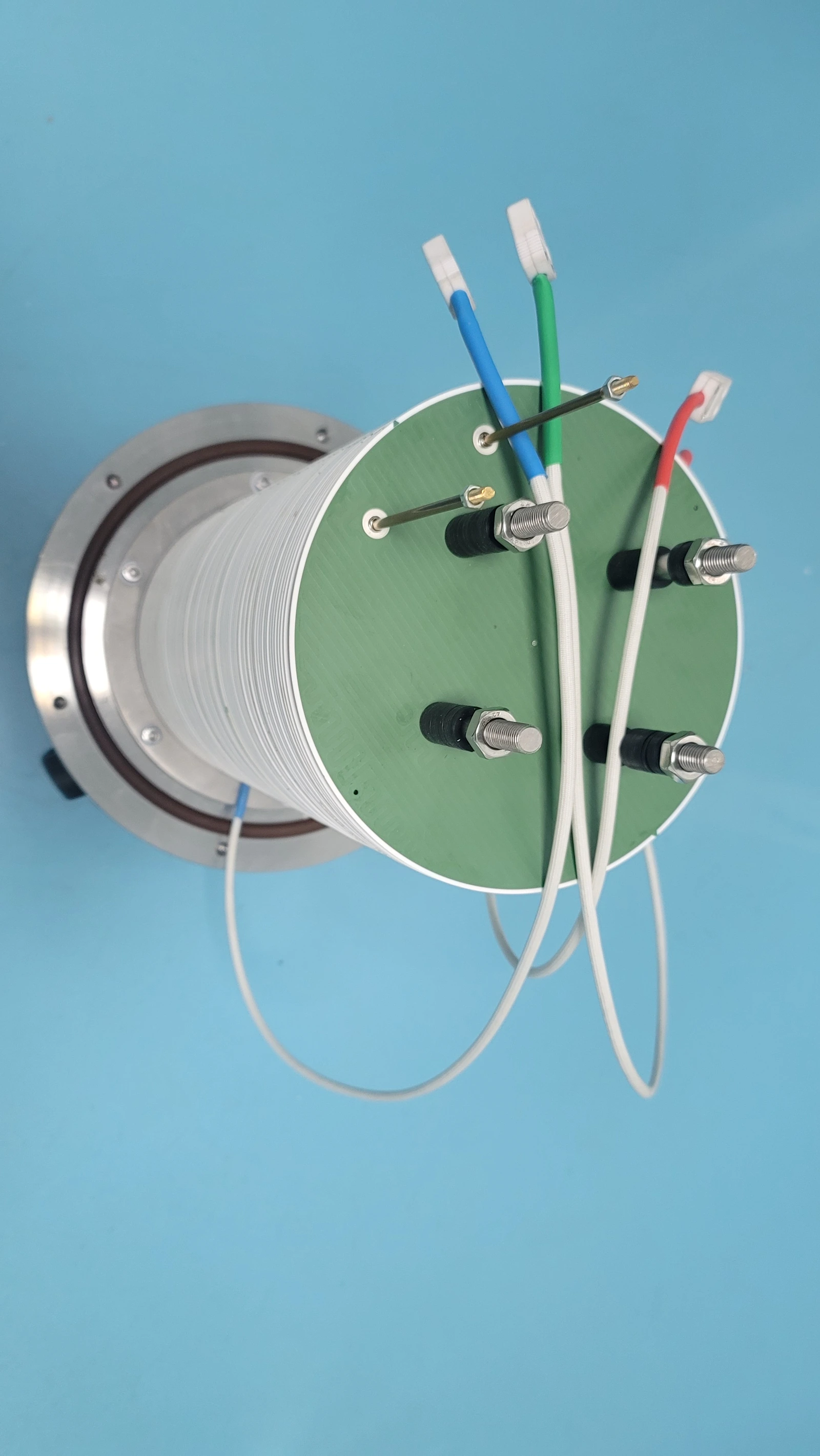

Freeze the usable region and exclusions
Use a drawing to define the region included in the uniformity calculation. Show holes, terminal areas, mounting margins and surfaces that are not part of the useful heated zone. Exclusions can be legitimate, but they should be decided from the application before the results are examined.
Give the region a reproducible coordinate system and state how boundaries are treated. For an infrared image, retain the mask used for analysis. For contact sensors, provide coordinates and attachment details. If a measurement spot straddles a region edge, specify how the mixed observation is handled. Otherwise two analysts can report different spreads from the same thermal image without either making an arithmetic mistake.
Choose statistics that fit the process
Maximum-to-minimum spread reveals the full range across the included observations. Deviation from a target identifies how far local values lie from the process requirement. A mean summarizes the overall level but can conceal an isolated peak. Standard deviation can describe distribution but is not a substitute for a maximum limit when one hot region is damaging.
State whether each observation represents an equal physical area. An arithmetic mean of unevenly spaced sensors weights dense regions more heavily. If an area-weighted result is intended, define the areas and calculation explicitly. Keep raw point values so the result can be checked and so a later process review can use a different statistic without repeating the experiment.
ΔT_spatial = T_max − T_min; T_area_mean = Σ(A_i T_i)/ΣA_i
- T_max and T_min: extreme temperatures within the declared usable region at the selected time.
- A_i: physical area represented by observation i, excluding declared holes or inactive regions.
- T_i: temperature assigned to that area with an identified measurement method.
Area weighting is appropriate only when the observations represent the stated regions credibly. These statistics do not correct sensor bias or unmeasured hot spots.
Define when the result must hold
Startup, steady operation and a repeating duty cycle create different temperature distributions. A plate may settle to a uniform state after passing through a brief local peak. A flowing load may remain variable even when the controller display appears stable. Choose the time condition from the process requirement, not from whichever image looks best.
Define settling with a measurable criterion, such as a temperature-change band over a stated interval chosen for the application. If uniformity must hold throughout a cycle, evaluate the range over that cycle and retain the timing of the worst condition. Report whether all points are compared at one common instant or whether a time-envelope statistic is being used.
Sample the places that can govern the decision
A uniform grid is a useful starting point, but local features may require additional observations. Include expected hot turns, terminals, edges, contacts and abrupt changes in load coupling. A sparse grid can report a small spread while missing a narrow hot region between sensors.
Choose measurement spacing and optical resolution that are appropriate to the feature size. Repeat critical observations with a complementary method when uncertainty could change the acceptance result. Do not average away a resolved hot spot merely because neighboring regions are cooler. Conversely, investigate an isolated anomalous pixel or poorly attached sensor before treating it as a physical maximum.
| Requirement element | Information to state | Ambiguity it removes |
|---|---|---|
| Useful region | Drawing coordinates, excluded openings and inactive terminal zones. | Whether cool nonfunctional areas belong in the uniformity result. |
| Temperature statistic | Maximum, minimum, spread, target deviation or a defined weighted mean. | Whether a good average is being mistaken for the absence of a hot spot. |
| Time condition | Startup interval, settling rule or complete repeating cycle. | Whether a steady image is being used to claim transient performance. |
| Operating boundary | Load, mounting, electrical input, airflow or fluid condition. | Whether two results describe the same installed thermal system. |
| Measurement method | Sensor coordinates, attachment, optical resolution and surface correction. | Whether apparent differences arise from the measurement rather than the heater. |
Keep measurement uncertainty in the decision
Different surface materials can produce different infrared readings at the same true temperature. Reflections, emissivity assumptions, optical spot size and camera stability matter. Contact measurements add their own errors through attachment resistance, wire heat conduction and sensor response time. Document these influences rather than assigning every difference to heater nonuniformity.
Where the allowed band is narrow, develop an uncertainty budget appropriate to the test. Consider both absolute-temperature error and relative error between points; some effects move all readings together while others distort the spatial map. A pass or fail near the limit should be handled through the agreed measurement decision rule, not by rounding the result in a favorable direction.
Preserve a complete acceptance record
The report should include the drawing revision, assembly condition, raw temperature observations, electrical input and calculation method. Add the exact image mask or sensor coordinates and the time interval used. State any deviations from the planned method so the result remains interpretable during a later design change.
A heater pattern change, new adhesive, different load or altered cable restraint can change uniformity even when nominal power stays the same. Recheck the affected boundary instead of automatically carrying forward an old thermal statement. The value of a precise specification is that it makes these changes visible and allows the supplier and equipment integrator to agree on what has actually been demonstrated.
Send the required thermal decision rule
A uniformity review should begin with the process region and the acceptance statistic, not just a temperature target.
- Usable-zone drawing with all exclusions, expected hot regions, load-contact boundaries and observation coordinates.
- Target temperature, permitted local maximum, spatial-uniformity definition and any area-weighting requirement.
- Startup, steady or cyclic time condition with the intended settling criterion and normal load variations.
- Mounting, power and cooling conditions, measurement method, raw maps and the uncertainty or repeatability information needed for the acceptance decision.
