Via metallization is affected by the condition of the hole before paste enters it and by the way volatile components leave during drying and firing. A change in continuity can therefore originate in hole preparation, filling, handling or thermal processing. Review these interactions as a sequence with measurable inputs and outputs. The aim is to distinguish a local filling problem from a later interface failure, rather than treating every high-resistance via as evidence that more paste is needed.
Key design decisions
- Establish the hole's physical and surface condition before comparing filling methods.
- Record filled, dried and fired states separately because an acceptable surface at one stage does not prove the next.
- Tie resistance and physical inspection to the same via identities and panel positions.

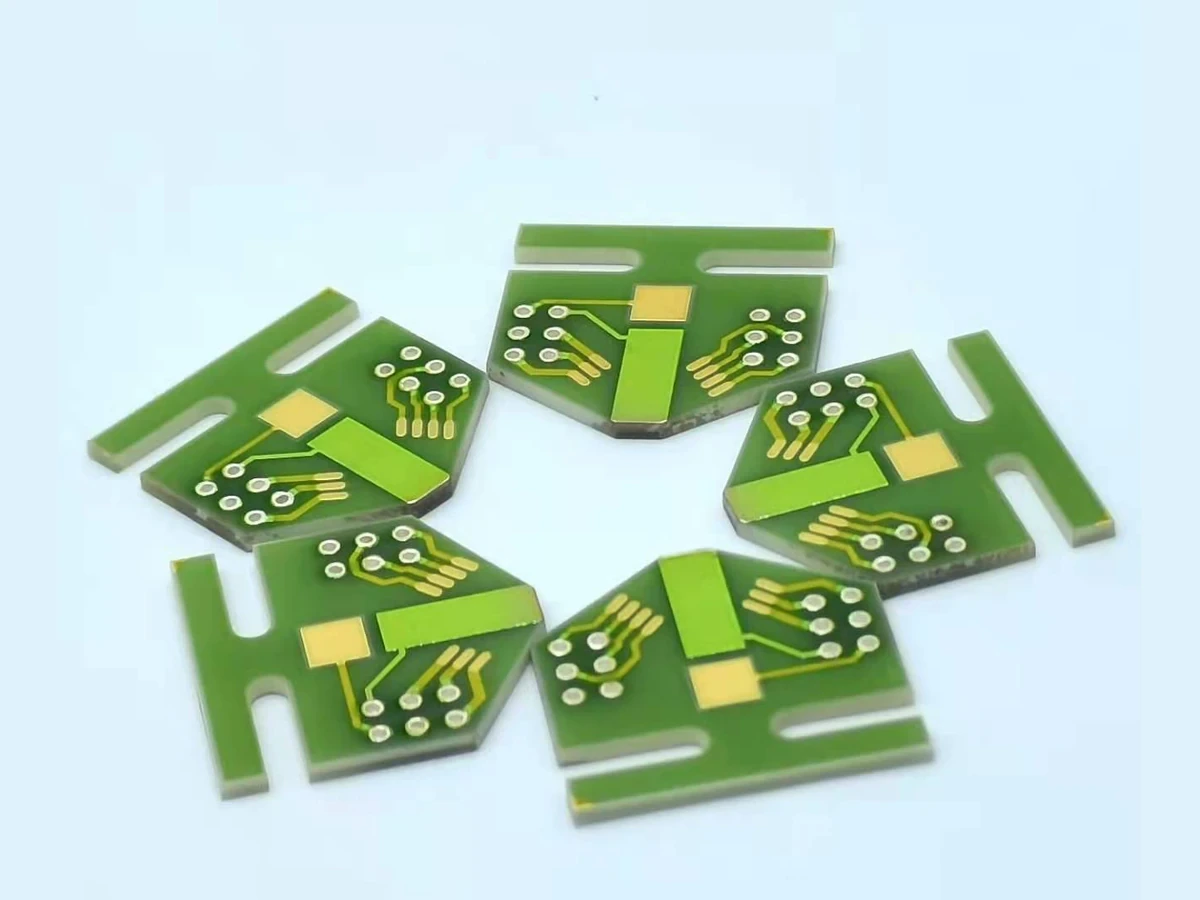

Inspect the hole before it becomes hidden
A hole can contain debris, a local chip, a tapered wall or a surface condition left by machining. These features affect the available passage and the contact between metallization and ceramic. Inspect both openings and the accessible wall before filling, using a method that distinguishes loose contamination from the ceramic itself.
Record actual hole geometry where it is critical. The nominal drill or laser program does not describe every finished hole. If the two openings differ in size or shape, define which side is used for filling and how the difference affects paste entry and air escape. Preserve the hole orientation in later electrical and sectional analysis.
Choose cleaning for the complete material system
Cleaning must remove relevant contamination without leaving a residue or changing the surface incompatibly with the metallization. The appropriate method depends on the ceramic grade, machining history and subsequent paste. A procedure used for alumina should not automatically be applied to AlN or to a substrate that already carries printed layers.
Evaluate a proposed cleaning change on representative holes and follow it through the complete thermal sequence. An improved wet appearance immediately after cleaning is only one observation. Compare fired continuity, adhesion-related evidence and any remaining residues under the same filling conditions. This keeps a cleaning effect separate from an unrelated paste or furnace change.
Provide a route for displaced air
As paste enters a hole, the air already present must escape. The available route depends on whether the structure is through-filled, wall-coated or otherwise metallized. Identify the intended construction in the drawing and process record. A surface cap can look complete while concealing a void below it.
Compare the filling direction, number of passes and support condition deliberately. Excess material at the opening does not necessarily increase the conducting section inside the hole. If a method uses pressure or vacuum, its application belongs to the qualified process rather than an assumed universal remedy. Observe the actual result before assigning a cause from the machine setting alone.
Separate surface skinning from complete drying
A filled hole has a different escape path for solvents than a thin open conductor print. The exposed surface may appear dry while the interior remains in a different state. Define drying conditions from the selected paste and the representative geometry, and retain the loading and orientation used for the comparison.
Rapid surface change can alter how material moves or shrinks later. Inspect for depressions, cracks or displacement after drying, then check whether those features persist or change after firing. A drying adjustment should be evaluated through the final electrical path; judging it only from a smoother top surface risks missing an internal problem.
Track the via through the complete thermal sequence
The via may experience its own firing and then additional firings as face conductors, resistors or protective layers are processed. Record every exposure in order. The relevant condition is the temperature history of the loaded part, not just the programmed peak in a furnace recipe.
Material-specific data distinguishes compatible substrate and firing conditions. Do not combine an AlN conductor recommendation with an alumina paste assumption merely because both are called thick film. Compare the actual material pair and later layer interactions.
| Stage | Input to record | Output to inspect |
|---|---|---|
| Hole preparation | Material, geometry and machining history | Debris, taper and edge condition |
| Cleaning | Chemistry, exposure and drying method | Residue and surface condition |
| Filling | Construction, direction and material state | Coverage and air-escape behavior |
| Drying | Time, temperature and loading | Surface change and material displacement |
| Firing and refiring | Full thermal sequence and atmosphere | Continuity, resistance and physical integrity |
Keep measurement boundaries consistent
A change in via resistance is meaningful only if the measured path is comparable. Face traces and external contacts can dominate a short via's resistance. Use defined force and sense points where possible, and document specimen temperature. A via-chain result should be accompanied by the number of vias and the conductor path between them.
Repeat measurements after the relevant thermal stages without changing the contact geometry unnecessarily. If a chain becomes intermittent, localize the affected segment before sectioning. The electrical map helps select the physical region that can distinguish incomplete filling from a crack at a face interface.
Design a comparison that separates interactions
Avoid changing cleaning, paste conditioning, fill method and firing profile simultaneously. A staged comparison can first stabilize the hole condition, then evaluate filling, and finally examine thermal exposure. Retain a consistent comparison group at each stage so ambient or instrument drift is visible.
Record panel position because a systematic location pattern can point to loading, support or print distribution. A small number of attractive cross-sections cannot represent every via if electrical results show a strong positional difference. Select sections from both typical and electrically suspect regions, and preserve the relationship between the observations.
Transfer a sequence, not a single successful setting
The process handoff should describe the accepted incoming hole condition, material preparation, filling construction, drying state and complete firing history. Include the measurement boundary and the defects that trigger investigation. A machine setting without these conditions is difficult to reproduce across different loads or substrate lots.
When the design changes hole diameter, substrate thickness or face-pad geometry, reopen the interaction review. Those changes can alter air escape, drying and thermal behavior even if the same paste is retained. The resulting decision should be tied to a defined geometry and evidence set rather than a general claim that all vias are filled reliably.
Provide the via process sequence
Send the geometry and stage-by-stage observations needed to isolate the interaction.
- Ceramic grade, thickness, hole geometry, intended metallization construction and both-face capture pads.
- Machining, cleaning, paste preparation, filling, drying and all subsequent thermal operations.
- Via or chain measurement boundaries, sample identities and resistance at each relevant stage.
- Images or sections linked to the same electrically evaluated holes and panel positions.
