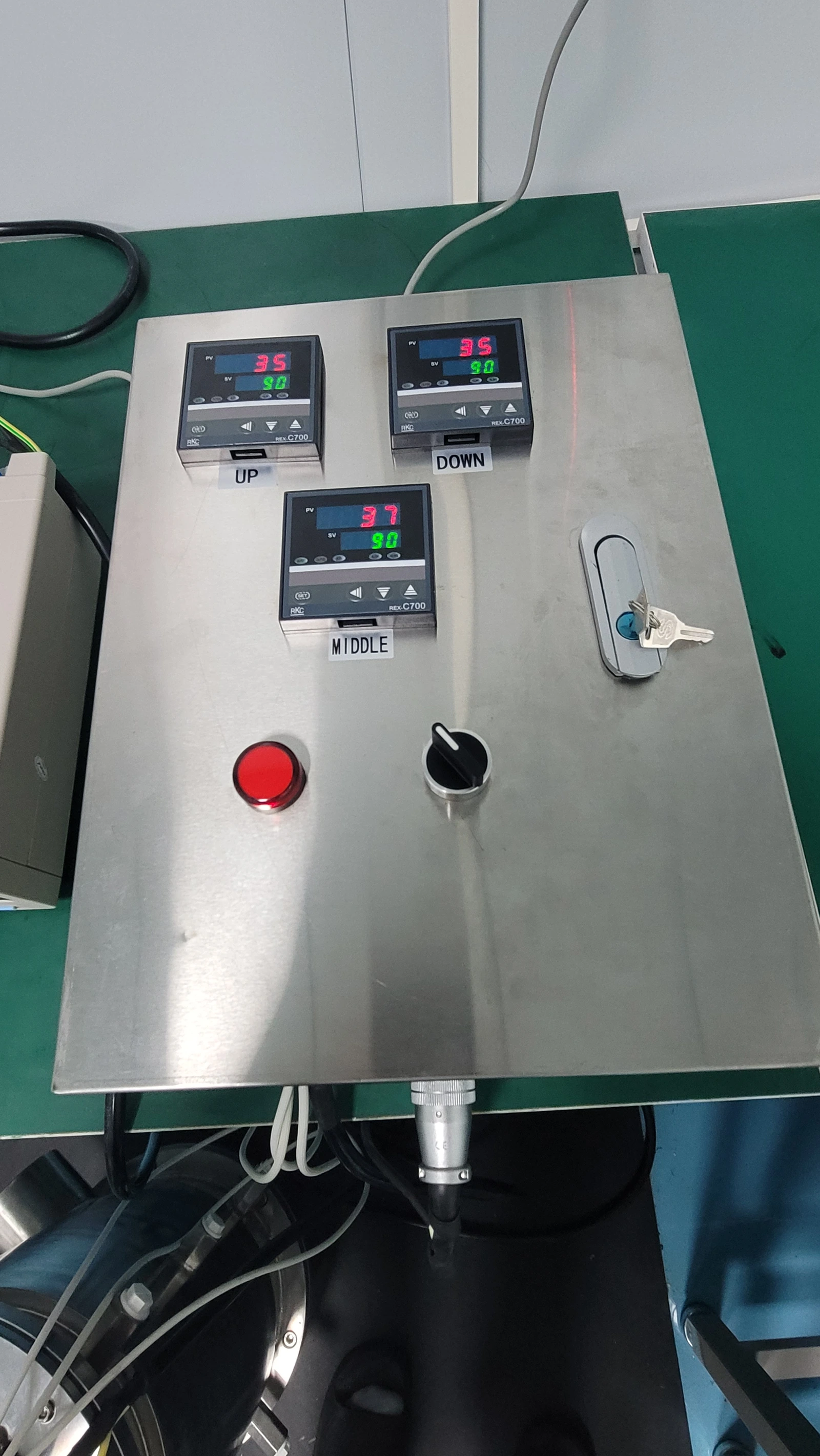

Separate electrical zones do not necessarily create thermally independent zones. Heat spreads through the substrate, load and mounting structure, so changing one heater output can alter several measured temperatures. A zone-by-zone excitation test reveals this interaction before controller tuning begins. The result helps decide whether independent loops are adequate, whether sensor locations need revision or whether coordinated control and a different thermal architecture are necessary.
Key design decisions
- Measure the response of every important temperature to each controlled zone input.
- Record actual electrical power rather than controller duty alone.
- Test the installed load because coupling changes with contact and thermal mass.
Define electrical zones and thermal outputs separately
Create two lists: independently driven electrical regions and temperatures that matter to the process. Their counts need not be equal. One zone may influence several load locations, while a single critical temperature may receive heat from multiple zones. Label every output by a physical location and function rather than merely copying the zone number onto a sensor.
Show shared substrate, heat spreader, mounting and load contacts. These form the coupling paths. Note any common return conductors or power-supply limitations as well, because electrical coupling can resemble thermal coupling in a temperature record. A useful test first establishes which inputs can genuinely be varied independently.
Establish a stable baseline condition
Use the intended mounting, load and environment, then allow the system to reach a reproducible initial state. Record all zone powers and temperatures. If a circulating fluid or moving load is involved, stabilize that boundary and log its relevant variables. Changes in flow or ambient cooling during the test can otherwise appear as coupling between zones.
Choose a low-risk operating point that allows meaningful power changes without approaching a local material or equipment limit. Define interruption conditions before the test. A cross-coupling measurement is a characterization exercise, not an excuse to disable necessary protection or drive an unmonitored zone at unrestricted power.
Excite one zone and observe the whole assembly
Apply a documented power change to one zone while keeping the other inputs fixed. Measure voltage and current so the size of the actual power step is known. Record every relevant temperature from before the change until the important responses have settled or until the defined observation interval ends.
Repeat for each zone after returning to a comparable initial state. Use step sizes that are large enough to distinguish response from measurement noise but small enough to remain within the intended local operating range. A response measured around one operating point may not remain linear over the full temperature range, especially if radiation, fluid properties or contact conditions change substantially.
Organize the coupling as a response matrix
For a small operating-range comparison, divide each output temperature change by the applied power change in a given zone. This creates a matrix whose columns describe zone excitations and whose rows describe observed temperatures. Keep dynamic information alongside the final gains: a neighboring zone can respond slowly even when its eventual temperature change is large.
Do not treat one matrix as an immutable material property. It describes a particular assembly, boundary condition and operating range. A new load or heat spreader can change the matrix. Repeat selected tests when the installation changes and compare whether dominant coupling paths remain the same.
K_ij ≈ ΔT_i / ΔP_j
- K_ij: local steady temperature sensitivity at observation i to power applied in zone j, in kelvin per watt.
- ΔT_i: output change relative to the matched initial state.
- ΔP_j: measured electrical power change in the excited zone.
Use this local linear sensitivity only over the characterized operating range. Preserve rise time and delay separately; the steady gain alone does not define a controller.
Distinguish coupling from a poorly placed sensor
A sensor near the boundary between two zones may respond strongly to both even when each load region is adequately controllable. A sensor attached to a common heat spreader may conceal a local hot trace beneath it. Review the physical meaning of each measured output before concluding that the heater needs a more complex controller.
Compare the matrix with spatial thermal measurements where possible. If a sensor is dominated by an adjacent zone, moving it may improve observability, but it must still represent the process temperature that matters. Moving a sensor simply to make a loop easier to tune can leave the actual load poorly controlled.
| Measured interaction | Question for the design review | Action before final tuning |
|---|---|---|
| Each output responds mostly to its nearby zone | Are residual interactions small across the full load range? | Confirm sensor meaning and repeat the dominant-zone tests at another operating condition. |
| Several outputs respond similarly to every zone | Does shared heat spreading make the outputs difficult to control independently? | Review the number of genuinely independent thermal objectives and consider architecture changes. |
| A neighboring output responds after a long delay | Will one loop counteract a delayed action from another? | Retain the delay in the control review instead of using only the final gain. |
| Power changes in one zone alter other zone powers | Is the supply or electrical return coupling the inputs? | Resolve or quantify electrical interaction before attributing the response entirely to heat flow. |
Tune only after the measured plant is understood
Independent controllers may compete if each corrects a temperature change caused by a neighboring zone. This can create excessive modulation or slow settling even when every loop works acceptably in isolation. Review the measured interactions, actuator limits and sensor delays before choosing tuning parameters.
If coordinated control is required, define the required model and validation responsibility with the controls engineer. The heater characterization should supply repeatable input-output records, not unexplained recommended gains. Also check saturation: a zone already at maximum output cannot provide the correction assumed by a controller. Control performance must be evaluated over the actual power and temperature envelope.
Keep abnormal-condition protection outside the tuning exercise
A well-tuned multi-zone system can still encounter a disconnected sensor, failed switching device, absent load or lost flow. Identify how those conditions are detected and how heat input is interrupted. A control loop’s normal response should not be assumed to provide independent protection against its own failure.
The characterization record should state which protective functions remained active and which measurements monitored local maximum temperatures. After control changes, repeat relevant startup, setpoint and load-disturbance tests without changing the underlying measurement definitions. Preserve the original coupling data so later tuning can be traced to the physical assembly rather than an undocumented sequence of trial-and-error adjustments.
Send the zone layout and control objectives
To review multi-zone behavior, connect each electrical input to the temperatures the equipment must actually control.
- Electrical zone drawing, independent supply or switching arrangement, resistance values and available voltage or current range for every zone.
- Load and support geometry, common heat spreader, contact materials, fluid or airflow conditions and expected operating points.
- Sensor type, attachment and coordinates, target temperatures, permitted interaction and required settling behavior.
- Synchronized power-step and temperature records, actuator limits, interruption conditions and the proposed division of control and protective functions.
