Selecting an interface using matched paste and ceramic evidence

Identify the pair behind the reported result

Start with the specimen identity behind each performance claim. The paste code, ceramic grade, functional face and thermal history should be recoverable from the test record. If a report says only silver paste on alumina, it may be useful background but cannot identify the pair being proposed. Even an exact formulation code does not settle the comparison when the tested surface differs from the delivered substrate.

Then check whether the result describes an interface property or a larger assembly. A terminal pull combines the pad, joining material, terminal geometry and ceramic support. A conductor resistance includes its printed dimensions and measurement path. These results are valuable when their configuration is known; they become misleading when detached from it. The selection reviewer should list the information absent from the record before using the reported value to accept or reject a material pair.

Measure the distance between the evidence and the proposed circuit

Compare the recorded specimen against the proposed circuit one attribute at a time. Differences in ceramic face, fired thickness, overlap, subsequent layers or assembly heat can change what the old result demonstrates. Classify each difference by the function it might affect. This is more informative than declaring the new circuit similar because its outline and metal color resemble the tested specimen.

A missing companion-layer exposure is particularly easy to overlook. The first conductor may survive its own firing and then meet a dielectric, overglaze or second metal in a later cycle. If the historical evidence stops before that event, the later interaction is untested. The decision can still admit the pair to a trial, but it should identify the missing stage and its observable result. The evidence gap is a concrete experimental question, not a reason to invent a general compatibility guarantee.

Use a crossed comparison when both materials are changing

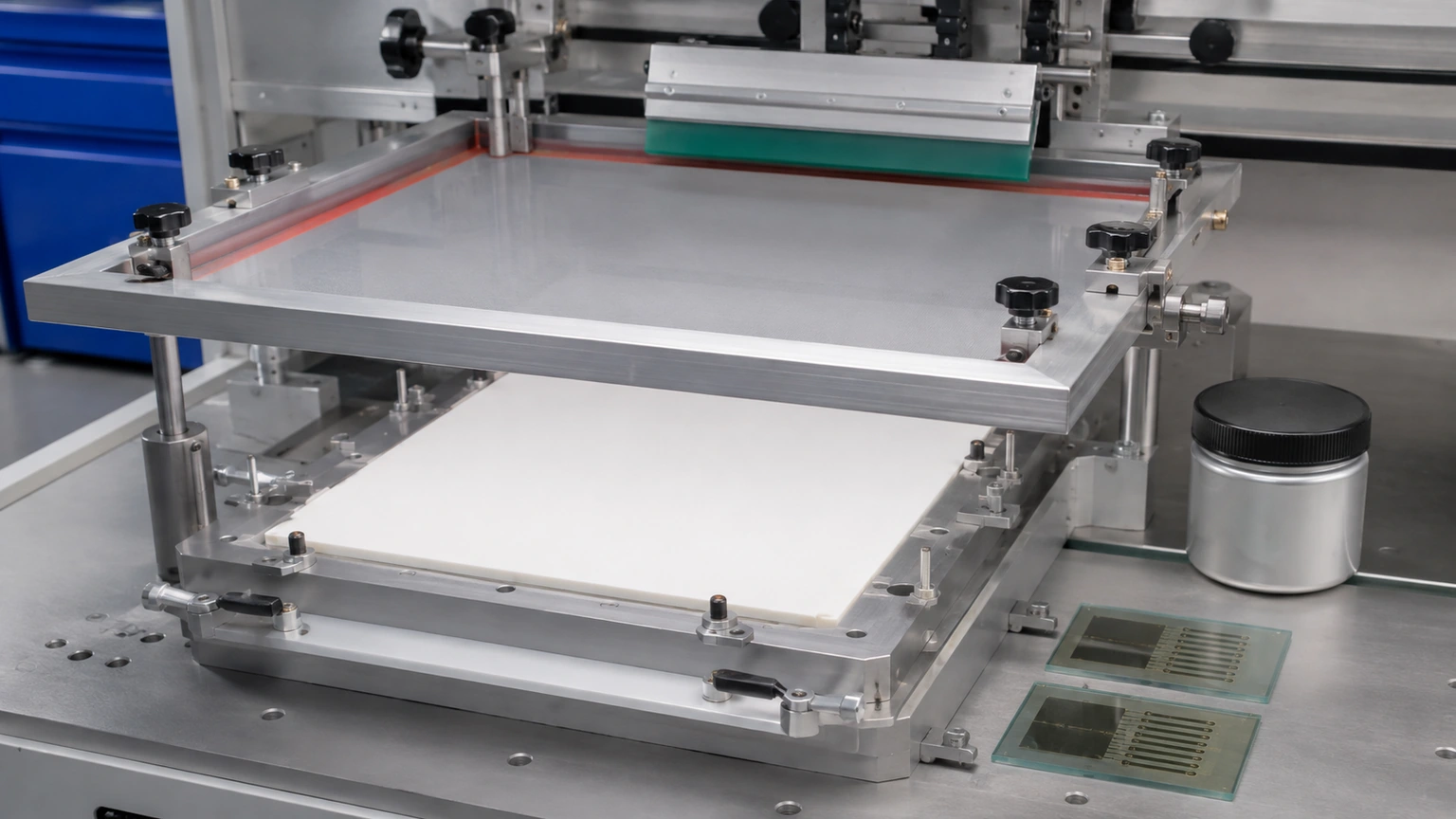

If paste and substrate change together, a two-group trial cannot separate their contributions. Consider a crossed comparison containing both pastes on both ceramic surfaces when all four combinations are technically permissible for the trial. Keep feature geometry, measurement method and processing as controlled as the material constraints allow. Record any unavoidable recipe difference because it changes the interpretation from a pure material comparison to a route comparison.

The crossed layout reveals whether the effect of changing paste depends on the ceramic. It does not require that the higher result always be better. For resistance or leakage, the desired direction depends on the circuit function; for attachment load, the failure plane still matters. Include replication and variation in the eventual trial so a difference is not confused with measurement scatter. If a material supplier excludes one combination, respect that boundary and design a narrower comparison rather than processing an unsupported mixture to complete the table.

Calculate the interaction before assigning a preferred pair

A difference of differences compares the paste effect on one substrate with the paste effect on the other. A nonzero value indicates that the measured response is not explained by simply adding a separate paste effect and a separate substrate effect in that comparison. It does not establish a chemical mechanism. It also does not select a winner unless the measurand and acceptance rule are already defined.

In an illustrative set of identical pad tests, assume mean loads of 18 and 22 newtons for pastes A and B on ceramic X, and 20 and 19 newtons on ceramic Y. Changing A to B increases the reported load by 4 newtons on X but decreases it by 1 newton on Y. The calculated interaction contrast is 5 newtons. Those assumed values show why a single paste ranking cannot be transferred between the two ceramics. Without repeatability estimates and failure-plane agreement, the arithmetic alone cannot establish significance or qualify any of the four interfaces.

This five-newton quantity is the raw difference between two paste comparisons. In conventional balanced two-level factorial coding, the corresponding interaction effect has magnitude 2.5 N, and its regression coefficient has magnitude 1.25 N; signs depend on the chosen level labels. Reporting the contrast definition prevents these different normalizations from being mistaken for conflicting measurements.

Inspect what a strong number actually proves

Keep the raw observation beside the reason it can or cannot support selection. A high load with fracture in the ceramic may establish that another boundary limited the test, while a lower load with clean pad lift raises a different concern. Combining these events in a single mean can obscure the interface question. Censored or fixture-limited results should be identified as such rather than reported as exact interface strengths.

The same discipline applies to electrical evidence. A path that remains conductive may still have an attachment problem, and an attached pad may have excessive contact resistance. Select complementary measurements that address the functions assigned to the interface. The table describes the inference allowed by each observation. It deliberately does not supply numeric pass values because specimen geometry, loading direction and circuit consequence determine the requirement.

Recognize signatures of an unfair comparison

A candidate that improves only when its pad is thicker may reflect geometry rather than better interfacial bonding. A result that follows furnace loading position rather than material identity suggests a process distribution. A paste advantage that disappears after the next printed layer reveals an interaction omitted from an initial selection. These signatures should be explored with the retained records, not averaged away as unexplained variation.

Watch for test artifacts as well. Different terminal heights change the applied moment, a shifted clamp can alter substrate bending, and a measurement contact can mask a weak conductor region. Photograph the setup with sufficient dimensional context to reproduce it. If failure is initiated by the fixture, revise the method before assigning a material ranking. The objective is not to make every candidate survive, but to ensure that rejection follows the intended interface question rather than an accidental difference in how the specimens were challenged.

Validate the chosen pair through the operations that matter

Carry the shortlisted pair through the complete sequence relevant to the drawing. Preserve measurements after the stages most likely to alter the interface, including later firing, attachment or environmental conditioning. A staged record can show whether the chosen pair develops its margin initially or loses it during a later operation. Keep specimens reserved for physical examination so an electrical failure does not destroy the chance to inspect the responsible region.

Set qualification coverage from the consequence of failure and the variation expected in paste, ceramic and processing. One carefully selected pad does not represent future lots. The validation plan should identify who accepts electrical response, who interprets fracture location and who owns any unresolved extrapolation. If a new grade or formulation is later introduced, reopen the relevant paired comparison. The previous approval remains attached to its named combination; it does not create unrestricted permission to mix materials from otherwise successful systems.

Issue a pair-specific decision with usable evidence

The final selection record should be compact enough to use during a drawing review. Name the accepted paste and ceramic surface, identify the qualified processing branch, state the decisive measurements and link the retained raw records. If a candidate remains conditional on an extra refire or exposure test, describe that unresolved condition precisely. Avoid a generic approved-material list that hides which ceramic each paste was actually tested against.

For the RFQ, send the controlled specimen definition and the required outcome rather than a photograph of a pulled pad alone. Include competing pairs only when the reason for comparing them is clear. A supplier can then evaluate the same interface question, propose a permissible trial and return evidence in a comparable form. This preserves technical ownership of the acceptance decision and avoids converting either a published material data sheet or an isolated laboratory observation into an unsupported company manufacturing promise.
