The power available to a PI printed heater is not simply the supply voltage squared divided by a room-temperature resistance. Cables consume part of the input, printed resistance changes with temperature, and mounting controls how the remaining heat reaches the load. A useful calculation connects the electrical circuit with the actual flexible stack and identifies the hottest local region, not only the average power.
Key design decisions
- Calculate voltage and power at the heater terminals rather than at the supply display.
- Keep printed-ink properties separate from etched-foil heater specifications.
- Check the film, adhesive, lead attachment and load as separate temperature-limited regions.
Define the flexible heater construction

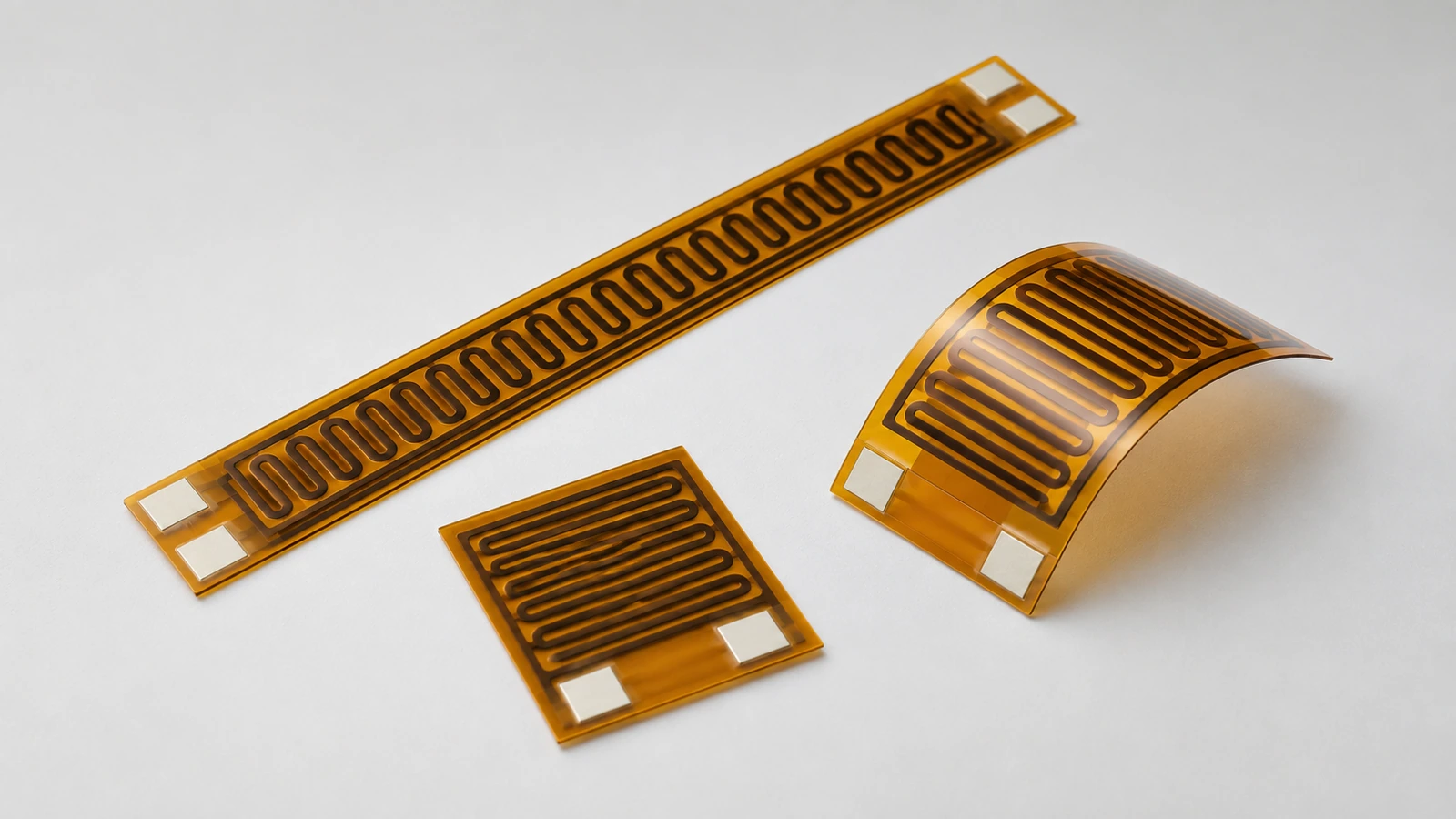

Identify the printed resistive material, conductor pattern, PI layers, cover layer, attachment system and lead connection. A polyimide carrier does not determine the temperature limit of the complete heater. The ink system, curing history, adhesive and interconnect can impose different constraints. Use the relevant material and process data for the actual construction rather than transferring a rating from an etched-metal-foil product.
Map the active pattern and unheated regions onto the installed shape. Include bending zones, edge margins and any area that hangs beyond the load. A flat laboratory sample with full contact may have a very different temperature field from a wrapped part with a seam, air gap or overlapping insulation. The calculation boundary should describe the assembled state.
Include the complete series resistance
For a simple voltage-driven circuit, the heater and supply leads share the available voltage. Use the resistance of both outgoing and return conductors, connectors and any intentional series components. Where contact resistance is unstable, measure it under a representative mechanical condition instead of treating it as a fixed catalog value.
A hypothetical circuit illustrates the accounting. A ten-ohm heater connected through a total of one ohm of series wiring to a twelve-volt source receives about 11.9 watts, while about 1.2 watts is dissipated in the wiring. The calculation is an example, not a proposed product rating. Its purpose is to show why measuring the source alone can overstate useful heater power.
I = V_supply / (R_heater + R_series); P_heater = I²R_heater; P_series = I²R_series
- V_supply is the voltage measured at the defined source terminals.
- R_heater is the element resistance at the operating condition.
- R_series includes both leads and the relevant connections.
This model assumes resistive steady conduction and excludes switching-converter dynamics; use measured terminal waveforms for pulsed drive.
Solve at the operating resistance
The heater resistance used in the circuit equation must correspond to its temperature distribution. A single room-temperature value is insufficient when the material changes appreciably across the operating range. Obtain a measured resistance-temperature relationship for the printed and processed structure, using a sensing current that does not materially heat it during characterization.
Iterate the electrical and thermal estimates: calculate power using the current resistance estimate, estimate the resulting temperatures, update resistance and repeat until the assumptions are consistent. If the heater contains long cool leads within the printed pattern and a short hot active region, separate those regions where the model needs that detail. A uniform-temperature correction can otherwise misrepresent both input current and local dissipation.
Balance useful heating and losses
Calculate energy required by the load separately from losses through exposed surfaces, supports and leads. Warm-up requires energy to increase the temperature of the heater stack and the participating load mass. Steady operation requires power to replace heat leaving the system. The same nominal input therefore produces different temperatures during startup, operation and an unloaded condition.
For a bonded PI heater, contact coverage and adhesive thickness are central inputs. A void forces heat to spread laterally or escape from the opposite surface, which can raise the local film temperature even when the load remains below target. Include insulation and airflow on the exposed face, because adding insulation changes both efficiency and the consequence of a detached region.
Check local limits rather than one stack temperature
Create a temperature budget for the resistive pattern, conductor transitions, lead attachments, PI, adhesive and adjacent equipment. State which temperature is being predicted at each location. An accessible outside-surface temperature can differ from an internal film or adhesive interface; the direction and magnitude depend on the heat flow.
The permitted limit for each region must come from its applicable material, construction and equipment requirements. Do not select the highest listed material temperature and apply it to the assembly. A satisfactory calculation also considers transient overshoot, controller error, installation variation and the loss of the intended heat sink.
| Quantity | Useful measurement location | Error if confused |
|---|---|---|
| Heater electrical input | Voltage at heater terminals and circuit current | Cable heat is counted as heater output |
| Printed active-zone temperature | Validated local surface or internal estimate | A cool edge reading hides an active hot spot |
| Adhesive interface temperature | Representative bonded interface or correlated model | Outer PI temperature is assigned to the bond line |
| Lead-joint heating | Joint and adjacent conductor region | Distributed lead loss conceals a concentrated contact loss |
| Load temperature | Functional region of the heated object | Good heater regulation is mistaken for uniform load temperature |
Handle pulsed and current-limited supplies explicitly
For pulse-width modulation, calculate average power from the voltage and current during the conducting intervals when the pulses are not distorted. The supply may enter current limit at startup, so commanded duty and actual energy can diverge. Use synchronized measurements when the controller and supply interact or when wiring inductance creates significant waveform features.
Do not assume that low average power makes every pulse harmless. Local current density, conductor transitions and connection behavior still depend on the pulse amplitude. Conversely, rapid electrical pulses may produce little thermal cycling because the stack cannot follow each pulse. Choose the electrical and thermal time resolution according to the phenomenon under evaluation.
Use a small sensitivity matrix
Evaluate plausible variation in heater resistance, lead length, ambient condition, bond coverage and load contact. Change one input at a time initially to identify the dominant contributor, then examine combinations that can realistically occur together. A long harness and a partial bond do not necessarily create the same risk: one may reduce delivered power while the other concentrates heat locally.
Present results as temperatures, terminal power and warm-up behavior for named cases. Avoid a single unexplained safety factor that hides the physical cause. The matrix should tell the design team whether to improve the connection, reduce a contact gap, change the control location or modify the active pattern.
Correlate the model with an installed test
Measure cold resistance, terminal voltage, current and the time-dependent temperature field on a representative assembly. Record the bond process, mounting geometry and sensor installation. Compare warm-up shape as well as the final temperature; agreement at one steady point can occur even when the model has an incorrect mass or heat-loss path.
Revisit the assumptions when the model misses a location or operating phase. Increase detail where it changes a design decision, such as a lead exit or unsupported edge. Keep the validated installation attached to the resulting power recommendation so a future change in adhesive or housing does not silently invalidate the calculation.
Calculate the installed PI heater power
Provide the flexible stack, wiring and mounted load so useful input and local temperature can be evaluated together.
- Printed heater drawing, resistance data and intended ink or construction route.
- Supply mode, voltage range, cable lengths and connector arrangement.
- Load material, mass, target temperature and required warm-up event.
- Adhesive, contact coverage, bend geometry and exposed insulation.
- Applicable temperature limits and available installed measurements.
