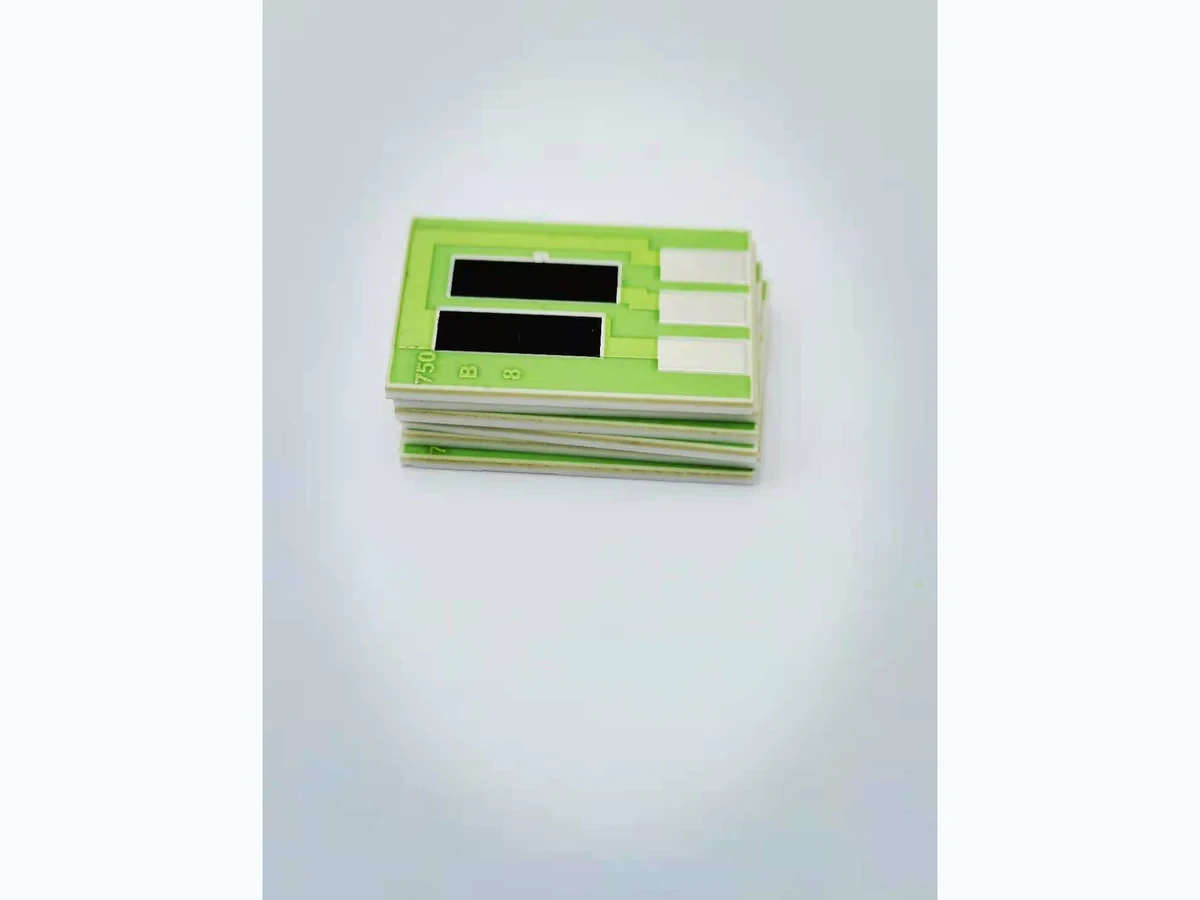

Short printed resistors often expose the limitations of treating the conductor edge as an exact electrical boundary. A transition region can add resistance, reduce the effective resistive length or combine both effects. Measuring several lengths with the same width and terminals provides a way to separate the body slope from a combined end contribution. The resulting effective length correction is useful only when its geometry, process and sensing boundary remain defined.
Key design decisions
- Use a length series with controlled width, overlap and terminal measurement points.
- Interpret the fitted intercept as a combined end contribution before assigning a physical mechanism.
- Apply a correction only within the measured geometry and process range, and inspect residuals before extrapolating.
Choose one electrical length definition
A resistor drawing may define length between conductor edges, resistor-print edges or another mask feature. These are not necessarily the same as the effective distance over which most voltage is dropped. Select one inspectable geometric definition and use it consistently across every coupon, measurement and calculation.
Record which edges are visible after processing and how their position is measured. If one layer obscures another, use the available intermediate inspection or an agreed measurement method. Changing the length origin shifts the fitted intercept even when the physical samples are unchanged. This is why a positive or negative end correction cannot be interpreted without knowing exactly where the geometric length begins and ends.
Fit body resistance and combined ends separately
For a fixed-width series, a first model is resistance equal to slope multiplied by length plus an intercept. The slope represents effective sheet resistance divided by width. The intercept collects length-independent contributions within the measurement boundary, including transitions and any remaining conductor or attachment resistance.
A length series has a useful diagnostic advantage over a single coupon: it can reveal whether the body contribution changes between process conditions. If only the intercept shifts, an end-related explanation becomes plausible. If the slope shifts too, the body or dimensions also need investigation. Neither conclusion is automatic; confirm that the fixed-width and fixed-terminal assumptions survived processing.
R(L) = mL + b; ΔLeff = b/m
- m is the fitted resistance-per-length slope for the controlled width.
- b is the fitted combined end contribution at the defined geometric zero.
- ΔLeff is the total equivalent length correction for both ends together.
A linear model adequately describes the measured length range and m is positive. The correction is empirical, not a directly measured physical transition depth.
Calculate the correction without over-interpreting it
Assume a hypothetical fit gives a slope of 200 ohms per millimeter and an intercept of 40 ohms. Dividing the intercept by the slope gives a combined effective length correction of 0.20 millimeter. A nominal one-millimeter resistor is then represented by 1.20 millimeters in this model, while a three-millimeter resistor is represented by 3.20 millimeters.
The same 40-ohm end contribution is a much larger fraction of the short resistor's total. This explains why a sheet-resistance estimate that seems adequate for long coupons may miss short designs. Do not divide the correction equally between the ends unless their geometry and measurements support symmetry. One terminal may have a different feed, overlap or interface from the other.
Understand what a negative intercept can mean
A negative intercept does not necessarily imply a physically negative contact resistance. It can arise when the chosen geometric length includes a region that conducts more readily than the assumed resistor body, or when the length origin differs from the effective voltage-drop boundary. It can also result from an unsuitable linear model or measurement bias.
Inspect the actual data before explaining the sign. If the shortest coupons strongly pull the fit below zero, examine whether the two end regions interact. If all lengths shift coherently, review the length reference and conductor overlap. A fit should describe the data within its useful range; extending it toward zero length can yield an unphysical negative prediction without invalidating a limited-range empirical comparison.
Choose lengths that expose model failure
Use more than two lengths and repeat each geometry. Include lengths close to the intended product and enough longer structures to establish the body slope. Keep width, terminal overlap, feed geometry and process sequence constant. Distribute repeats across the substrate to identify location effects.
Measure actual dimensions and plot resistance against measured length. If dimensional error is appreciable relative to the length spacing, ordinary fitting that treats length as exact may understate uncertainty. Compare the residuals with repeatability and look for curvature. A fitted line and high correlation do not establish model suitability; inspect residual structure against repeatability and the physical assumptions.
Interpret the pattern before changing the artwork
The end correction is a compact description of a study, not a substitute for diagnosis. Use the way slope, intercept and residuals change to select the next physical check.
| Fit behavior | Question raised | Useful follow-up |
|---|---|---|
| Similar slope with changed intercept | Did the terminal transition or sensing boundary change? | Compare overlap, feed geometry and sense coordinates |
| Changed slope across the full length range | Did sheet resistance or width change? | Measure body width and a separate process reference |
| Curved residuals strongest at short lengths | Are the end regions interacting? | Add intermediate lengths and inspect the transition region |
| Large scatter tied to substrate position | Is a process gradient affecting the study? | Compare matched locations and processing records |
| Negative predictions outside the measured range | Is the empirical line being extrapolated too far? | Restrict its range and choose a physically suitable model |
Keep excitation and processing state consistent
Measure at a defined sample temperature and excitation that does not obscure the initial length dependence through unequal self-heating. Longer resistors dissipate different power at the same current, while shorter resistors dissipate different power at the same voltage. Select the measurement method deliberately and record actual current or voltage.
Evaluate untrimmed structures when extracting the original end effect. Trimming changes the current path and can conceal the relationship being studied. If coating, firing, curing or assembly follows the initial measurement, repeat the length-series comparison afterward using the same boundary. A correction established before a later process step should not automatically be assigned to the finished part.
Preserve the correction's scope in the design record
Store the fit with specimen identification, measured length range, width, terminal construction, material system, processing state and uncertainty. Include the raw data and residual plot, not only the final coefficient. This allows a later design revision to be checked against the actual evidence rather than a detached design rule.
For a new resistor, first determine whether its geometry and measurement boundary fall inside the established range. If they do, use the correction as a prediction with an appropriate error allowance, then verify actual samples. If they do not, provide a revised coupon study. The purpose is to improve initial value prediction and distinguish process contributions; an effective length correction does not establish power, lifetime or temperature capability.
Send the end-effect length series
A useful review needs the length definition, raw measurements and the exact terminal boundary.
- Coupon drawings covering several lengths at controlled width and overlap.
- Actual processed lengths, widths and repeated resistance measurements.
- Sense coordinates, excitation, sample temperature and process stage.
- Fitted slope, intercept, residuals and any excluded observations with reasons.
- Proposed product geometry and the intended use of the length correction.
