How Fired Thick Film Conductors Adhere to Alumina

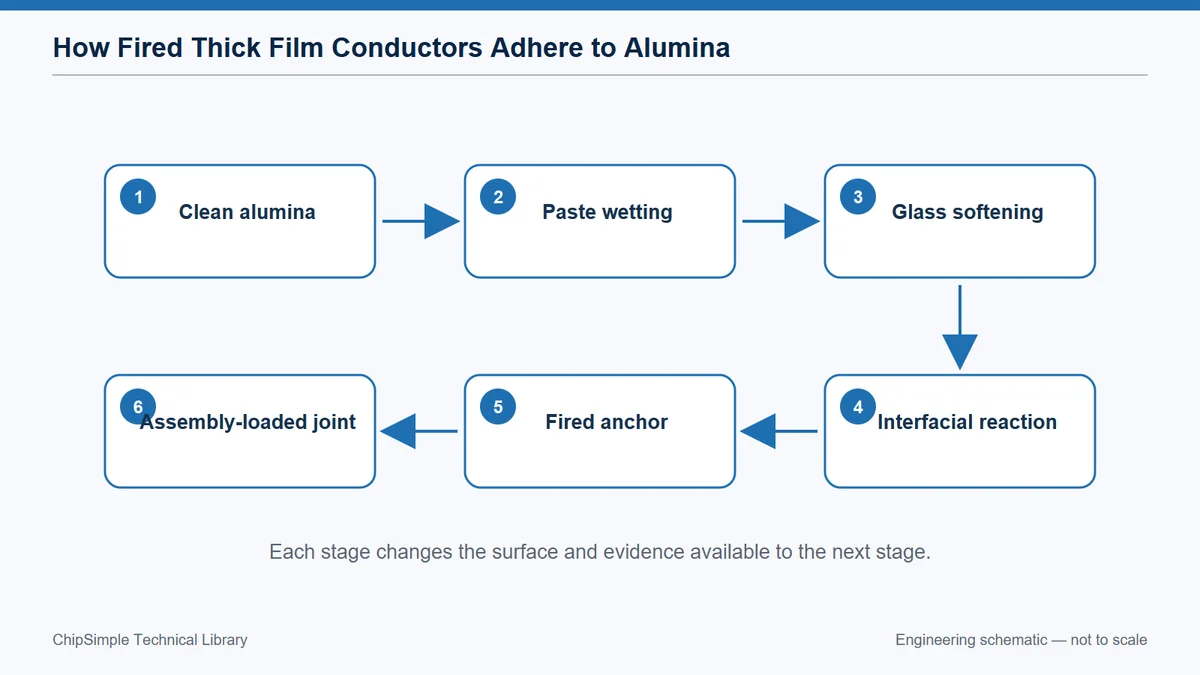

Conductor adhesion is often summarised as a pull value, but that number is the result of several mechanisms. Glass-containing systems can wet and react with alumina; reactive components may form chemical bonds; the fired film can also key into surface texture. These mechanisms depend on surface condition and firing. The later solder or terminal process then loads the interface and may change the failure mode.

Prepare a Reproducible Alumina Surface

Organic films, dust and residues interfere with wetting and local reaction. The consequence is practical: contamination can create isolated weak zones even when average adhesion remains acceptable. This is one reason thick film conductor adhesion cannot be reduced to a single catalogue value.

During design review, use a validated cleaning, rinsing, drying and protected-handling route. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.

A useful evidence package contains surface inspection, contact or cleanliness indicators and print coupons from each preparation condition. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.

Watch for pad lift concentrated around fingerprints, handling edges or poorly rinsed regions. It often indicates that two individually acceptable variables have combined at the edge of their windows.

Allow the Bonding Phase to Wet and React

The firing profile must remove organics and give the inorganic phase enough temperature-time to form the interface. Consequently, under-firing can leave weak consolidation while excessive firing can alter morphology or adjacent films. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.

A robust drawing or process plan will qualify belt speed, zone temperatures, peak and time in the active range. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.

The result can be checked through profile records linked to adhesion and conductor-resistance coupons. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.

The failure pattern to investigate is acceptable-looking pads with low strength after a small process-profile shift. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.

Control Fired Thickness and Coverage

The physical starting point is straightforward: A nonuniform deposit changes stress distribution and the area available for bonding. From there, thin edges and screen defects can become initiation points under terminal or solder load. For thick film conductor adhesion, the important issue is the amount of process margin left after normal variation is included.

On the drawing and in the review record, manage screen condition, paste rheology and deposit mass before relying on firing adjustments. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.

A production trial should capture fired thickness mapping and edge inspection on representative pads. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.

If the team sees adhesion failures aligned with print direction, mesh marks or pad corners, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.

Test the Interface After Assembly Exposure

In a stable manufacturing route, the strongest as-fired pad may not be the strongest soldered or aged pad. This means flux, solder dissolution, intermetallic change and thermal stress can shift failure into the conductor or ceramic interface. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.

The control plan should define the test specimen and preconditioning to match production assembly. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.

Evidence comes from pull or shear distributions before and after reflow, ageing or thermal cycling. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.

Investigate passing incoming adhesion but failing when a rigid terminal is attached. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.

Read the Failure Surface

A useful way to frame the decision is this: The location of fracture is more informative than the peak force alone. As a result, failure within solder, conductor, interface or ceramic points toward different corrective action. That cause-and-effect chain should remain visible when thick film conductor adhesion is reviewed with purchasing and quality teams.

The manufacturing boundary is protected when the team can photograph and classify failure modes during qualification. This approach separates the customer's functional need from the supplier's machine-specific compensation.

Confirm the decision with magnified fracture inspection and cross-section analysis where the mode is ambiguous. Include both typical and boundary-condition specimens where the failure consequence justifies them.

The symptom raising a numerical limit without understanding that the failure moved into the ceramic deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.

A Worked Engineering Review

If a terminal pad lifts after soldering, compare unsoldered adhesion with specimens exposed to the exact solder profile. Inspect whether conductor material has leached into the solder and whether the fracture occurs at the ceramic interface or within the printed layer. Review cleaning records and furnace profile for the same lot. A print-thickness map can reveal edge thinning under the terminal. This evidence separates a surface-preparation issue, a firing issue, a metallurgy issue and a mechanically over-stiff terminal—four problems that can produce the same final photograph.

Design Review Checklist

• Freeze alumina grade and surface preparation.
• Record firing profile by lot.
• Measure pad deposit and edge coverage.
• Precondition adhesion samples through assembly heat.
• Classify fracture location, not only force.

Questions Engineers Commonly Ask

Does rougher alumina always improve adhesion?

Not automatically. Texture can support mechanical interlocking but also affects printing and glass interaction. Use the surface finish qualified with the paste.

Can a visual pad prove good adhesion?

No. A smooth surface can still have a weak interface. Mechanical testing and failure-mode examination are needed.

Why does adhesion decrease after soldering?

Possible causes include conductor leaching, thermal stress, flux interaction or a change in failure location. Test with the actual solder cycle.

Related Engineering Resources

• Alumina Thick Film PCB
• Thick Film PCB capabilities
• Thick Film Circuit RFQ and Inspection Plan

Closing Note

Adhesion belongs to the complete construction. Keep substrate preparation, print deposit, firing profile and assembly preconditioning tied to the same qualification evidence.
