A phase-change thermal pad can soften and conform during heating, changing the bondline from its initial installed condition. That change affects both heat transfer and the position or force of the clamp around the ceramic. Compare the first cold assembly, the first heated state and the recooled assembly as distinct conditions. A better second thermal trace may reflect interface conditioning rather than a different ceramic material.
System boundary

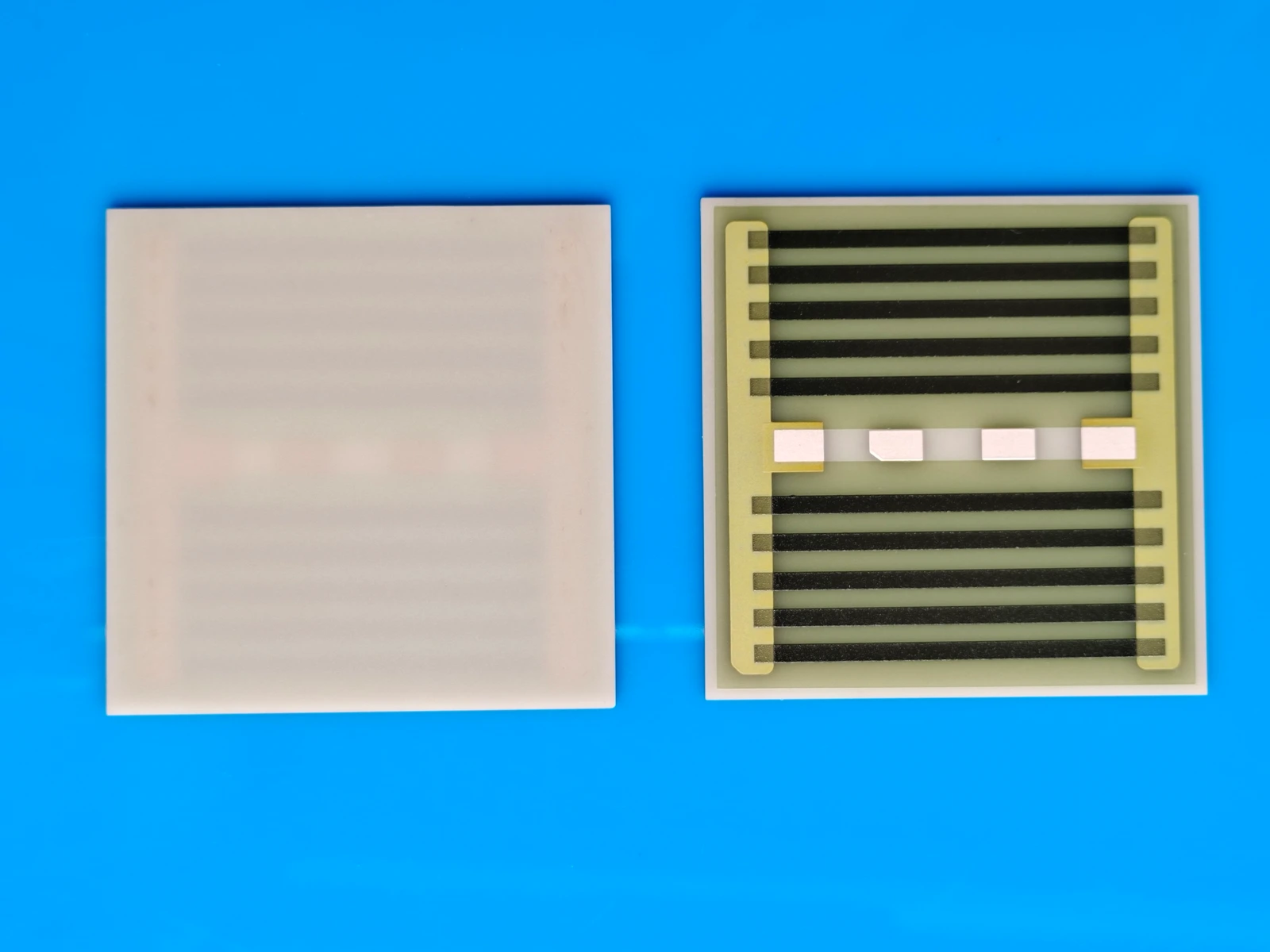

A ceramic module clamped through a selected phase-change thermal interface to a heat sink or useful load. The review addresses initial seating and its history; it does not claim that the interface is electrically insulating or specify a universal activation process.
Integration interfaces
| Interface | Required input | Thick film role | Validation owner |
|---|---|---|---|
| Phase-change material to mating faces | Exact grade, initial thickness, preparation and relevant supplier instructions. | Provide the actual ceramic mating face and reviewed thermal path. | Material and assembly owners qualify the interface. |
| Changing bondline to clamp | Force/travel characteristic, stops and stack expansion. | Remain supported through changing contact conditions. | Mechanical integrator checks load and seating. |
| First thermal cycle to performance record | Power, temperatures, timing and initial material history. | Deliver heat through the documented assembled condition. | Thermal test owner distinguishes conditioning from repeat operation. |
Integration risks
| Risk | Control or verification | Validation owner |
|---|---|---|
| Clamp travel cannot follow the reduced bondline. | Compare contact and load before heating, hot and after cooling. | Mechanical owner. |
| A second-cycle improvement is called higher ceramic conductivity. | Keep interface history fixed when comparing ceramic specimens. | Thermal measurement owner. |
| A used pad is treated as a fresh assembly after disassembly. | Apply the exact material's rework/reuse instructions and record its history. | Assembly process owner. |
System integration decisions
- Use the exact interface grade's handling and activation requirements; do not assign one temperature to all phase-change materials.
- Determine whether the clamp follows bondline reduction or leaves a changed gap or load.
- Keep first-cycle observations separate from later repeated thermal measurements.
Identify the actual phase-change material
Obtain the selected grade's current application information, supplied form and storage history. Phase-change interface products are not interchangeable with ordinary elastomer gap pads, thermal grease or structural adhesive. A material may soften over a specified range and form a thinner bondline under its intended conditions, but that behavior must come from the exact product information and assembly evaluation.
Do not import another supplier grade's temperature, conductivity, pressure or minimum thickness. Those values depend on the construction. The useful starting record identifies the material lot, initial dimensions, liner removal and mating surfaces. It also states whether the material is expected to provide electrical isolation; thermal function alone does not establish that property.
Record the first cold assembly before heating
Document the initial interface placement, available contact area, ceramic seating and clamp state. Remove liners according to the actual product instructions and verify that none remains trapped in the thermal path. A liner or an air pocket can dominate the result while resembling an unusually poor interface material.
Mark the measurements that can be repeated without disturbing the assembly: clamp displacement, accessible stack height and selected temperatures. Avoid disassembling the first specimen to inspect it and then presenting the reassembled result as an untouched initial condition. Where internal observation is necessary, use a planned development specimen and retain the difference from the final construction.
Determine how the clamp follows bondline change
A spring-loaded clamp can move as the interface becomes thinner, while a rigid stop may fix the final separation. Neither arrangement is automatically correct. The force and contact state depend on the entire stack, including expansion of the ceramic, heat sink, hardware and spring. Show where any lost thickness is accommodated.
For an illustrative spring model, assume the interface reduction lets a compression spring extend by 0.08 mm. If its effective stiffness is 40 N/mm, the spring force decreases by 3.2 N when other dimensions are held fixed. The sign would differ in another linkage. These assumed numbers show why a bondline change cannot be treated as thermally useful but mechanically invisible.
ΔF = k Δx
- ΔF: change in spring force, in N.
- k: effective spring stiffness along the relevant motion, in N/mm.
- Δx: signed change in spring compression, in mm; extension of a compression spring gives negative Δx.
Linear spring over the evaluated travel with unchanged linkage and other dimensions. This does not predict interface flow, complete hot-stack load or acceptable ceramic force.
Compare cold, first-hot and recooled states
Use the same specimen and mounting arrangement where the measurement permits. Record the first heating trajectory through the supplier-defined operating region, the later hot condition and the result after returning to the defined cold state. Preserve applied power and sink conditions so a changed temperature drop has a clear comparison basis.
A recooled assembly may retain a different contact distribution from its original state. Therefore cold does not necessarily mean unconditioned. Keep a fresh-assembly comparison separate from a repeatedly cycled one. The objective is to identify history dependence before routine testing assumes every specimen begins with the same interface.
| State | Record | Question |
|---|---|---|
| Fresh cold assembly | Material placement, stack height and initial force | How is the supplied interface seated? |
| First heat-up | Temperature, displacement and force histories | When does the contact arrangement change? |
| First hot condition | Power and relevant temperature drops | What installed thermal path is achieved? |
| Recooled without disassembly | Residual height and load state | Which changes persist after cooling? |
| Later matched cycle | Same measurements and boundaries | Is the response repeatable in the conditioned state? |
| Disassembled and rebuilt | Material replacement or authorized reuse record | Is this a new configuration rather than a continuation? |
Distinguish conformity from excessive displacement
Material extending beyond its initial footprint can accompany a changed bondline, but appearance alone cannot establish acceptable coverage. Check whether the intended thermal region remains covered and whether material approaches terminals, slots or other prohibited regions. The permitted spread belongs to the actual material and assembly design.
A lower thermal resistance accompanied by ceramic damage, a lost support or an unintended electrical bridge is not a successful interface improvement. Inspect the relevant mechanical and electrical boundaries using the agreed procedure. Avoid increasing clamp force or temperature informally to make the pad flow farther; those changes can exceed the component or material conditions being evaluated.
Do not attribute conditioning to the ceramic substrate
When the second run is cooler than the first, compare interface state before assigning the difference to ceramic conductivity. A change in contact area or bondline can alter the measured thermal path while the ceramic itself is unchanged. The temperature points also need to represent the same physical boundaries in both runs.
If comparing two ceramic thicknesses or materials, use comparable interface history or explicitly model the difference. Mixing an unconditioned first specimen with a preconditioned second one can bias the comparison. The existing AlN thickness-series method depends on comparable contact conditions; this first-cycle review establishes whether that prerequisite holds for the chosen phase-change assembly.
Treat disassembly as a new material-history event
Removing the module can disturb the established bondline, transfer material to one surface or introduce contamination. Follow the selected grade's instructions for removal, surface preparation and replacement or permitted reuse. A visually continuous remaining patch is not sufficient evidence that it can reproduce the prior thermal and mechanical condition.
Record service reconstruction separately from initial assembly. If the user must reinstall the module, provide the approved material, orientation and clamping procedure rather than relying on an undocumented remnant. Any reuse claim requires the actual material and assembly evidence; this page does not assign a universal number of permitted reassemblies.
Provide the first-cycle history with the thermal result
Deliver material identity, initial assembly state, clamp characteristics and the cold/hot/recooled records. State which dimensions and loads were measured and which were assumed. Include the required activation and maximum exposure conditions from the actual selected material and components without converting them into a generic ceramic operating rating.
Reevaluate when interface grade, supplied thickness, contact area, clamp, stops or thermal sequence changes. The deliverable is a repeatable contact-state history and its effect on the installed heat path. It lets engineering distinguish a genuine thermal improvement from a first-cycle seating effect and prevents a single bulk conductivity number from concealing changing assembly conditions.
Send the phase-change interface and clamp history
Provide the selected material and first-cycle measurements so thermal conformity and mechanical seating can be reviewed together.
- Exact material grade, supplied form, application instructions and initial thickness.
- Ceramic and heat-sink mating geometry, clamp force/travel, stops and stack dimensions.
- First-cold, first-hot, recooled and repeated-cycle temperature/displacement records.
- Coverage observations, electrical boundaries and approved disassembly or replacement method.
