Heater Gain Scheduling: Match Controller Settings to the Identified Load State

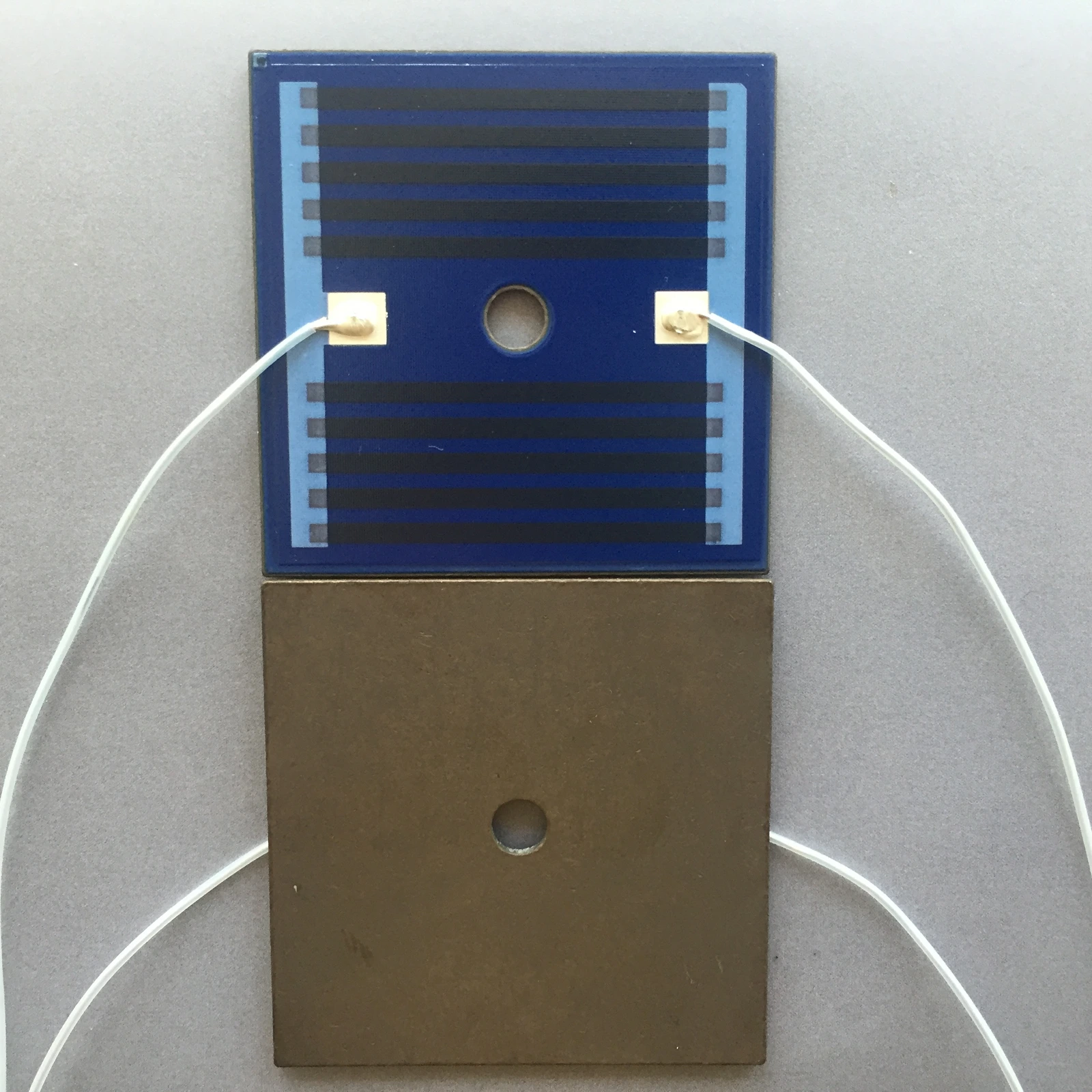

System boundary

A temperature-controlled heater assembly whose local dynamics vary across a documented load range. The schedule is based on identified conditions and does not authorize operation outside qualified flow, contact, power or temperature limits.

Integration interfaces

Integration risks

Choose a variable that identifies the plant, not just the requested result

Flow rate can change both the heat removed from a fluid heater and the relation between heater input and measured outlet temperature. Contact configuration or load mass can similarly alter a heated fixture. A schedule should be tied to the physical condition that changes the dynamics. A target temperature is useful only if it reliably identifies that condition within the intended operating sequence.

Document how the scheduling signal is measured, filtered and checked for validity. A delayed or stale flow value can select settings for a condition that no longer exists. If the required load condition is unknown, define a reviewed fallback or inhibit policy rather than extrapolating a gain table into an uncharacterized state. Protective limits remain independent of a performance schedule.

Retain a separate local response record for each design point

At each selected operating point, record the installed assembly, sensor, actuator scaling, steady input and a suitably bounded response test. Estimate the local process gain, relevant time constants and delay with their uncertainty. Use comparable input and output units throughout the table. A change from percent command to watts otherwise looks like a process-gain change even when the physical plant is unchanged.

Do not schedule gains to conceal a damaged interface, disconnected sensor or loss of required flow. The operating family must describe permitted conditions, not every fault the system might encounter. Keep diagnostic checks that distinguish an expected load transition from an abnormal response. A successful controller adjustment does not establish that the underlying assembly remains acceptable.

Use a simple model to expose why gains may need to change

For an illustrative first-order plant, let temperature deviation divided by command deviation be K over one plus tau s. A PI choice Kp equal to tau divided by K lambda and Ki equal to one divided by K lambda gives an ideal closed-loop time constant lambda after exact pole-zero cancellation. This is a transparent calculation for comparison, not a universal tuning recommendation.

Real thermal plants can contain transport delay, multiple nodes and uncertain parameters, so exact cancellation should not be assumed physically reliable. Use a controller design method appropriate to the identified model and uncertainty. The simple expression is valuable here because it shows explicitly that changing plant gain or time constant changes the controller settings required to obtain the same ideal response.

Two endpoint tunings do not imply a universal set of gains

Consider hypothetical flow conditions A and B, with command expressed in percentage points. At A, assume K equals two kelvin per point and tau equals 20 seconds. At B, assume K equals 0.5 kelvin per point and tau equals eight seconds. With lambda chosen as ten seconds for the algebraic comparison, A gives Kp of one and Ki of 0.05; B gives Kp of 1.6 and Ki of 0.2.

The integral gain changes by a factor of four because the assumed steady process gain changes by a factor of four. These are invented analytical plant inputs, not measured company data or settings for a particular heater. A real schedule must replace them with identified models and suitable uncertainty margins before it can be used for commissioning.

Interpolating gains is not the same operation as retuning an intermediate plant

The arithmetic midpoint of the endpoint gains is Kp equal to 1.3 and Ki equal to 0.125. Suppose an intermediate plant is separately represented by K equal to 1.25 and tau equal to 14 seconds. Applying the same simple tuning expression to that model instead gives Kp equal to 1.12 and Ki equal to 0.08. The two operations produce different settings.

With the interpolated gains, that intermediate closed-loop characteristic polynomial is 14s squared plus 2.625s plus 0.15625. It is not the exact ten-second cancellation construction used at the endpoints. This counterexample does not prohibit interpolation; it shows why the interpolated schedule needs its own performance and stability verification at intermediate conditions, rather than inheriting approval from two endpoint tests.

A gain change can produce a command jump even at unchanged temperature

If the proportional gain changes while the current temperature error is two kelvin, moving Kp from one to 1.6 changes the proportional contribution by 1.2 percentage points. A controller that simply swaps the gain and retains every stored state will apply that change immediately. Decide whether that action is intended or whether the state transition should preserve the current command.

Inspect the integral representation as well. If the stored state is accumulated error, changing Ki immediately rescales its contribution. If the stored state is already integral output, changing Ki changes its future slope instead. Define the representation and transition rule explicitly. The linked handover article provides the output-matching concept; here it must be applied to the actual scheduled update, including any interpolation and gain-rate policy.

Validate moving schedules, not only frozen gain tables

Test gradual load changes, reversals and credible faster transitions within the permitted range. Record the scheduling variable, selected gains, controller state, applied command and measured temperatures on a common time base. A noisy schedule signal can repeatedly move gains around a breakpoint even while the average load is stable. Filtering, hysteresis or rate treatment changes the transition and must be evaluated with the plant.

Check the consequences of a signal outside the table, an invalid measurement and a restart with an unknown load state. Do not extrapolate automatically unless that region is explicitly supported. A fallback gain set is not inherently safe merely because it is smaller; it still needs adequate control behavior and compatibility with the protective architecture at the conditions where it will be used.

Freeze models, breakpoints and transition behavior together

Provide the operating-point matrix, local response records, controller form, gain units, breakpoints and interpolation rule. Add tests at intermediate conditions and while moving between them. Keep the source of each gain set and the version of the firmware or controller configuration so that a later change to sensor filtering, actuator scaling or load hardware can be traced to the affected schedule.

The completed result is a gain schedule supported over a defined physical operating range. It is not simply a larger tuning table, and it does not enlarge the heater's material or electrical capability. Its value is that the controller changes in a deliberate, measured relationship to the actual load, with the transitions checked as carefully as the steady operating points.
