A high-voltage divider can retain stable resistor values while its installed ratio changes in humid air. Moisture films, ionic residue, condensation, connector contamination and an ineffective guard create parallel paths whose influence grows at high impedance. The observed error belongs to the complete measurement geometry: source, divider, substrate surface, coating or enclosure, guard, cable and receiver. Engineering review must define electric potentials and contamination paths before selecting a test. High voltage is hazardous; only the customer’s qualified safety authority may establish clearances, procedures, interlocks and acceptance.
System boundary
The boundary includes the high-voltage source, drawing-defined resistor network, ceramic or other specified substrate surface, terminals, guard structures, enclosure, cable, receiver and protective circuitry. ChipSimple may review a card drawing and passive network target by application review. Rated voltage, insulation coordination, personnel safety and final metrology remain customer responsibilities.
System integration decisions
- Map every exposed surface by potential rather than appearance.
- Quantify allowable parallel leakage from the system error budget.
- Control humidity, condensation and contamination as different states.
- Verify guarding and receiver loading with the installed cable and enclosure.
Draw a potential map before discussing humidity
Mark the electrical potential of every resistor node, conductor, guard, terminal, mounting feature and nearby enclosure surface. Then identify the shortest and most contaminated surface routes between unequal potentials. Distance alone does not determine leakage: surface finish, residue, field concentration, moisture state and guard potential matter. Include connector interiors and cable ends because a clean card inside a contaminated fixture can produce the same ratio error. The map must represent both polarities and transient states where the application uses them.
Convert leakage into ratio error
Treat a suspected surface path as a parallel resistance at the node it actually bridges, not as a generic resistance added to the divider.
R_eff=(R_L R_leak)/(R_L+R_leak); k_meas=R_eff/(R_H+R_eff)
- R_H is the upper divider resistance represented by the chosen model.
- R_L is the intended lower resistance.
- R_leak is the humidity-dependent parallel path at that node.
- k_meas is the loaded divider ratio before receiver effects.
Steady DC screening of one dominant leakage path. Distributed fields, AC capacitance, guard drive and nonlinear conduction require a fuller model.
Work a leakage-sensitivity example
For illustration, use 99 MΩ above 1 MΩ, giving an ideal ratio of 0.010000. A 200 MΩ leakage path parallel to the 1 MΩ leg makes that leg about 0.995025 MΩ and the ratio about 0.0099507, nearly minus 0.493 percent. The example is not a product rating or acceptance. It demonstrates that leakage far larger than the lower resistor can still matter in a precision ratio. The actual topology may contain many sections, so apply the path at its physical node.
Separate humid air, wetting and condensation
Relative humidity describes air, while surface condition also depends on temperature, thermal history, adsorption and residue. Condensation occurs when a surface falls below local dew point and may create abrupt bridges. Define stabilized humidity plateaus, temperature ramps, power dissipation and non-operating storage separately. Record surface temperature rather than chamber air alone. A test that never crosses the relevant dew-point margin cannot support a condensation conclusion, and a deliberate condensation test needs a safe method appropriate to the energized system.
Verify guarding as an active circuit function
A guard reduces current through a sensitive surface only when its potential closely follows the protected node and its driver remains stable. Document geometry, guard-node voltage, driver output capability, settling and fault behavior. Measure error with the guard enabled and in a controlled disabled comparison if the safety design permits. A decorative ring connected at the wrong potential can worsen field distribution. Cable shields, fixture plates and mounting screws may also become unintended guards or leakage collectors; include them in the circuit diagram.
Control cleanliness and handling evidence
Fingerprint salts, flux, cleaning-agent residue, dust and packaging contamination can absorb water. Define where cleaning is allowed, how surfaces are handled and how cleanliness is assessed. Preserve as-found photographs and avoid wiping a failed specimen before leakage localization. Use witness coupons only when they share the relevant process and exposure; a clean coupon does not prove the assembled connector is clean. If coating is present, inspect coverage, edges, bubbles and interfaces, but do not assume coating creates a certified insulation system.
Build a diagnostic matrix that changes one boundary at a time
The matrix should separate divider behavior from fixture and receiver effects.
| Comparison | Held constant | Interpretive value |
|---|---|---|
| Dry to humid plateau | Voltage, receiver and temperature | Reveals reversible humidity sensitivity |
| Warm to dew-point crossing | Humidity and electrical state | Exposes condensation transition |
| Guard on to controlled off | Geometry and surface condition | Tests guard effectiveness |
| Installed receiver to guarded meter | Divider and environment | Separates acquisition loading |
| As-found to approved cleaning | Same specimen and geometry | Tests residue contribution without proving root cause |
Localize current without overstating cause
Measure node voltages with equipment whose loading is included in the analysis. Compare polarity where permitted, because ionic or asymmetric paths may respond differently. Section substitution or shielding can narrow the suspect region. Thermal imaging is rarely a complete leakage detector at very low current. A ratio recovery after drying establishes environmental dependence, not the precise material or residue responsible. Preserve time histories, chamber conditions, applied waveform and discharge sequence so another reviewer can reconstruct the evidence.

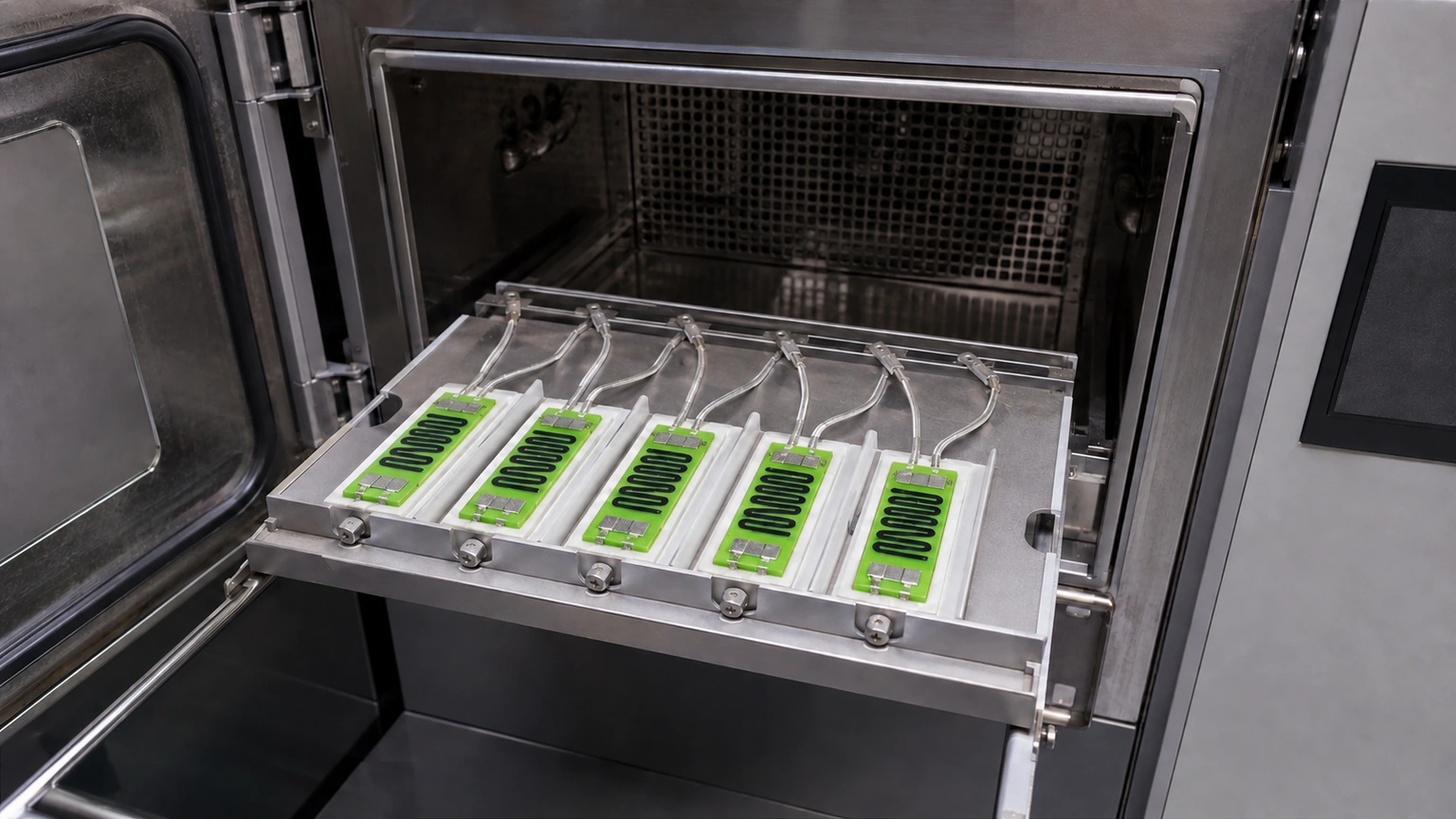

Validate the assembled divider through controlled transitions
Start with a safe dry baseline and independently verified source and receiver. Apply defined humidity and temperature sequences, allowing stated stabilization, then include the relevant transition rate and powered state. Record every divider node available safely, guard voltage, output, source, temperature and dew-point margin. Repeat after a controlled recovery. Acceptance, uncertainty and safety margins are owned by the customer metrology and safety authorities. ChipSimple card review remains bounded to the drawing and available component evidence.
Reopen review after any insulation-path change
Reassess after resistor geometry, substrate, glaze, coating, cleaning, terminal, connector, cable, guard, enclosure, mounting, venting, receiver or firmware filtering changes. A mechanical bracket can alter surface distance or electric field even if the schematic is unchanged. A new cleaning chemistry can alter humidity behavior with identical dimensions. Configuration records should bind artwork, process specification, assembly materials, fixture and test method. Do not transfer a voltage or accuracy conclusion to an unreviewed arrangement.
Keep high-voltage safety outside the passive-card claim
This guide supplies a diagnostic method, not an insulation-coordination design or authorization to energize an assembly. Working voltage, transients, pollution degree, altitude, creepage, clearance, protective impedance, discharge time and access controls must be established by qualified system personnel under applicable requirements. Illustrative resistance values do not set safe current. Any public capability statement remains by drawing and application review. If the safety boundary is incomplete, hold the experiment and the release decision.
Provide the complete high-voltage leakage boundary
Review requires the circuit, physical potential map and controlled environmental states.
- Divider schematic, node resistances, waveform, polarity and source impedance.
- Board drawing, surface routes, guards, coating, terminals, mounting and enclosure.
- Humidity, temperature, dew-point, contamination and cleaning conditions.
- Cable, receiver impedance, bias currents, grounding and required uncertainty.
- Customer-approved safety procedure, acceptance limits and validation ownership.
