An optoelectronic assembly can report a steady temperature while coupling efficiency, focal position or beam overlap changes. The sensor controls one location; optical alignment depends on expansion across mounts, spacers, adhesives, ceramic, metal frames and fiber or detector supports. Temperature gradients and constraint can produce translation and tilt even at a constant sensor reading. The design task is to define an optical reference, map its structural path to the thermal actuator and sensor, predict differential movement, and verify optical output during both stabilization and transients. ChipSimple review remains limited to drawing-defined circuit or heater features.
System boundary
The boundary includes optical source and receiver, lens or fiber supports, ceramic thermal element, sensor location, interface layers, structural frame, fasteners or adhesive, insulation, ambient flow and temperature controller. Optical qualification, laser safety, structural design and control acceptance remain integrator-owned.
System integration decisions
- Define the optical performance coordinate independently from the temperature sensor.
- Map coefficients, lengths and constraints along each alignment path.
- Place sensing and control bandwidth to observe relevant thermal modes.
- Validate optical response during gradients, not only after equilibrium.
Define the optical error coordinate first
Choose the observable that matters: coupled optical power, beam centroid, focal shift, detector overlap or wavelength-dependent alignment. State the reference plane, axes, sign and measurement method. A temperature setpoint is not this coordinate. Record source stability and detector response so their drift is not confused with mechanical motion. If several optical axes interact, define them separately. The thermal design can then allocate allowable translation, rotation and focus movement to the structures that actually control the observable.

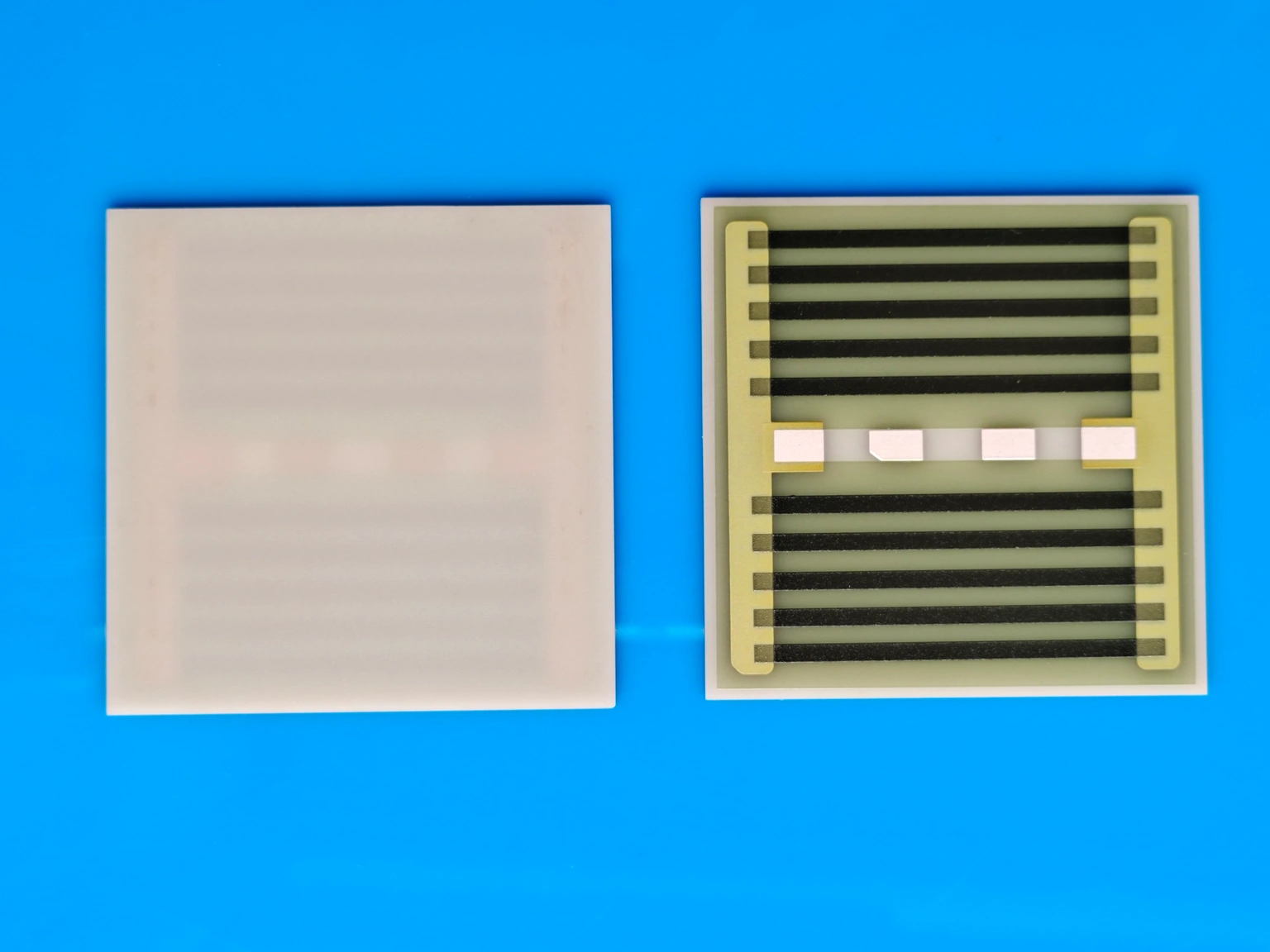

Trace expansion from the base to each optic
Draw both the source-side and receiver-side structural chains from a common base. List material, effective free length, constraint, joint and temperature for each segment. Parallel parts may not share one temperature. A rigid joint can transform axial growth into bending, while a compliant joint may introduce creep. Include ceramic substrate, heat spreader, frame, spacer, adhesive, fastener and fiber pigtail where they influence alignment. Avoid using catalogue expansion values as company capability claims; actual properties and joints remain controlled design inputs.
Calculate differential free expansion as a screening bound
For an unconstrained one-dimensional comparison, differential displacement follows the difference in integrated thermal expansion.
Delta x_rel = alpha_1 L_1 Delta T_1 - alpha_2 L_2 Delta T_2
- alpha_i is the selected expansion coefficient for path segment i.
- L_i is its effective reference length.
- Delta T_i is its temperature change from the alignment state.
- Delta x_rel is relative endpoint movement along the evaluated axis.
Small free expansion with constant representative coefficients. Constraint, gradients, bending, joint compliance and multidimensional motion require structural analysis or measurement.
Work an illustrative differential movement
Suppose one support path has an effective coefficient of 17 micrometres per metre-kelvin over 40 mm and rises 30 K. Its free growth is 20.4 micrometres. A second path at 7 micrometres per metre-kelvin over 30 mm rising 25 K grows 5.25 micrometres. Relative movement is about 15.15 micrometres before constraint or tilt. These values are explanatory only. Whether that movement matters depends on the optical tolerance and actual structure, which the integrator must provide and validate.
Quantify the sensor-to-optic temperature gap
Place temperature measurements at locations that can distinguish heater, sensor, optical mount and baseplate modes. A sensor attached close to a heater can settle early while a distant mount continues expanding. Conversely, a base sensor may miss a local hotspot. Record attachment thickness, thermal contact and self-heating. During development, use extra instrumentation when possible and compare its time constants. Final production sensing may be reduced only after evidence shows which state variables are necessary for the required optical stability.
Treat gradients as causes of tilt and curvature
Two points at the same average temperature can have different gradients and therefore different alignment. Through-thickness gradient can bow a plate; lateral gradient can rotate a lens seat. Map power density, heat spreading, interface contact and airflow. Evaluate mounting symmetry and constraint. A controller that holds one point cannot independently regulate every gradient. If optical error tracks heater power rather than sensor temperature, investigate transient gradient and interface resistance before changing the printed resistance target.
Synchronize thermal, mechanical and optical evidence
A useful experiment preserves cause and response on one timebase.
| Channel | Purpose | Owner |
|---|---|---|
| Heater voltage and current | Establish actual electrical input | Power-electronics owner |
| Temperatures at sensor, optic and base | Resolve gradients and time constants | Thermal validation owner |
| Optical power or centroid | Measure application consequence | Optical owner |
| Displacement or angle | Separate structural motion from source drift | Opto-mechanical owner |
| Ambient flow and base state | Reproduce external boundary | System integrator |
Exercise warm-up, disturbance and cool-down
Begin from controlled initial conditions. Apply the intended power sequence, log the optical observable at sufficient rate, and continue after the primary sensor reaches setpoint. Introduce only bounded disturbances that represent the application, such as baseplate step or airflow change. Record cool-down and repeated cycles because joint hysteresis may reverse imperfectly. A stable final reading cannot justify a claim about warm-up alignment. Keep controller limits active and follow optical and electrical safety procedures established by their owners.
Use correlations without declaring unsupported root cause
Optical movement proportional to average temperature may indicate free expansion. Movement correlated with heater power during constant sensor reading suggests a gradient. Stepwise permanent offset after a cycle can indicate joint slip, seating or source movement. Opposite errors on heating and cooling reveal hysteresis. Confirm these interpretations with displacement or structural measurements before changing the circuit. The same optical signature can result from refractive-index change, source drift or detector sensitivity, so include controlled optical references where appropriate.
Validate tolerance assemblies at required operating states
Measure cold alignment, warm-up trajectory, controlled equilibrium, disturbance response and return. Include representative mounting torque, adhesive condition, interface thickness, harness routing and ambient boundary. Run multiple assemblies selected to explore dimensional and material variation rather than relying on one tuned unit. Acceptance for coupling, focus, beam position, response time and safety belongs to the complete-system owner. ChipSimple can support drawing-based thermal element review but cannot certify an optoelectronic platform from a card temperature result.
Reopen the alignment budget after thermal-path changes
Review changes to heater pattern, sensor, substrate, heat spreader, adhesive, interface material, mount, spacer, fastener, enclosure, insulation, airflow, cable, controller or optical component. A replacement material with similar conductivity may have different expansion. A software tuning change can alter gradients even at the same setpoint. Configuration control binds mechanical drawings, material specifications, circuit revision, sensor calibration and controller version to the optical evidence.
State what the temperature reading cannot prove
Temperature stability at one sensor does not prove uniform temperature, optical alignment, wavelength stability, lifetime or laser safety. This guide provides an allocation and test method, not an optical performance claim. Numerical examples are not product specifications. Circuit parameters remain by drawing and application review; optic, structure, environment and control criteria are supplied and approved by the customer. If the actual optical tolerance or structural stack is unavailable, the integration decision remains open.
Provide the thermal and optical coordinate chains
Review requires the optical observable, structural stack and controlled thermal boundary.
- Optical layout, performance coordinate, tolerance and measurement method.
- Mount materials, lengths, datums, joints, constraints, fasteners and harness route.
- Heater and sensor drawings, interface layers, power drive and controller behavior.
- Baseplate, enclosure, airflow, orientation and operating temperature states.
- Warm-up, disturbance, cycle and optical acceptance plan with assigned owners.
