A ceramic substrate may tolerate a thermal process that a later polymer overcoat cannot withstand in service. The ceramic's firing history and the enclosure's average air temperature are therefore poor substitutes for the temperature of the actual coating beside a hot resistor or heater. Assess the protected region as its own thermal interface, including local thickness, exposure duration and the function that the polymer must preserve.
System boundary
Local service temperature of a named cured polymer on a ceramic circuit beside a defined heat source; excludes generic coating selection and cure-induced resistor shift.
Integration interfaces
| Interface | Required input | Thick film role | Validation owner |
|---|---|---|---|
| Ceramic-to-polymer heat path | Local flux, geometry, thickness and relevant temperatures. | Identify the protected printed region and its heat contribution. | Thermal and circuit designers. |
| Polymer protection duty | Formulation-specific temperature-time evidence and electrical/environmental requirements. | Maintain required protection without assigning ceramic ratings to the polymer. | Materials and application owners. |
| Equipment sequence to local temperature history | Startup, shutdown, restart, airflow and mounting states. | Locate the printed heat source relative to the protected region. | System thermal validation owner. |
Integration risks
| Risk | Control or verification | Validation owner |
|---|---|---|
| A cool exposed surface hides a hotter inner interface. | Evaluate through-layer gradients and observation uncertainty. | Thermal metrology owner. |
| A thermal correction removes necessary protection. | Review coverage changes against the original electrical and environmental duties. | Circuit requirement owner. |
| A steady-state reading misses a delayed coating-temperature peak after shutdown. | Record the relevant transition sequence with safe defined operating limits. | Thermal and safety validation owners. |
System integration decisions
- Separate coating cure instructions, short exposure allowances and sustained operating conditions.
- Locate the hottest relevant part of the polymer, not only the easiest exposed point to measure.
- Compare the complete local temperature history with formulation-specific evidence and circuit requirements.

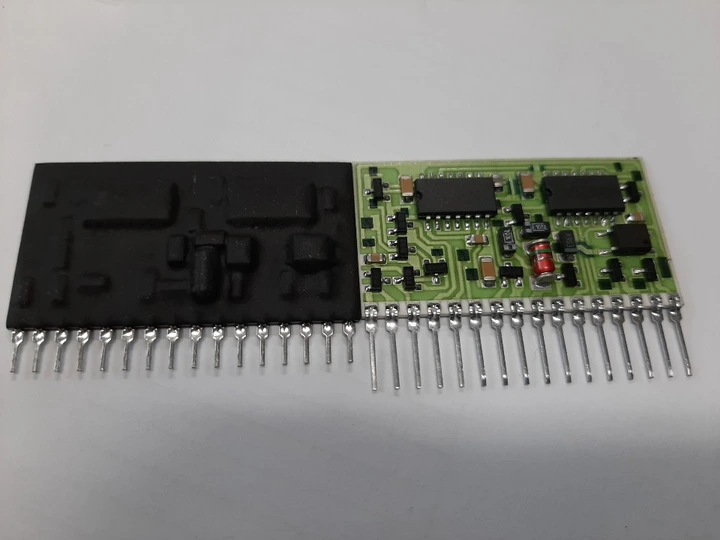

Identify the polymer separately from the fired circuit
Record the named coating formulation, cure state and finished coverage. A clear or colored polymer layer is not the same material as a fired glass overglaze beneath it. Identify ceramic, resistor, conductor, glass, adhesive and polymer layers independently. The weakest relevant service boundary may belong to a material added late in assembly rather than the ceramic that carries the circuit.
Keep processing and service temperatures in different fields. A short manufacturing cure describes how a particular coating reaches its intended state; it does not set a universal service limit. Conversely, a published service range does not authorize an arbitrary accelerated cure. Manufacturer data can state these quantities separately, and neither should be borrowed from another formulation with a similar family name.
Draw the polymer's actual proximity to the heat source
Map the coating around the heat-generating region, component body, terminal and enclosure wall. Include thick accumulations at edges and narrow gaps where the film geometry differs from an open flat surface. A coating can be heated from the ceramic below, from a neighboring component or by incident radiation. Those heat paths do not necessarily produce the same hottest surface.
Identify which part of the polymer supports the protective function: a conductor separation, a terminal exit or a vulnerable resistor region. Removing coating from a hot location may solve one temperature problem while exposing an electrical or environmental interface. Treat a proposed exclusion as a protection-layout change requiring review, not simply a cosmetic mask added after the thermal trial.
Specify the local history during startup and abnormal transitions
Measure or model the relevant startup, steady operation, shutdown and restart sequences. After power is removed, stored heat in a neighboring body can continue warming the protected region. A final steady reading alone may miss that delayed peak. Include the actual load, airflow, mounting and enclosure state that establish the local heat path.
Separate permitted normal operation from faults addressed by the system's protective design. Do not conduct an uncontrolled overheating trial to find when the coating visibly fails. The application owner must define safe test conditions and stop limits. A material review can identify a local temperature concern without authorizing bypass of a heater controller or another protective function.
Check whether the observed surface represents the hottest interface
For an ideal flat coating with steady one-dimensional conduction and no heat generated inside it, the temperature difference through the layer is heat flux multiplied by thickness and divided by thermal conductivity. This relation can help judge whether the exposed surface is an adequate proxy for the buried interface. It requires the actual flux direction and a justified material conductivity, not the total heater power divided by an unrelated area.
Consider an illustrative outward heat flux of 20,000 watts per square metre through a 100-micrometre layer with assumed conductivity 0.20 watts per metre-kelvin. The through-layer difference is 10 kelvin. If the outer surface is 90 degrees Celsius, the inner surface is 100 degrees Celsius under this restricted model. None of these assumed values is a ChipSimple coating property or operating specification.
Tinner − Touter = q'' t/k for outward steady one-dimensional heat flow
- q'': heat flux actually crossing the polymer, W/m².
- t: polymer thickness in metres.
- k: applicable thermal conductivity, W/(m·K).
Flat uniform layer, steady one-dimensional conduction, no internal generation and known outward flux. Spreading, radiation, transient storage and uncertain interfaces require a fuller model.
Treat a coating bead as a different thermal geometry
Using the same deliberately assumed flux and conductivity, a 50-micrometre layer has a calculated difference of 5 kelvin, while a 500-micrometre accumulation has a difference of 50 kelvin. This does not mean that adding a bead to an actual assembly leaves heat flux unchanged. The whole heat-flow distribution can change, so the comparison illustrates sensitivity rather than predicting the final temperature of a redesigned circuit.
Measure representative local thickness and retain the geometry used in the thermal model. A nominal coating specification can miss an edge fillet or meniscus near a heat source. Do not use the largest nominal thickness everywhere merely to appear conservative if that creates a physically impossible heat path; state the bounds and which combinations are feasible for the actual coated module.
| Assumed thickness | Calculated inner-minus-outer difference | What remains unproven |
|---|---|---|
| 50 µm | 5 K | Actual assembly flux and interface temperature |
| 100 µm | 10 K | Formulation-specific temperature suitability |
| 500 µm | 50 K | Whether the same flux crosses a real local bead |
Choose a temperature method that does not replace the measurand
A contact sensor can conduct heat away from a small coated region or disturb the film it is meant to assess. An infrared measurement can respond to emissivity, reflection and a mixture of surfaces inside one observed spot. Define the intended location and physical surface before selecting a method, then evaluate the disturbance and spatial response relevant to that location.
Where the buried interface cannot be measured directly, combine accessible temperatures with a justified model and independent checks. Preserve raw readings, sensor placement and uncertainty. Do not assign the nearest exposed ceramic reading to the polymer interface without explaining the heat path between them. If the remaining uncertainty crosses a material or functional boundary, improve the observation or revise the geometry before claiming suitability.
Test the protective function after the representative exposure
Temperature exposure should be connected to the function the coating must retain. Inspect the relevant edges and interfaces and perform the required circuit measurements at defined states. A film can retain an attractive appearance while its adhesion or electrical protection changes. A color change can also occur without establishing which functional property has failed.
Compare initial, in-operation where required, and recovered conditions without confusing reversible temperature response with lasting change. Retain an appropriate unexposed comparison when the question concerns exposure-induced effects. If the coating is altered to reduce local heating, repeat the relevant environmental and electrical checks on the revised coverage rather than transferring approval from a fully coated flat coupon.
Issue a location-specific thermal protection decision
The integration record should identify the polymer formulation, cure state, local thickness, hottest relevant region and temperature-time envelope. State whether the conclusion comes from direct observation, a validated model or a combination. Keep uncertainty and the supporting material conditions beside the result so a later change in coating or airflow cannot silently invalidate it.
For a polymer-coated ceramic circuit near a thick film heater, ChipSimple needs the heat-source arrangement, actual operating sequence and protective requirements. The useful decision may be a qualified coating region, a changed thermal path or a revised protection concept. It is not a general claim that ceramic construction makes every added polymer suitable for high-temperature service.
Review the coating temperature near the heat source
Include the coating's physical location and service history.
- Named polymer, cure record, local thickness and underlying layer stack.
- Heat-source geometry, actual power sequence, airflow and mounting.
- Registered temperature observations, sensor method and model assumptions.
- Protective function, formulation-specific temperature conditions and required post-exposure checks.
