A printed resistor can change after a polymer overcoat is applied and cured, but the measured shift does not automatically identify the coating as the cause. Added thermal exposure, specimen temperature, contact placement, moisture state and coating interaction can all contribute. Use paired measurements and controlled comparison groups to separate these effects. The result should explain which part of the coating process consumes the resistor's available tolerance and what needs to change.
Key design decisions

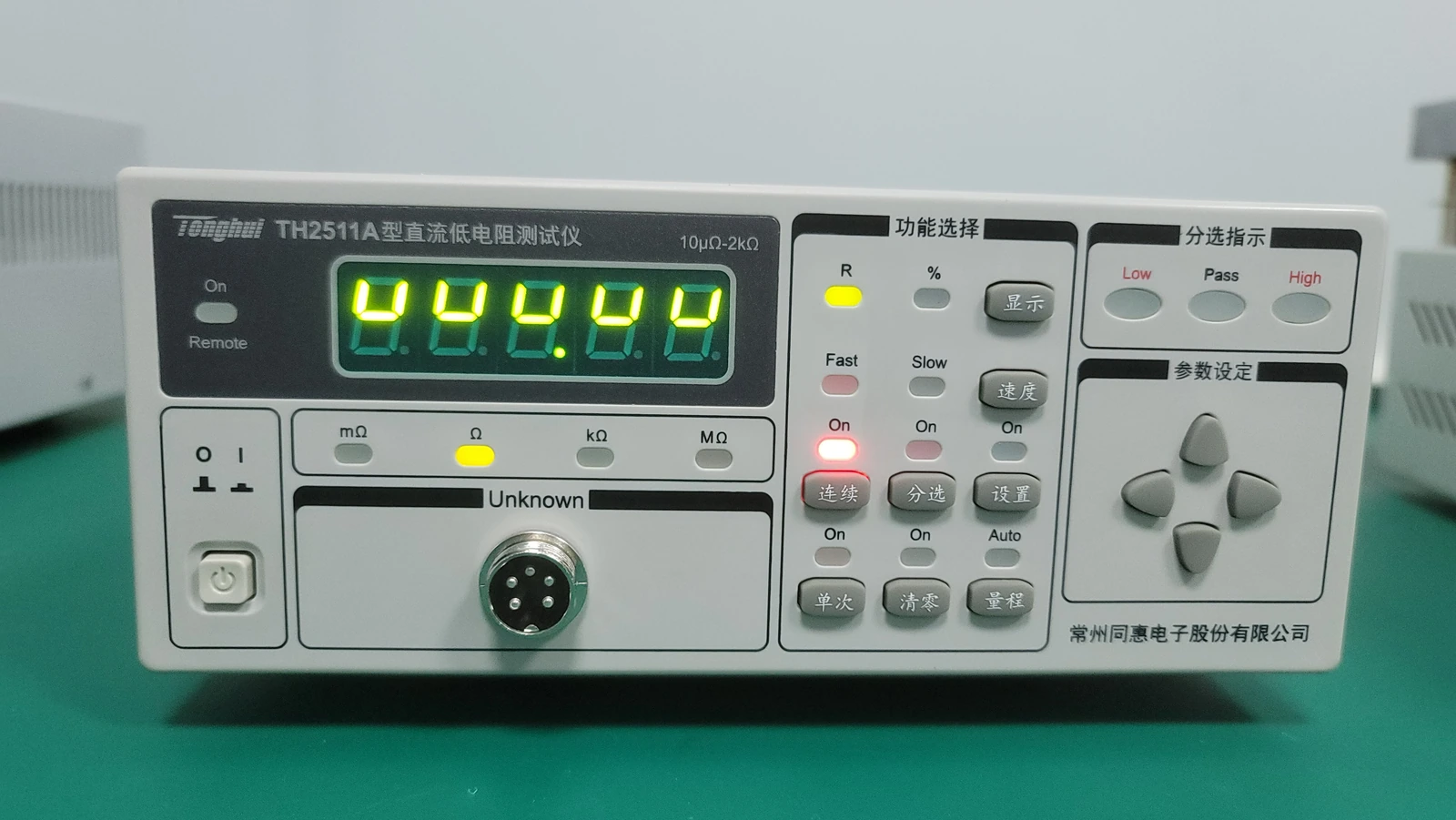

- Measure each resistor before and after the complete coating sequence using the same electrical boundary.
- Include a heat-only comparison when separating cure exposure from the presence of the coating.
- Report individual fractional shifts and time-dependent recovery rather than comparing only final group averages.
Establish a repeatable pre-coating value
Identify every resistor and record its resistance after the preceding process has reached the defined measurement state. Control specimen temperature, test current and contact locations. If the baseline is still changing after firing or trimming, a later coating comparison may include that ongoing drift.
Repeat a subset of measurements after removing and replacing the specimen to estimate contact and fixture contribution. A narrow test pad or variable probe force can produce apparent shifts similar to the coating effect being investigated. Resolve that repeatability problem before adding more specimens to the experiment.
Calculate change from each resistor's own starting value
Use paired identities so each final value is compared with the same resistor before coating. A group with initially higher resistance should not be compared directly with a different group measured after cure. The paired change reveals whether the process produces a consistent direction, a wider spread or geometry-dependent behavior.
For a hypothetical resistor that moves from 10,000 Ω to 10,030 Ω under matched conditions, the fractional change is 0.003, or 0.3 percent. This is an arithmetic example, not an expected coating shift. Compare the observed distribution with the circuit's actual tolerance allocation rather than treating any nonzero change as unacceptable.
Shift = (Rafter − Rbefore)/Rbefore; Shiftpercent = 100 × Shift
- Rbefore: paired resistance at the defined pre-coating condition
- Rafter: resistance of the same specimen at the defined post-coating condition
- Shift: dimensionless fractional change
The measurement boundary, test current and specimen temperature are sufficiently matched; otherwise their effects remain in the reported shift.
Separate heat, coating and handling contributions
An uncoated group receiving the same thermal cycle helps estimate the effect of added heat. A coated group receives the full process. A retained baseline group can reveal drift associated with storage or repeated measurement. If the process includes a surface preparation that may matter, evaluate that step deliberately rather than hiding it inside the coating group.
Keep the groups comparable in material, geometry and prior history. Where possible, distribute specimens from similar panel positions among the conditions. The comparison should not confound coating with a different resistor paste lot or a different location in the print pattern.
| Condition | Purpose | What must remain matched |
|---|---|---|
| Retained uncoated specimens | Observe storage and measurement drift | Elapsed time and measurement conditions |
| Uncoated specimens with cure heat | Isolate added thermal exposure | Part-temperature profile and support |
| Prepared but uncoated specimens | Examine the preparation step | Cleaning, drying and handling |
| Coated and cured specimens | Measure the complete process effect | Material, geometry and earlier history |
| Coated specimens measured over time | Observe stabilization or recovery | Temperature and exposure state |
Correct the comparison condition before interpreting TCR
A resistor measured warm after cure can differ from its earlier room-temperature value because of its temperature coefficient. Allow the specimen to reach the defined condition and measure actual temperature where necessary. Do not rely only on elapsed time if the package or fixture changes cooling.
If a temperature correction is applied, use a measured or justified coefficient for the actual resistor over the relevant range. A correction based on an unrelated paste family can introduce another error. Keep the raw measurements and correction assumptions together so a later review can distinguish observed change from calculated normalization.
Investigate interaction without assigning it from the sign of the shift
The coating operation can introduce mechanical stress, surface interaction or a different environmental condition. A positive resistance shift does not uniquely identify one mechanism, nor does a negative shift prove that the material improved. Compare the effect across geometries and exposure conditions to narrow the explanation.
Thermal storage can change the resistance of a polymer-ink system, so retain material history when evaluating an overcoat. The direction and magnitude must be checked for the selected ink and overcoat pair rather than assigned as a universal shift. Use that material pair and its cure requirements in the experiment.
Measure stabilization at defined intervals
Record the time from cure completion to each electrical measurement. An immediate post-cure result, a result after thermal equilibration and a result after controlled storage answer different questions. Choose intervals that reveal the relevant behavior without assuming that one waiting period is correct for every material.
Keep storage temperature and humidity defined between measurements. If the coating changes moisture access, drying and re-exposure may alter the observed resistance. Compare the same environmental state when evaluating permanent shift, and preserve in-environment measurements separately when the operating requirement depends on them.
Allocate the observed process contribution
Once measurement and comparison effects are understood, assess whether the coating operation fits within the remaining resistance tolerance. Use individual changes and their distribution, not only the mean. A near-zero mean can hide equal upward and downward movements that increase the number of circuits outside the target.
If adjustment occurs before coating, the coating contribution must be included in the final-value strategy. If adjustment occurs afterward, access and material compatibility must permit that sequence. Do not compensate by shifting every initial target until the mechanism and repeatability are understood; such compensation can fail when the material or environment changes.
Document the process state associated with the final value
The final resistance requirement should identify the coating grade, cure sequence, measurement temperature and stabilization condition. Include the paired comparison results and any heat-only controls used to interpret the change. This makes the accepted value reproducible across future runs.
Reopen the review when the coating, cleaning, resistor material, cure load or adjustment sequence changes. The evidence belongs to the documented combination. A successful comparison should lead to a controlled process and a clear tolerance allocation, not a broad statement that overcoating never affects printed resistance.
Send the paired resistance and coating data
Provide the material sequence and measurements needed to separate the causes of shift.
- Resistor material and geometry, prior firing or trimming history and unique specimen identities.
- Overcoat grade, surface preparation, cure profile and actual part-temperature information.
- Before-and-after resistance, test current, contact points, specimen temperature and measurement timing.
- Heat-only or retained controls, storage environment and the final circuit tolerance allocation.
