A torque tool can report its target while a heater clamp remains loose. The resistance to rotation may come from a screw tip touching the hole bottom, interference with incomplete threads, or a shoulder contacting the wrong surface. A stainless-steel thick-film heater assembly therefore needs a dimensional fastening check before torque becomes useful assembly evidence.

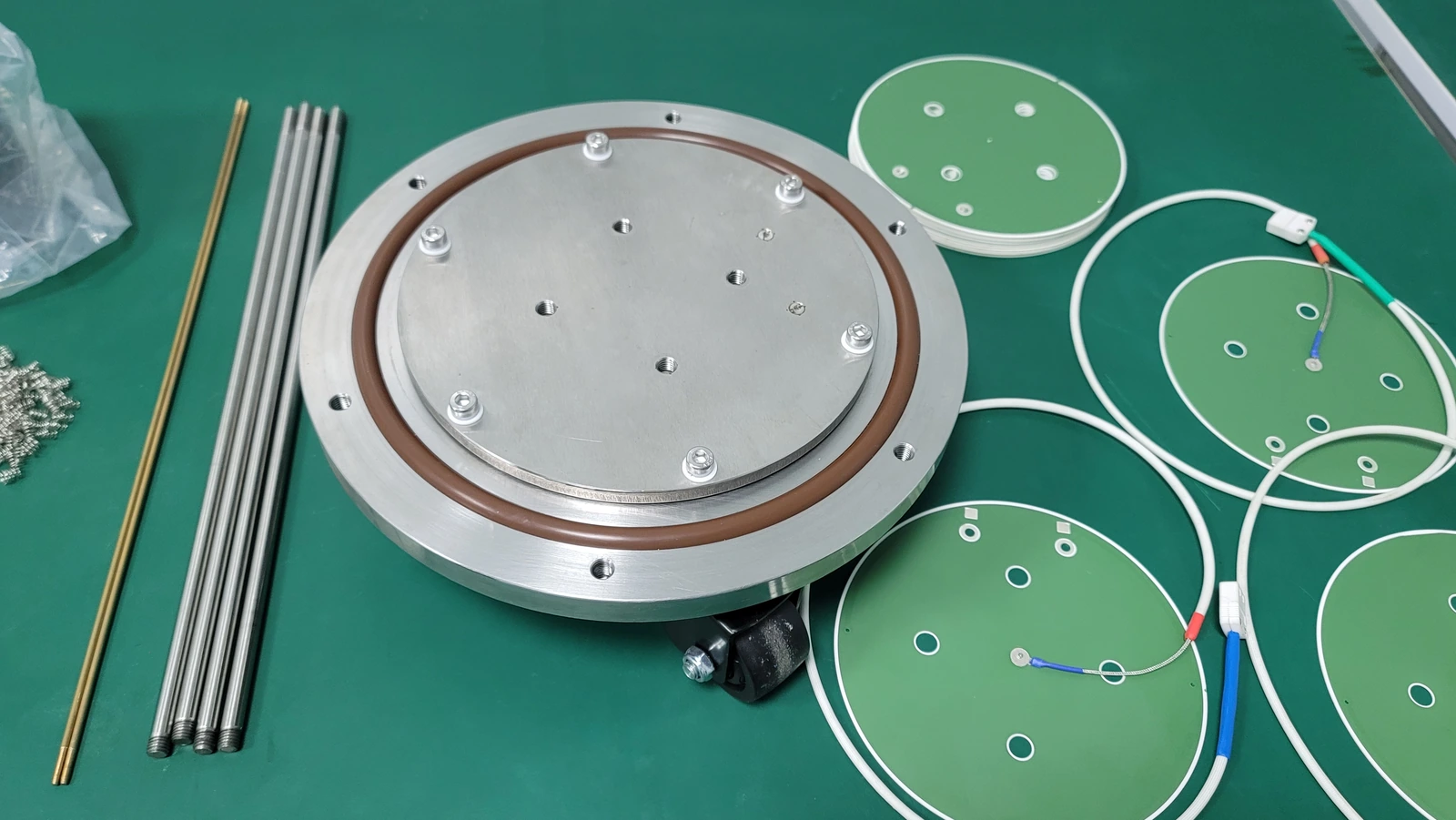

System boundary
The SUS thick-film heater, its approved clamp or carrier, fasteners, washers, mating threaded support and installation tooling. Printed insulation and conductor regions are not assumed to be screw-bearing surfaces.
Integration interfaces
| Interface | Required input | Thick film role | Validation owner |
|---|---|---|---|
| Screw tip to blind threaded support | Under-head length, complete thread geometry, usable hole depth and tolerances. | The heater stack changes the projection of the installed fastener into the support. | Mechanical designer establishes non-interference and required thread engagement. |
| Clamp stack to fastener bearing surfaces | Finished stack thickness, washer specification, shoulder dimensions and permitted bearing areas. | The metal-substrate heater must be retained without loading unapproved printed features. | Assembly engineer verifies the physical load path and stack configuration. |
| Torque tool to installation decision | Approved torque method, running resistance, seating evidence and fault disposition. | Stable installation is required before thermal contact validation is meaningful. | Manufacturing quality owner qualifies assembly checks and records. |
Integration risks
| Risk | Control or verification | Validation owner |
|---|---|---|
| A long screw reaches the blind-hole bottom before the clamp closes. | Compare maximum projection with minimum usable depth and verify the installed stack. | Mechanical and assembly owners. |
| A missing washer changes projection while the same torque program remains active. | Control washer identity and stack presence; do not substitute arbitrary washers during troubleshooting. | Assembly quality owner. |
| A shoulder bypasses the intended heater clamp load path. | Dimension shoulder clearance and inspect actual bearing contacts. | Mechanical designer. |
System integration decisions
- Budget maximum screw projection against minimum usable hole depth.
- Verify the load-bearing stack and thread engagement separately.
- Treat unexplained early torque rise as an assembly fault, not successful clamping.
Identify what is resisting the tool
In a correctly configured joint, head bearing and engaged threads develop the intended preload through the clamped stack. In a bottomed joint, the screw can resist further rotation through its tip or thread interference instead. The tool sees resistance in both cases. Its final torque value does not identify which path carried the reaction.
Inspect a suspicious joint before increasing torque. A visible gap, a movable clamp or an unexpectedly short rundown is useful evidence. Absence of a visible gap alone is insufficient: a nearby hard stop can hold the parts in position without providing the required retention load. The approved assembly method must establish both fit and clamping.
Use usable thread depth, not the drill-tip dimension
Place the depth datum at the surface from which the screw enters the threaded support. The drawing may separately describe drilled depth, tapped depth and fully formed thread depth. A conical drill end or incomplete internal threads do not provide unrestricted travel for the screw's full thread form.
Define usable depth for the actual screw end and mating geometry. Include coating, inserts or process features where they change the limiting interference surface. Cleanliness and inspection need a controlled method; debris is a fault to remove under the approved procedure, not a dimensional allowance that can justify accepting an obstructed hole.
Calculate the worst-case screw projection
For a simple flat under-head bearing arrangement, let L be screw length below its bearing face and S be the compressed stack between that face and the support entry. Projection is p = L − S. The longest screw and thinnest permissible stack produce the largest projection.
An illustrative joint with L between 11.9 and 12.1 mm and S between 4.8 and 5.2 mm has p between 6.7 and 7.3 mm. If minimum usable hole depth is 7.0 mm, the maximum projection exceeds it by 0.3 mm. A nominal 12.0 minus 5.0 calculation would hide that interference. These dimensions demonstrate the budget; they are not a heater mounting specification.
p_max = L_max − S_min; c_min = d_usable,min − p_max
- p is screw projection below the entry surface; L is under-head length; S is compressed stack thickness.
- d_usable is the non-interfering hole depth and c is remaining tip clearance.
Simple flat under-head stack with a common entry datum; shoulder and incomplete-thread interference require separate geometry checks.
Treat washer changes as geometry changes
Removing a washer decreases S and increases screw projection by the removed thickness. Adding a washer can reduce projection but also reduce thread engagement, alter bearing conditions or interfere with the fastener head. It is not an automatic repair.
Record the exact washer type, quantity and orientation where relevant. A substitution that solves one tip-clearance problem may create a head-fillet interference or a load-path problem elsewhere. Review the complete assembly drawing and locking arrangement before releasing any revised hardware combination.
Check engagement and shoulder stops independently
Positive tip clearance does not establish adequate engagement. The shortest screw and thickest stack govern the opposite end of the design window. Required complete-thread engagement depends on materials, thread geometry, loading and the applicable joint design basis; a universal number of turns is not suitable for every heater support.
A partially threaded screw or shoulder fastener requires another check. Its unthreaded portion can stop against the mating part or incomplete threads before the intended stack is compressed. Show the shoulder endpoint and under-head fillet on the section view. Verify that their contacts are deliberate, rather than relying on the screw's catalogue length alone.
Separate the likely causes of an early torque rise
Use these observations to direct a controlled investigation. None authorizes forcing a suspect fastener into the assembly or energizing a heater with unresolved retention.
| Observation | Geometry to check | Disposition before heating |
|---|---|---|
| Torque rises while the clamp can move | Tip projection and usable blind depth | Reject the assembly state and resolve interference |
| Rundown changes after washer substitution | Actual stack height and thread engagement | Restore the specified stack or approve a drawing change |
| Head appears seated but a shoulder carries contact | Shoulder endpoint and clamp bearing path | Verify whether the clamp receives intended compression |
| High resistance occurs before expected seating | Thread form, damage, contamination and runout | Inspect under the approved fastener procedure |
| Fit is correct but retention varies | Preload method, friction and stack settling | Qualify the installation process separately from geometry |
Measure the inaccessible dimensions through a planned method
An assembled blind joint hides its limiting surfaces. Use suitable depth and projection measurements, verified part dimensions, or a representative sectioned fixture to establish the stack relationship. The method must distinguish usable thread depth from a deeper drilled cavity.
Preserve the configuration when investigating a returned assembly. Mark screw position and hardware identity before disassembly so a longer screw from another location is not mistakenly treated as representative. Record the measurement uncertainty where the remaining clearance is small. A nominal positive difference smaller than the unresolved measurement range is not persuasive clearance evidence.
Release fastening fit before evaluating heater performance
A thermal test on a loosely retained heater can confuse a fastening defect with heater power or contact-material behavior. Complete the fit and retention checks first, then evaluate the thermal interface using the intended assembled condition. Keep the fastening acceptance record connected to the thermal specimen identity.
The release package should contain the screw and washer identifiers, stack tolerances, usable depth definition, minimum engagement basis, interference-clearance criterion and installation method. Review these items after changes to the heater carrier, mounting bracket or threaded support. A replacement heater with a different finished stack cannot inherit torque acceptance merely because the screw diameter is unchanged.
Review the SUS heater clamp stack
Provide a section through the actual fastening arrangement so screw fit and heater retention can be checked before thermal validation.
- Heater, clamp, carrier and threaded-support drawings with finished stack tolerances.
- Fastener and washer part numbers, thread form and shoulder dimensions.
- Usable blind-hole depth and required complete-thread engagement basis.
- Installation method, observed rundown behavior and retained assembly photographs.
