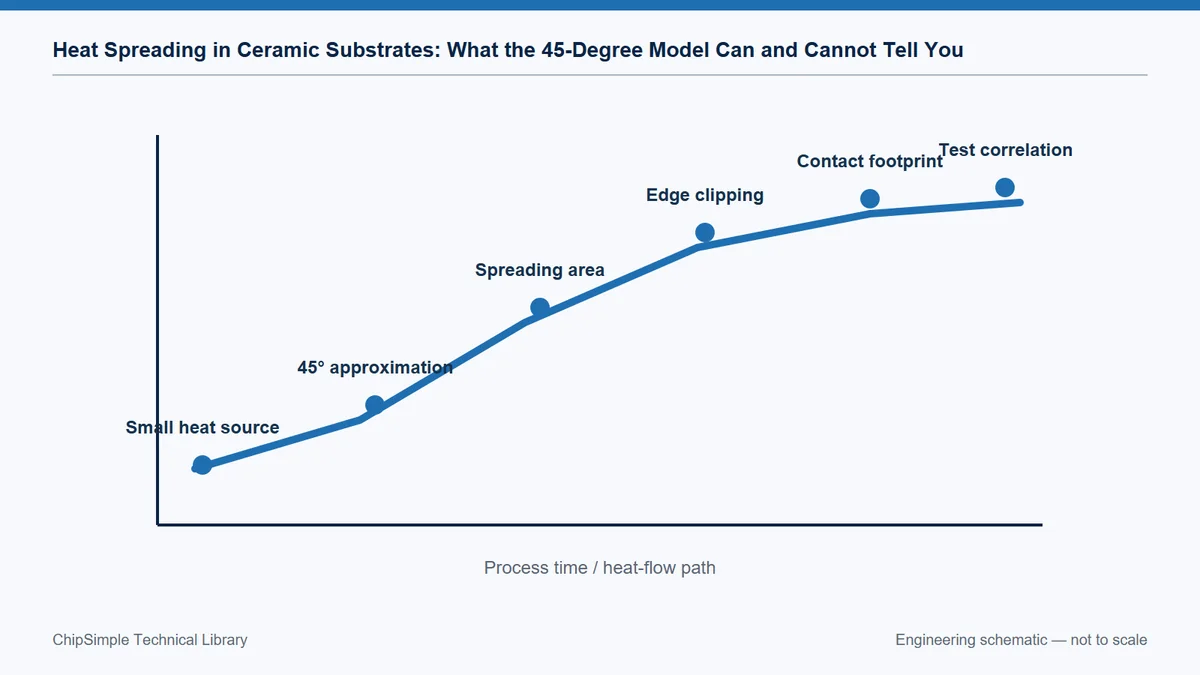

Heat Spreading in Ceramic Substrates: What the 45-Degree Model Can and Cannot Tell You
In the simple model, the effective heat-flow area expands from the source footprint as it travels through thickness. This prevents the extreme error of using either source area or full substrate area everywhere. It is valuable for early comparisons of material and thickness, but it does not capture edge effects, anisotropic contacts, local convection or interaction between neighbouring heat sources.
Use the Model for Early Sensitivity
In a stable manufacturing route, the spreading cone converts source size and thickness into an approximate changing area. This means it shows whether ceramic thickness or conductivity is likely to influence temperature. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should state the assumed spreading angle and cap area at physical boundaries. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from comparison with limiting one-dimensional cases. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate presenting the estimate with false precision. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
Respect Edges and Holes
A useful way to frame the decision is this: Heat cannot spread through missing ceramic or beyond an insulated edge. As a result, sources near edges, slots or holes experience asymmetric spreading. That cause-and-effect chain should remain visible when ceramic substrate heat spreading is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can adjust area or use numerical analysis for interrupted geometry. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with temperature mapping around the discontinuity. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom underpredicting a hot spot beside a mounting hole deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Include Interface Footprints
Geometry and material meet at this point: The lower contact may be smaller than the spread area predicted inside ceramic. Therefore, heat reconverges or encounters extra constriction at a partial bond. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, model actual metallised and attached areas. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes bond-line inspection and interface temperature difference. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is assuming full housing contact from the external outline. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Handle Multiple Sources Carefully
Process capability follows from the mechanism: Spreading fields overlap and raise the local background temperature. The direct implication is that independent single-source calculations can miss source interaction. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to superpose only within a justified linear approximation or use numerical modelling. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use powered tests with individual and combined sources to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to each component passing alone but the assembly overheating together. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
Know When to Escalate the Model
Complex boundary conditions reduce the value of a simple cone. The consequence is that high-stakes temperature limits, transient pulses and nonlinear cooling deserve more detailed analysis. In a ceramic substrate heat spreading review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to define an escalation criterion based on margin and uncertainty. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include correlation between hand calculation, simulation and test. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is spending effort refining an approximate formula beyond its validity. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
A Worked Engineering Review
Compare a small heat source on 0.63 mm and 1.0 mm alumina. The 45-degree estimate predicts a larger effective area through the thicker plate but also a longer conduction path. Calculate both effects, then add the real interface resistance below the ceramic. If the source is near an edge, clip the spreading region rather than using a symmetric cone. Use the result to rank options, and reserve detailed simulation for the geometry with the best realistic margin.
Design Review Checklist
- State source size and spreading-angle assumption.
- Clip spreading at edges, holes and contact limits.
- Model actual lower interface area.
- Check interaction among heat sources.
- Escalate when margin is small.
Questions Engineers Commonly Ask
Is the spreading angle always 45 degrees?
No. It is an engineering approximation. Effective spreading depends on geometry, conductivities and boundary conditions.
Can the model compare alumina and AlN?
Yes for early sensitivity if the same assumptions are used, but interface and assembly differences still need inclusion.
What should be measured in a prototype?
Source-region temperature, ceramic gradient, interface or housing temperature and electrical power.
Related Engineering Resources
Closing Note
Use the 45-degree model as a transparent ranking tool. Its strength is speed and clarity; its limit is the geometry and boundary detail that it intentionally leaves out.
