Designing a Thick Film Heater Around the Load, Not Just the Resistance
The electrical starting point is P = V²/R or P = I²R, but useful heat must reach the load through a controlled path. Trace width, spacing, turns and connection pads shape local heat generation. The substrate spreads heat, while contact pressure, insulation and airflow remove it. Sensor placement and control logic then determine how the system responds to disturbance.
Define the Thermal Load and Boundary
A useful way to frame the decision is this: Heater power depends on mass, heat capacity, warm-up time and ongoing losses. As a result, a free-air test does not represent a clamped process plate or flowing fluid. That cause-and-effect chain should remain visible when thick film heater design is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can state target temperature, ramp time, load, contact and worst-case loss. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with energy balance and instrumented warm-up under representative assembly. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom meeting resistance while missing heat-up time or steady temperature deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Distribute Watt Density by Need

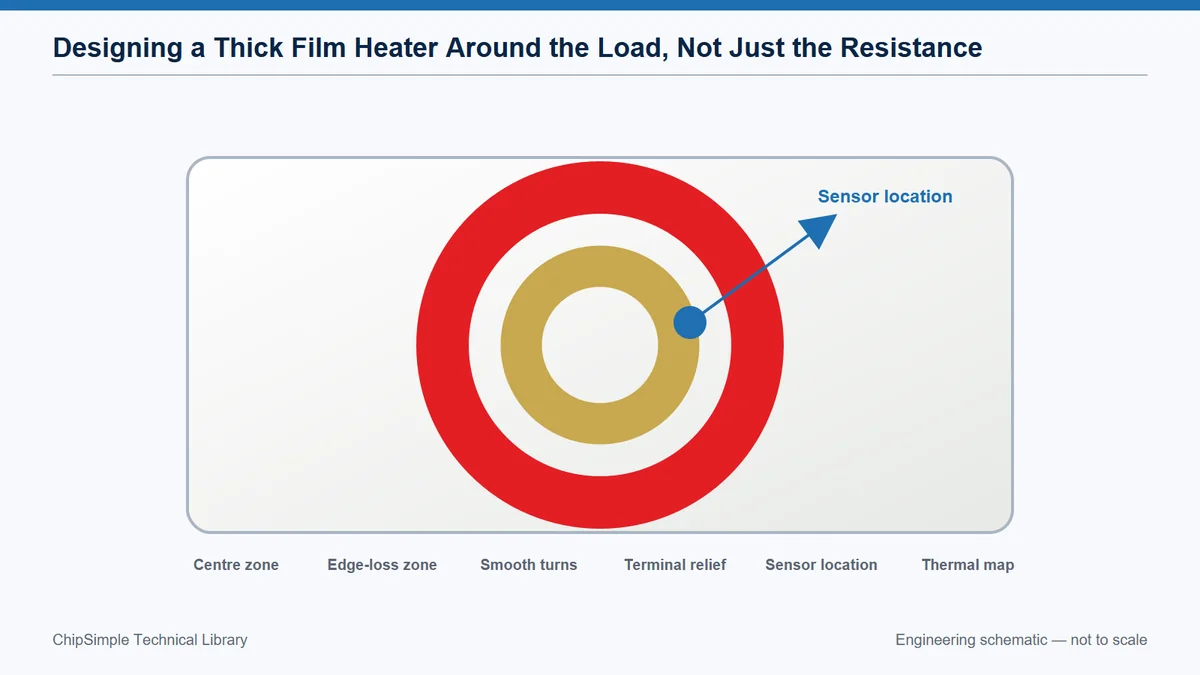

Geometry and material meet at this point: Uniform trace geometry does not always produce uniform surface temperature. Therefore, edges often lose more heat and mounting features disturb spreading. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, use zones or variable geometry based on thermal map. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes infrared or contact temperature mapping at multiple conditions. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is edge-cold or centre-hot patterns that worsen with temperature. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Protect Turns, Necks and Terminations
Process capability follows from the mechanism: Current crowding and reduced width create local power concentration. The direct implication is that turns and pad transitions can overheat before the main element. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to use smooth turns, controlled necks and reinforced termination geometry. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use high-resolution thermal imaging and resistance inspection to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to burnout at a repeated geometric location. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
Place Sensors for Control, Not Convenience
Sensor temperature may lag or lead the controlled load. The consequence is that poor placement creates overshoot or slow response even with adequate heater power. In a thick film heater design review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to model sensor-to-load thermal path and choose control limits accordingly. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include simultaneous sensor and load temperature during transients. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is stable sensor reading with unacceptable product temperature. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
Qualify Cycling and Fault Conditions
Repeated expansion and abnormal cooling stress heater films and interfaces. The consequence is practical: dry-fire, partial contact or controller failure can create rapid local overheating. This is one reason thick film heater design cannot be reduced to a single catalogue value.
During design review, define cycling, over-temperature protection and permissible fault energy. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.
A useful evidence package contains thermal-cycle, power-cycle and controlled fault tests. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.
Watch for a heater that performs in nominal tests but fails during a foreseeable loss of contact. It often indicates that two individually acceptable variables have combined at the edge of their windows.
A Worked Engineering Review
For a circular plate heater, calculate energy needed to raise the load and add measured losses. Select voltage and resistance, then divide the surface into centre and edge zones because perimeter loss is higher. Adjust trace width and spacing while preserving current-density margin at turns. Place the temperature sensor where it correlates with the controlled surface, not simply beside the terminals. Prototype under minimum and maximum contact conditions and map temperature during ramp, steady state and a brief fault. Final resistance is only one acceptance characteristic among power, uniformity and safety.
Design Review Checklist
- Define load, ramp time and heat loss.
- Set voltage, resistance and power margin.
- Zone geometry for temperature uniformity.
- Protect turns and pad transitions.
- Test control response, cycling and faults.
Questions Engineers Commonly Ask
What watt density is safe?
There is no universal value. It depends on substrate, film system, cooling, temperature and geometry. Qualify the assembled condition.
Why can equal-power heaters have different temperatures?
Heat loss, contact area, spreading and local watt density differ even when total power is equal.
Should a heater resistance tolerance be very tight?
Only as tight as the power and control budget require. Voltage variation, TCR, sensor and heat loss may contribute more error.
Related Engineering Resources
Closing Note
Design the heater as a controlled thermal assembly. Resistance sets total electrical power; geometry, interfaces, sensing and protection determine whether that power becomes useful and reliable heat.
