A Practical Thermal-Resistance Model for Ceramic Thick Film Circuits
Thermal resistance expresses temperature rise per unit heat flow. For a simple one-dimensional layer, Rθ = t/(kA), but a real ceramic circuit spreads heat laterally and may contain several sources and interfaces. The calculation should therefore begin as a transparent resistance network and become more detailed only where the decision requires it.
Define Heat Sources and Boundary Conditions
The physical starting point is straightforward: Temperature prediction is impossible without power, location and cooling boundary. From there, the same ceramic can run at different temperatures in free air, clamped housing or liquid-cooled plate. For ceramic thick film circuit thermal resistance, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, provide average and transient power, footprint, duty and ambient or sink condition. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture measured power and temperatures at defined locations. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees comparing simulation and test with different boundary conditions, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.

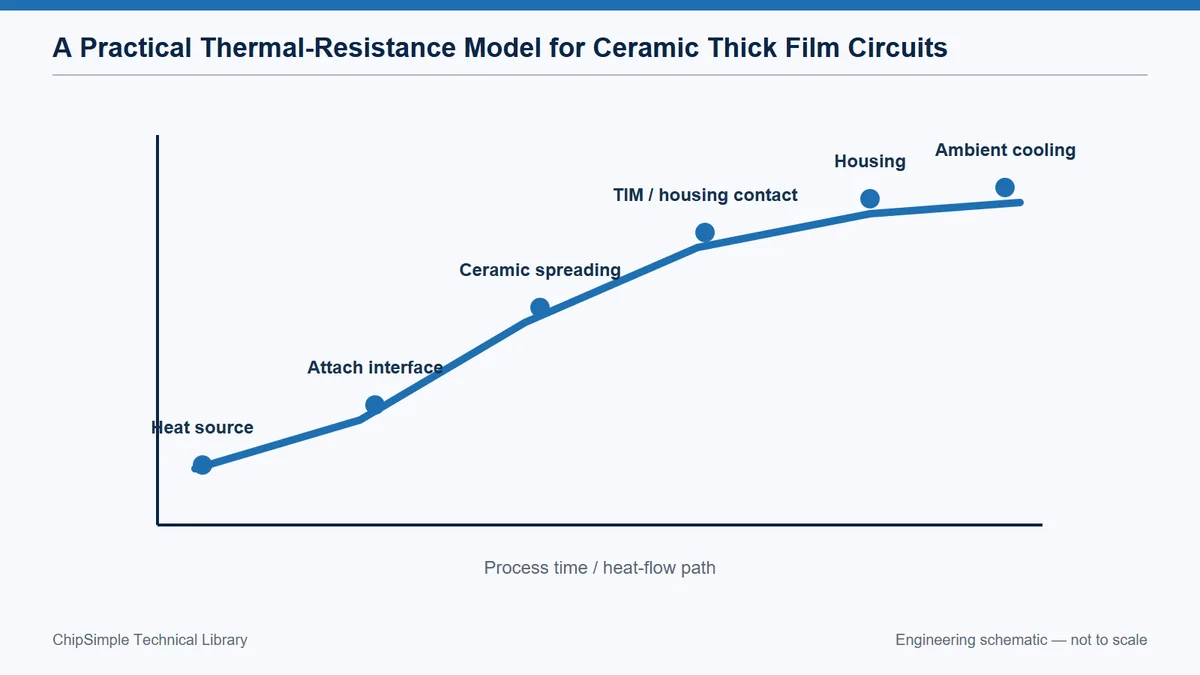

Build the Series Resistance Chain
In a stable manufacturing route, heat crosses attachment, ceramic, interface and housing before reaching ambient. This means the largest resistance dominates total temperature rise. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should calculate each layer separately and document area and conductivity assumptions. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from sensitivity analysis and interface temperature measurements. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate upgrading ceramic conductivity while leaving a dominant contact interface unchanged. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
Account for Lateral Spreading
A useful way to frame the decision is this: Heat source area is often smaller than the final cooling area. As a result, spreading resistance depends on thickness, conductivity, source size and edge proximity. That cause-and-effect chain should remain visible when ceramic thick film circuit thermal resistance is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can use an analytical spreading estimate or numerical model when one-dimensional area is misleading. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with surface temperature maps and comparison with an instrumented prototype. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom using full substrate area in t/(kA) and underpredicting local temperature deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Include Transient Thermal Mass
Geometry and material meet at this point: Short pulses store heat in material before steady state is reached. Therefore, peak temperature depends on pulse energy and thermal capacitance as well as resistance. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, model the real duty cycle and time constants. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes time-resolved temperature or calibrated electrical temperature indicators. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is qualifying average power while missing repetitive peak stress. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Close the Model with Test
Process capability follows from the mechanism: Conductivity, contact pressure and interface thickness vary from nominal assumptions. The direct implication is that a validated simple model can be more useful than an unvalidated detailed one. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to identify parameters that will be fitted or confirmed by prototype test. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use temperature at source, ceramic and sink under known power to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to accepting a colourful simulation without an energy balance. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
A Worked Engineering Review
A 6 W device sits on a small ceramic pad attached to an aluminium housing. Start with die-attach resistance, spreading through ceramic, the ceramic-to-housing interface and housing-to-ambient resistance. If the interface contributes most of the predicted rise, reduce bond-line thickness or improve clamping before changing alumina to AlN. If ceramic spreading dominates because the source is small and the sink contact is broad, higher conductivity may help. Instrument the source region and housing while measuring real electrical power, then adjust only assumptions supported by evidence.
Design Review Checklist
- Map heat source footprint and duty.
- Define ambient or sink boundary.
- Calculate every interface separately.
- Include spreading and transient effects.
- Validate with known power and measured locations.
Questions Engineers Commonly Ask
Can substrate thermal conductivity predict component temperature?
No. It is one term in the heat path. Attachments, contact area, interfaces and cooling can dominate.
When is a one-dimensional model acceptable?
When heat flow area is reasonably uniform or for a conservative first estimate with clearly stated assumptions.
Why measure housing temperature?
It helps separate internal resistance from external cooling and closes the energy path.
Related Engineering Resources
Closing Note
A thermal model earns confidence by being traceable. Show every resistance, assumption and boundary, then use prototype temperatures to decide which part of the heat path deserves improvement.
