Building an Inspection Plan for Custom Thick Film Ceramic Circuits
Custom ceramic circuits often combine dimensional, electrical, visual and interface requirements. Not every item needs 100 percent inspection, but every critical risk needs a control and a defined reaction. A useful plan links drawing characteristic, process step, measurement method, frequency, acceptance and traceable record.
Classify Characteristics by Function
Safety, fit, electrical accuracy and cosmetic requirements carry different risk. The consequence is that classification directs prevention and sampling effort. In a thick film circuit inspection review, this relationship deserves an explicit decision rather than an assumption copied from a previous drawing.
The practical control is to identify critical, major and routine features with the customer. That instruction should be linked to the layer, material system or feature it governs so that production and inspection read it in the same way.
Verification should include approved characteristic matrix tied to drawing callouts. If the evidence is collected only after final assembly, the team loses the ability to separate printing, firing, trimming and assembly effects.
A common warning sign is spending inspection time on appearance while missing a high-risk buried interface. Treat that symptom as a request to examine the process chain, not simply as a reason to widen the final tolerance.
Measure at the Earliest Useful Stage
Process evidence is strongest before later layers or assembly hide the feature. The consequence is practical: early detection reduces scrap and improves diagnosis. This is one reason thick film circuit inspection cannot be reduced to a single catalogue value.

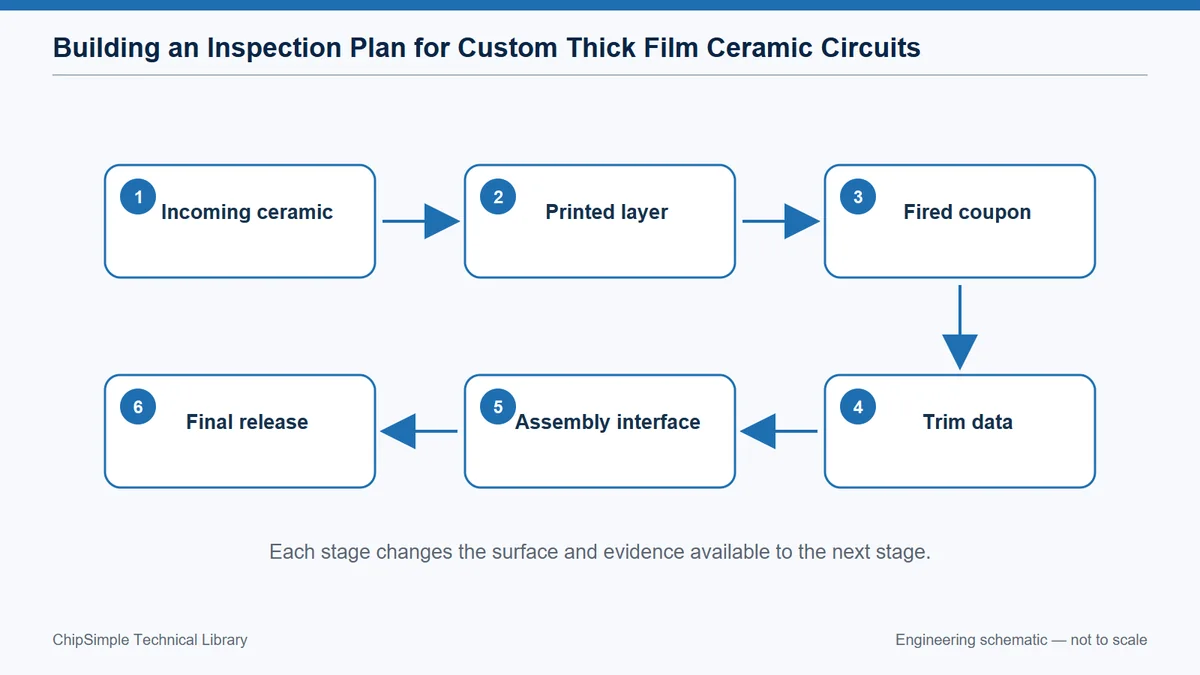

During design review, place checks after print, fire, trim and before overcoat where appropriate. The objective is not to freeze every process setting on the customer drawing, but to define the functional boundary that the manufacturer must protect.
A useful evidence package contains traveller records and retained coupon data. Comparing those records with the approved construction is more informative than judging an isolated photograph or one resistance reading.
Watch for using final test as the only control for an early defect. It often indicates that two individually acceptable variables have combined at the edge of their windows.
Match Method to the Characteristic
Optical, dimensional, electrical and destructive methods answer different questions. Consequently, a visually clean conductor may have poor resistance or adhesion. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.
A robust drawing or process plan will define equipment, fixture, test current, environment and uncertainty. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.
The result can be checked through method validation and calibration records. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.
The failure pattern to investigate is disagreement caused by two teams measuring under different conditions. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.
Use Coupons to Monitor Hidden Processes
The physical starting point is straightforward: Sheet resistance, via chains, dielectric isolation and adhesion can be represented by witness structures. From there, coupons create measurable evidence without destroying product. For thick film circuit inspection, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, place representative geometries on the same substrate or load. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture coupon-to-product correlation during qualification. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees a convenient coupon that does not share the product process, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.
Define Reaction and Traceability
In a stable manufacturing route, a limit without a reaction plan does not control the process. This means containment, review and disposition must identify affected material. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should record lot, paste, screen, furnace, operator and measurement linkage. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from mock trace and nonconformance review. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate finding an out-of-limit result without knowing which shipments share the cause. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
A Worked Engineering Review
For a resistor-and-crossover circuit, incoming inspection checks ceramic dimensions and condition. Printed conductor coupons track fired sheet resistance and adhesion. Dielectric overlap receives in-process optical inspection before the upper conductor, while a minimum-geometry coupon receives insulation testing. Resistors are measured as-fired, after trim and after stabilisation. Final inspection verifies dimensions, electrical network and visual workmanship. The plan states sampling or 100 percent coverage, equipment and reaction for every item, with lot records connecting the evidence.
Design Review Checklist
- Classify functional characteristics.
- Inspect before features are buried.
- Define measurement method and uncertainty.
- Qualify representative witness coupons.
- Set reaction, traceability and retention.
Questions Engineers Commonly Ask
Does custom production require 100 percent inspection?
Not for every characteristic. Critical electrical values may need full test, while capable stable dimensions can use sampling. Risk and process evidence determine coverage.
What should a certificate of conformance include?
It should reference part, revision, lot and applicable specification. Detailed data are separate unless agreed.
How long should records be retained?
Agree retention from customer, regulatory and product-life needs and make it part of the quality plan.
Related Engineering Resources
Closing Note
A strong inspection plan is concise because every check has a reason. It detects risk at the right stage and creates records that can reconstruct the lot if a question appears later.
