Metallized Vias and Double-Sided Thick Film Ceramic Circuits

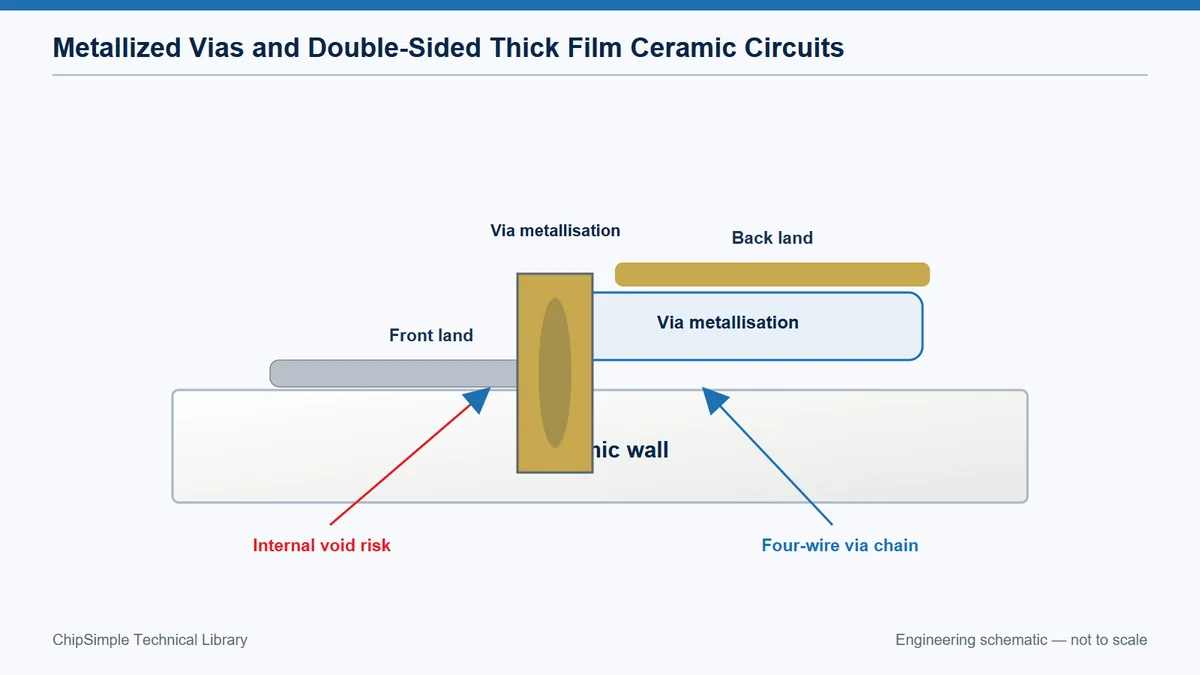

A via is both an electrical path and a three-dimensional interface. Paste must contact the hole wall or fill geometry, connect to lands on each side and survive firing shrinkage and thermal cycling. The apparent top surface reveals little about the internal path, so design coupons and cross-sections are central to qualification.
Control Hole Geometry and Condition
Diameter, taper, wall damage and contamination influence paste coverage. Consequently, laser, machining or green processing can leave different wall structures. The engineering value comes from understanding the direction and sensitivity of the effect, not from memorising a nominal number.
A robust drawing or process plan will specify finished hole range and qualified preparation. This makes the design intent visible and gives the supplier room to use a qualified material set without changing the function.
The result can be checked through incoming hole inspection and sectioned samples. Where possible, keep readings before and after the next thermal or mechanical operation; the delta often reveals more than the final value.
The failure pattern to investigate is voids or thin coverage aligned with wall damage. Before changing materials, confirm orientation, lot history, measurement method and acceptance limits.
Provide Capture Lands for Registration
The physical starting point is straightforward: Front, back and via prints have finite positional variation. From there, small lands can lose overlap even when continuity initially exists. For thick film ceramic metallized vias, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, budget worst-case registration and minimum annular capture. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture overlay data and cross-sections at minimum geometry. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees partial contacts that increase resistance after cycling, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.
Choose Via Fill or Wall-Coating Strategy
In a stable manufacturing route, via size, substrate thickness and paste rheology determine transfer method. This means trapped air, incomplete fill and excessive paste can create voids or surface bumps. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should qualify print direction, vacuum or assisted fill and drying. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from X-ray where useful, sectioning and via-chain resistance. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate continuity that depends on a narrow internal bridge. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
Manage Firing and Shrinkage
A useful way to frame the decision is this: Paste contracts and bonds to a rigid ceramic wall during firing. As a result, large aspect ratio or incompatible material can crack or separate. That cause-and-effect chain should remain visible when thick film ceramic metallized vias is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can use a via material and profile qualified for substrate and surface conductors. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with sections after firing and after thermal cycling. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom circumferential separation hidden inside the hole deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Test Chains, Not Only Individual Vias
Geometry and material meet at this point: Series chains amplify small via resistance and intermittency. Therefore, they provide statistical process evidence without probing buried nodes. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, include representative via-chain coupons in qualification or panels. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes four-wire resistance over temperature and cycling. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is passing point continuity while distribution tails remain unknown. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
A Worked Engineering Review
A double-sided alumina circuit uses a group of small vias near a heated component. The design increases capture land for the combined front-to-back registration window and adds a via chain at the same hole diameter. Process trials compare fill direction and drying to reduce voids. Cross-sections examine wall coverage and land connection. The chain is monitored through thermal cycling because the heated location adds CTE stress. The final drawing controls functional hole and land geometry while the qualified process controls paste and fill method.
Design Review Checklist
- Define finished hole and wall quality.
- Budget front-back-via registration.
- Qualify fill and drying method.
- Section representative vias.
- Monitor four-wire via chains through stress.
Questions Engineers Commonly Ask
Can continuity prove a good via?
No. A thin bridge can pass continuity but have high or unstable resistance. Use resistance, sections and stress testing.
Are smaller vias always better for density?
They increase fill and inspection difficulty and reduce registration margin. Choose size within a qualified process window.
Can vias carry heat as well as current?
They can contribute, but thermal performance depends on fill, geometry and material. It must be modelled and measured.
Related Engineering Resources
Closing Note
Reliable vias are designed for capture, process access and evidence. Treat the internal metallisation as a critical interface even when the final circuit passes a simple continuity check.
