Packaging and Moisture Protection for Thick Film Hybrid Circuits
A fired ceramic circuit is robust in many environments, but exposed resistors, fine conductors, bonded wires and interfaces can remain sensitive. Open-frame, coated, potted and hermetic constructions offer increasing barriers with different penalties in stress, heat flow, repairability, outgassing and cost. Protection should be selected from the environment and service life.
Define the Environment Quantitatively
The physical starting point is straightforward: Moisture protection cannot be selected from indoor or outdoor labels alone. From there, humidity, condensation, salt, gas, dust, pressure and temperature act differently. For thick film hybrid circuit packaging, the important issue is the amount of process margin left after normal variation is included.
On the drawing and in the review record, state exposure level, duration, bias and cleaning contaminants. Keep the requirement functional wherever possible, while making any safety- or interface-critical boundary unambiguous.
A production trial should capture representative environmental tests with powered conditions where relevant. Record the condition of the specimen and the next operation so that a later change can be traced to a specific stage.
If the team sees passing unpowered humidity while biased leakage grows in service, pause before adding inspection or rework. First check whether the layout and the qualified process window are asking for contradictory outcomes.

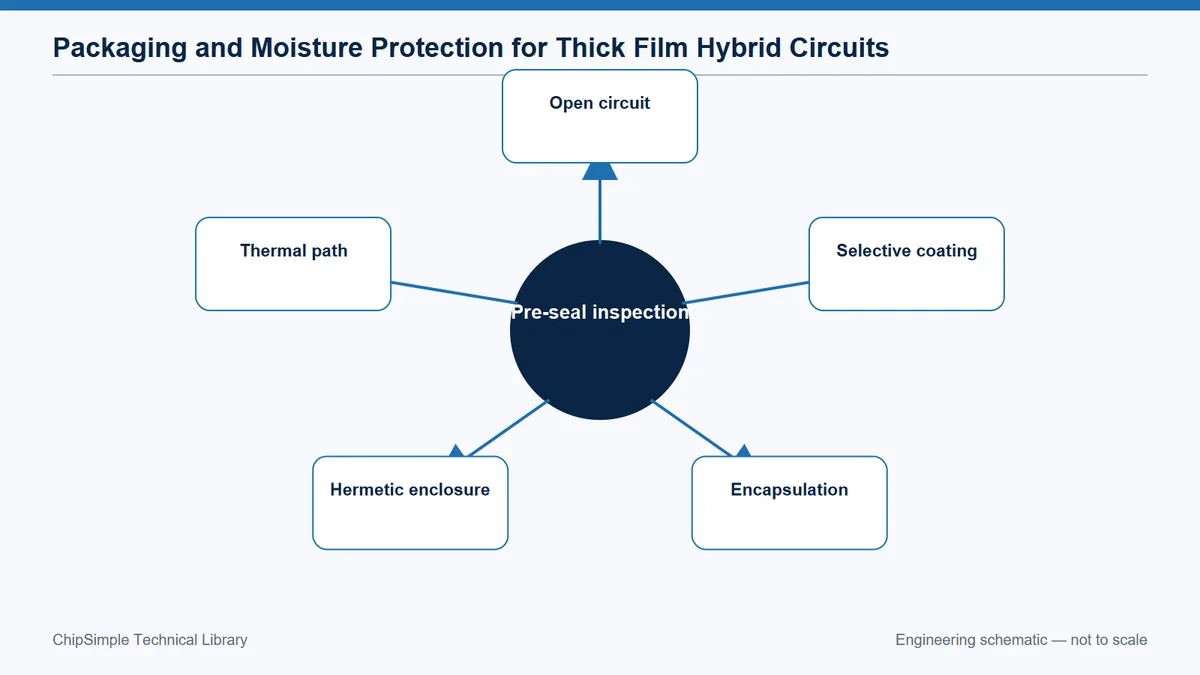

Choose Open, Coated, Potted or Hermetic Protection
In a stable manufacturing route, each level controls different paths and creates new interfaces. This means coatings reduce surface contamination, potting adds mechanical and moisture barriers, and hermetic packages control atmosphere. The observation is especially useful because it connects a visible feature to an electrical, thermal or mechanical consequence.
The control plan should select the minimum level supported by risk and lifecycle. It should also name the drawing characteristic or coupon that represents the requirement, avoiding an instruction that depends on personal interpretation.
Evidence comes from coverage, cure, leak or environmental evidence appropriate to the level. A trend across position or lot is usually more valuable than a perfect reading from one hand-picked sample.
Investigate adding heavy encapsulation that traps stress or heat without solving the real path. The pattern may identify a narrow process interaction long before the final circuit becomes an open, short or out-of-tolerance value.
Account for Material Compatibility
A useful way to frame the decision is this: Coatings, lids, seals and getters can interact with thick-film surfaces and bonds. As a result, cure chemistry, outgassing and CTE can affect resistors and wire bonds. That cause-and-effect chain should remain visible when thick film hybrid circuit packaging is reviewed with purchasing and quality teams.
The manufacturing boundary is protected when the team can qualify materials on the complete assembled circuit. This approach separates the customer's functional need from the supplier's machine-specific compensation.
Confirm the decision with electrical and mechanical values before and after cure and ageing. Include both typical and boundary-condition specimens where the failure consequence justifies them.
The symptom resistor drift or bond corrosion introduced by protective material deserves a structured investigation. Check material lot, artwork position, thermal history and measurement setup before assigning a single cause.
Preserve the Thermal Path
Geometry and material meet at this point: A moisture barrier may also be a thermal insulator. Therefore, potting and sealed air volumes can raise component temperature. A nominal specification that omits the interface is incomplete even if every individual value looks reasonable.
During release, model heat flow through the final package and mounting interface. Make sure the acceptance method measures the same physical feature that the design calculation assumed.
Useful confirmation includes powered temperature test after packaging. Keep photographs or sections tied to part, revision, lot and orientation so they remain evidence rather than decoration.
One failure signature is an electrically protected circuit exceeding temperature limits. It often becomes clear only when results are sorted by position, process stage or exposure instead of being combined into one average.
Design for Inspection and Traceability
Process capability follows from the mechanism: Packaging can hide workmanship and prevent repair. The direct implication is that critical inspection and electrical baseline must occur before closure. This makes the topic a design input, not merely a factory setting adjusted after the drawing is complete.
A practical release action is to define pre-seal inspection, cleanliness, serialization and witness samples. The requirement should survive staff changes and future lot reviews because it is recorded with the controlled construction.
Use closure records and retained baseline data to demonstrate margin. When feasible, compare the result before and after the operation most likely to disturb it.
Pay attention to opening a failed package without knowing its pre-seal condition. A corrective action is credible only when it changes that physical mechanism and the follow-up data confirm the change.
A Worked Engineering Review
A sensor circuit operates in condensing humidity but does not require a vacuum or controlled gas. A selective coating may protect high-impedance and conductor regions while leaving connector pads clear. The coating is qualified for adhesion, coverage over printed steps, ionic cleanliness and resistance drift under biased humidity. Thermal testing confirms that the extra layer does not overheat the sensor. If field exposure includes pressure washing or aggressive chemicals, a sealed or potted approach may be justified, but mechanical stress and repairability must be re-evaluated.
Design Review Checklist
- Quantify humidity, contaminants and bias.
- Select protection level by failure mechanism.
- Qualify cure, outgassing and CTE compatibility.
- Retest thermal performance after packaging.
- Inspect and record before closure.
Questions Engineers Commonly Ask
Does potting make a circuit waterproof?
Not automatically. Adhesion, voids, cable exits, permeability and thermal cycling create paths. Qualify the complete enclosure.
When is hermetic sealing necessary?
When controlled internal atmosphere or very low moisture ingress is required and justified by reliability and lifecycle needs.
Can conformal coating cover resistor trim cuts?
It can when compatible and after final stabilisation and inspection. Coverage must not change required electrical behaviour.
Related Engineering Resources
Closing Note
Packaging is an engineered environmental interface. Choose it from the real exposure, then verify electrical, mechanical and thermal performance after the protection process.
