AlN Substrate Receipt: Document Edge Damage Before Processing

Measurement purpose

Preserve and assess AlN edge condition at receipt.

Specimens and conditions

Genealogy

Supplier lot, package and pocket retained.

Surface state

Bare or processed AlN identified before any preparation.

Equipment and records required

• Imaging: Controlled illumination and scaled edge views tied to one coordinate convention.
• Dimensional check: Suitable non-damaging measurement of local chip extent and feature setback.

Method sequence

1. Receive

   Record package and first-observed condition.

   Record: Package-position ledger.

2. Map

   Locate chip and line indications by edge and face.

   Record: Scaled region map.

3. Assess

   Compare with drawing and select qualified examination for unresolved cracks.

   Record: Bounded disposition and permitted next operation.

Decision and uncertainty

Apply actual edge and crack requirements; appearance does not establish bulk properties.

Hidden crack extent and first-observed timing may remain unknown.

Incoming quality and substrate drawing owners.

Traceable outputs

Record the package before removing the substrates

Photograph the package, label, separators and visible condition of the contents before unpacking. Record whether the shipment contains individual pockets, stacked plates or another arrangement, and identify the position of each sampled substrate. Retain evidence of displaced separators or loose fragments. The container can explain where contact was possible, but package appearance alone cannot prove the timing or cause of a chip.

Separate supplier lot identity from the shipping container number. Multiple ceramic lots may share one shipment, while one lot may be split between several packages. Preserve both relationships. If the package has already been opened or repacked, record that fact rather than reconstructing an unopened condition from memory. The first observed state is the evidence actually available, even when it is not the original shipping state.

Transfer the part without adding a new edge event

Use the approved handling method for the actual substrate and any metallization or coating present. Support the piece so adjacent plates cannot strike its edges during removal. Avoid sliding a ceramic face over loose fragments. Keep suspect material segregated from acceptable material and identify the contact regions used by tools or gloves.

Do not grind, scrape or deliberately flex the part to see whether an indication grows. Sharp fragments require suitable safe handling, and any later machining or chemical preparation belongs under an approved material-specific procedure. Bare AlN, metallized AlN and populated assemblies are different handling states. An operation suitable for one cannot be assumed harmless to the others.

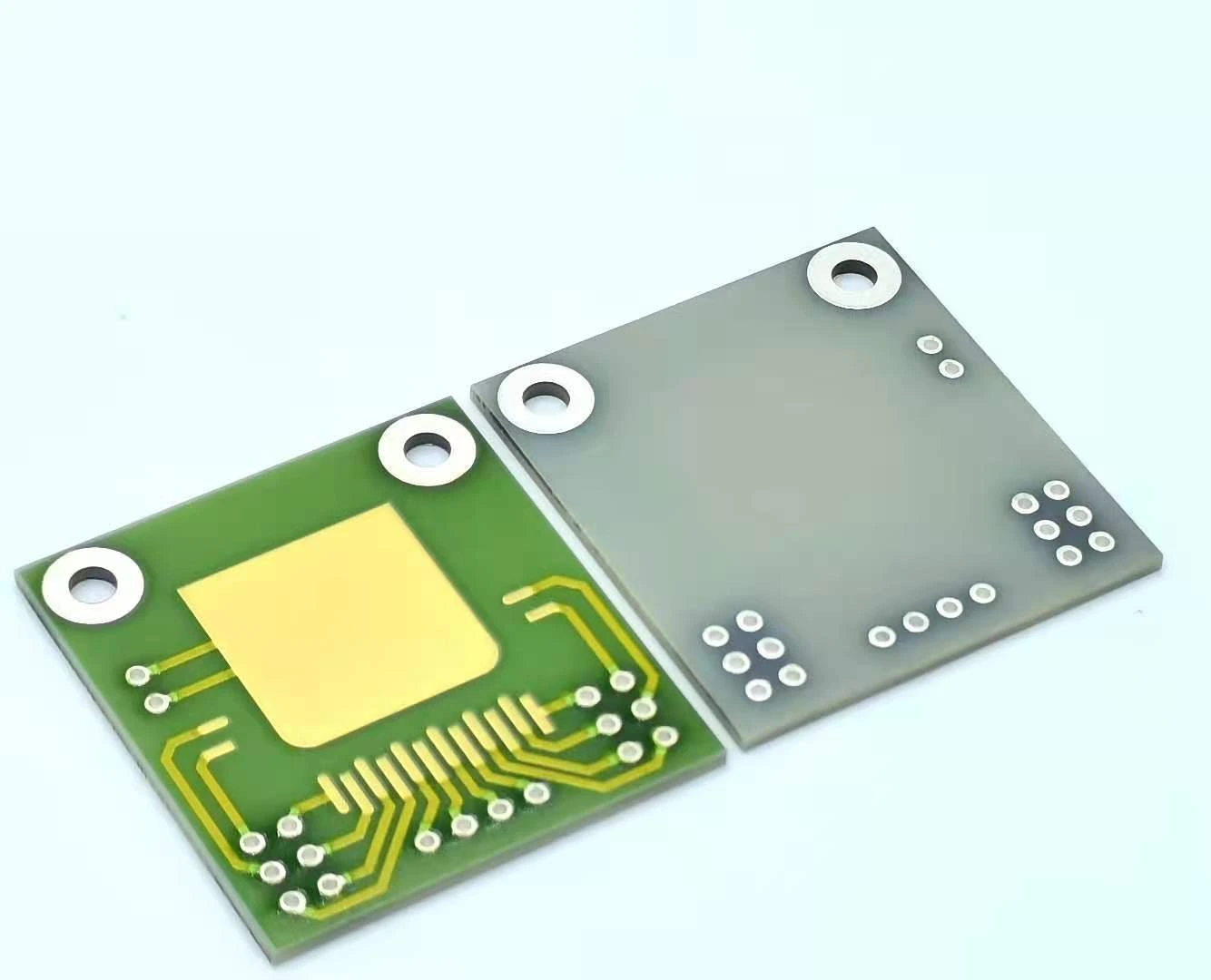

Use one face and edge coordinate convention

Define the viewing face, datum corner and numbering direction for the perimeter. Label edges E1 through E4 only if the part actually has four relevant sides; use a suitable convention for shaped substrates. Record a chip's start and end along the edge, its inward extent and the face on which it is visible. A position described only as upper right changes when the operator rotates the part.

Capture an overview followed by scaled close-ups in the same convention. Include the opposite face where accessible because a chip can taper through the thickness. Keep projected length, inward depth and through-thickness extent separate. A maximum diagonal across a damaged region is not interchangeable with the amount of functional edge margin it consumes.

Use a package-position ledger to preserve the first observation

Consider a receipt containing two labeled trays, each with individually identified pockets. The inspector sees a loose fragment in tray T2 pocket C4 before lifting its substrate, and notices an edge indication on the substrate only after the first transfer. Record those as two separate timed observations. Do not write that the indication was visible before unpacking merely because the fragment had already been found. The record can support a later matching examination without inventing the missing earlier view.

Use an event sequence rather than one final pass/fail entry. Retain the image before removal, the first image of the exposed edge and the transfer tool's contact location. If the opposite face was inaccessible in its pocket, explicitly identify the first event at which that face became visible. The engineering margin calculation belongs with the linked AlN edge-clearance method; this receipt ledger preserves when and where its input geometry was first observed.

Separate a crack indication from a surface line

A line near an edge may be a crack, a machining mark, a residue boundary or an optical effect. Repeat the observation with controlled illumination and focus before assigning a material classification. Record what changes and what remains fixed. Do not use the absence of a line in one lighting condition as proof that a crack is absent.

Where the indication affects acceptance, select an examination that can address the relevant depth and location. The required method depends on the geometry and material state; no single photograph excludes all subsurface damage. Fractographic research shows that machining-related cracks can require interpretation of fracture-surface evidence. A receipt inspection should therefore preserve indications for qualified review rather than assign strength from a smooth-looking edge.

Compare positions without overassigning cause

Map observed damage by package position, edge direction and the first handling step after opening. Repeated chips at one separator contact or one pickup location justify a focused comparison. They do not alone establish whether the supplier, transporter or receiving fixture caused the damage. Keep timing evidence separate from spatial association.

For an investigation, compare controlled handling routes using equivalent identified substrates and retain the initial condition before each route. Change one relevant contact or transfer step at a time. A final reduction in chipped pieces after several simultaneous changes cannot identify the effective correction. Do not use material already damaged during an earlier trial as an independent test of a new receipt method.

Keep grade and thermal properties out of the visual verdict

An AlN substrate's color, edge texture or apparent density does not establish its specified grade or thermal conductivity. Match the supplied material record to the purchase requirement and lot identity. If a property requires verification, use the agreed material-specific method and sampling plan. Visual inspection can support identity checks only to the extent the approved process actually permits.

Likewise, a chip does not prove that the bulk ceramic is unsuitable for every application. Its relevance depends on crack condition, geometry, support, functional setback and the drawing's acceptance criteria. Separate the observed nonconformity from broad statements about the material family. This keeps a supplier discussion focused on a reproducible requirement rather than a disputed interpretation of appearance.

Issue a receipt disposition with recoverable evidence

The receipt record should identify the exact substrate, package pocket, observed region, measurement method and disposition. Retain the original images and any safely collected fragments with their parent identity. If cleaning or additional inspection is authorized, link the later observations to the earlier state instead of replacing the earlier record.

For a custom AlN circuit enquiry, provide the substrate drawing, edge and crack requirements, exposed surface system and intended mounting interface. ChipSimple can review the drawing-specific circuit and handling considerations. The useful result is a clear decision about the received geometry and next permitted operation, with material qualification and final assembly performance kept under their own requirements.
