Printed Dielectric Inspection: Is a Surface Spot a Through-Layer Defect?

Measurement purpose

Classify localized dielectric indications using path-specific evidence.

Specimens and conditions

Layer state

Known printed sequence and accessible electrode geometry.

Indication

Registered coordinates with as-found image retained.

Equipment and records required

• Optical localization: Resolved scale and controllable lighting without image-only defect claims.
• Electrical path review: Suitable low-current setup with declared electrode, guard and safe discharge arrangement.

Method sequence

1. Locate

   Map the indication to the functional overlap.

   Record: Layer-coordinate image.

2. Separate paths

   Identify measured and alternative leakage routes.

   Record: Connection diagram and timed readings.

3. Confirm

   Select authorized analysis for the unresolved local fact.

   Record: Preparation history and classification.

Decision and uncertainty

Use only evidence that includes the indicated location and required path.

Optical depth ambiguity and parallel currents limit localization.

Insulation design and quality owners.

Traceable outputs

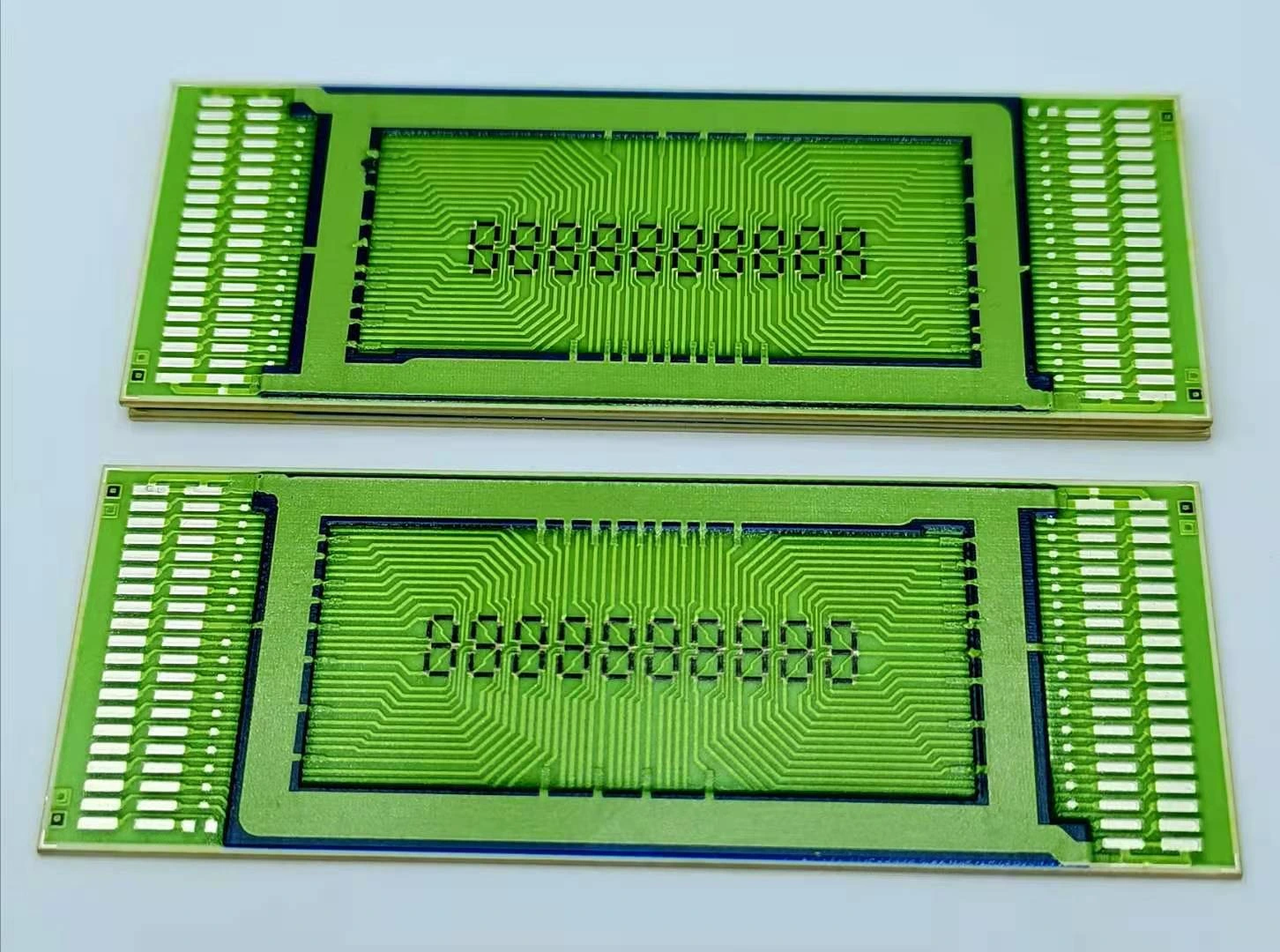

Give the spot an identity in the layer stack

Record the panel, circuit, dielectric patch and coordinates of the indication. Include a surrounding conductor or substrate landmark so the location can be recovered after the specimen is moved. Name the process state: fired dielectric before the top conductor, completed crossover, protective glass over a resistor, or another construction. These states provide different access and cannot share one interpretation without qualification.

Overlay the actual layer geometry rather than judging the spot in an isolated close-up. A mark over bare ceramic beside a crossover has a different consequence from a mark directly between two overlapping conductors. Keep a photograph of the full crossing with the suspect point identified. The first output is a localized observation, not a pinhole count based only on dark pixels.

Test the optical explanation first

Capture the region under repeatable focus and exposure, then change the illumination direction while keeping the specimen registered. A specular patch can disappear when light moves; a depression can reverse its shadow. A persistent boundary deserves further examination, but persistence alone does not establish the depth of the indication or identify the material at its bottom.

Retain the original view before adjusting contrast or magnification. If the mark occupies too few resolved image elements, classify its geometry as unresolved rather than reporting a precise diameter. Do not use a sharpened halo as the defect boundary. The inspection method must demonstrate that the boundary being measured belongs to the layer feature, not to image processing or reflected light.

Show whether the test actually includes that location

Draw the driven and measured electrodes in plan and section. Identify the portion of dielectric between them and every alternative route through the assembled circuit or fixture. A spot outside the electrode overlap may not be challenged by a through-layer test at all. Conversely, an exposed edge can add surface leakage even when the central separating layer is intact.

Do not place an improvised probe into the indication to see whether it reaches metal. Contact force can damage a thin region or drive contamination into it. If a temporary electrode or local contact is required, define its geometry and preparation with the method owner. The resulting observation then describes the prepared specimen, not necessarily its untouched incoming state.

Understand why total leakage cannot locate one pinhole

Assume two hypothetical independent insulation routes are in parallel between the same test terminals. A 200 GΩ bulk route and a 50 GΩ surface route combine to 40 GΩ. At an illustrative 10 V, the total current is 250 pA: 50 pA through the bulk route and 200 pA through the surface route. The lower overall resistance does not identify a through-layer opening.

If a valid diagnostic guard excludes that surface contribution, the measured path may change toward the 200 GΩ result. This supports a path-separation interpretation only when the guard geometry is appropriate and the specimen state has not otherwise changed. It does not automatically invalidate an unguarded assembly failure, because the surface route may exist in the customer's real circuit. These numbers explain the network, not an acceptance limit or prescribed test voltage.

Preserve the indication through electrical investigation

Record the as-found image and any permitted low-stress observation before applying a test that could alter a weak region. Agree the stimulus, current limit, timing and stopping criteria with the responsible test owner. A withstand exposure can change a defect and should not be used as an exploratory way to make an ambiguous spot more visible.

Use a safe, controlled test arrangement with appropriate access protection and verified discharge. Keep the entire current-versus-time record where it is relevant, not only the final resistance. Compare specimens at the same temperature, humidity and electrification interval. A changing current can reflect charging or environmental history as well as a defect; repeating until the largest resistance appears changes the decision process.

Choose confirmation from the unresolved fact

A surface-height question may call for profiling, whereas a layer-continuity question may require a section through the exact indication. A chemical-residue question needs a compatible analytical route. Choose the method that separates the remaining hypotheses. Performing several unrelated examinations does not compensate for failing to place any of them through the suspect location.

Retain an untouched comparison region and document every preparation step. Polishing can smear material; sectioning can miss a small defect; cleaning can remove a conductive residue. If the selected examination cannot resolve the disputed fact, keep that limitation in the disposition. A clean-looking image from a neighboring region does not establish that the original spot was harmless.

Keep defect counts tied to inspected area and access

Report the number of evaluated patches and the area or feature population actually inspected. Ten visible spots on a large unprinted dielectric coupon cannot be compared directly with one spot on a dense finished crossover array. The top conductor may obscure the relevant area in the latter, and the optical detection conditions may differ.

Separate confirmed through-layer defects, surface-only indications and unresolved observations. Combining all three into one reject percentage hides the strength of the evidence. If the drawing permits a feature only outside a functional region, retain its location relative to that region rather than discarding it from the record. This supports a focused process investigation without turning cosmetic differences into unsupported electrical failure claims.

Issue a location-specific technical disposition

The final record should state what was observed, which insulation route was tested and what independent evidence supports the classification. Keep the original image, preparation chronology and electrical conditions attached to the same indication identifier. A product acceptance decision must use the agreed drawing and test criteria, not a universal rule that every visible dot is a pinhole.

For a ceramic dielectric enquiry, send the complete conductor stack and access points together with the suspect images. ChipSimple can review the drawing-specific printed structure and inspection needs. Crossovers, surface overglazes and polymer coatings remain different constructions. Evidence from one must not be generalized to another merely because all appear as a colored protective layer in a photograph.
