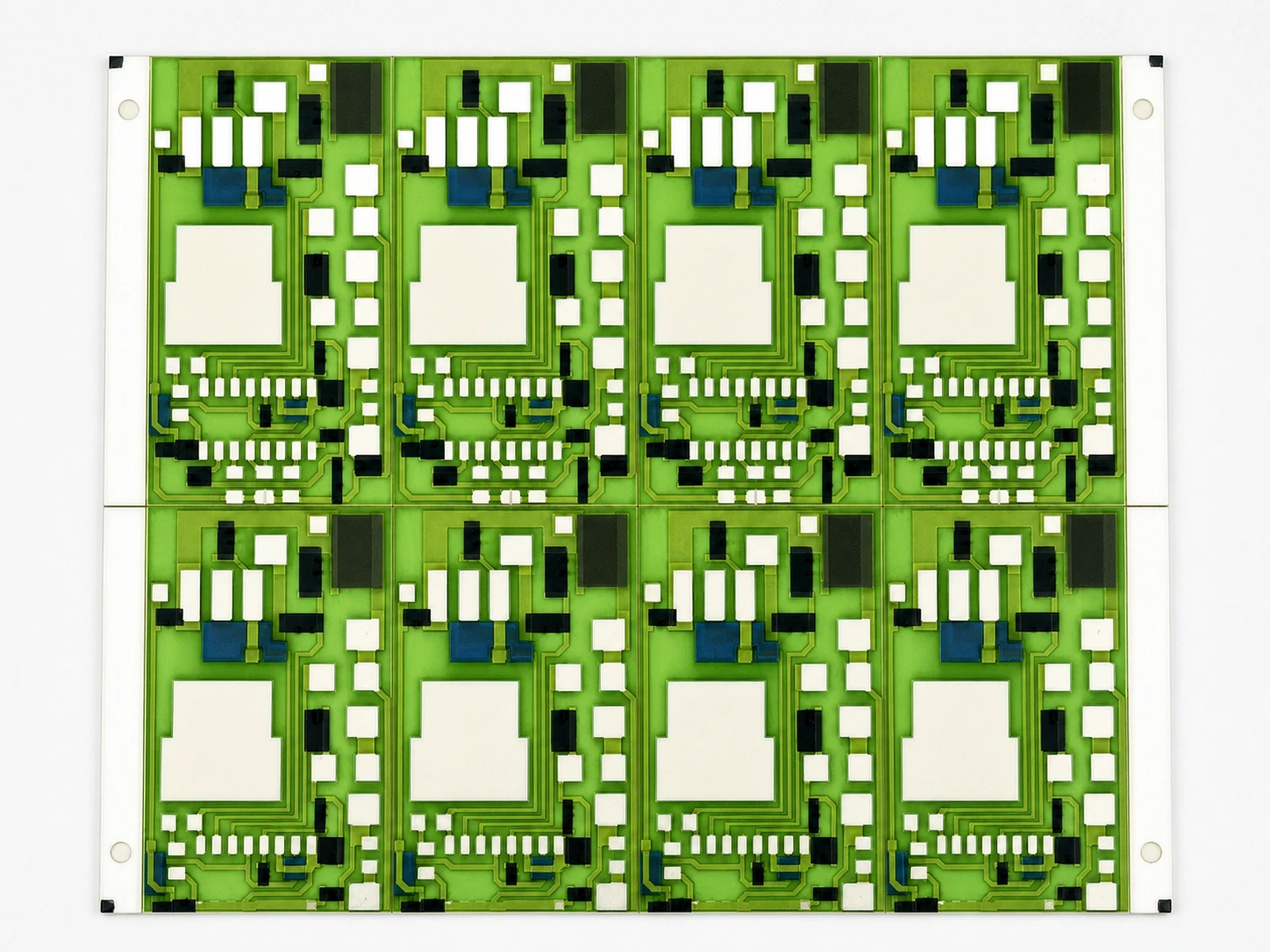

Ground-Return Layout on Thick Film Ceramic Circuits

Trace complete loops rather than isolated signal lines

Start at the source, follow current through the load and then return to the source. Repeat for the signal current, supply current and any transient charging current. These loops may use different physical paths even when their schematic nodes have the same ground name. A sensor signal can be corrupted by a supply-return segment that appears electrically insignificant in a continuity test.

Mark where each loop changes layer or crosses an external connector. A return that must travel through a remote cable before reaching its source can produce a much larger loop than the visible ceramic pattern suggests. Include wire bonds and package metal in the review if they carry part of the intended return current.

Translate shared return impedance into an error budget

A shared resistance develops a voltage proportional to the current flowing through it. If the sensing circuit measures relative to one end of that resistance while the sensor is referenced to the other, the voltage appears as an input error. The error can follow load state and therefore resemble a real change in the measured quantity.

For a simple hypothetical example, a changing current of 0.2 A through a shared 0.05 Ω segment produces a 10 mV change. Those numbers are arithmetic inputs, not conductor specifications. Compare the resulting voltage with the full measurement error budget, including amplification or conversion gain, before deciding whether the return segment is acceptable.

Consider edge rate as well as nominal signal frequency

Return-current distribution changes with frequency, and an interrupted return can force a longer path. A slowly repeated digital signal can still contain fast edges. Its repetition rate therefore does not fully describe the grounding problem. Identify the switching edge, decoupling path and sensitive bandwidth.

Do not transfer an organic-PCB layout rule directly into a thick film stack without checking the actual conductor and dielectric geometry. Ceramic permittivity, printed layer dimensions and the location of nearby metal affect the electromagnetic structure. The transferable principle is to control the loop and shared impedance; the physical implementation must fit the ceramic construction.

Arrange functions so their current paths remain local

Place sensitive input conditioning near its source connection and keep high-current switching loops away from that region. A layout that forces a power return through the sensing area cannot always be repaired by adding one short ground link afterward. Begin with functional placement, then route the conductors.

Keep a local bypass capacitor's loop compact between the supply and the relevant return connection. A capacitor placed nearby in the top view can still have a long electrical loop if its return reaches a distant ground point. Show both sides of the capacitor connection when reviewing placement, including the via or bond that completes the path.

Assign a return strategy to each circuit function

Different functions need different evidence of a suitable return. A heater power path is evaluated for loss and temperature, while a resistive sensor return is evaluated for its contribution to output error. These functions may share a power source without sharing the same sensitive conductor segment.

Inspect ground planes for necks, islands and interruptions

A large printed metal area can contain narrow connections that dominate its impedance. Openings for vias, crossovers or isolation may create an unintended bottleneck. Examine continuity from each ground connection to the intended return point, not just the total metallized area.

An isolated region connected only through a component or a long bond is not a useful general return plane. Likewise, splitting a plane to separate circuit functions can worsen coupling if a signal then crosses the split and its return must detour. Make any partition decision from the complete current paths rather than a visual preference for separate analog and digital regions.

Measure the error at the relevant physical nodes

Probe the potential difference between the sensor reference and the measurement reference while changing the suspected load state. Keep probe loops small and avoid adding a new return through the test instrument. A grounded oscilloscope lead can unintentionally alter the circuit being investigated; use a measurement arrangement appropriate to the isolation and voltage involved.

Compare the output with the power load disabled, enabled steadily and switching. If the error follows current changes, inspect common return segments before changing the sensor. Repeat the test with the same cable arrangement because an external return can dominate the result even when the ceramic layout is unchanged.

Deliver a current-path review with the artwork

Provide a schematic with named return functions and artwork showing the intended loops. Include external connectors, cable shields, package connections and the load states that matter. Mark the physical voltage-sensing points rather than identifying only a net name. These annotations give the layout and test teams the same definition of ground.

The final review should identify which errors were calculated using DC resistance and which require frequency-dependent or experimental evaluation. Preserve the assumptions about mounting metal and external wiring. A ground arrangement that works with one test harness may not remain equivalent after the circuit is installed in a different enclosure.
